2-05 — CLUTCH PIPING (#144344) — 52 parça
çizim 432457
153 115 45 116 43 46 44 47 47 42 207 29 16 210 44 35 26 207 34 29 33 28 26 35 210 44 106 107 51 35 33 34 164 233 48 48 47 47
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
ID=16 L=28 CHI 		1-09700-872-0 03 1 1404- ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●
28 CLIP; OIL PIPE
ID=8 H=20 L=20 CHI 		1-09700-604-0 02 1 1404- ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404- ● ●
33 CLIP; OIL PIPE
ID=8 H=20 L=20 CHI 		1-09700-604-0 03 1 1404- ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE CHI 		0-28650-830-0 03 1 1404- ● ●
35 NUT; PIPE CLIP
M8 FLANGE CHI 		0-91180-108-0 03 1 1404- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) CHI 		8-97430-495-0 01 1 1404- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
WHEEL BASE 5900MM(59W) (B) 		8-97431-531-0 01 1 1404- ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-97431-531-0 01 1 1404- ●
42 BRACKET; FLEX HOSE,CLU CONT
WHEEL BASE 5300MM(53W) (B) 		8-97431-713-0 01 1 1404- ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE CHI 		0-28650-835-0 02 1 1404- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●
45 NUT; FLEX HOSE,CLU CONT
M12 CHI 		9-09840-280-0 01 1 1404- ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 CHI 		0-91510-512-0 01 1 1404- ● ●
47 HOSE; FLEX,CLU CONT
WHEEL BASE 5900MM(59W) OIL L=570 		8-97431-526-0 01 1 1404- ●
47 HOSE; FLEX,CLU CONT
OIL L=570 		8-97431-526-0 01 1 1404- ●
47 HOSE; FLEX,CLU CONT
WHEEL BASE 5300MM(53W) OIL L=530 		8-97431-527-0 01 1 1404- ●
47 HOSE; FLEX,CLU CONT
WHEEL BASE 5900MM(59W) AIR L=670 		8-97431-529-0 01 1 1404- ●
47 HOSE; FLEX,CLU CONT
AIR L=670 		8-97431-529-0 01 1 1404- ●
47 HOSE; FLEX,CLU CONT
WHEEL BASE 5300MM(53W) AIR L=600 		8-97431-530-0 01 1 1404- ●
48 GASKET; FLEX HOSE,CLU CONT
ID=14.2 OD=20.0 		9-09571-414-0 01 1 1404- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=14.2 OD=20.0 		9-09571-414-0 01 1 1404- ● ●
51 WASHER; LK
ID=14.2 CHI 		0-91510-514-0 01 1 1404- ● ●
106 UNION; OIL PIPE
M14 STRAIGHT CHI 		0-92113-008-0 01 1 1404- ● ●
107 NUT; UNION,OIL PIPE
M14 CHI 		0-91111-514-0 01 1 1404- ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 CHI 		0-91111-514-0 01 1 1404- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 CHI 		0-91510-514-0 01 1 1404- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
WHEEL BASE 5300MM(53W) 		8-97431-714-0 01 1 1404- ●
153 PIPE ASM; CLU,UNION TO FLEX
WHEEL BASE 5900MM(59W) 		8-97431-528-0 01 1 1404- ●
153 PIPE ASM; CLU,UNION TO FLEX 8-97431-528-0 01 1 1404- ●
164 CLIP; BAND,FLEX HOSE
L=350 CHI 		1-09707-183-0 01 1 1404- ● ●
207 BOLT; CLIP
M8X20 FLANGE CHI 		0-28650-820-0 03 1 1404- ● ●
210 NUT; CLIP
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
233 BAND; FLEX HOSE
L=175 CHI 		1-09707-178-0 01 1 1404- ● ●
çizim 432485
235 101 16 29 104 115 116 101 27 42
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
ID=16 L=28 CHI 		1-09700-872-0 03 1 1404- ● ●
27 NUT; BRKT
M10 FLANGE CHI 		0-91180-210-0 02 1 1404- ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) CHI 		8-97430-495-0 01 1 1404- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
WHEEL BASE 5900MM(59W) (B) 		8-97431-531-0 01 1 1404- ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-97431-531-0 01 1 1404- ●
42 BRACKET; FLEX HOSE,CLU CONT
WHEEL BASE 5300MM(53W) (B) 		8-97431-713-0 01 1 1404- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-97431-525-0 01 1 1404- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1417 SERVICED BY L=1550 CHI 		1-47428-766-0 01 1 1404- ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 CHI 		0-91111-514-0 01 1 1404- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 CHI 		0-91510-514-0 01 1 1404- ● ●
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1404- ● ●

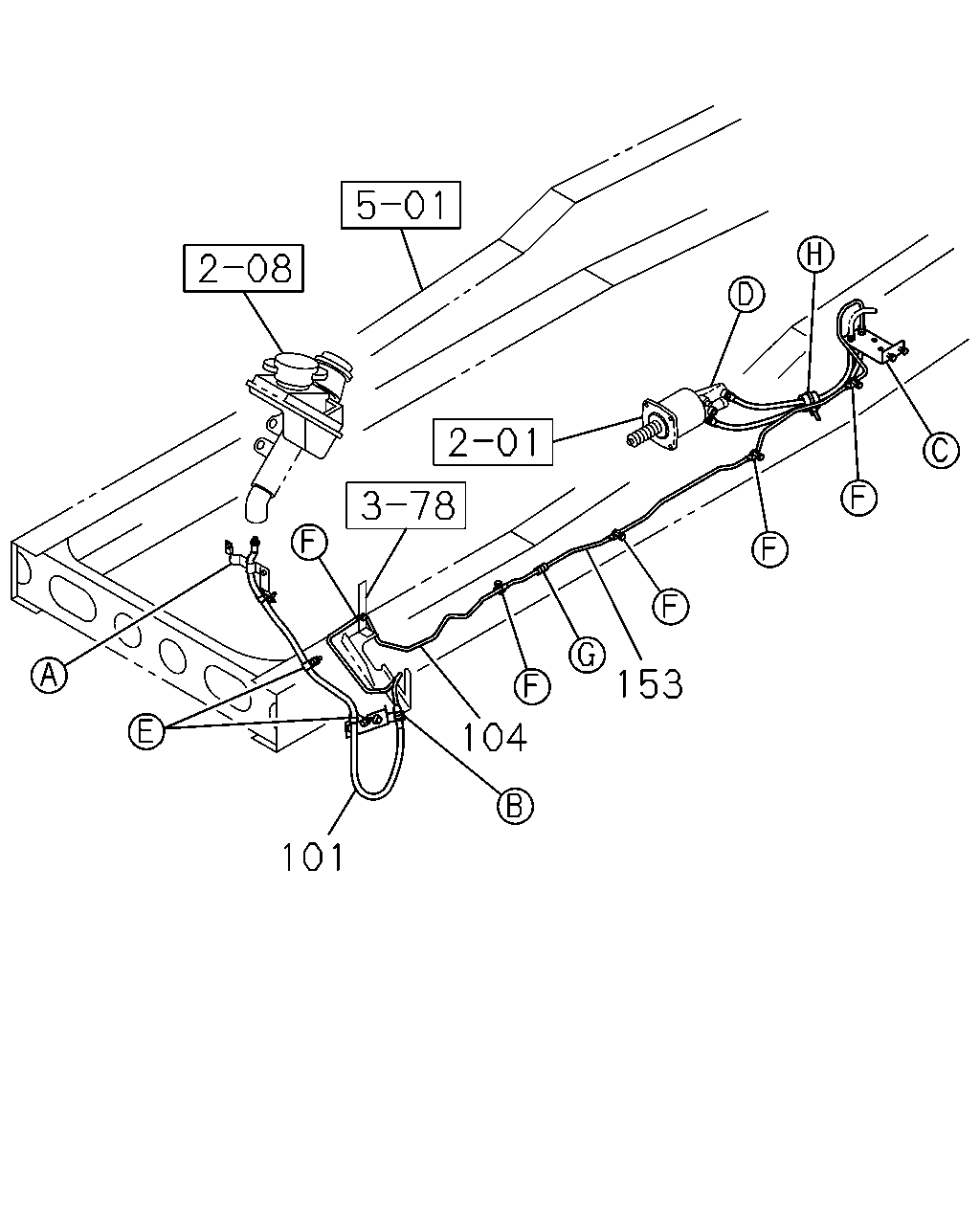

çizim 432731
101 104 153
BalonParca AdiParca NoAdetTipApplied Date A B
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-97431-525-0 01 1 1404- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1417 SERVICED BY L=1550 CHI 		1-47428-766-0 01 1 1404- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
WHEEL BASE 5300MM(53W) 		8-97431-714-0 01 1 1404- ●
153 PIPE ASM; CLU,UNION TO FLEX
WHEEL BASE 5900MM(59W) 		8-97431-528-0 01 1 1404- ●
153 PIPE ASM; CLU,UNION TO FLEX 8-97431-528-0 01 1 1404- ●
