◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#14434) — 170 parça

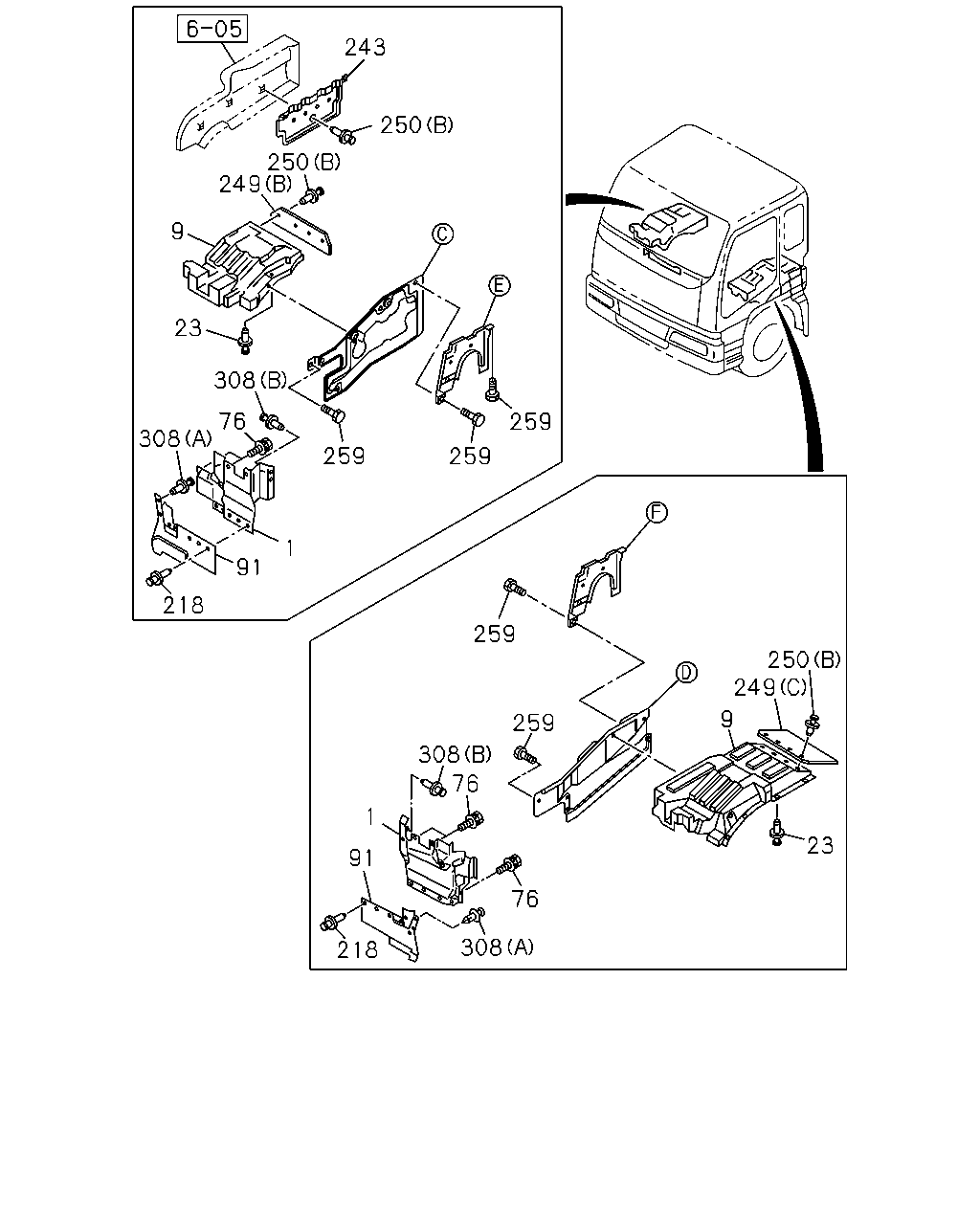

çizim 95991
243 250 250 249 9 23 308 308 76 259 259 259 1 91 218 259 250 249 9 259 308 76 1 91 218 308 76 23
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0710-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0710-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0710-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0710-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0710-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0710-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0710-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0710-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0710-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0710-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0711-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0710-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0710-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0710-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0710-0904
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0710-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0710-
çizim 95992
130 130 74 73 122 167 122 162 162 122 160 122 160 167 168
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0710-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0710-
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0710-
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0710-
122 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0710-
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-919-2 01 1 0710-0710
130 PANEL; SHUTTER NOISE
(E) 		1-79947-078-1 01 1 0711-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0710-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0710-
160 COVER ASM; EXH
(A) 		1-79931-408-4 01 1 0710-1207
160 COVER ASM; EXH
(A) 		1-79931-411-2 01 1 1208-
160 COVER ASM; EXH
(B) 		1-79931-412-1 01 1 0710-
162 BRACKET
(A) 		1-53441-520-0 02 1 0710-
162 BRACKET
(D) 		1-71907-815-0 01 1 0710-
162 BRACKET
(B) 		1-53441-521-2 01 1 0710-
162 BRACKET
(C) 		1-53441-522-0 01 1 0710-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0710-
168 NUT; EXH COVER
M8 FLANGE 		0-91180-108-0 01 1 0710-

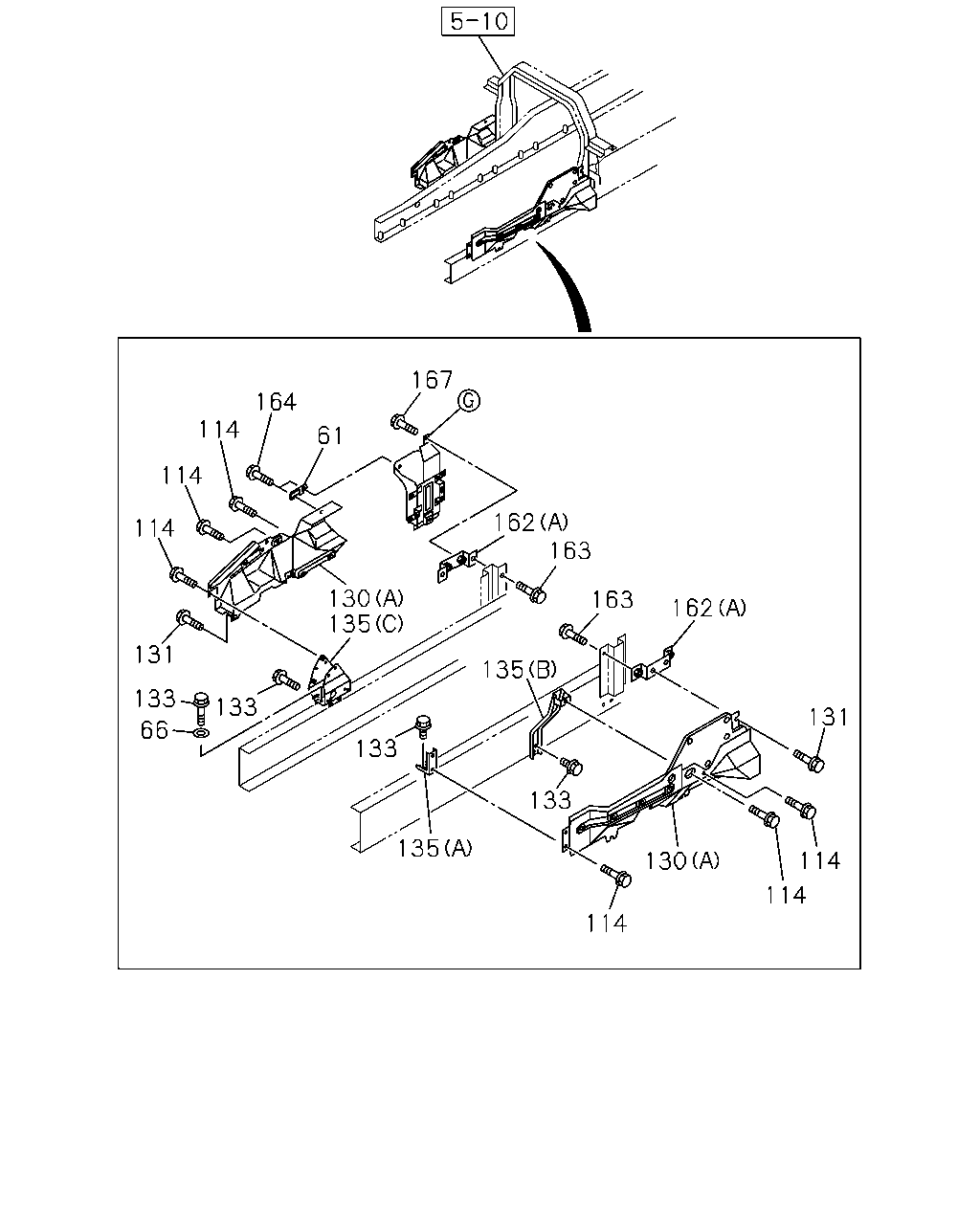

çizim 96000
167 164 61 114 114 114 131 133 66 133 133 135 114 130 114 114 131 133 135 162 163 163 162 130 135
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 1-53441-536-1 01 1 0710-0803
61 BRACKET; COVER 8-98039-501-1 01 1 0804-
66 WASHER; LK
ID=14.2 		0-91510-614-0 02 1 0710-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-919-2 01 1 0710-0710
130 PANEL; SHUTTER NOISE
(E) 		1-79947-078-1 01 1 0711-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0710-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0710-
131 BOLT; PANEL
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 07 1 0710-0805
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 0806-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0710-
133 BOLT; FRAME
M14X45 		0-20801-445-0 02 1 0710-
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 0710-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0710-
135 BRACKET; SIDE PANEL
(B) 		1-53441-508-1 01 1 0710-
135 BRACKET; SIDE PANEL
(C) 		1-33657-840-1 01 1 0710-
162 BRACKET
(A) 		1-53441-520-0 02 1 0710-
162 BRACKET
(D) 		1-71907-815-0 01 1 0710-
162 BRACKET
(B) 		1-53441-521-2 01 1 0710-
162 BRACKET
(C) 		1-53441-522-0 01 1 0710-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0710-
çizim 96160
145 194 104 74 74 194 195 74 104 195 74 194 104 74 145 104 194 74
BalonParca AdiParca NoAdetTipApplied Date
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0710-
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0710-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0710-
104 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710-0808
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28650-820-0 04 1 0710-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
145 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 04 1 0710-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-22159-373-0 02 1 0710-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-374-0 01 1 0710-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-375-0 01 1 0710-
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-543-1 01 1 0710-
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-545-0 01 1 0710-
çizim 96162
130 130 281 185 281 185 249 249 130 130 130 185 185 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-919-2 01 1 0710-0710
130 PANEL; SHUTTER NOISE
(E) 		1-79947-078-1 01 1 0711-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0710-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0710-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 0710-0710
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0711-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0711-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0710-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710-
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0710-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0710-

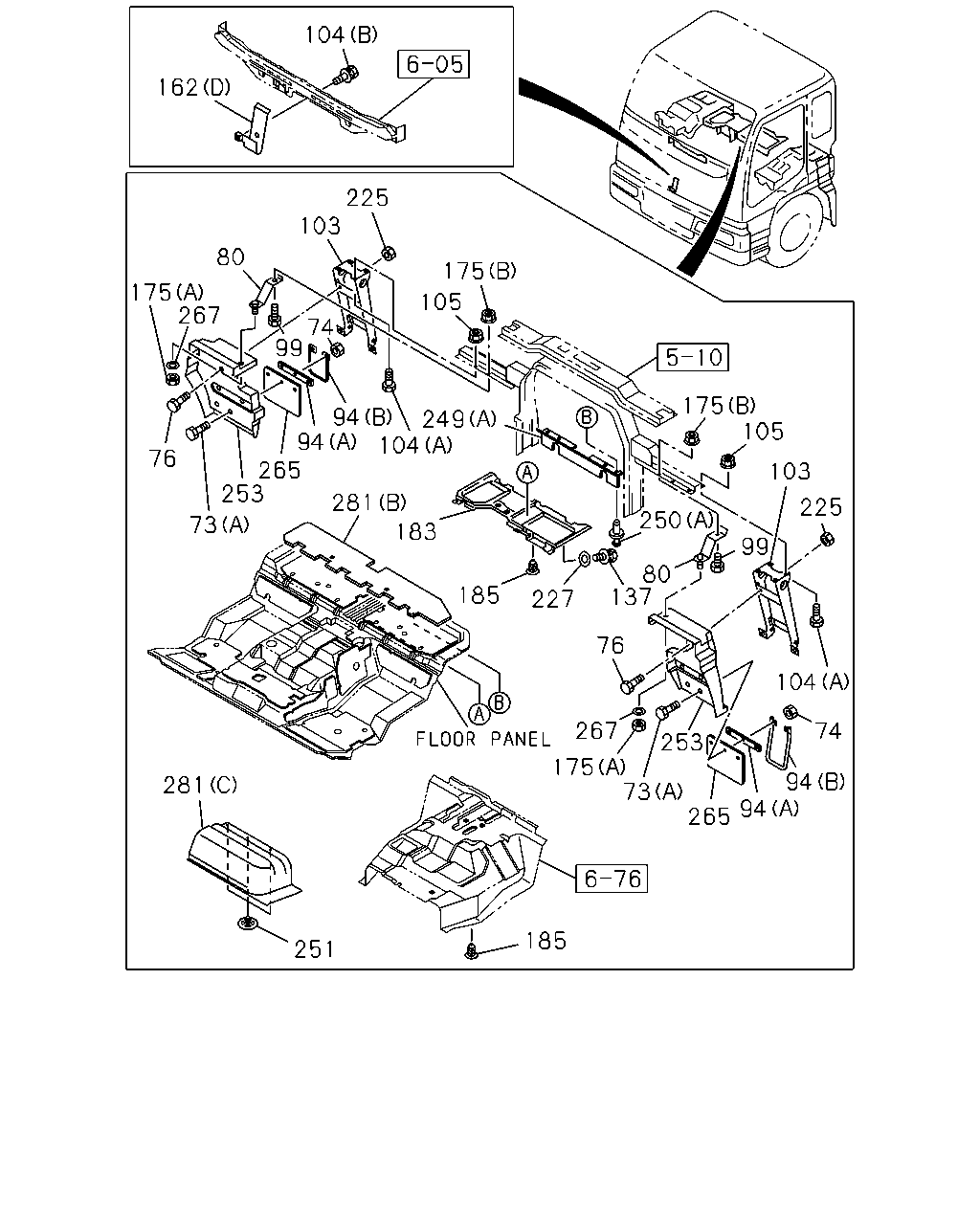

çizim 96164
104 162 225 103 80 175 175 267 105 74 99 94 249 175 105 103 225 250 99 104 94 265 253 76 73 281 183 185 227 137 80 76 104 74 267 253 94 94 265 73 175 185 251 281
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0710-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0710-
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0710-
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0710-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0710-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0710-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0710-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-524-0 01 1 0710-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0710-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0710-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 01 1 0710-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 01 1 1503-
103 BRACKET ASM; RR MUD FLAP 1-79931-445-0 01 1 0710-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-893-0 01 1 1503-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0710-
104 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710-0808
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28650-820-0 04 1 0710-
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0710-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
162 BRACKET
(A) 		1-53441-520-0 02 1 0710-
162 BRACKET
(D) 		1-71907-815-0 01 1 0710-
162 BRACKET
(B) 		1-53441-521-2 01 1 0710-
162 BRACKET
(C) 		1-53441-522-0 01 1 0710-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0710-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0710-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 0710-0710
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0711-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0710-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0710-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0711-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0710-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0710-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0710-
251 CLIP; NOISE INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 0710-
253 GUARD; MUD 1-79931-066-7 01 1 0710-0901
253 GUARD; MUD 8-98134-766-1 01 1 0902-
253 GUARD; MUD 1-79931-064-7 01 1 0710-0901
253 GUARD; MUD 8-98134-759-0 01 1 0902-
265 RUBBER; FLAP,REAR 1-79931-460-0 02 1 0710-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0710-
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0710-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
