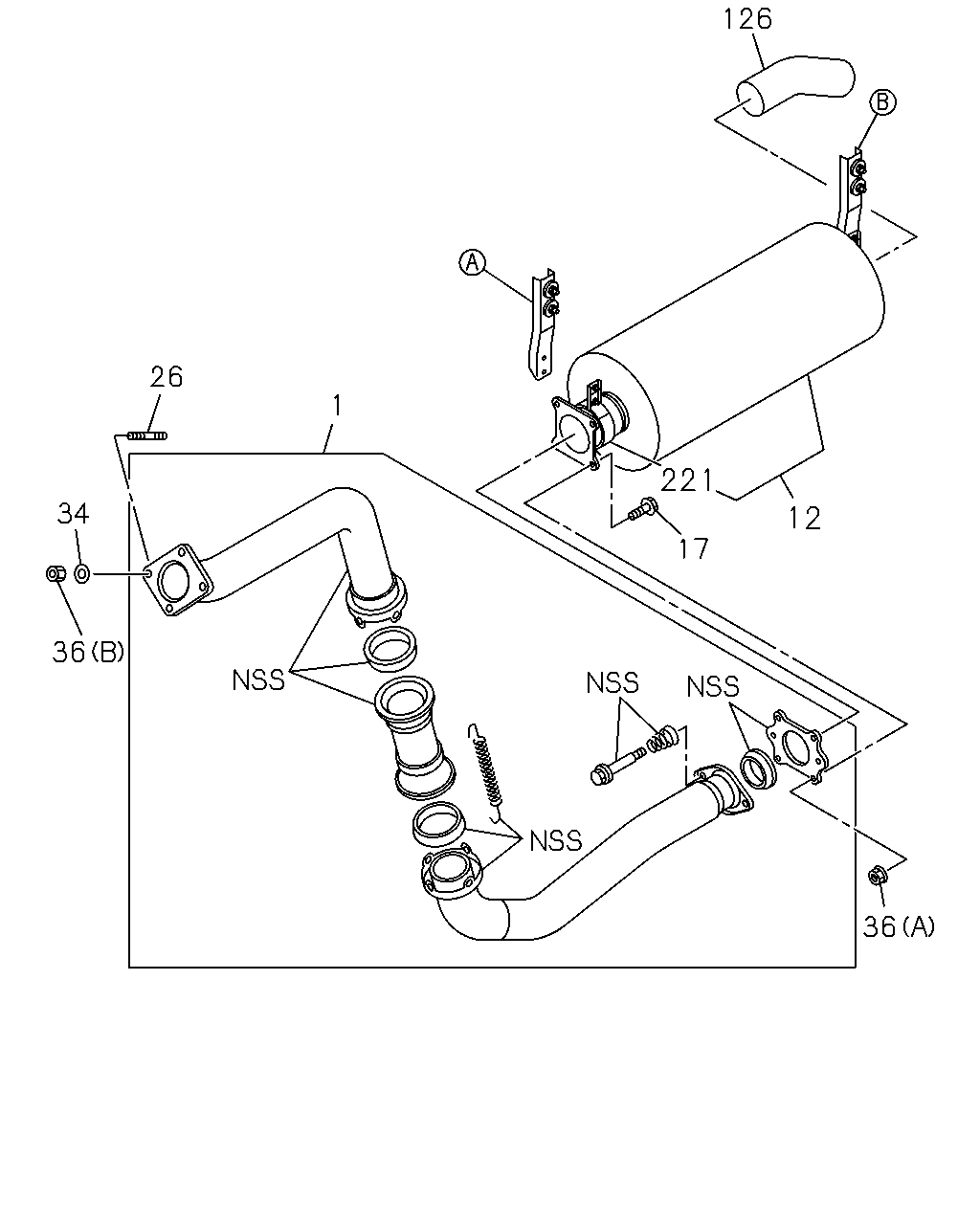

1-50 — EXHAUST PIPE AND SILENCER (#144339) — 23 parça

126 12 221 17 1 26 34 36 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH CHI	8-97430-177-0	01	1	1404-	●	●
12	SILENCER ASM; EXH	8-98183-450-2	01	1	1404-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE CHI	1-09000-604-0	04	1	1404-	●	●
26	STUD; EXH MANIF M12X140 L=160 CHI	1-09302-163-0	04	1	1404-	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH CHI	1-09556-020-0	04	1	1404-	●	●
36	NUT; EXH PIPE (A) M12 CHI	0-91110-512-0	04	1	1404-	●	●
36	NUT; EXH PIPE (B) M12 CHI	1-09400-131-0	04	1	1404-	●	●
126	PIPE; EXH,RR CHI	8-97430-179-0	01	1	1404-	●	●
221	CLAMP; EXH SILENCER D=101.4 CHI	1-22133-170-1	01	1	1404-	●	●

107 72 75 56 24 81 75 105 94 89 105 94 118 115 56 113 530 115 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COLLAR; DIST,CLAMP L=22 CHI	9-22159-024-0	02	1	1404-	●	●
56	BRACKET; CLAMP,EXH PIPE (A) CHI	8-97430-181-0	01	1	1404-	●	●
56	BRACKET; CLAMP,EXH PIPE (B) CHI	8-98055-106-0	01	1	1404-	●	●
72	WASHER; LK,BRKT ID=10.2 CHI	0-91510-810-0	02	1	1404-	●	●
75	RUBBER; SUPPORT,BRKT OD=40 CHI	1-22159-094-0	04	1	1404-	●	●
81	NUT; BRKT M10 CHI	0-91110-510-0	02	1	1404-	●	●
89	CLAMP; EXH SILENCER,RR CHI	8-97621-090-0	01	1	1404-	●	●
94	BOLT; CLAMP M8X30 FLANGE CHI	0-28050-830-0	04	1	1404-	●	●
105	NUT; CLAMP M8 FLANGE CHI	0-91180-108-0	04	1	1404-	●	●
107	BOLT; BRKT M10X60 CHI	0-10856-060-0	04	1	1404-	●	●
113	COLLAR; DIST,MTG BRKT L=22 CHI	9-22159-024-0	02	1	1404-	●	●
115	RUBBER; MTG,SILENCER OD=40 CHI	1-22159-094-0	04	1	1404-	●	●
118	NUT; SILENCER MTG BRKT M10 CHI	0-91110-510-0	02	1	1404-	●	●
530	WASHER ID=10.2 CHI	0-91510-810-0	02	1	1404-	●	●
