Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#144337) — 45 parça

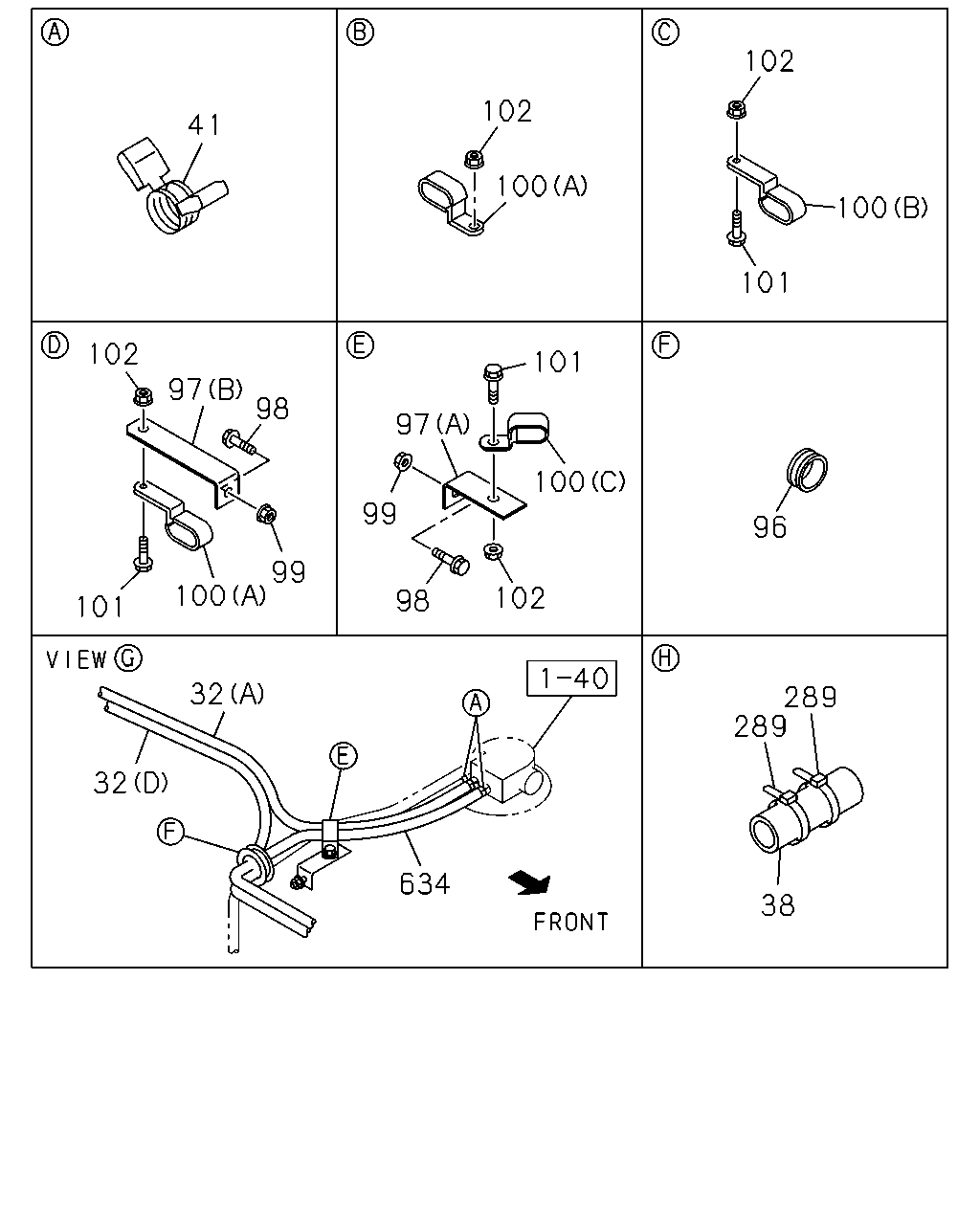

289 38 289 634 32 32 100 101 99 99 98 102 100 101 97 97 102 98 41 102 100 101 100 102 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK (A) ID=9.5,OD=14.5 L=860 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (B) ID=9.5,OD=14.5 L=260 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (D) ID=11.3,OD=19.0 L=1500 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (B) ID=9.5,OD=14.5 L=410 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (C) ID=11.3,OD=19.0 L=260 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (C) ID=11.3,OD=19.0 L=410 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300 CHI	1-09360-677-1	03	1	1404-	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14 CHI	1-09704-102-0	04	1	1404-	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=19 CHI	8-94238-569-0	02	1	1404-	●	●
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18 CHI	1-09891-003-0	01	1	1404-	●	●
97	BRACKET; CLIP (A) L=68 CHI	1-47475-525-0	01	1	1404-	●	●
97	BRACKET; CLIP (B) L=112 CHI	1-47475-694-1	01	1	1404-	●	●
98	BOLT; BRKT,FUEL PIPE M8X35 FLANGE CHI	0-28650-835-0	02	1	1404-	●	●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE CHI	0-91180-108-0	02	1	1404-	●	●
100	CLIP; FUEL PIPE (C) ID=14X29 H=15 L=20 CHI	1-09700-744-0	01	1	1404-	●	●
100	CLIP; FUEL PIPE (A) ID=19X32 H=17.5 L=22.5 CHI	1-09701-315-0	02	1	1404-	●	●
100	CLIP; FUEL PIPE (B) ID=19X32 H=17.5 L=50.5 CHI	1-09701-320-0	03	1	1404-	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE CHI	0-28650-820-0	05	1	1404-	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE CHI	0-91180-108-0	06	1	1404-	●	●
289	CLIP; BAND,HOSE L=250 CHI	5-09707-030-1	04	1	1404-	●	●
634	HOSE; RUBBER RETURN ID=9.5,OD=14.5 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-	●	●

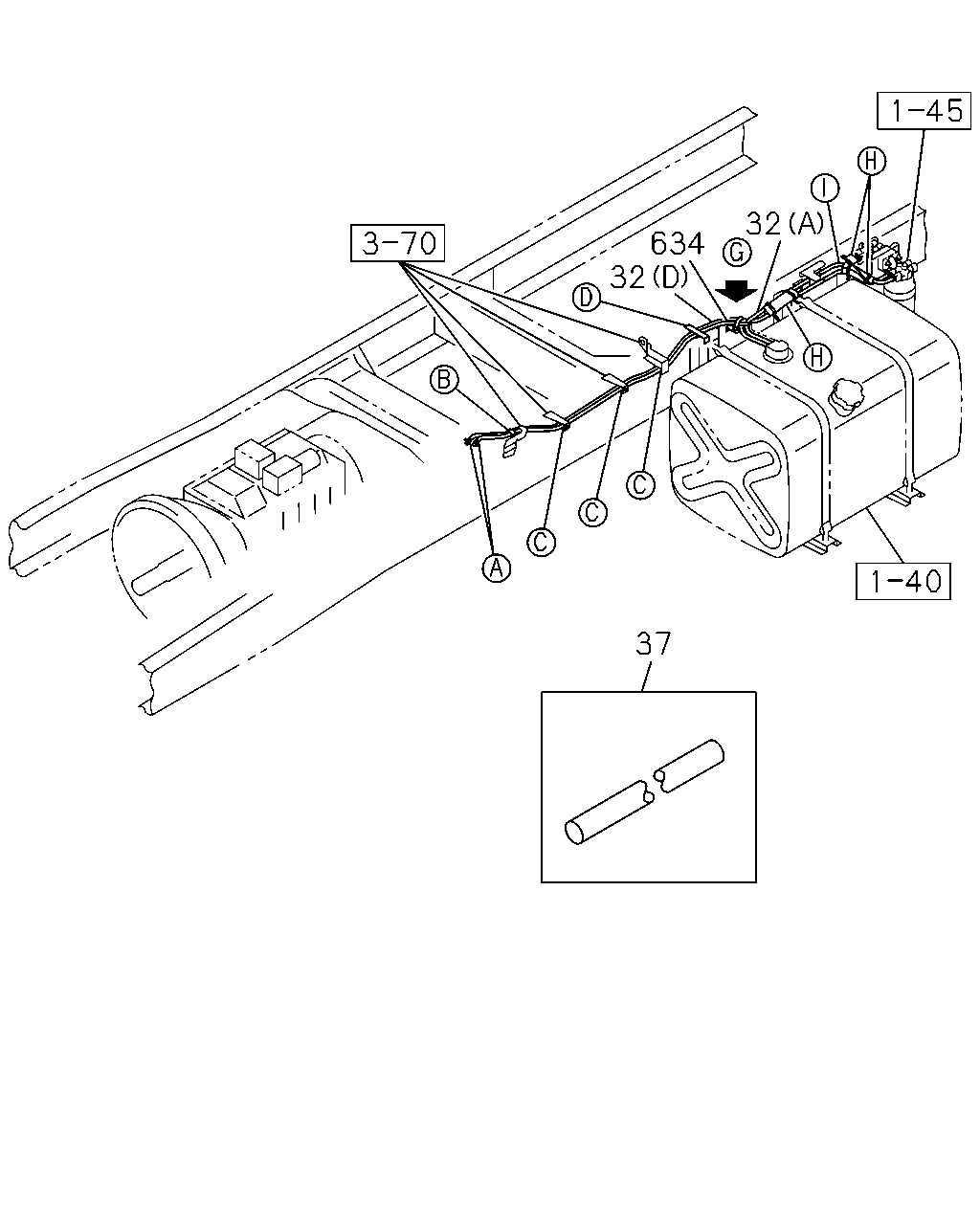

32 37 634 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK (A) ID=9.5,OD=14.5 L=860 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (B) ID=9.5,OD=14.5 L=260 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (D) ID=11.3,OD=19.0 L=1500 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (B) ID=9.5,OD=14.5 L=410 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (C) ID=11.3,OD=19.0 L=260 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (C) ID=11.3,OD=19.0 L=410 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-	●	●
37	HOSE; RUBBER DELIVERY SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-	●	●
634	HOSE; RUBBER RETURN ID=9.5,OD=14.5 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-	●	●

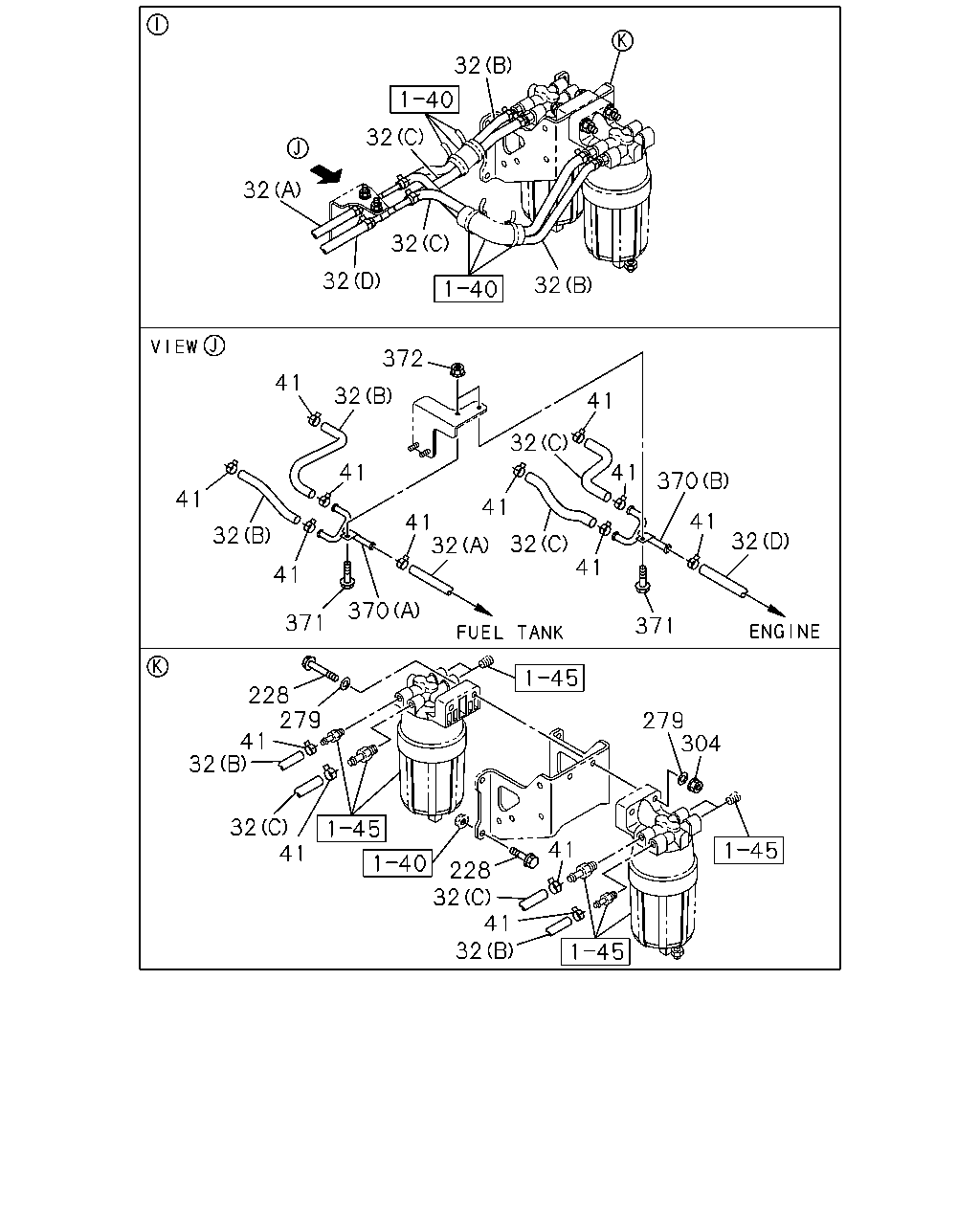

41 32 32 228 279 41 279 304 41 41 32 32 228 371 41 32 41 41 41 41 370 32 32 41 32 32 372 41 41 41 371 41 370 32 32 32 32 32 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK (A) ID=9.5,OD=14.5 L=860 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (B) ID=9.5,OD=14.5 L=260 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (D) ID=11.3,OD=19.0 L=1500 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (B) ID=9.5,OD=14.5 L=410 SERVICED BY L=3000 CHI	0-01260-300-0	01	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (C) ID=11.3,OD=19.0 L=260 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (C) ID=11.3,OD=19.0 L=410 SERVICED BY L=3000 CHI	0-01262-300-0	01	1	1404-	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14 CHI	1-09704-102-0	04	1	1404-	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=19 CHI	8-94238-569-0	02	1	1404-	●	●
228	BOLT; BRKT,SEDIMENTER M10X60 FLANGE CHI	0-28051-060-0	02	1	1404-	●	●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE CHI	0-28051-045-0	04	1	1404-	●	●
279	WASHER ID=10.5 OD=26 CHI	0-91614-710-0	02	1	1404-	●	●
304	NUT; BRKT M10 FLANGE CHI	0-91180-210-0	02	1	1404-	●	●
370	JOINT; FUEL (A) OD=11.5	8-97431-513-0	01	1	1404-	●	●
370	JOINT; FUEL (B) OD=13.5	8-97431-514-0	01	1	1404-	●	●
371	BOLT; JOINT M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-	●	●
372	NUT; JOINT M8 FLANGE CHI	0-91180-108-0	02	1	1404-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
