Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11600 - FXZ/GXZ(LHD)CHINA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#144336) — 25 parça
Tümü
A - FGZ6MX
B - GGZ6MX
◀

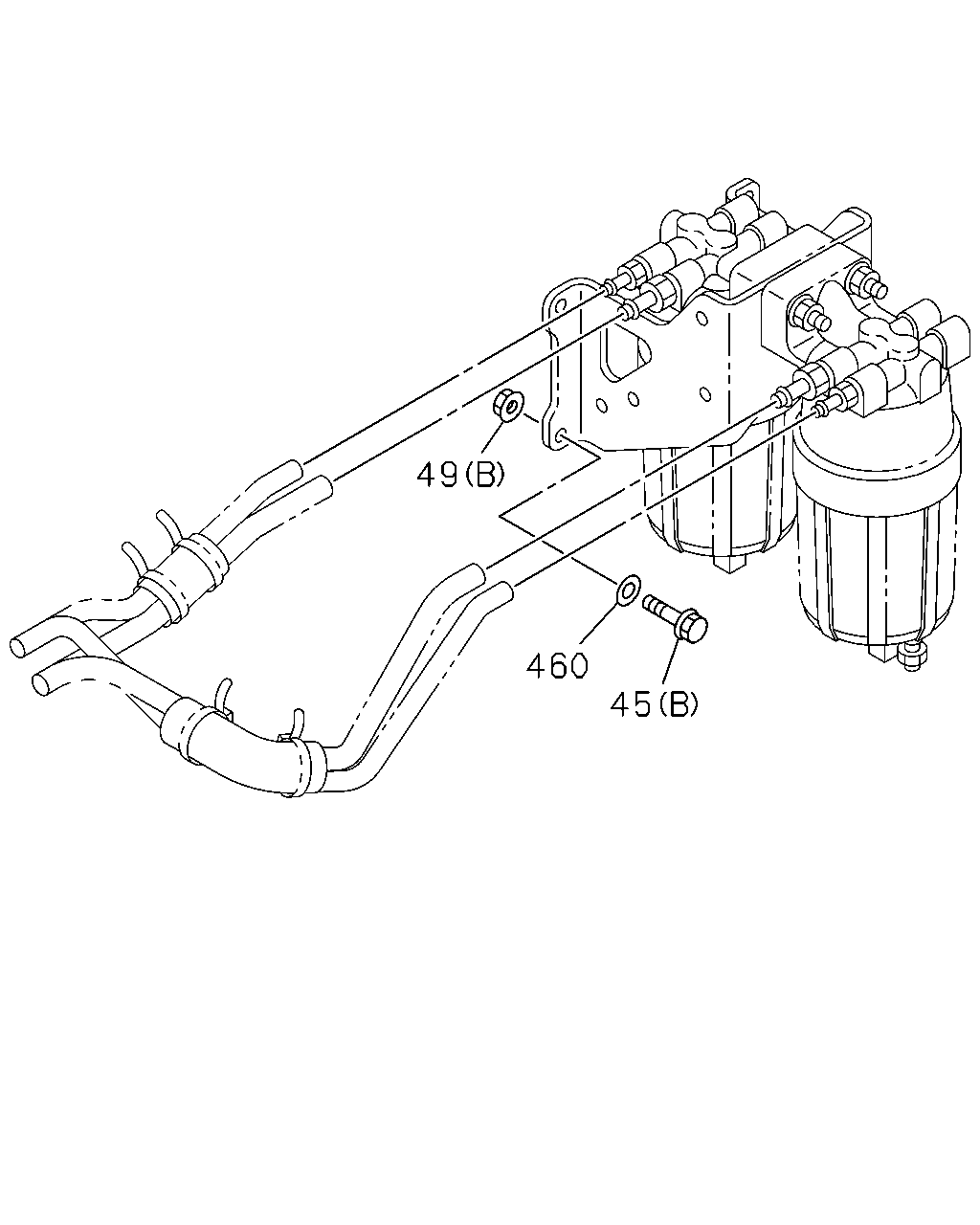

[140A] JOINT;SEDIMENTER (5 parça)
[140A] FIXING;FUEL TANK (20 parça)
▶
49
460
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
45
BOLT; BRKT,FUEL TANK
(A) M12X50 FLANGE CHI
0-28051-250-0
10
1
1404-
●
●
45
BOLT; BRKT,FUEL TANK
(B)
8-97431-444-0
06
1
1404-
●
●
49
NUT; BRKT
(A) M12 CHI
0-91110-512-0
08
1
1404-
●
●
49
NUT; BRKT
(B) M16 FLANGE CHI
0-91180-216-0
06
1
1404-
●
●
460
WASHER; PL,BRKT
ID=17 OD=32 CHI
0-91614-616-0
06
1
1404-
●
●
11
8
25
1
526
341
341
488
43
237
43
237
49
49
40
40
502
224
224
42
42
43
38
38
40
45
622
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; FUEL
CHI 1040X690X625 400L
8-97431-285-0
01
1
1404-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6 CHI
8-98030-453-0
01
1
1404-
●
●
11
PLUG; DRAIN,FUEL TANK
M18X12 CHI
0-92002-418-0
01
1
1404-
●
●
25
CAP; FILLER,FUEL TANK
CHI
8-97431-287-0
01
1
1404-
●
●
38
INSULATION; SUPPORT BELT
L=1210
8-97431-293-0
02
1
1404-
●
●
40
BELT; SUPPORT,FUEL TANK
8-97431-292-0
02
1
1404-
●
●
42
NUT; SUPPORT BELT
M10 CHI
0-91110-510-0
04
1
1404-
●
●
43
BRACKET; FUEL TANK
8-97431-290-0
02
1
1404-
●
●
45
BOLT; BRKT,FUEL TANK
(A) M12X50 FLANGE CHI
0-28051-250-0
10
1
1404-
●
●
45
BOLT; BRKT,FUEL TANK
(B)
8-97431-444-0
06
1
1404-
●
●
49
NUT; BRKT
(A) M12 CHI
0-91110-512-0
08
1
1404-
●
●
49
NUT; BRKT
(B) M16 FLANGE CHI
0-91180-216-0
06
1
1404-
●
●
224
BRACKET; FUEL TANK BRKT TO FRAME
(B)
8-97431-294-0
04
1
1404-
●
●
224
BRACKET; FUEL TANK BRKT TO FRAME
(A)
8-97431-295-0
04
1
1404-
●
●
237
GASKET; BRKT TO FUEL TANK
8-97431-291-0
02
1
1404-
●
●
341
CLIP; BAND,RUBBER HOSE
L=350 CHI
1-09707-183-0
02
1
1404-
●
●
488
HOSE; RUBBER
CHI
8-98134-936-0
01
1
1404-
●
●
502
PLATE; DISTANCE
8-97431-296-0
04
1
1404-
●
●
526
SENDER; FUEL TANK
8-97431-289-0
01
1
1404-
●
●
622
STUD; BRACKET
CHI
8-97430-211-0
01
1
1404-
●
●
