0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#144326) — 52 parça

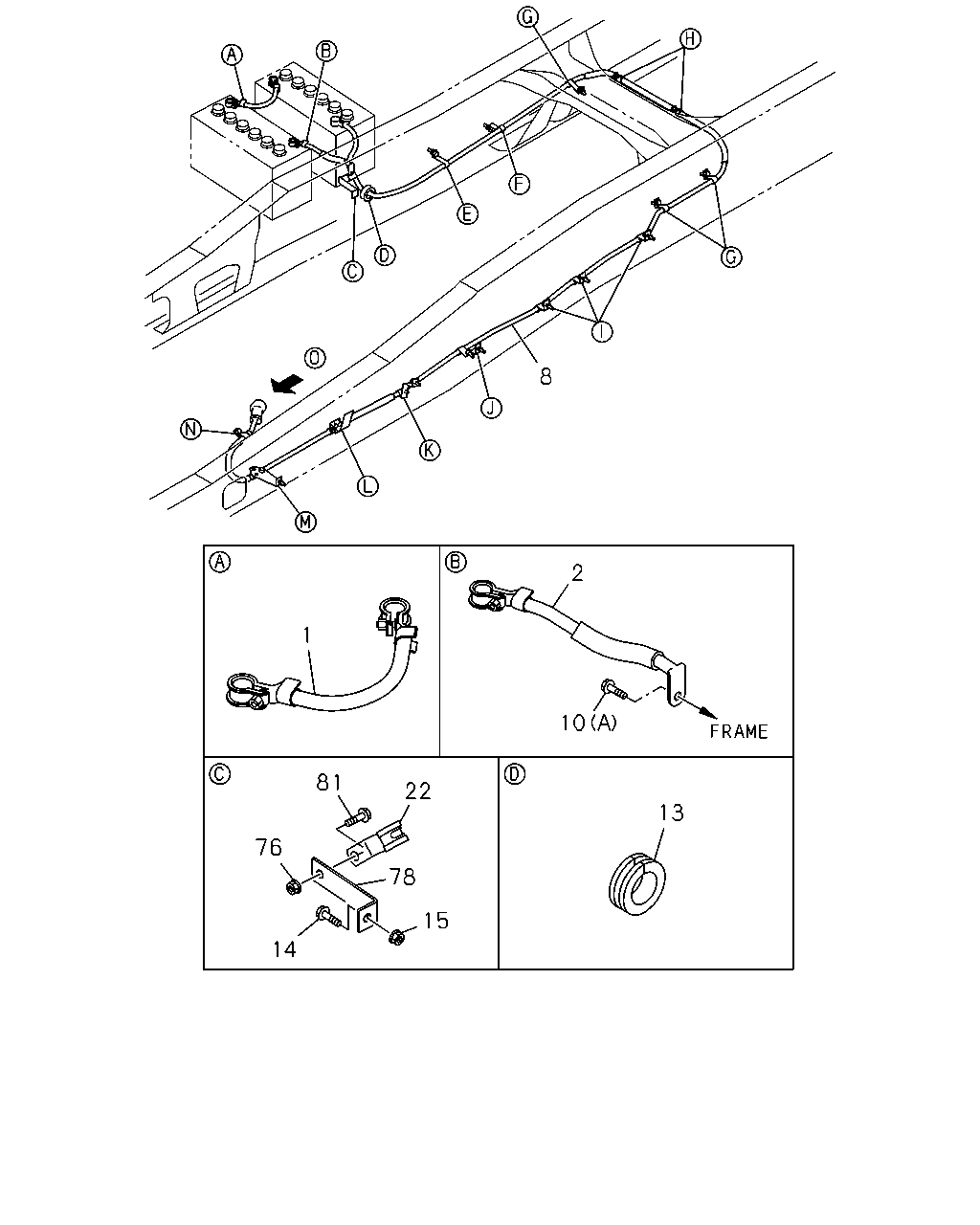

çizim 431660
1 2 10 13 15 78 22 81 76 14 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=540 		8-97431-389-0 01 1 1404- ● ●
2 CABLE; BATTERY
L=255 		8-97431-388-0 01 1 1404- ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 5900MM(59W) 		8-97431-384-0 01 1 1404- ●
8 CABLE; BATTERY,STARTER 8-97431-384-0 01 1 1404- ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 5300MM(53W) 		8-97431-385-0 01 1 1404- ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE CHI 		0-28650-835-0 03 1 1404- ●
10 BOLT; BATTERY CABLE CLIP
(D) M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404- ● ●
10 BOLT; BATTERY CABLE CLIP
(E) M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404- ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X14 W/PL WASHER CHI 		8-98164-837-0 01 1 1404- ● ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X30 FLANGE CHI 		0-28650-830-0 03 1 1404- ●
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 CHI 		1-09332-112-0 01 1 1404- ● ●
14 BOLT; BRKT CLIP
M8X35 FLANGE CHI 		0-28650-835-0 01 1 1404- ● ●
15 NUT; BRKT CLIP
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
22 CLIP; BATTERY CABLE
ID=18 L=28 H=30 CHI 		1-09701-110-0 01 1 1404- ● ●
76 NUT; BATTERY CABLE
M8 FLANGE CHI 		0-91180-108-0 01 1 1404- ● ●
78 BRACKET; CLIP BATTERY
L=95 CHI 		1-82699-085-0 01 1 1404- ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404- ● ●

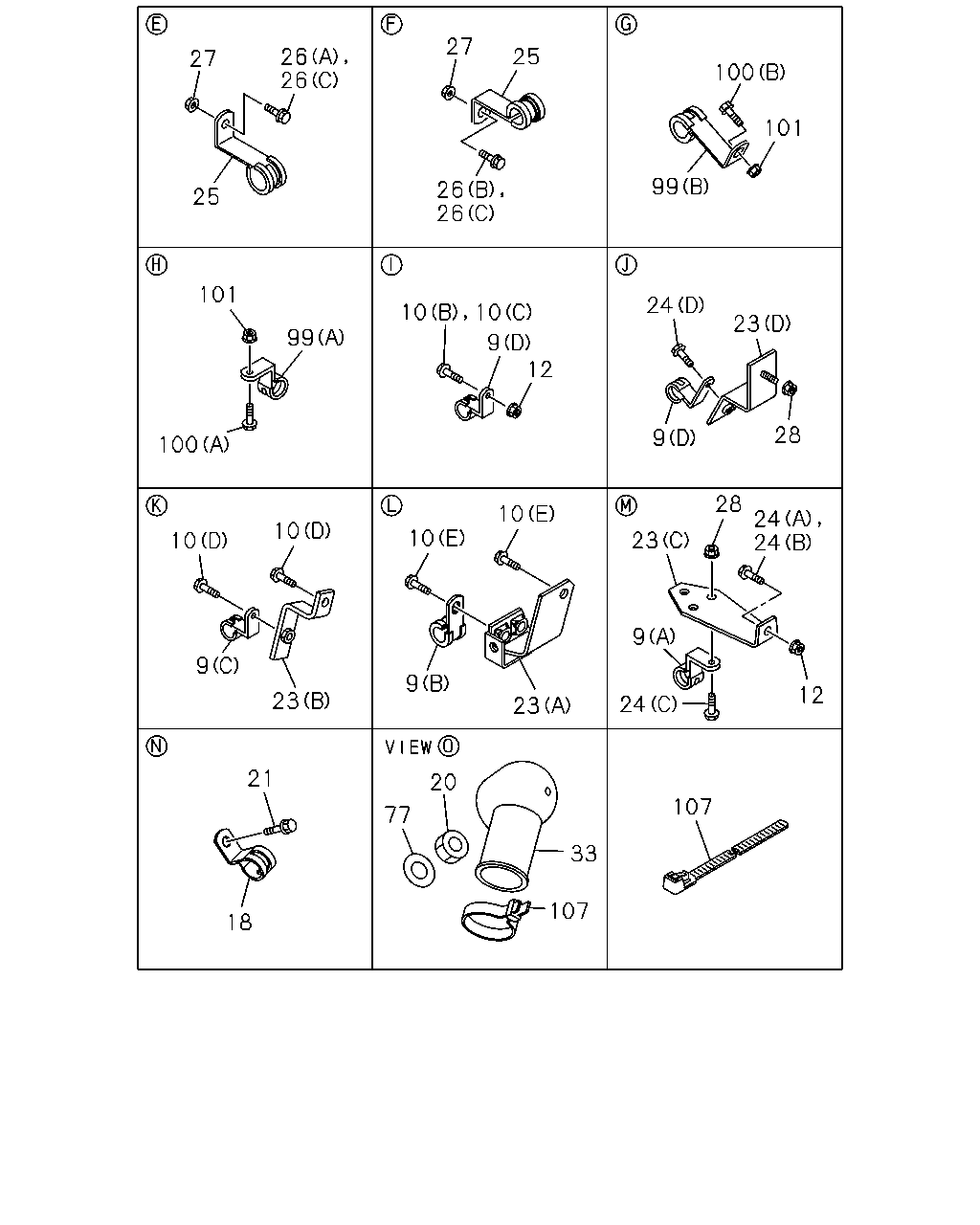

çizim 432460
100 101 99 26 26 26 26 27 25 27 24 25 101 10 99 100 10 12 9 9 28 28 23 24 9 24 10 10 10 10 9 23 9 23 24 12 21 18 77 33 107 107 20 23
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 CHI 		1-09700-861-0 01 1 1404- ● ●
9 CLIP; BATTERY CABLE
(B) ID=18 L=28 CHI 		1-09701-067-0 01 1 1404- ● ●
9 CLIP; BATTERY CABLE
(C) ID=18 H=23 L=28 CHI 		1-09701-070-0 01 1 1404- ● ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 CHI 		1-09701-110-0 04 1 1404- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE CHI 		0-28650-835-0 03 1 1404- ●
10 BOLT; BATTERY CABLE CLIP
(D) M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404- ● ●
10 BOLT; BATTERY CABLE CLIP
(E) M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404- ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X14 W/PL WASHER CHI 		8-98164-837-0 01 1 1404- ● ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X30 FLANGE CHI 		0-28650-830-0 03 1 1404- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE CHI 		0-91180-108-0 04 1 1404- ● ●
18 CLIP; BATTERY CABLE
ID=20 H=23 L=27 CHI 		1-09700-861-0 01 1 1404- ● ●
20 NUT; STARTER CABLE
CHI 		8-98011-328-0 01 1 1404- ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) CHI 		1-47471-215-1 01 1 1404- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) CHI 		1-47476-676-0 01 1 1404- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) CHI 		1-47479-779-0 01 1 1404- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) CHI 		8-98239-410-0 01 1 1404- ● ●
24 BOLT; BRKT TO FRAME
(A) M8X35 FLANGE CHI 		0-28650-835-0 01 1 1404- ●
24 BOLT; BRKT TO FRAME
(C) M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404- ● ●
24 BOLT; BRKT TO FRAME
(D) M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404- ● ●
24 BOLT; BRKT TO FRAME
(B) M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404- ●
25 CLIP; BATTERY CABLE TO BRKT
ID=18 L=25 H=50 CHI 		1-09701-096-0 02 1 1404- ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
(A) M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404- ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
(B) M8X35 FLANGE CHI 		0-28650-835-0 01 1 1404- ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
(C) M8X30 FLANGE CHI 		0-28650-830-0 02 1 1404- ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE CHI 		0-91180-108-0 02 1 1404- ● ●
33 CAP; INSULATOR
CHI 		1-82699-431-0 01 1 1404- ● ●
77 WASHER; LK,STARTER CABLE
ID=10.2 CHI 		0-91510-810-0 01 1 1404- ● ●
99 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 CHI 		1-09700-861-0 02 1 1404- ● ●
99 CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 CHI 		1-09701-096-0 03 1 1404- ● ●
100 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE CHI 		0-28650-825-0 03 1 1404- ● ●
100 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404- ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE CHI 		0-91180-108-0 05 1 1404- ● ●
107 CLIP; BAND
L=350 CHI 		1-09707-183-0 01 1 1404- ● ●
