0-52 — OIL AND VACUUM PIPING; ENGINE (#144323) — 78 parça

384 48 44 85 234 234 63 40 234 100 48 48 234 85 147 149 40 150 291 2 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (C) M14X33 FLANGE	1-09675-088-0	01	1	1404-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE CHI	8-94396-711-0	01	1	1404-
2	BOLT; EYE,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M10X21 FLANGE CHI	8-97372-238-0	02	1	1404-
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE CHI	8-97372-238-0	02	1	1404-
2	BOLT; EYE,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1404-
40	BOLT; OIL PIPE (A) M8X40 FLANGE CHI	0-28050-840-0	02	1	1404-
40	BOLT; OIL PIPE (B) M10X25 FLANGE CHI	0-28751-025-0	02	1	1404-
44	BOLT; CLIP,OIL PIPE (A) M6X30 FLANGE CHI	0-28050-630-0	03	1	1404-
44	BOLT; CLIP,OIL PIPE (B) M6X35 FLANGE CHI	0-28650-635-0	01	1	1404-
48	CLIP; OIL PIPE (B)	1-09701-265-1	01	1	1404-
48	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98039-293-0	02	1	1404-1405
48	CLIP; OIL PIPE (A)	8-98039-293-0	02	1	1404-1405
48	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98148-996-2	02	1	1406-
48	CLIP; OIL PIPE (A)	8-98148-996-2	02	1	1406-

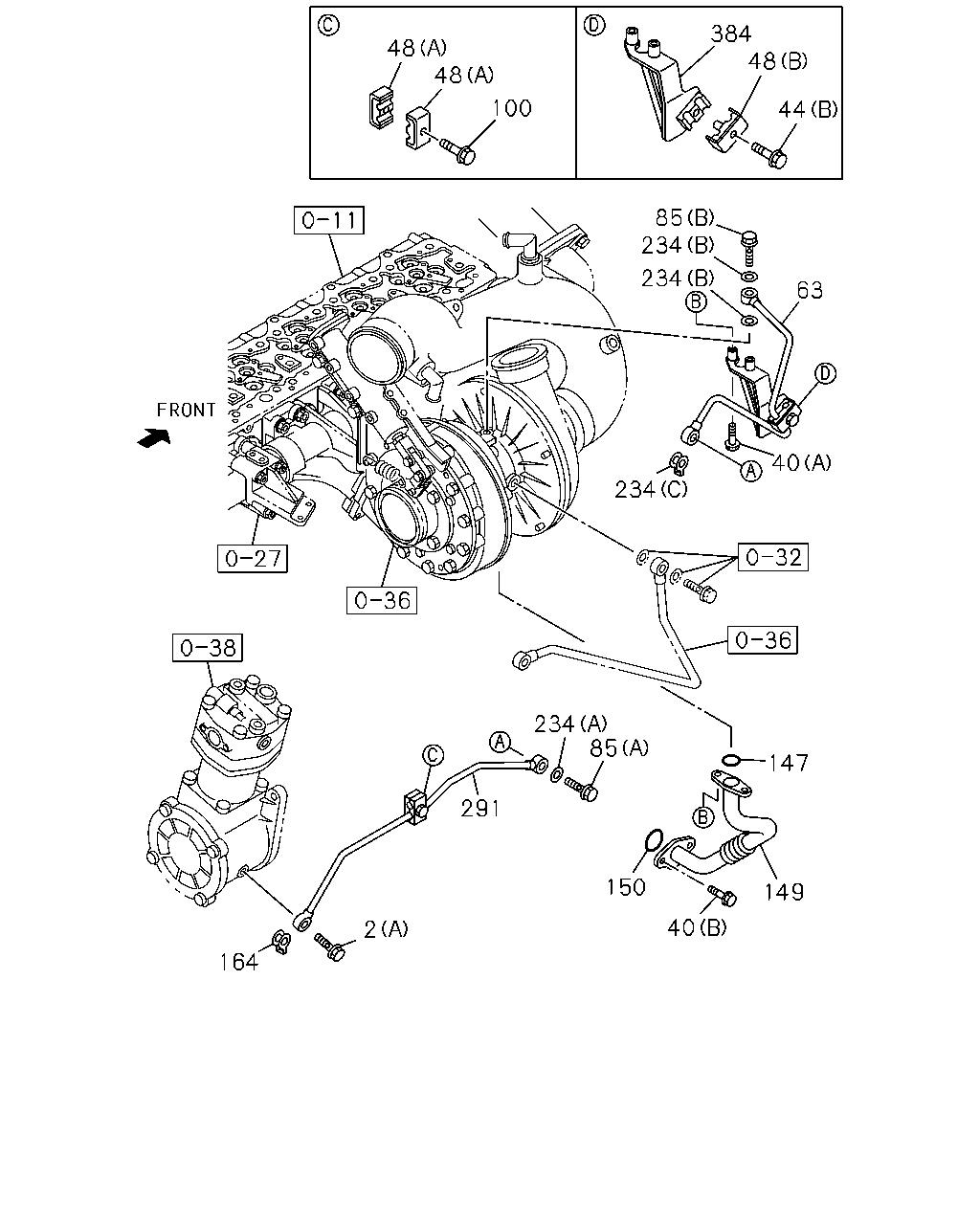

63	PIPE; OIL,TURBOCHARGER FEED	8-97604-871-0	01	1	1404-
85	BOLT; EYE,OIL PIPE FIX (A) M12X41	1-09675-140-0	01	1	1404-
85	BOLT; EYE,OIL PIPE FIX (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1404-
100	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) M6X30 FLANGE CHI	0-28050-630-0	01	1	1404-
100	BOLT; CLIP M6X30 FLANGE CHI	0-28050-630-0	01	1	1404-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 CHI	8-94399-399-0	01	1	1404-
149	PIPE; OIL RETURN,TURBOCHARGER	8-97603-712-2	01	1	1404-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	1404-
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.6	8-98231-393-0	01	1	1404-
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	8-97256-733-0	01	1	1404-
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 CHI	8-98251-344-0	01	1	1404-
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 CHI	9-09571-412-0	02	1	1404-
291	PIPE; OIL	8-98145-554-0	01	1	1404-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	1-13345-216-0	01	1	1404-

2 28 3 1 2 2 28 132 157 144 144 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

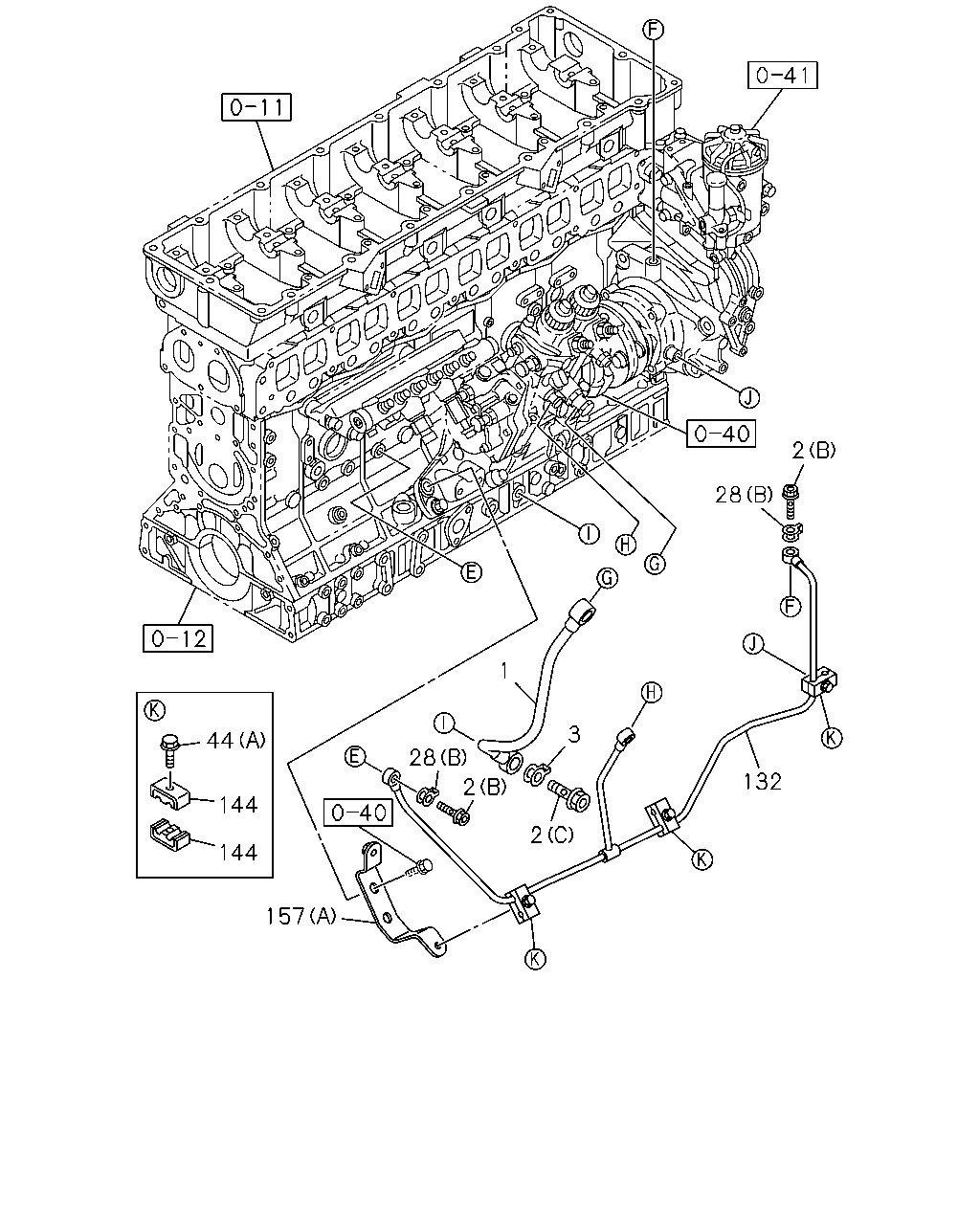

1	PIPE; OIL,INJ PUMP TO C/BL	8-97603-876-0	01	1	1404-
2	BOLT; EYE,OIL PIPE (C) M14X33 FLANGE	1-09675-088-0	01	1	1404-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE CHI	8-94396-711-0	01	1	1404-
2	BOLT; EYE,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M10X21 FLANGE CHI	8-97372-238-0	02	1	1404-
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE CHI	8-97372-238-0	02	1	1404-
2	BOLT; EYE,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1404-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=21	8-97251-047-0	01	1	1404-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.6	8-98231-393-0	02	1	1404-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.2	9-09566-226-0	02	1	1404-
44	BOLT; CLIP,OIL PIPE (A) M6X30 FLANGE CHI	0-28050-630-0	03	1	1404-
44	BOLT; CLIP,OIL PIPE (B) M6X35 FLANGE CHI	0-28650-635-0	01	1	1404-
132	PIPE ASM; OIL,INJ PUMP FEED	8-98174-716-0	01	1	1404-
144	CLIP; OIL PIPE,INJ PUMP	8-98039-293-0	06	1	1404-1405
144	CLIP; OIL PIPE,INJ PUMP	8-98148-996-2	06	1	1406-
157	BRACKET; OIL PIPE (B)	8-97610-356-1	01	1	1404-
157	BRACKET; OIL PIPE (A)	8-97620-045-0	01	1	1404-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-97607-498-0	01	1	1404-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-97607-497-0	01	1	1405-

156 156 156 2 157 146 153 48 48 100 157 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (C) M14X33 FLANGE	1-09675-088-0	01	1	1404-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE CHI	8-94396-711-0	01	1	1404-
2	BOLT; EYE,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M10X21 FLANGE CHI	8-97372-238-0	02	1	1404-
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE CHI	8-97372-238-0	02	1	1404-
2	BOLT; EYE,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1404-
48	CLIP; OIL PIPE (B)	1-09701-265-1	01	1	1404-
48	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98039-293-0	02	1	1404-1405
48	CLIP; OIL PIPE (A)	8-98039-293-0	02	1	1404-1405
48	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98148-996-2	02	1	1406-
48	CLIP; OIL PIPE (A)	8-98148-996-2	02	1	1406-
100	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) M6X30 FLANGE CHI	0-28050-630-0	01	1	1404-
100	BOLT; CLIP M6X30 FLANGE CHI	0-28050-630-0	01	1	1404-
146	BOLT; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) M8X16 FLANGE CHI	0-28050-816-0	02	1	1404-

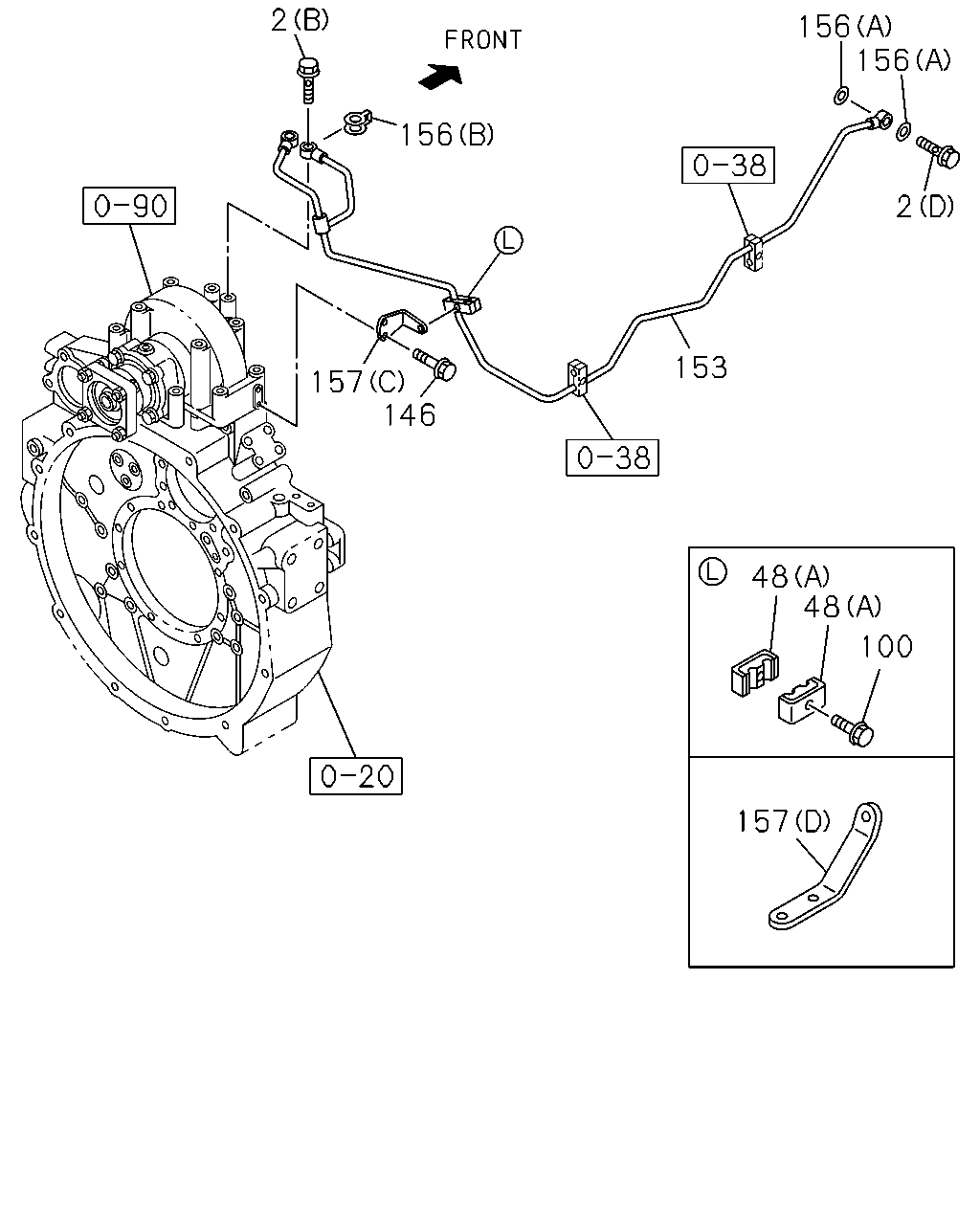

153	PIPE; OIL,C/BL TO PTO POWER TAKE OFF-FLYWHEEL(6SZ)	8-98149-196-0	01	1	1404-1404
153	PIPE; OIL,C/BL TO PTO POWER TAKE OFF-FLYWHEEL(6SZ)	8-97607-531-0	01	1	1405-
156	GASKET; EYE JOINT,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=10.6	8-98231-393-0	02	1	1404-
156	GASKET; EYE JOINT,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=12.2 CHI	8-98251-344-0	02	1	1404-
157	BRACKET; OIL PIPE (B)	8-97610-356-1	01	1	1404-
157	BRACKET; OIL PIPE (A)	8-97620-045-0	01	1	1404-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-97607-498-0	01	1	1404-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-97607-497-0	01	1	1405-

157 28 78 62 78 78 28 56 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.6	8-98231-393-0	02	1	1404-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.2	9-09566-226-0	02	1	1404-
54	STAY; OIL STRAINER	1-13345-182-0	01	1	1404-
56	BOLT; STAY TO BRKT M8X16 FLANGE CHI	0-28050-816-0	02	1	1404-

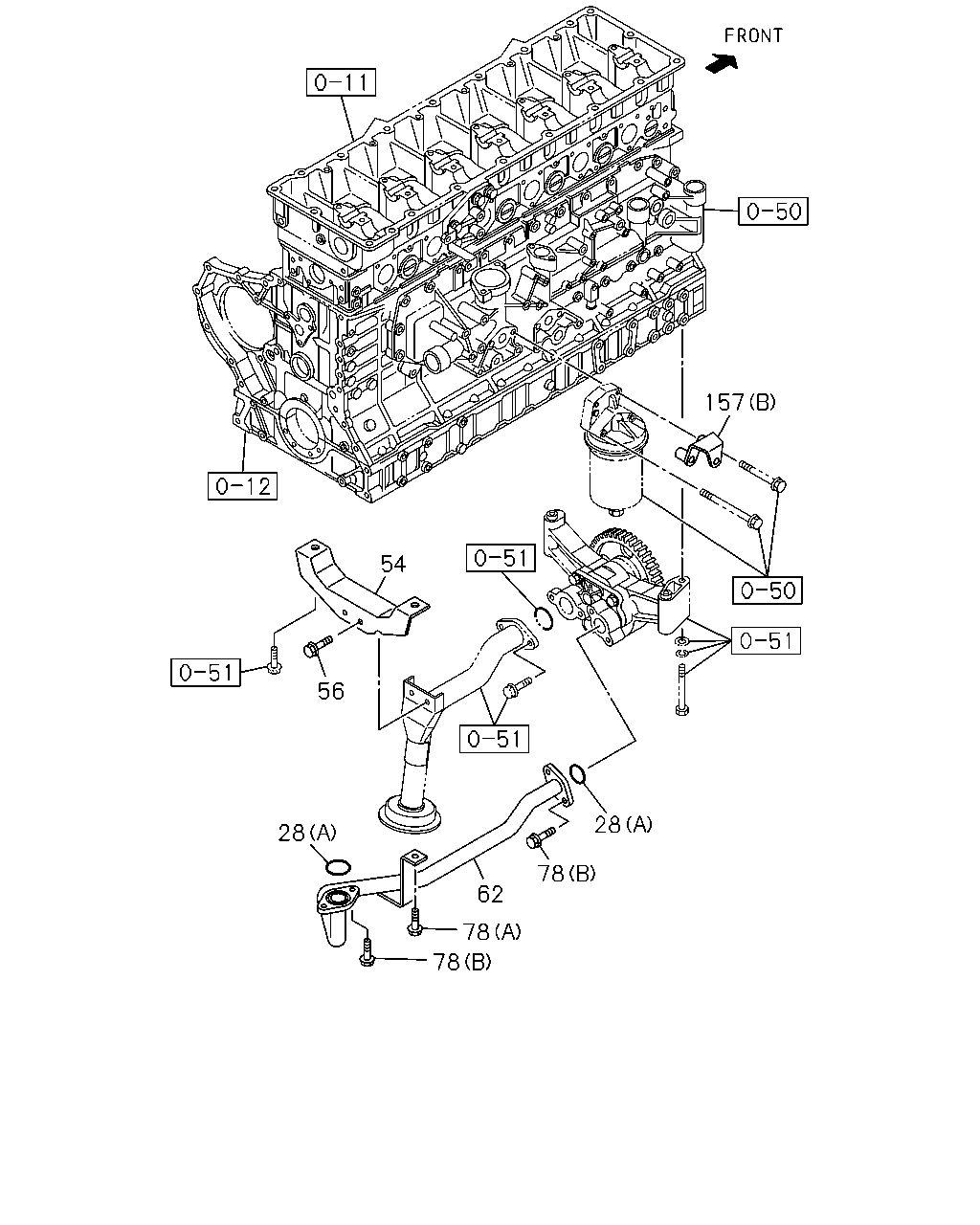

62	PIPE; OIL,PUMP TO C/BL	8-97603-066-1	01	1	1404-
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X16 FLANGE CHI	0-28050-816-0	01	1	1404-
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-
157	BRACKET; OIL PIPE (B)	8-97610-356-1	01	1	1404-
157	BRACKET; OIL PIPE (A)	8-97620-045-0	01	1	1404-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-97607-498-0	01	1	1404-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-97607-497-0	01	1	1405-
