0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#144316) — 84 parça

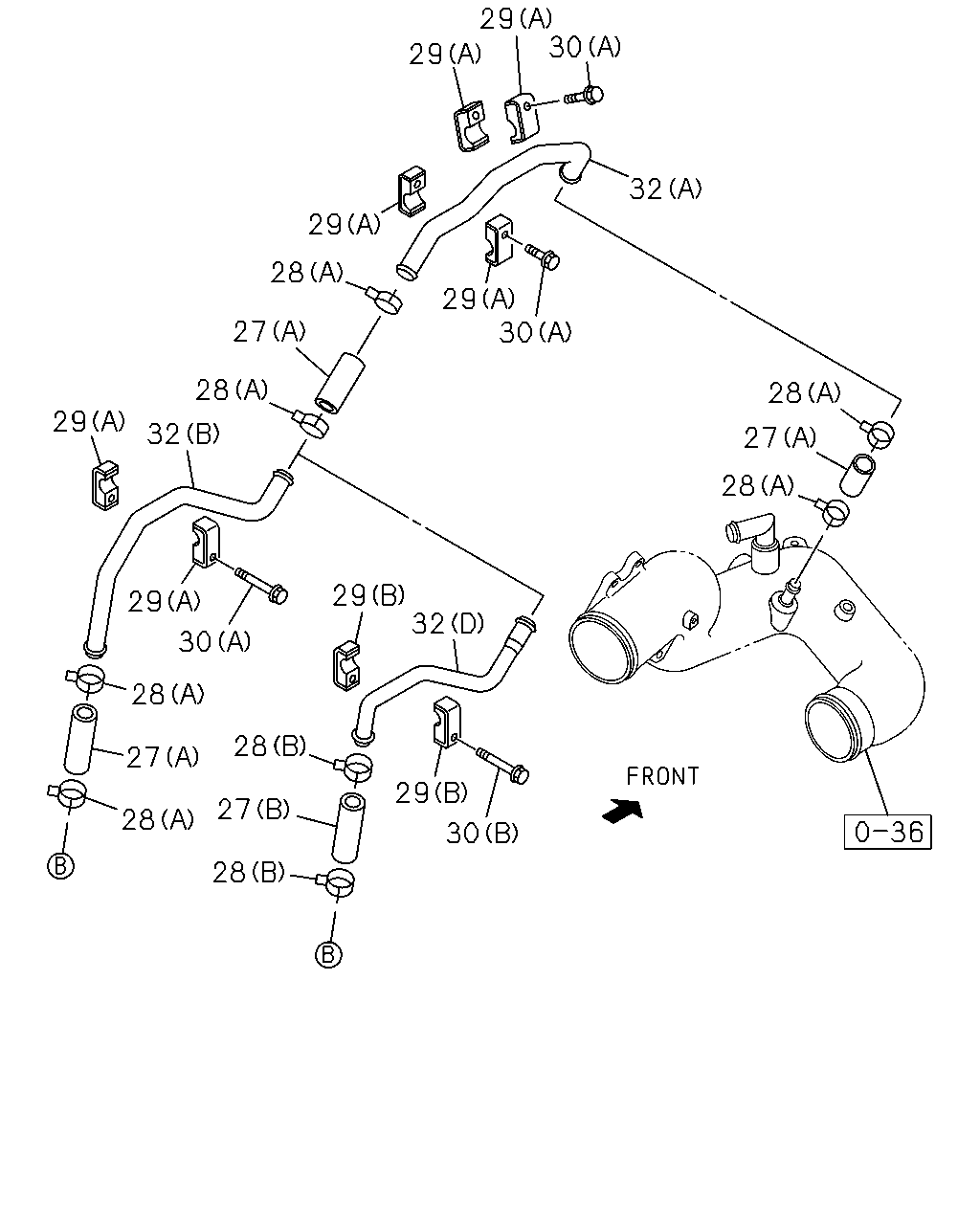

çizim 431263
29 32 28 27 28 29 29 29 30 29 30 32 28 27 28 30 29 32 29 28 27 28 28 27 28 29 30
BalonParca AdiParca NoAdetTipApplied Date
27 HOSE; AIR CMPR,SUCTION
(A) 		8-97613-266-0 03 1 1404-1404
27 HOSE; AIR CMPR,SUCTION
(A) 		8-97613-266-0 02 1 1404-
27 HOSE; AIR CMPR,SUCTION
(B) L=55 		1-09360-784-0 01 1 1404-
28 CLIP; HOSE,AIR CMPR
(A) ID=31.2 		8-97237-146-0 06 1 1404-1404
28 CLIP; HOSE,AIR CMPR
(A) ID=31.2 		8-97237-146-0 04 1 1404-
28 CLIP; HOSE,AIR CMPR
(B) ID=28.5 		1-09707-150-0 02 1 1404-
29 CLIP; AIR PIPE
(A) 		8-97603-362-1 06 1 1404-1404
29 CLIP; AIR PIPE
(A) 		8-97603-362-1 04 1 1404-
29 CLIP; AIR PIPE
(B) 		1-09701-281-1 02 1 1404-
30 BOLT; PIPE CLIP
(A) M8X50 FLANGE CHI 		0-28050-850-0 03 1 1404-1404
30 BOLT; PIPE CLIP
(A) M8X50 FLANGE CHI 		0-28050-850-0 02 1 1404-
30 BOLT; PIPE CLIP
(B) M8X45 FLANGE CHI 		0-28050-845-0 01 1 1404-
32 PIPE; AIR,AIR CMPR
(A) 		8-97613-954-0 01 1 1404-
32 PIPE; AIR,AIR CMPR
(B) 		8-97613-955-0 01 1 1404-1404
32 PIPE; AIR,AIR CMPR
(D) 		8-97431-205-1 01 1 1404-
32 PIPE; AIR,AIR CMPR
(C) 		8-98100-020-0 01 1 1404-

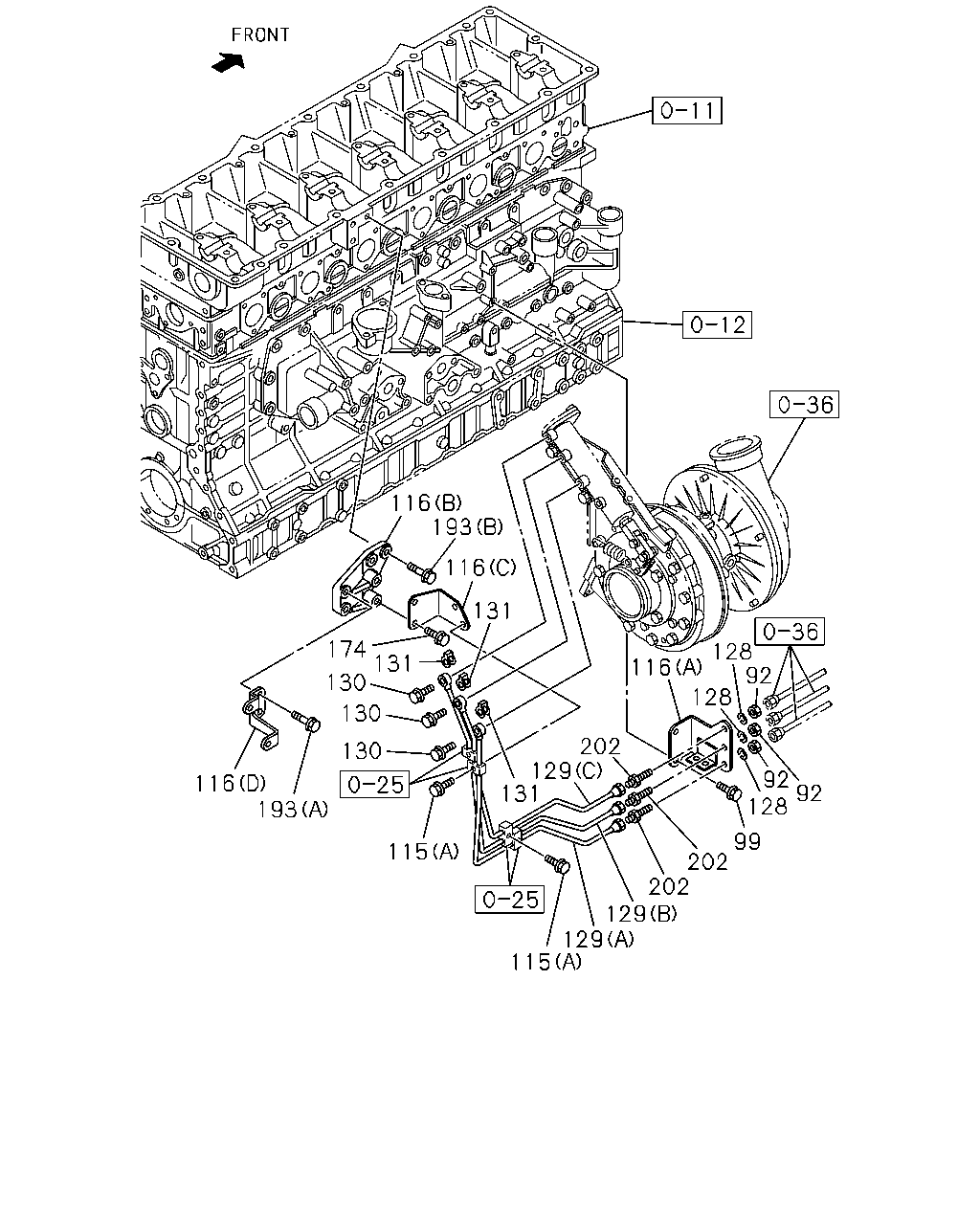

çizim 431265
116 193 116 131 174 131 130 130 130 115 193 116 131 129 202 116 128 128 92 92 92 128 99 202 202 129 129 115
BalonParca AdiParca NoAdetTipApplied Date
92 NUT; UNION
M12 CHI 		9-09840-280-0 04 1 1404-
99 BOLT; BRKT AIR PIPE
M10X20 FLANGE CHI 		0-28151-020-0 02 1 1404-
115 BOLT; AIR PIPE
(A) M6X30 FLANGE CHI 		0-28050-630-0 04 1 1404-
115 BOLT; AIR PIPE
POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X16 FLANGE CHI 		0-28050-816-0 02 1 1404-
115 BOLT; AIR PIPE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
116 BRACKET; AIR PIPE
(A) 		8-97603-755-2 01 1 1404-
116 BRACKET; AIR PIPE
(B) 		8-97605-948-0 01 1 1404-
116 BRACKET; AIR PIPE
(C) 		8-97605-950-0 01 1 1404-
116 BRACKET; AIR PIPE
(D) 		8-98052-306-0 01 1 1404-
128 WASHER; LK,UNION
ID=12.2 CHI 		0-91510-512-0 04 1 1404-
129 PIPE; AIR,VGS
(A) 		8-98174-772-0 01 1 1404-
129 PIPE; AIR,VGS
(B) 		8-98174-773-0 01 1 1404-
129 PIPE; AIR,VGS
(C) 		8-98174-774-0 01 1 1404-
130 BOLT; EYE,AIR PIPE
M10X21 FLANGE CHI 		8-94396-711-0 03 1 1404-
131 GASKET; AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 		8-97365-390-0 03 1 1404-
174 BOLT; BRKT
M8X16 FLANGE CHI 		0-28050-816-0 04 1 1404-
193 BOLT; BRKT
(A) M8X20 FLANGE CHI 		0-28050-820-0 02 1 1404-
193 BOLT; BRKT
(B) M10X35 FLANGE CHI 		0-28751-035-0 03 1 1404-
202 UNION; AIR PIPE
M12 L=62.5 		0-92113-206-0 04 1 1404-

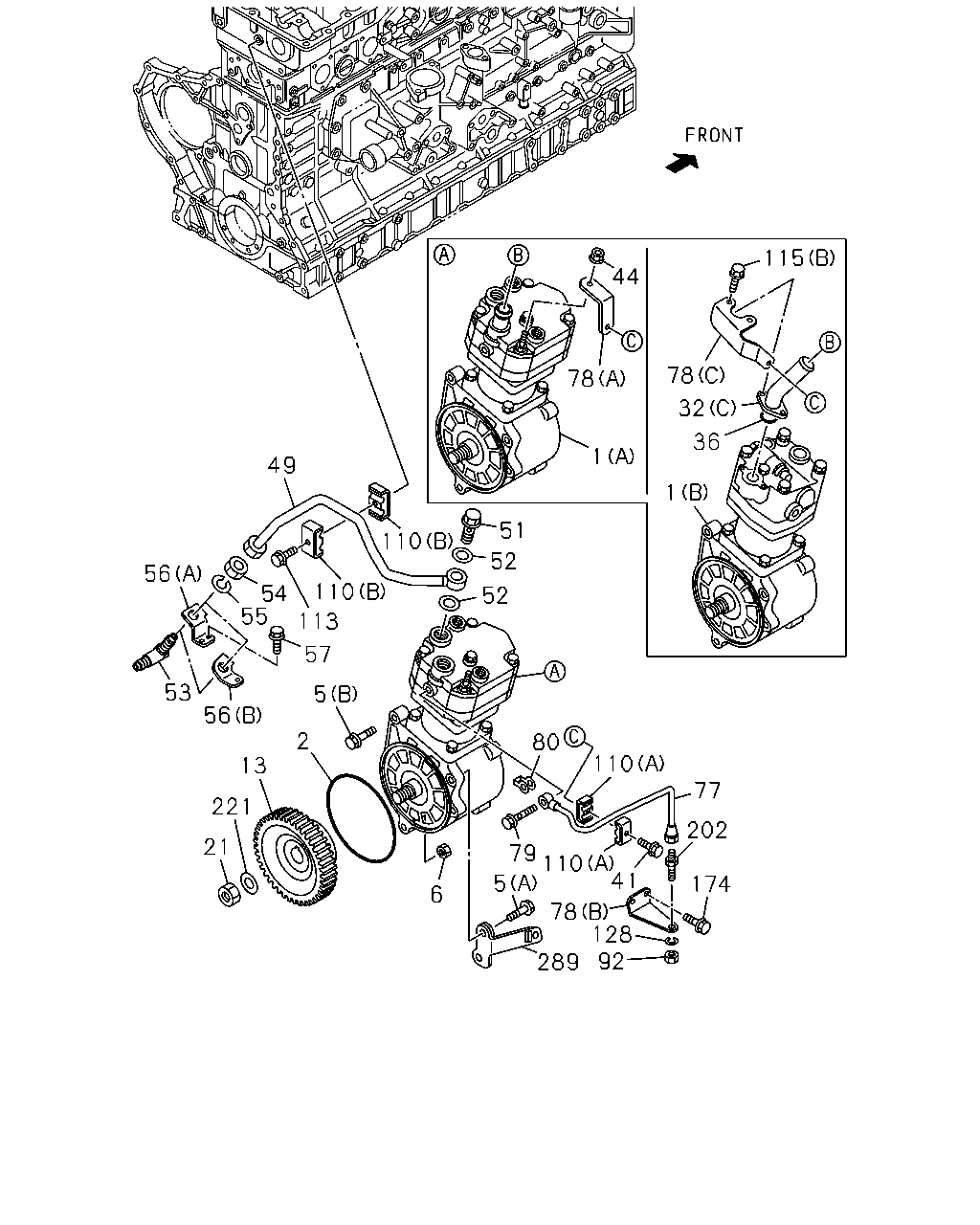

çizim 432208
49 56 54 55 53 56 13 221 21 2 5 57 110 113 110 51 52 52 6 79 5 78 110 41 174 202 77 110 80 1 78 44 115 78 32 36 1 128 92 289
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. (A) 		8-98224-245-0 01 1 1404-1404
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. (B) 		8-97431-204-0 01 1 1404-
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-449-0 01 1 1404-
5 BOLT; AIR CMPR FIX
(A) M12X50 FLANGE CHI 		0-28151-250-0 02 1 1404-
5 BOLT; AIR CMPR FIX
(B) M12X140 FLANGE 		0-28156-214-0 01 1 1404-
6 NUT; AIR CMPR
M12 FLANGE CHI 		0-91180-112-0 01 1 1404-
13 GEAR; AIR CMPR DRIVE 8-97603-053-2 01 1 1404-1404
13 GEAR; AIR CMPR DRIVE 8-97430-606-1 01 1 1404-
21 NUT; PUMP GEAR
M24 CHI 		0-91110-524-0 01 1 1404-
32 PIPE; AIR,AIR CMPR
(A) 		8-97613-954-0 01 1 1404-
32 PIPE; AIR,AIR CMPR
(B) 		8-97613-955-0 01 1 1404-1404
32 PIPE; AIR,AIR CMPR
(D) 		8-97431-205-1 01 1 1404-
32 PIPE; AIR,AIR CMPR
(C) 		8-98100-020-0 01 1 1404-
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-415-0 01 1 1405-
41 BOLT; CLIP
M6X30 FLANGE CHI 		0-28050-630-0 01 1 1404-
44 NUT
M10 FLANGE CHI 		0-91180-110-0 01 1 1404-1404
49 PIPE; AIR,CHARGE
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98216-698-0 01 1 1404-1404
49 PIPE; AIR,CHARGE
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97607-496-0 01 1 1404-
49 PIPE; AIR,CHARGE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98216-696-0 01 1 1404-1404
49 PIPE; AIR,CHARGE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97603-757-0 01 1 1404-
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 CHI 		1-09675-175-2 01 1 1404-
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 CHI 		9-09571-424-0 02 1 1404-
53 UNION; CHARGE PIPE 8-98008-887-2 01 1 1404-
54 NUT; PIPE UNION 8-98049-390-0 01 1 1404-
55 WASHER; LK,PIPE UNION
ID=27.5 CHI 		0-91510-527-0 01 1 1404-
56 BRACKET; AIR PIPE FIX
POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-97605-477-2 01 1 1404-
56 BRACKET; AIR PIPE FIX
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97603-937-2 01 1 1404-
57 BOLT; BRKT,AIR PIPE
POWER TAKE OFF-FLYWHEEL(6SZ) M10X20 FLANGE CHI 		0-28151-020-0 02 1 1404-
57 BOLT; BRKT,AIR PIPE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M10X20 FLANGE CHI 		0-28151-020-0 01 1 1404-
77 PIPE; AIR,GOV 8-98145-567-0 01 1 1404-1404
77 PIPE; AIR,GOV 8-97604-868-1 01 1 1404-
78 BRACKET; PIPE,AIR GOV
(B) 		8-97605-218-1 01 1 1404-
78 BRACKET; PIPE,AIR GOV
(A) 		8-97613-275-1 01 1 1404-1404
78 BRACKET; PIPE,AIR GOV
(C) 		8-97605-241-1 01 1 1404-
79 BOLT; EYE,AIR PIPE TO CMPR
M10X25 		9-09906-173-1 01 1 1404-
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.6 		8-98231-393-0 01 1 1404-
92 NUT; UNION
M12 CHI 		9-09840-280-0 04 1 1404-
110 CLIP; AIR PIPE
(B) 		1-09701-284-0 02 1 1404-
110 CLIP; AIR PIPE
(A) 		8-98039-293-0 02 1 1404-1405
110 CLIP; AIR PIPE
(A) 		8-98148-996-2 02 1 1406-
113 BOLT; CLIP,AIR PIPE
M8X40 FLANGE CHI 		0-28050-840-0 01 1 1404-
115 BOLT; AIR PIPE
(A) M6X30 FLANGE CHI 		0-28050-630-0 04 1 1404-
115 BOLT; AIR PIPE
POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X16 FLANGE CHI 		0-28050-816-0 02 1 1404-
115 BOLT; AIR PIPE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
128 WASHER; LK,UNION
ID=12.2 CHI 		0-91510-512-0 04 1 1404-
174 BOLT; BRKT
M8X16 FLANGE CHI 		0-28050-816-0 04 1 1404-
202 UNION; AIR PIPE
M12 L=62.5 		0-92113-206-0 04 1 1404-
221 WASHER; PL,GEAR 0-91614-624-0 01 1 1404-
289 BRACKET; CABLE
CHI 		8-97430-224-2 01 1 1404-
