Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11600 - FXZ/GXZ(LHD)CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#144315) — 46 parça
◀

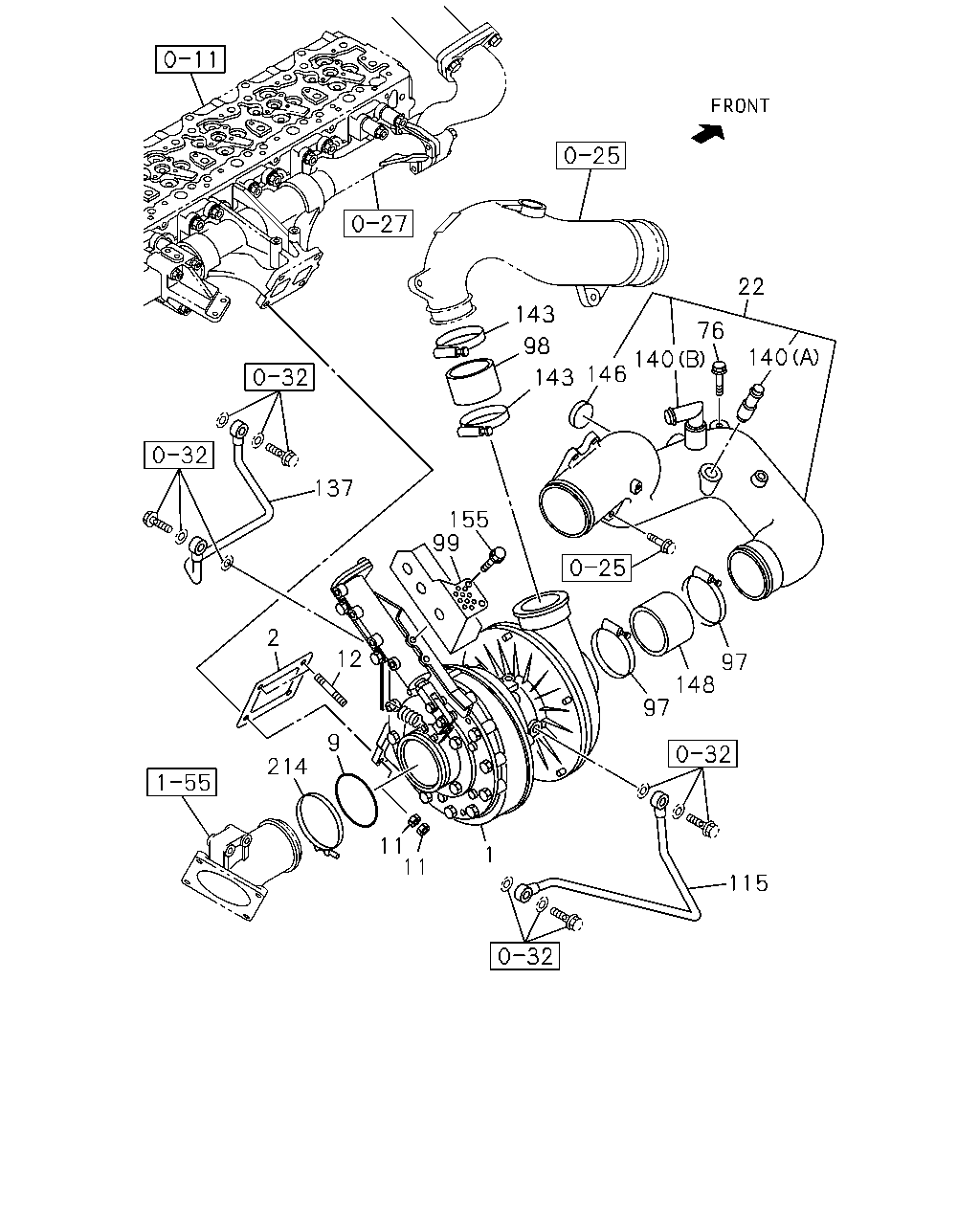

[036A] TURBOCHARGER ASM AND DUCT (23 parça)
[036A] FLEXIBLE HOSE AND AIR PIPE (23 parça)
▶
143
98
143
146
140
76
22
140
97
148
97
115
11
11
1
214
9
12
2
137
155
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
8-98176-087-0
01
1
1404-1404
1
TURBOCHARGER ASM
8-97430-658-0
01
1
1404-1404
1
TURBOCHARGER ASM
8-98176-087-0
01
1
1405-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98162-161-0
01
1
1404-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97618-761-1
01
1
1404-
11
NUT; TURBOCHARGER
M10 CHI
1-09420-005-0
08
1
1404-
12
STUD; TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
1404-
22
DUCT; INL,ACL TO TURBOCHARGER
8-97615-638-1
01
1
1404-1404
22
DUCT; INL,ACL TO TURBOCHARGER
8-97430-593-2
01
1
1404-
76
BOLT; AIR DUCT
M10X45 FLANGE CHI
0-28151-045-0
03
1
1404-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 CHI
1-09707-138-0
02
1
1404-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
8-98169-677-0
01
1
1404-
99
PROTECTOR; HEAT
1-14181-350-0
01
1
1404-
115
PIPE; WATER,TURBOCHARGER OUT
8-97605-217-0
01
1
1404-
137
PIPE; WATER,TURBOCHARGER IN
8-97607-435-0
01
1
1404-
140
PIPE; AIR PIPE
(B)
8-97431-244-0
01
1
1404-
140
PIPE; AIR PIPE
(A)
8-97431-245-0
01
1
1404-
140
PIPE; AIR PIPE
(A)
8-97603-427-1
01
1
1404-1404
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=68-85
8-98096-592-0
02
1
1404-
146
PLUG; INL PIPE
OD=40
8-94241-637-0
01
1
1404-
148
HOSE; TURBOCHARGER,INL
1-09360-913-0
01
1
1404-
155
BOLT; HEAT PROTECTOR
M6X10 FLANGE CHI
0-28050-610-0
04
1
1404-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98006-007-1
01
1
1404-
479
514
479
479
272
272
268
268
515
217
217
70
523
523
268
272
515
217
514
514
241
276
222
113
392
241
276
222
252
113
241
276
222
113
113
276
241
523
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
70
NUT; BRKT
M8 FLANGE CHI
0-91180-108-0
02
1
1404-
113
BRACKET; CLIP
(A) L=50 CHI
1-47475-299-2
03
1
1404-
113
BRACKET; CLIP
(B) CHI
1-47475-427-1
01
1
1404-
113
BRACKET; CLIP
(C) CHI
8-97431-005-0
01
1
1404-
113
BRACKET; CLIP
(D) CHI
8-97431-006-0
01
1
1404-
217
BOLT; BRKT
(C) M14X40 CHI
0-20951-440-0
01
1
1404-
217
BOLT; BRKT
(A) M8X16 FLANGE CHI
0-28050-816-0
02
1
1404-
217
BOLT; BRKT
(B) M8X35 FLANGE CHI
0-28650-835-0
01
1
1404-
222
NUT; CLIP
M8 FLANGE CHI
0-91180-108-0
05
1
1404-
241
BOLT
(B) M8X60 FLANGE CHI
0-28050-860-0
01
1
1404-
241
BOLT
(A) M8X20 FLANGE CHI
0-28650-820-0
05
1
1404-
252
BOLT; BRKT
M8X30 FLANGE CHI
0-28650-830-0
01
1
1404-
268
NUT; FLEX TUBE
M12 CHI
9-09840-280-0
03
1
1404-
272
WASHER; LK,FLEX HOSE
ID=12.2 CHI
0-91510-512-0
03
1
1404-
276
CLIP; PIPE
ID=7 & 7 L=17.5 & 17.5 CHI
1-09700-745-0
06
1
1404-
392
CLIP; FLEX HOSE
ID=12 & 12 CHI
1-09709-280-1
01
1
1404-
479
UNION; FLEX TUBE
M12 ELBOW CHI
0-92125-206-0
03
1
1404-
514
HOSE; FLEX
8-97431-517-0
03
1
1404-
515
BRACKET; UNION
(A) CHI
8-97430-491-0
01
1
1404-
515
BRACKET; UNION
(B) CHI
8-97608-912-1
01
1
1404-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1289 SERVICED BY L=1370 CHI
1-47428-818-0
01
1
1404-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=1363 SERVICED BY L=1370 CHI
1-47428-818-0
01
1
1404-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=1538 SERVICED BY L=1620 CHI
1-47428-820-0
01
1
1404-
