◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11118 - EXY NZ JNST04 EXC.HYDRAULIC RETARDER ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#14431) — 72 parça

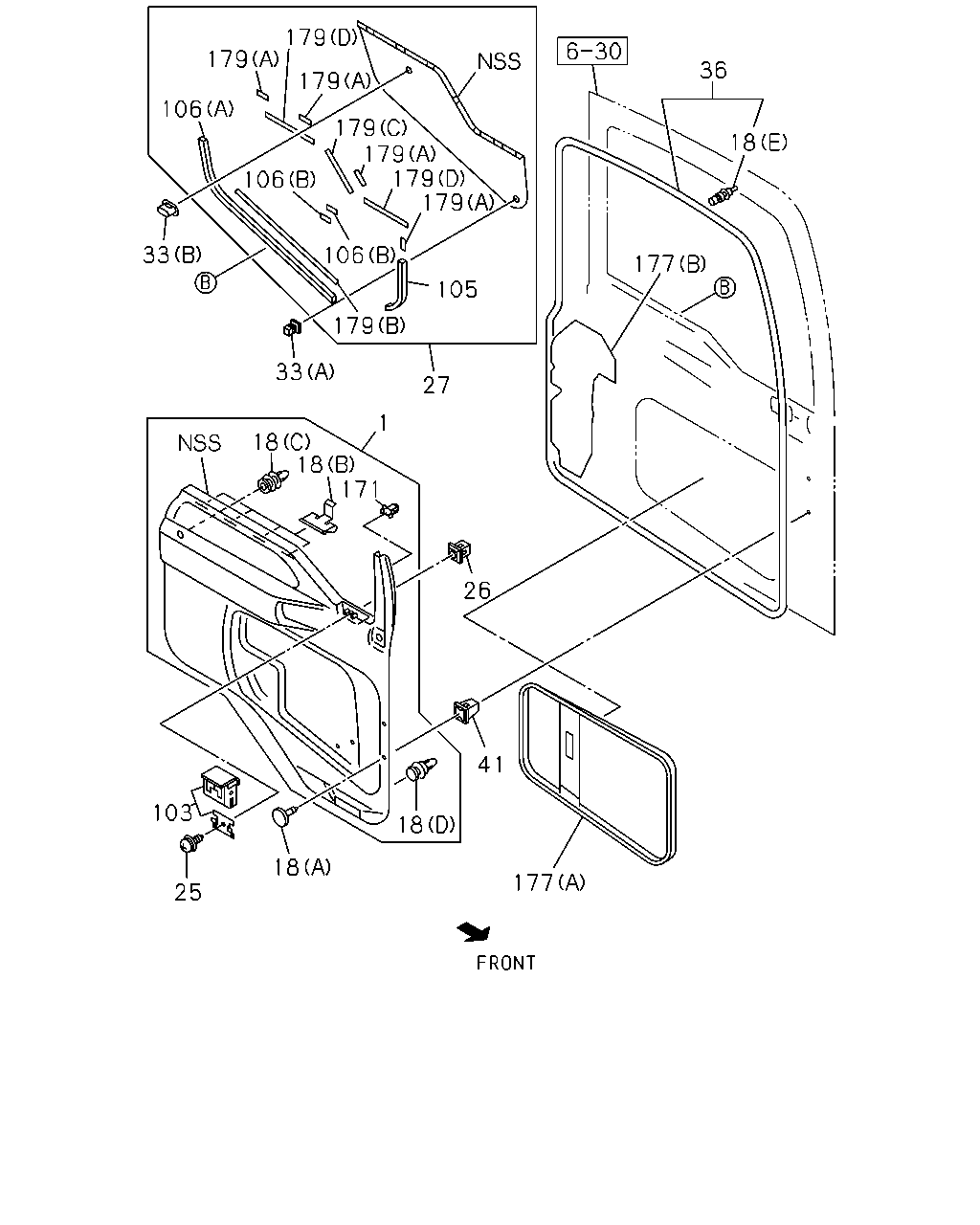

çizim 96165
179 179 179 106 179 179 179 179 106 106 105 33 179 33 27 36 177 1 18 18 171 26 41 103 18 177 18 25 18
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR 1-73337-516-1 01 1 0710-
1 PAD; TRIM,FRT DOOR 1-73337-506-1 01 1 0710-
18 CLIP; DOOR PAD
(B) 		1-09987-262-0 09 1 0710-
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0710-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0710-
18 CLIP; DOOR PAD
(D) OD=8.5 GRAY 		8-97893-482-0 10 1 0710-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0710-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0710-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0710-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0710-
27 PANEL; ORNAMENT,DOOR 1-76217-157-3 01 1 0710-
27 PANEL; ORNAMENT,DOOR 1-76217-149-3 01 1 0710-1210
27 PANEL; ORNAMENT,DOOR 8-98229-330-0 01 1 1211-
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 0710-0802
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0710-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 0710-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 0710-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0710-
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0710-
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0710-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 0710-
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 0710-
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 04 1 0710-
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 0710-
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 0710-
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 0710-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0710-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 0710-
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 02 1 0710-
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 02 1 0710-
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 04 1 0710-

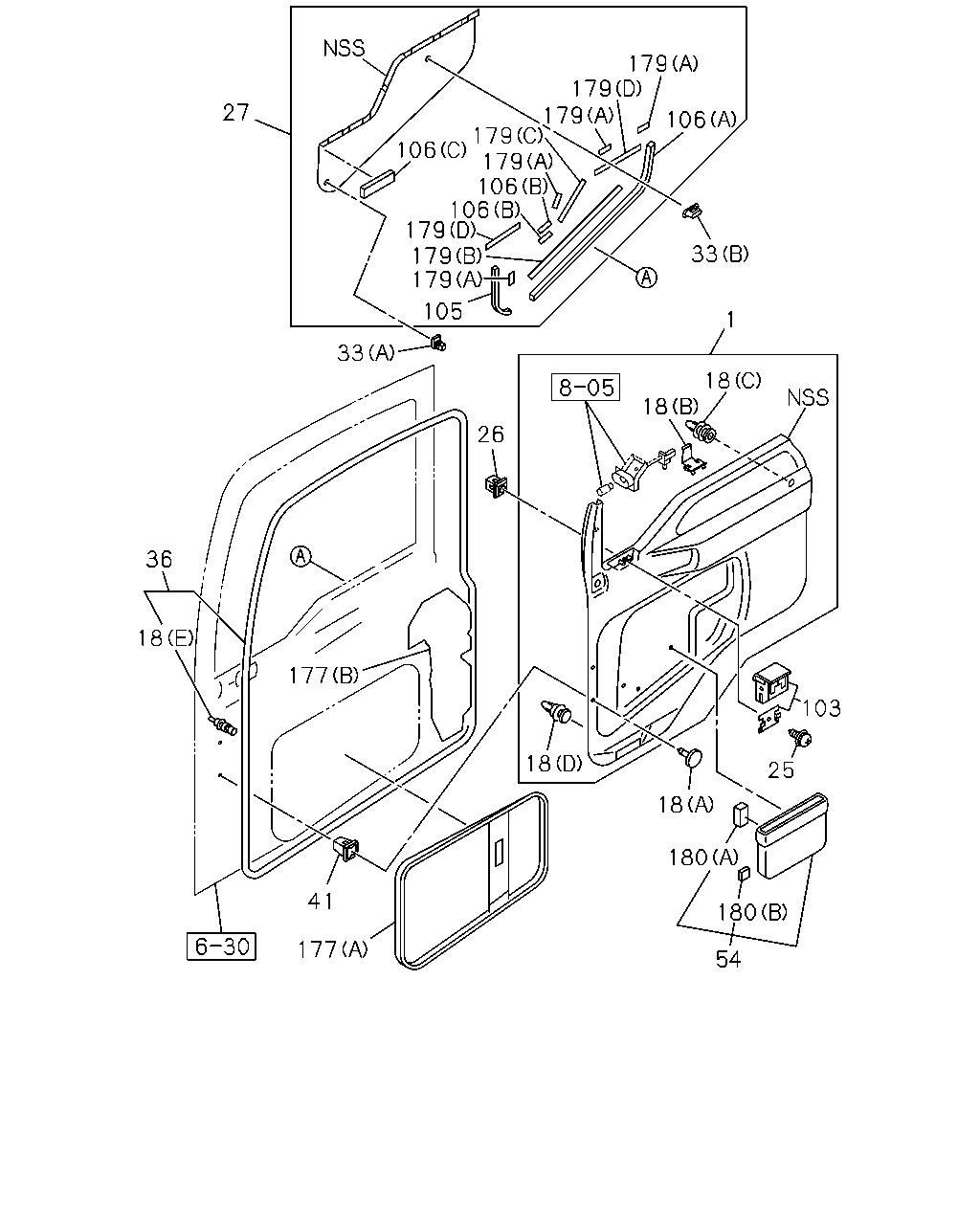

çizim 96558
54 180 180 18 25 103 18 18 18 1 177 41 177 18 36 33 105 179 179 179 106 106 179 179 106 179 179 179 106 33 27 26
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR 1-73337-516-1 01 1 0710-
1 PAD; TRIM,FRT DOOR 1-73337-506-1 01 1 0710-
18 CLIP; DOOR PAD
(B) 		1-09987-262-0 09 1 0710-
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0710-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0710-
18 CLIP; DOOR PAD
(D) OD=8.5 GRAY 		8-97893-482-0 10 1 0710-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0710-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0710-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0710-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0710-
27 PANEL; ORNAMENT,DOOR 1-76217-157-3 01 1 0710-
27 PANEL; ORNAMENT,DOOR 1-76217-149-3 01 1 0710-1210
27 PANEL; ORNAMENT,DOOR 8-98229-330-0 01 1 1211-
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 0710-0802
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0710-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 0710-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 0710-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0710-
54 BOX; FRT DOOR 1-72537-177-0 01 1 0710-
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0710-
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0710-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 0710-
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 0710-
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 04 1 0710-
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 0710-
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 0710-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0710-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 0710-
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 02 1 0710-
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 02 1 0710-
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 04 1 0710-
180 SEAL; BOX
(A) 5X10X30 		1-72538-153-1 02 1 0710-
180 SEAL; BOX
(B) 15X30 		1-74998-069-0 02 1 0710-
