◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11585 - FSR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#144264) — 17 parça

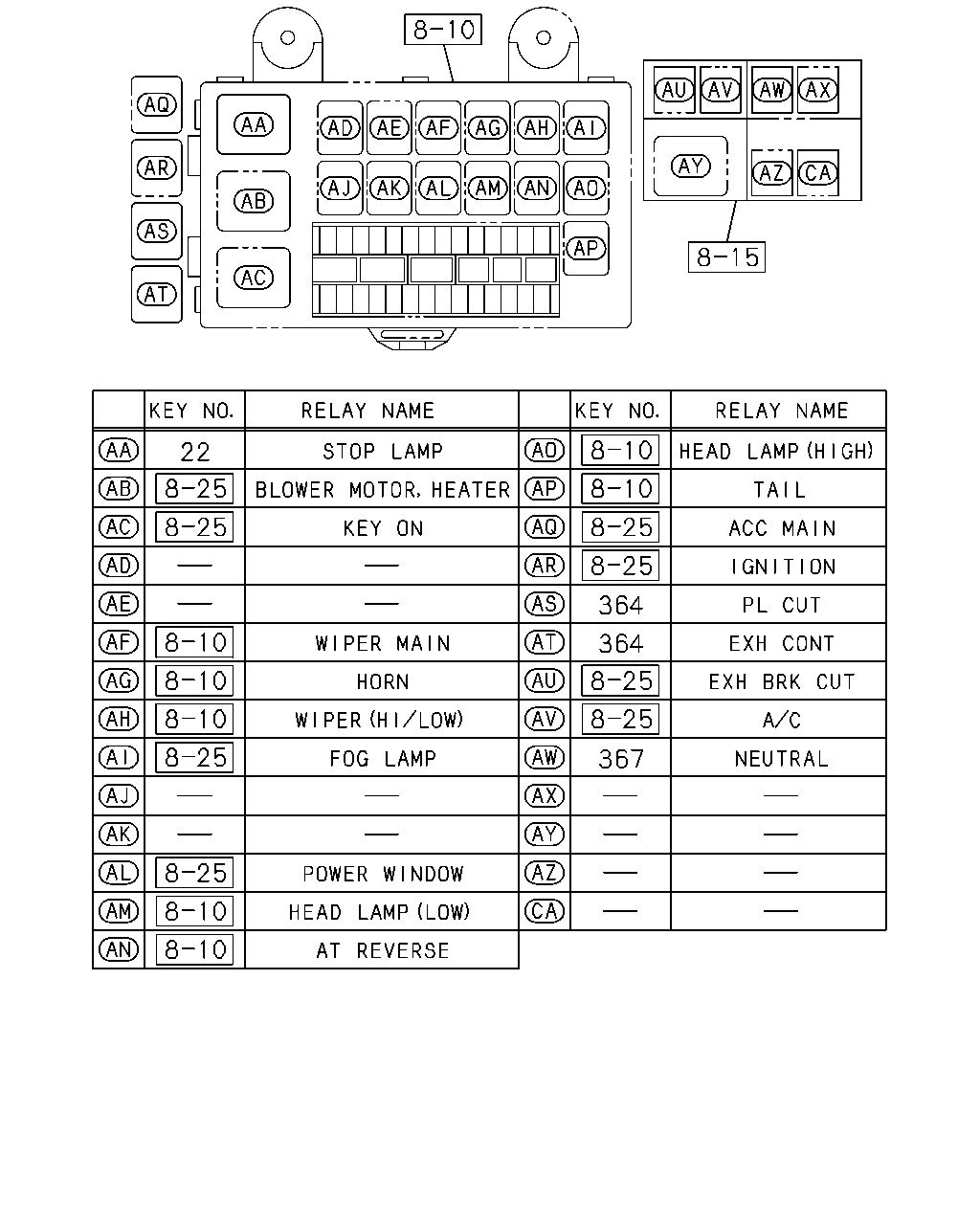

çizim 432044
22 364 364 367
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1407-
364 RELAY; AUTO CRUISE OFF
24V 10A PANASONIC 		8-97173-035-1 03 1 1407-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 1407-

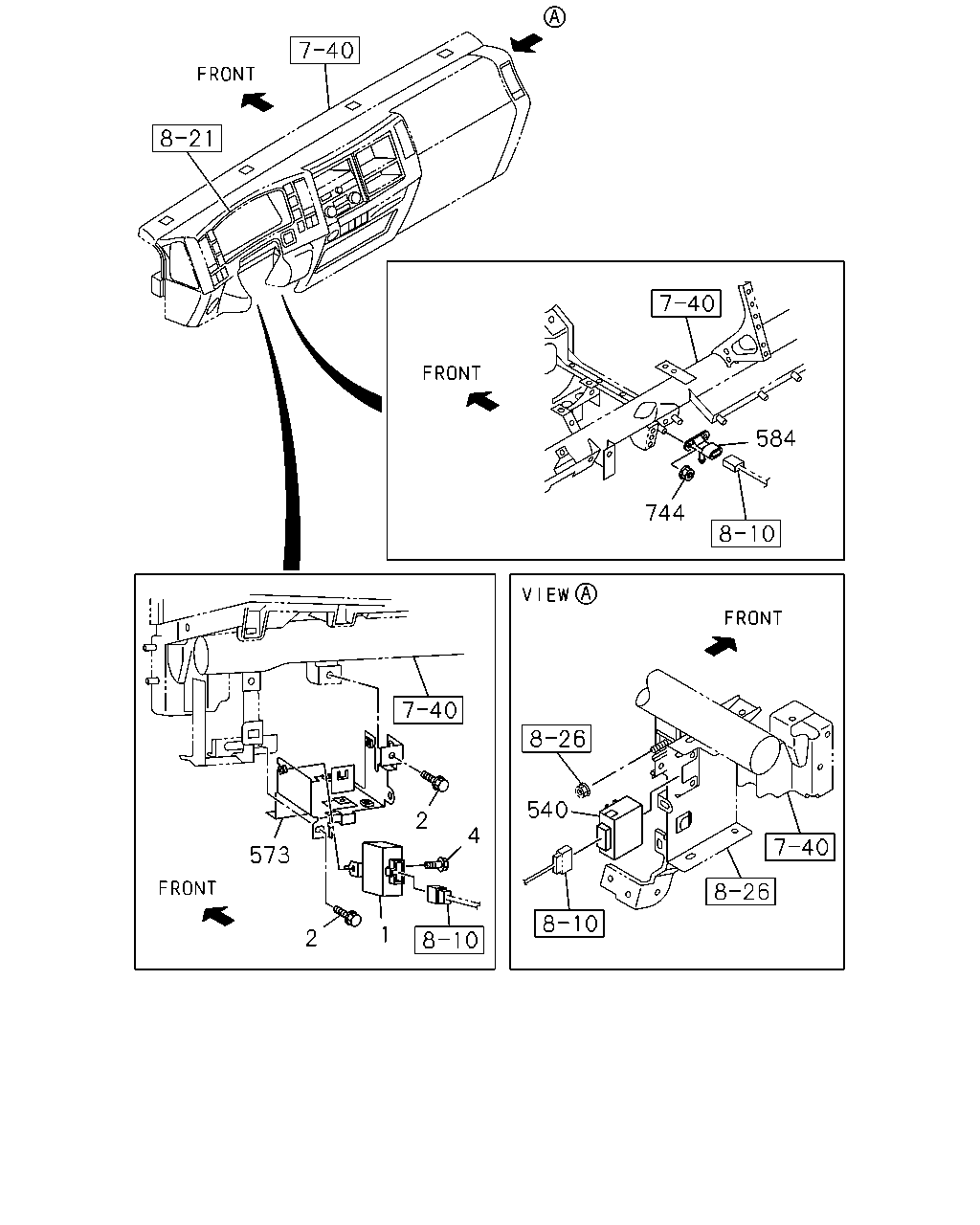

çizim 434142
573 2 4 2 540 1 584 744
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 8-98025-533-1 01 1 1407-
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1407-
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 1407-
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1407-
573 BRACKET; FLASHER UNIT 8-97616-351-3 01 1 1407-
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1407-
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1407-

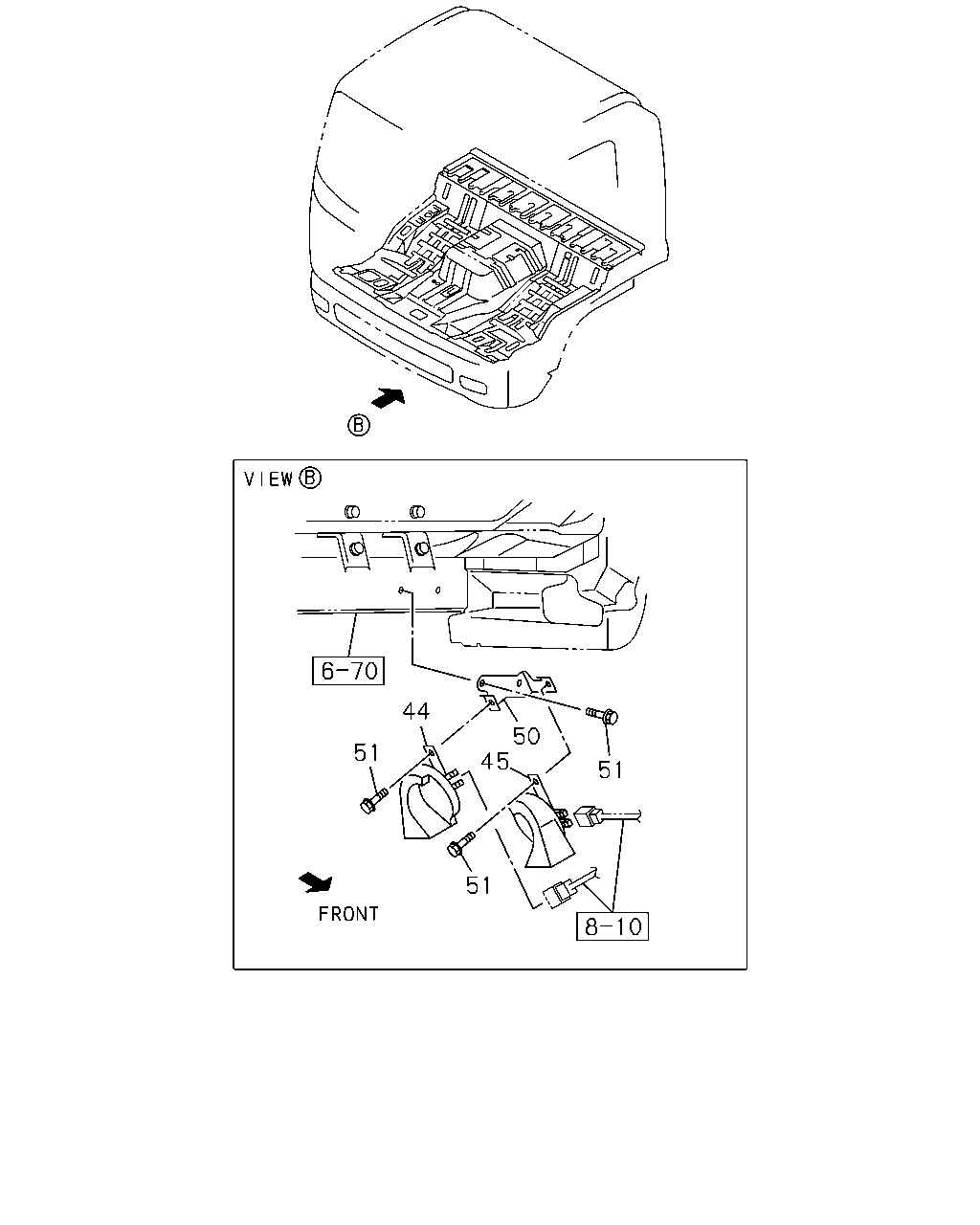

çizim 434209
44 51 51 50 51 45
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE 8-98022-022-0 01 1 1407-
45 HORN; LOW NOTE 8-98022-023-0 01 1 1407-
50 BRACKET; HORN 8-97616-529-2 01 1 1407-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1407-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1407-
çizim 434345
531 364
BalonParca AdiParca NoAdetTipApplied Date
364 RELAY; AUTO CRUISE OFF
24V 10A PANASONIC 		8-97173-035-1 03 1 1407-
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1407-
