8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#144263) — 23 parça

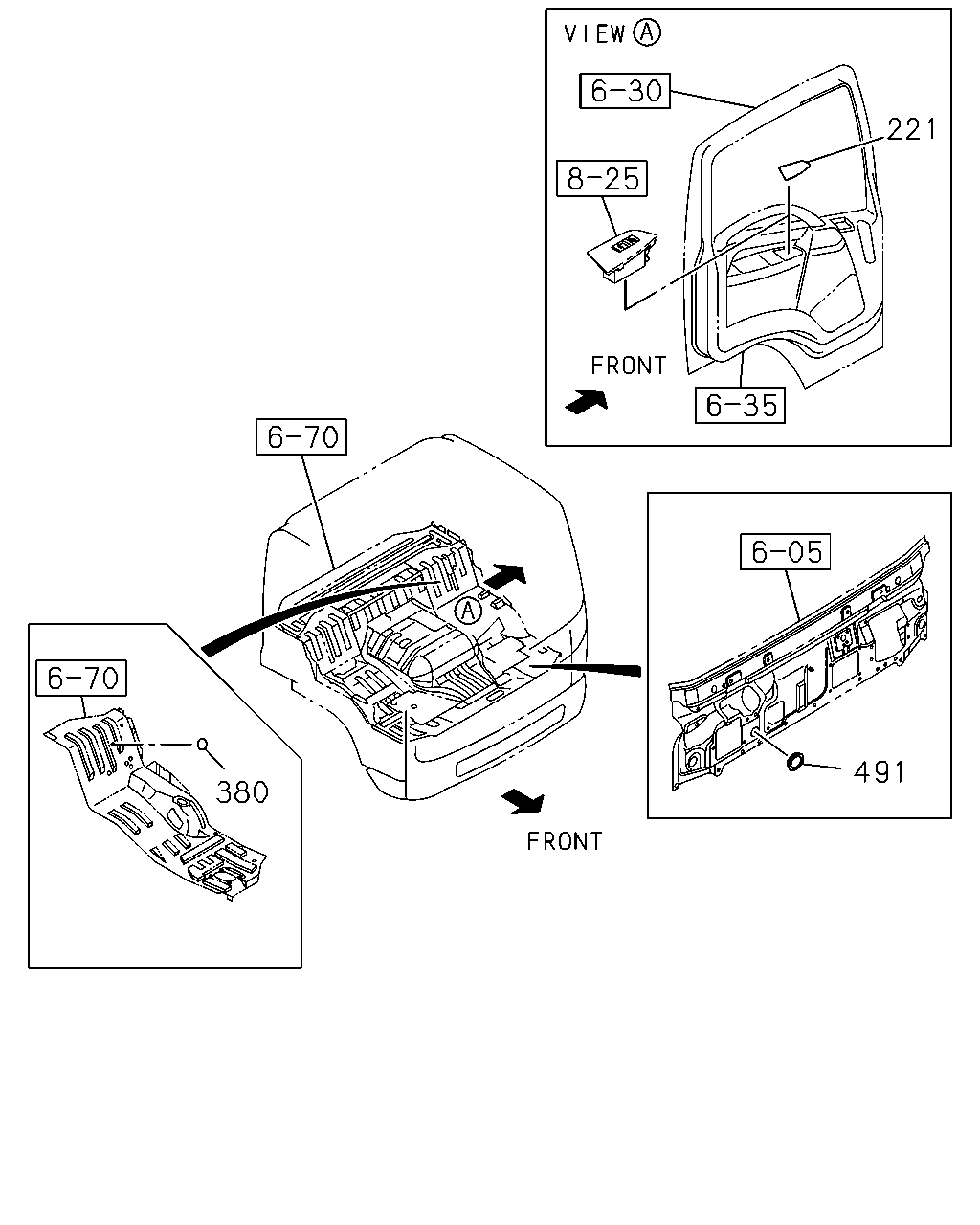

çizim 431877
380 491 221
BalonParca AdiParca NoAdetTipApplied Date
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1407-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1407-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1407-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1407-

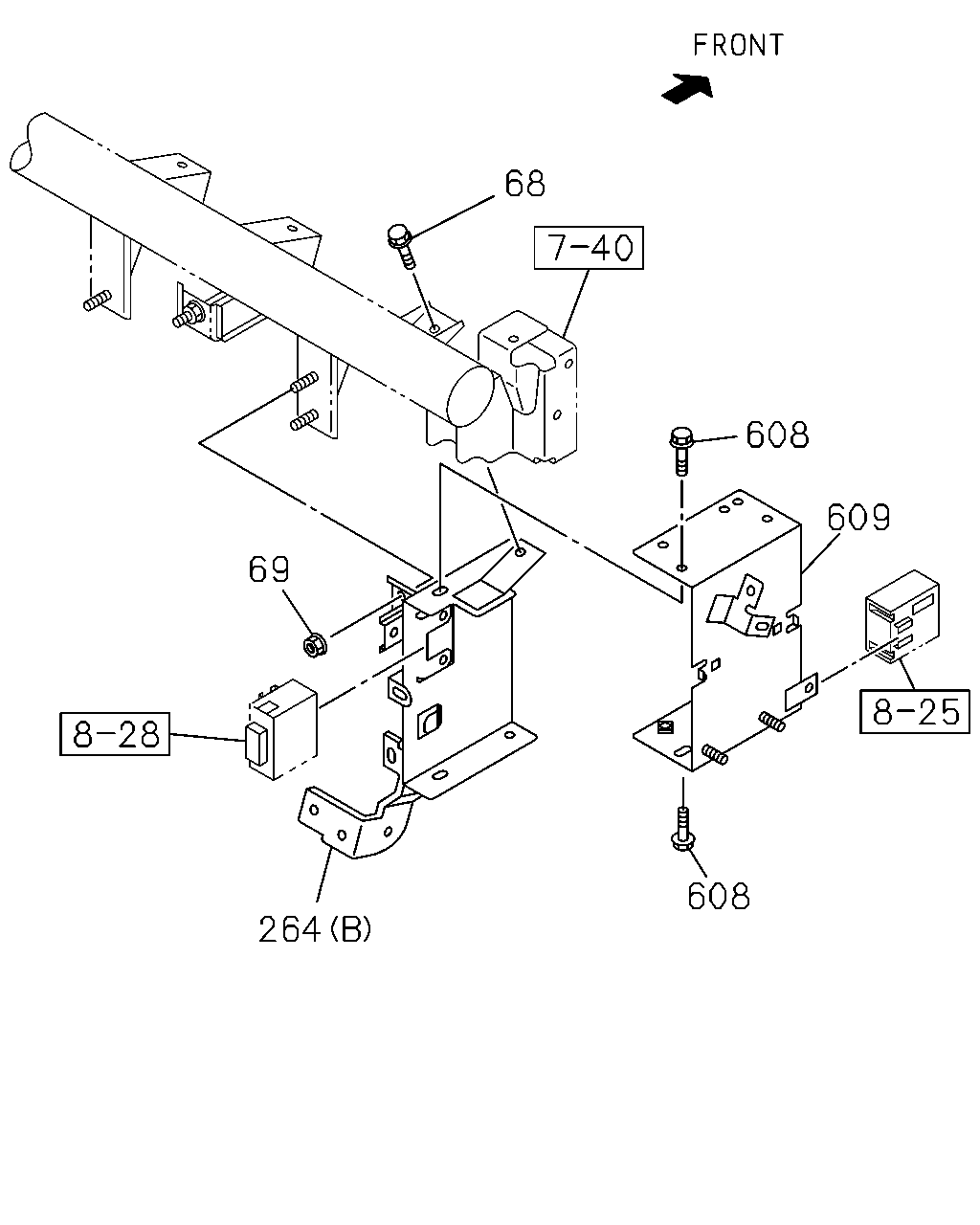

çizim 434048
68 608 609 608 264 69
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 01 1 1407-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1407-
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1407-
264 BRACKET; CONT UNIT
(A) 		8-98260-966-1 01 1 1407-
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28650-616-0 05 1 1407-
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> 		8-98226-231-1 01 1 1407-

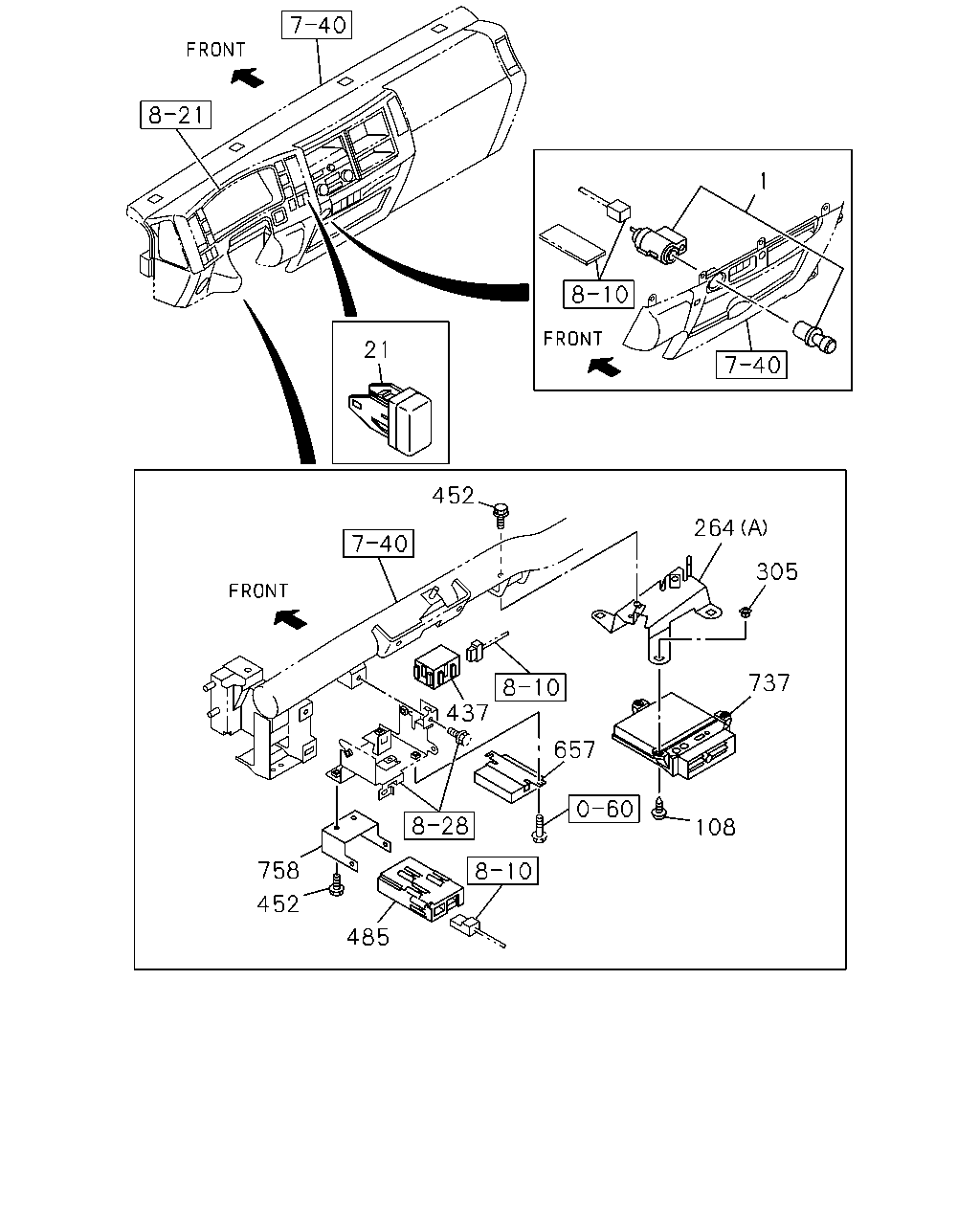

çizim 434425
1 21 452 264 305 737 108 657 437 485 452 758
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1407-
21 COVER; HOLE 8-98025-954-1 01 1 1407-
108 BOLT; TRANS CONT MODULE
M6X20 TAPPING 		0-72180-620-0 03 1 1407-
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1407-
264 BRACKET; CONT UNIT
(A) 		8-98260-966-1 01 1 1407-
305 NUT; CONT UNIT
D=9.7X9.7 L=8 		8-94222-314-0 03 1 1407-
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1407-
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1407-
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1407-
485 CONTROL UNIT; SPEED SENSOR 1-80190-061-0 01 1 1407-
657 CONTROL UNIT; MIMAMORI 8-98260-912-1 01 1 1407-
737 CONTROL UNIT; TRANSMISSION 8-98275-785-0 01 1 1407-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1407-
