◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11585 - FSR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#144259) — 168 parça

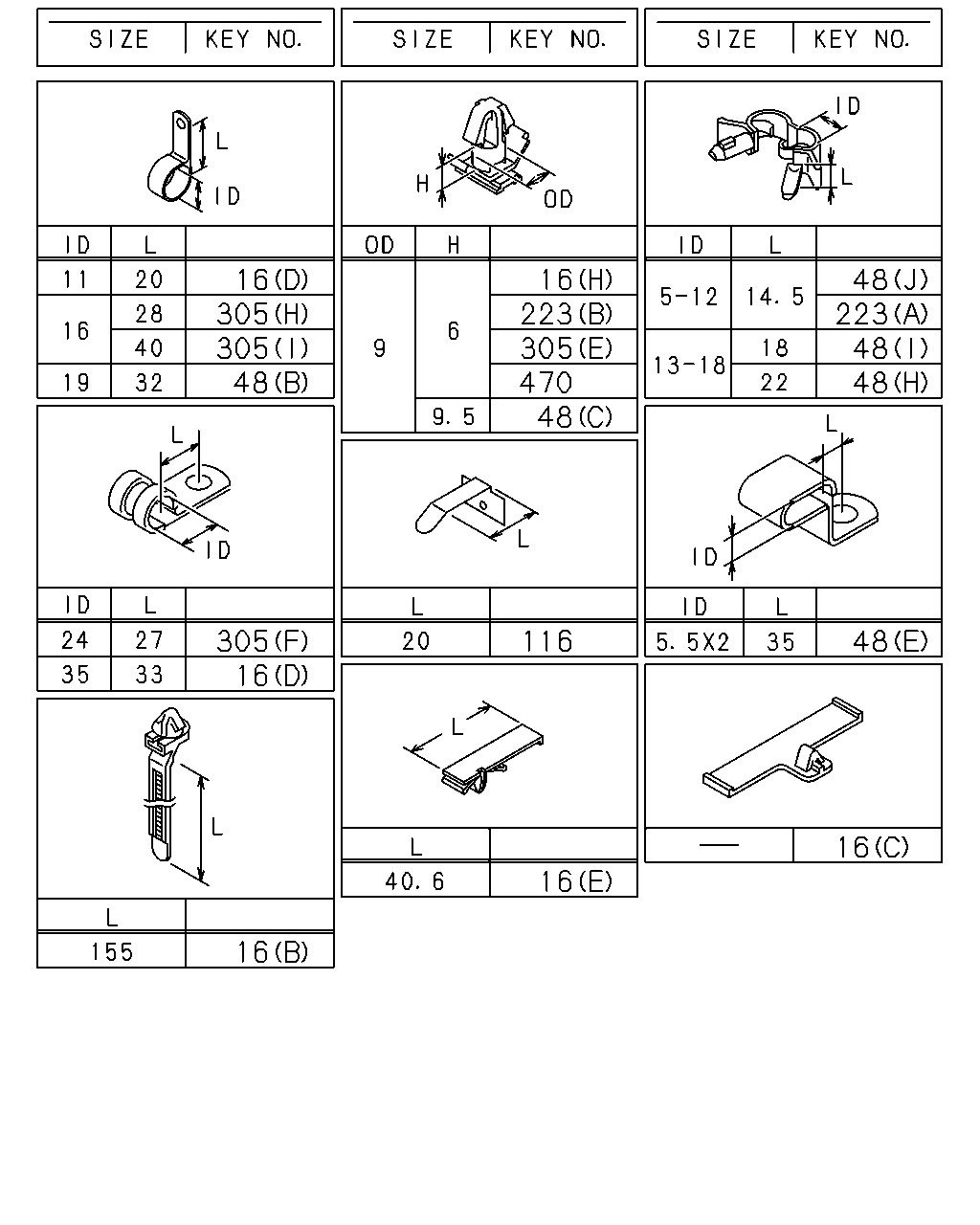

çizim 434106
16 305 305 48 305 16 16 16 116 48 470 305 223 16 48 223 48 48 48 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 1407-
16 CLIP; HARNESS
(G) L=350 		1-09707-183-0 02 1 1407-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1407-
16 CLIP; HARNESS
(F) ID=10 & 10 		1-09709-277-1 01 1 1407-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1407-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1407-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1407-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (I) ID=14 L=44 		9-09917-427-0 13 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (H) ID=13-18 L=22 		1-09709-292-0 01 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (I) ID=14 L=44 		9-09917-427-0 15 1 1407-
48 CLIP; FRAME HARNESS
(B) ID=19 L=32 		0-95235-866-0 02 1 1407-
48 CLIP; FRAME HARNESS
(E) ID=5.5X2 L=35 		1-09700-974-0 01 1 1407-
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1407-
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 1407-
48 CLIP; FRAME HARNESS
(D) L=180 		1-09707-162-1 01 1 1407-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1407-
48 CLIP; FRAME HARNESS
(J) ID=5-12 L=14.5 		1-09987-221-0 02 1 1407-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1407-1501
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1407-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1407-
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 01 1 1407-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1407-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 1407-
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 1407-
305 CLIP; ENG HARNESS
(H) ID=16 L=28 		0-95235-556-0 02 1 1407-
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1407-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1407-
305 CLIP; ENG HARNESS
(F) ID=24 L=27 		1-09700-809-0 03 1 1407-
305 CLIP; ENG HARNESS
(B) ID=19 L=39 H=21 		1-09700-972-1 01 1 1407-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1407-
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 1407-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1407-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1407-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1407-

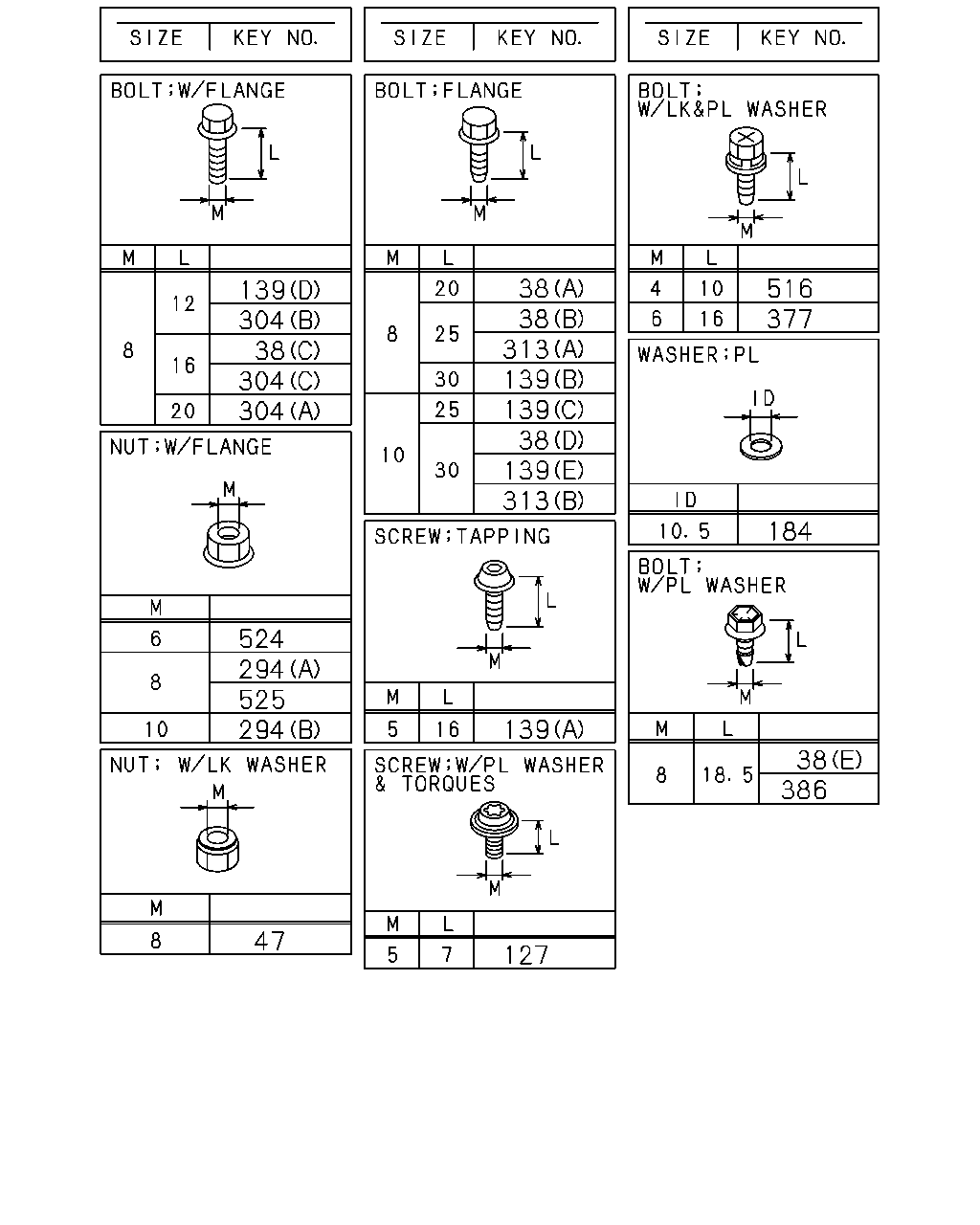

çizim 434275
139 38 304 304 304 38 313 38 139 38 139 139 313 516 377 184 38 386 127 139 294 524 294 525 47
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1407-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1407-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1407-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1407-
38 BOLT; CLIP,HARNESS
(D) M10X30 FLANGE 		0-28651-030-0 01 1 1407-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		8-98105-048-0 01 1 1407-
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1407-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1407-
139 BOLT; BRKT
(D) M8X12 FLANGE 		0-28050-812-0 01 1 1407-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1407-
139 BOLT; BRKT
(E) M10X30 FLANGE 		0-28651-030-0 02 1 1407-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1407-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1407-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1407-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1407-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 1407-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1407-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1407-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 06 1 1407-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1407-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1407-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1407-
313 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1407-
313 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1407-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1407-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1407-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1407-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1407-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1407-
çizim 434334
48 206 14 48 194 217 225 491 48 225 14 16 48 1 1 178 503 503 503 530 538
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1407-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1407-
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 09 1 1407-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1407-
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 1407-
16 CLIP; HARNESS
(G) L=350 		1-09707-183-0 02 1 1407-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1407-
16 CLIP; HARNESS
(F) ID=10 & 10 		1-09709-277-1 01 1 1407-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1407-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1407-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1407-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (I) ID=14 L=44 		9-09917-427-0 13 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (H) ID=13-18 L=22 		1-09709-292-0 01 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (I) ID=14 L=44 		9-09917-427-0 15 1 1407-
48 CLIP; FRAME HARNESS
(B) ID=19 L=32 		0-95235-866-0 02 1 1407-
48 CLIP; FRAME HARNESS
(E) ID=5.5X2 L=35 		1-09700-974-0 01 1 1407-
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1407-
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 1407-
48 CLIP; FRAME HARNESS
(D) L=180 		1-09707-162-1 01 1 1407-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1407-
48 CLIP; FRAME HARNESS
(J) ID=5-12 L=14.5 		1-09987-221-0 02 1 1407-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1407-1501
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1407-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1407-
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 01 1 1407-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1407-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1407-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1407-
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 1407-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 03 1 1407-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1407-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1407-
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 1407-1501
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 1407-1501
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 1502-
491 CLIP; BAND,HTR HOSE & HARNESS
L=250 		5-09707-030-1 03 1 1407-
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 1407-
503 CONNECTOR
(A) 		1-82691-191-0 01 1 1407-
503 CONNECTOR
EXC. AIR DRYER<PS7> (C) 		1-82690-666-0 01 1 1407-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1407-
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1407-
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1407-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1407-

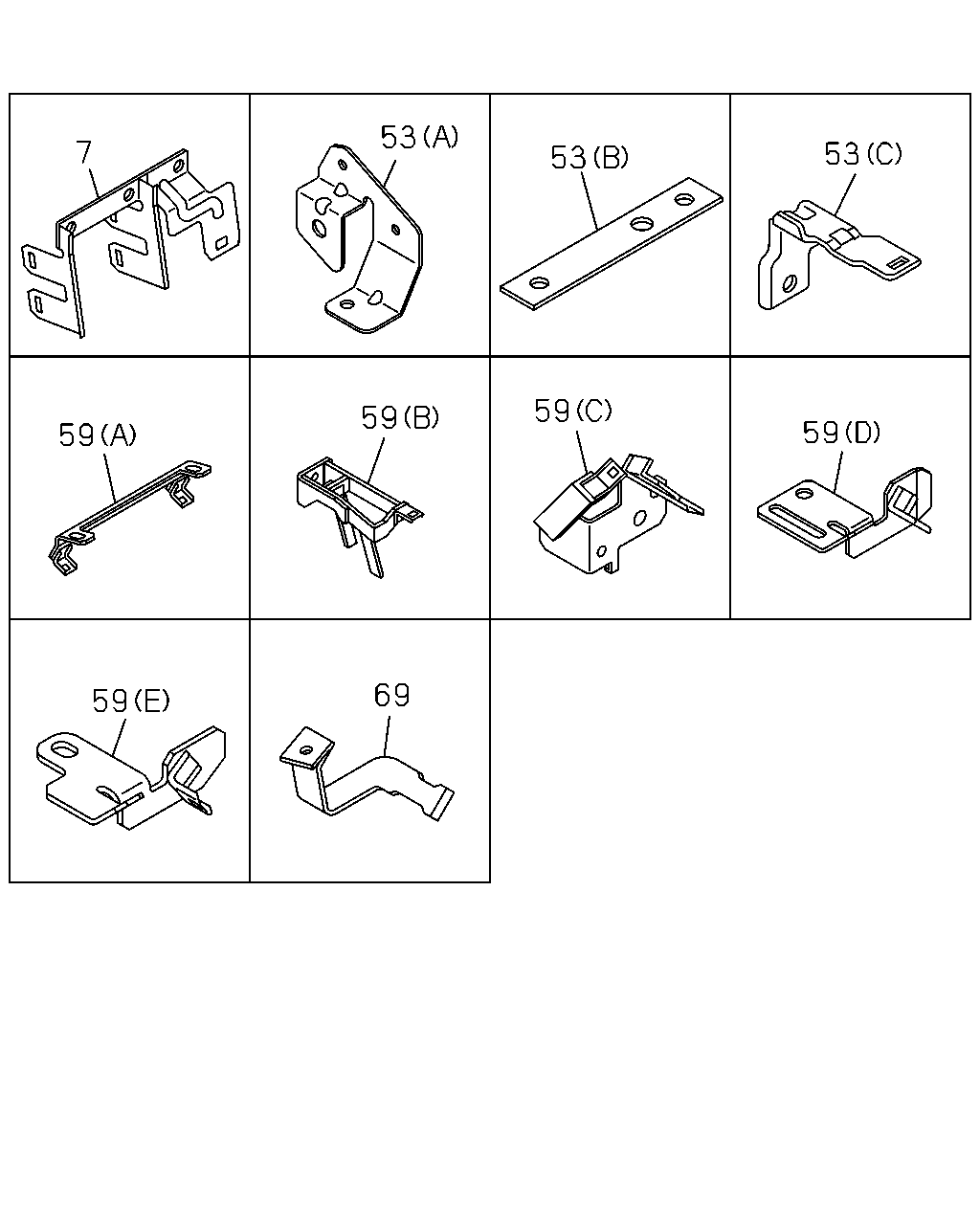

çizim 434424
7 53 53 53 59 59 59 59 59 69
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 1407-
53 BRACKET; HARNESS
(B) L=170 		1-47479-380-0 01 1 1407-
53 BRACKET; HARNESS
(D) 		1-82698-296-0 02 1 1407-
53 BRACKET; HARNESS
(C) 		8-98052-458-0 01 1 1407-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98084-699-0 01 1 1407-
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 1407-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1407-1502
59 BRACKET; FRAME HARNESS
(E) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(A) 		8-97619-533-0 01 1 1407-
59 BRACKET; FRAME HARNESS
(C) 		8-97622-828-0 01 1 1407-
69 BRACKET; CLIP 8-97616-357-3 01 1 1407-

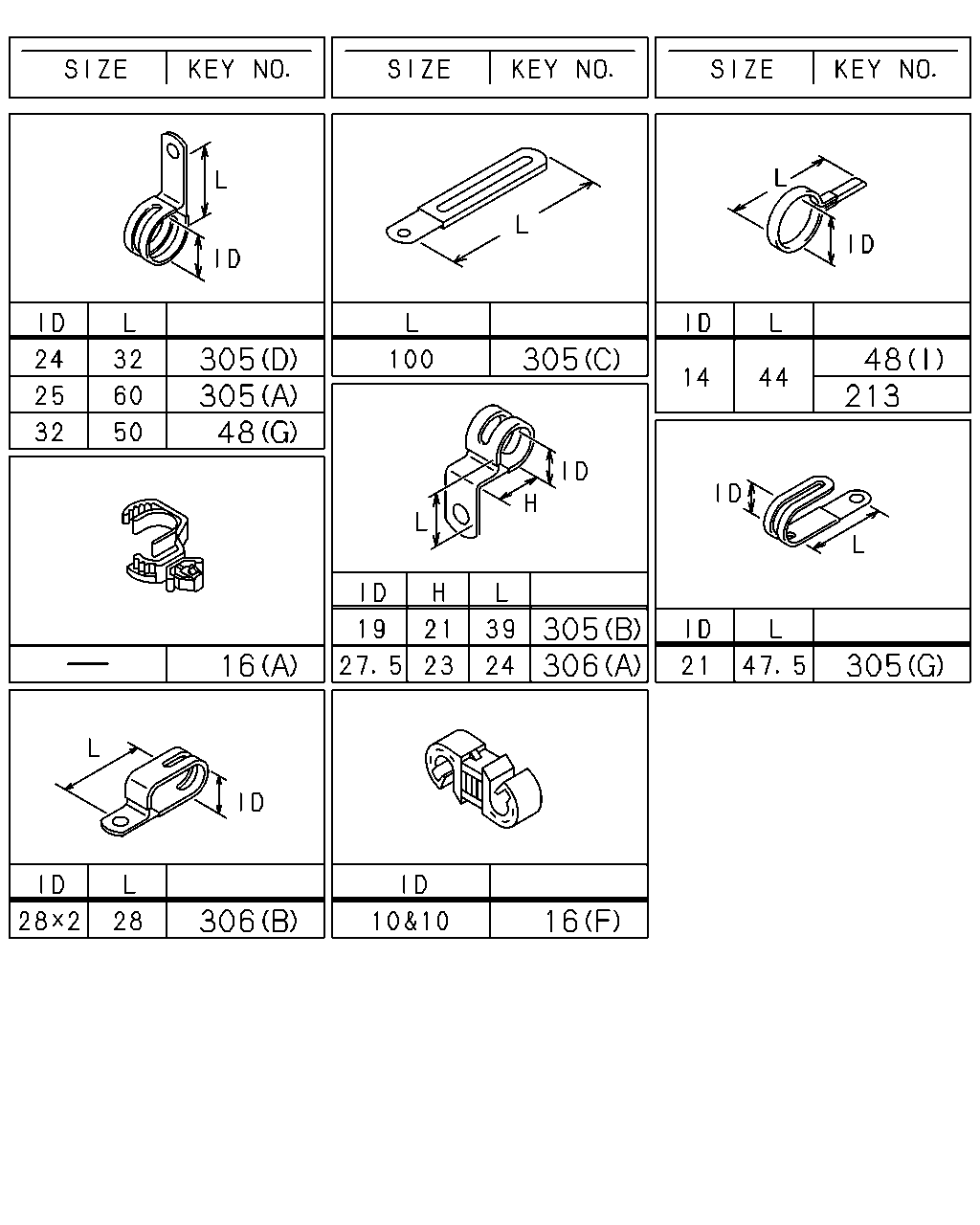

çizim 434482
305 305 48 16 306 305 305 306 16 48 213 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 1407-
16 CLIP; HARNESS
(G) L=350 		1-09707-183-0 02 1 1407-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1407-
16 CLIP; HARNESS
(F) ID=10 & 10 		1-09709-277-1 01 1 1407-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1407-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1407-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1407-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (I) ID=14 L=44 		9-09917-427-0 13 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (H) ID=13-18 L=22 		1-09709-292-0 01 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (I) ID=14 L=44 		9-09917-427-0 15 1 1407-
48 CLIP; FRAME HARNESS
(B) ID=19 L=32 		0-95235-866-0 02 1 1407-
48 CLIP; FRAME HARNESS
(E) ID=5.5X2 L=35 		1-09700-974-0 01 1 1407-
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 1407-
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 1407-
48 CLIP; FRAME HARNESS
(D) L=180 		1-09707-162-1 01 1 1407-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1407-
48 CLIP; FRAME HARNESS
(J) ID=5-12 L=14.5 		1-09987-221-0 02 1 1407-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1407-1501
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1407-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1407-
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 01 1 1407-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1407-
305 CLIP; ENG HARNESS
(H) ID=16 L=28 		0-95235-556-0 02 1 1407-
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1407-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1407-
305 CLIP; ENG HARNESS
(F) ID=24 L=27 		1-09700-809-0 03 1 1407-
305 CLIP; ENG HARNESS
(B) ID=19 L=39 H=21 		1-09700-972-1 01 1 1407-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1407-
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 1407-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1407-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1407-
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1407-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1407-
çizim 434484
53 308 335 137 308 428 137 308 308 312
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(B) L=170 		1-47479-380-0 01 1 1407-
53 BRACKET; HARNESS
(D) 		1-82698-296-0 02 1 1407-
53 BRACKET; HARNESS
(C) 		8-98052-458-0 01 1 1407-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98084-699-0 01 1 1407-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1407-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1407-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1407-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98021-692-1 01 1 1407-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98032-178-0 01 1 1407-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98075-824-0 01 1 1407-
312 BRACKET; CLIP HARNESS 8-98260-990-0 01 1 1407-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1407-
428 BRACKET 8-98090-952-0 01 1 1407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
