◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11585 - FSR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#144248) — 114 parça

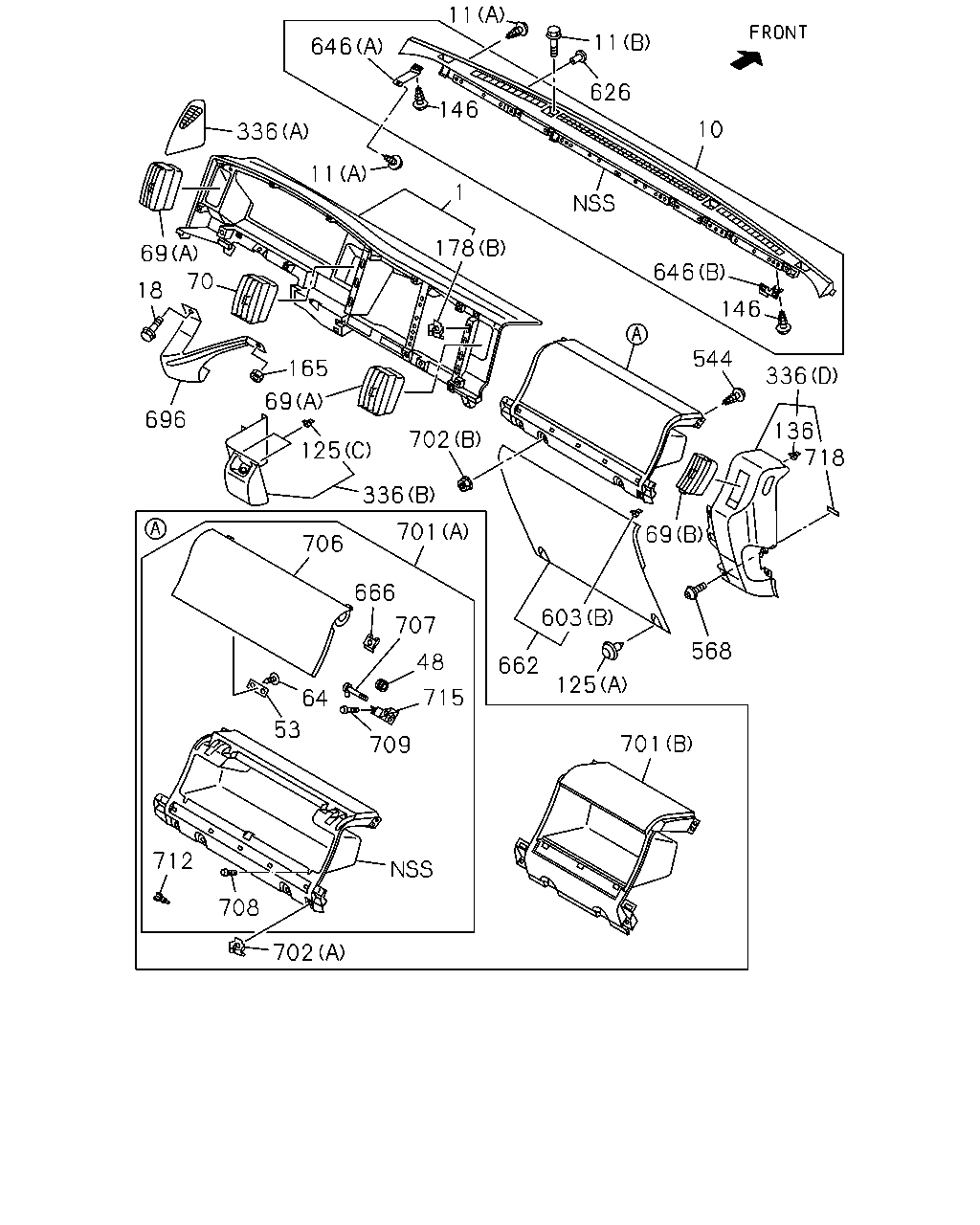

çizim 431829
10 626 11 11 646 146 646 544 146 336 136 718 69 568 701 125 603 662 1 178 11 336 69 165 696 70 18 125 702 69 336 66 701 706 707 48 715 709 64 53 712 708 702
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1407-
10 PANEL ASM; GARNISH
GRAY 		8-97422-096-1 01 1 1407-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1407-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1407-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1407-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1407-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1407-
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-765-0 01 1 1407-
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M4X85 		8-97926-404-0 02 1 1407-
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-606-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 1407-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1407-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1407-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1407-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1407-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1407-
136 CLIP; INST COVER 8-98076-254-0 02 1 1407-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1407-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1407-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1407-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1407-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1407-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1407-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1407-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1407-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1407-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1407-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1407-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1407-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1407-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1407-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1407-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 1407-
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1407-
696 BRACKET; KNEE 8-98098-126-1 01 1 1407-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1407-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1407-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1407-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1407-
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1407-
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1407-
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1407-
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1407-
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1407-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1407-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1407-
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1407-

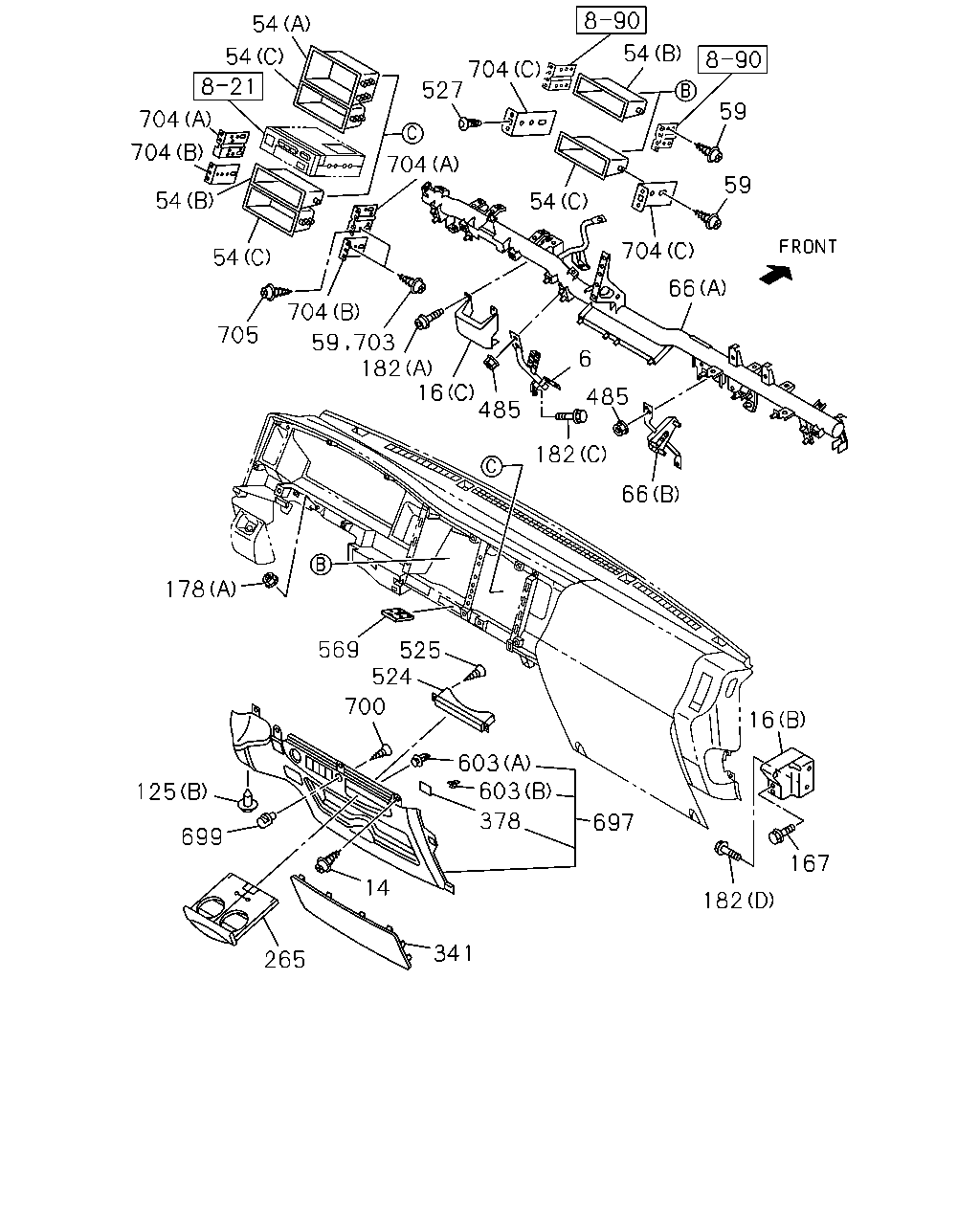

çizim 432499
341 182 167 16 697 603 378 603 14 265 699 125 178 569 525 524 700 66 182 485 485 6 16 182 703 59 704 705 54 54 704 704 54 54 527 704 54 704 54 59 59 66 704
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1407-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1407-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1407-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-527-0 01 1 1407-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1407-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1407-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1407-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1407-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1407-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1407-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1407-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1407-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1407-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1407-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1407-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1407-
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-606-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 1407-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1407-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1407-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1407-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1407-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1407-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1407-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1407-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1407-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1407-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1407-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1407-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1407-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1407-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1407-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 1407-
569 HOLDER; CARD 8-97410-276-1 01 1 1407-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1407-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1407-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1407-
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1407-
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1407-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1407-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1407-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1407-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1407-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 1407-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1407-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1407-

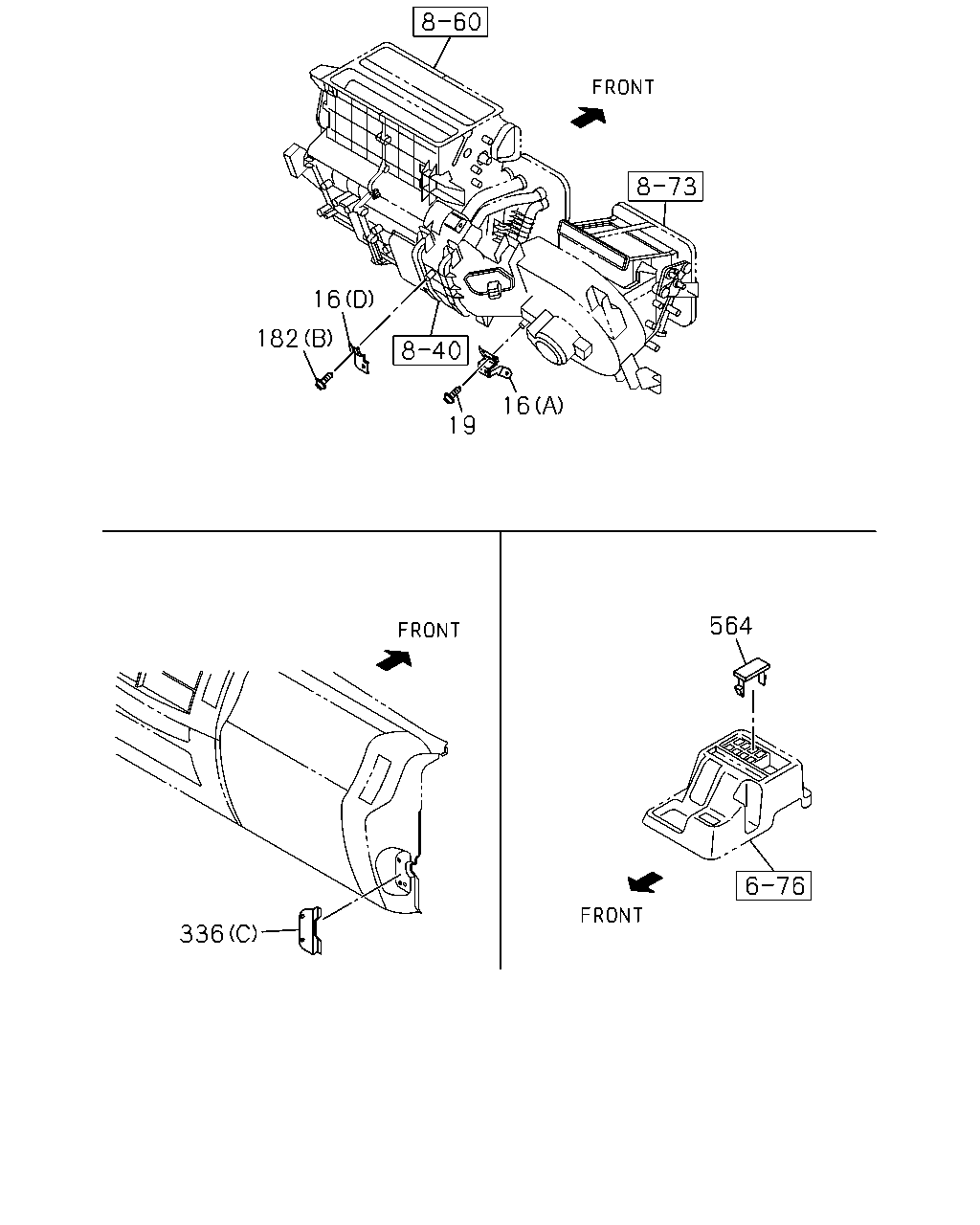

çizim 432796
16 182 19 16 336 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1407-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-527-0 01 1 1407-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1407-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1407-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1407-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1407-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1407-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1407-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1407-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1407-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1407-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1407-
564 COVER; SW 8-97043-732-1 06 1 1407-
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1407-
