◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11585 - FSR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#144245) — 9 parça

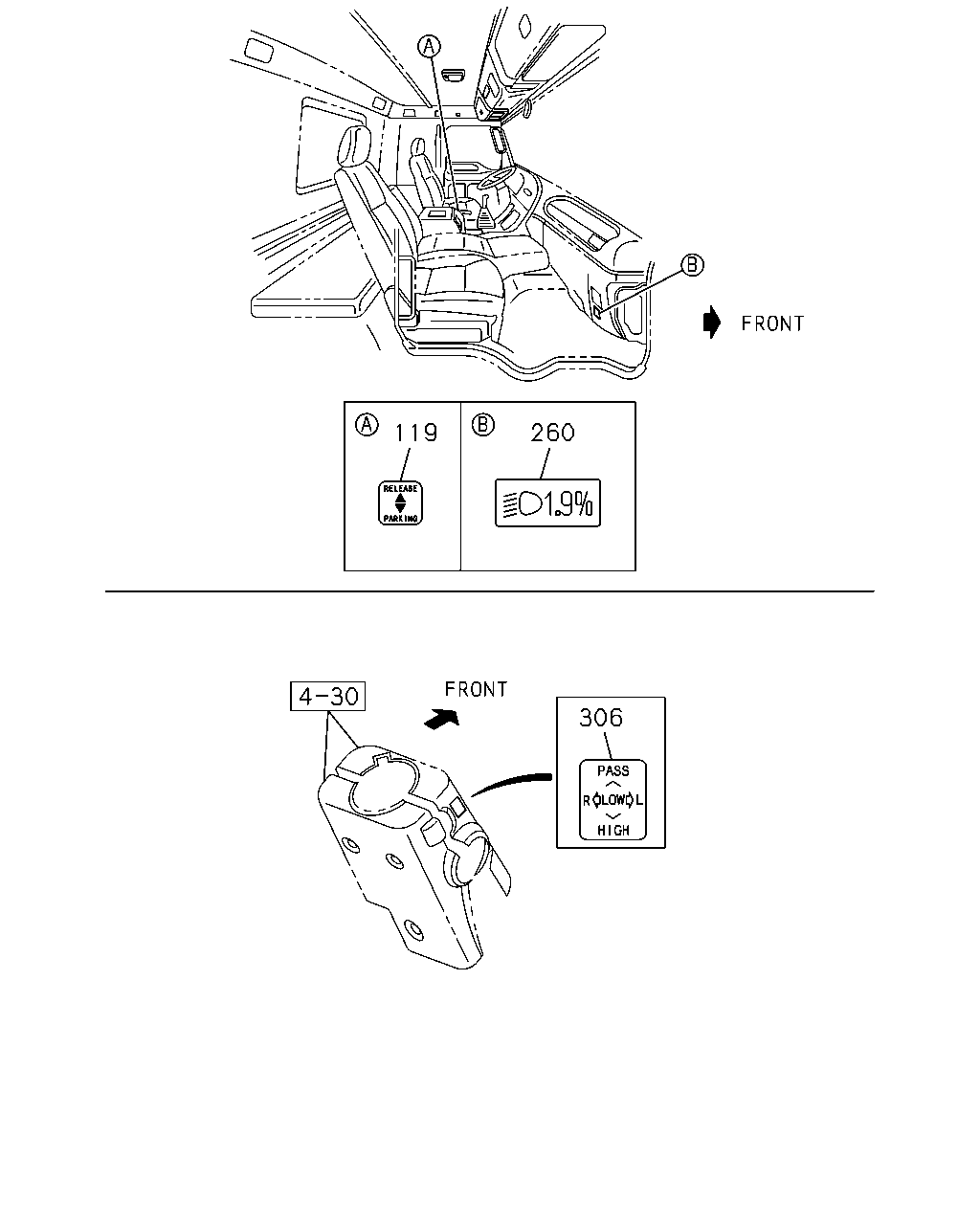

çizim 433917
119 260 306
BalonParca AdiParca NoAdetTipApplied Date
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1407-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-501-1 01 1 1407-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1407-
çizim 433959
35 49 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> 		8-98082-441-0 01 1 1407-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7> 		8-98082-437-0 01 1 1407-
35 PLATE; CAUTION,CAB
CAUTIONS ARABIAN<WJ7> 		8-98070-107-0 01 1 1407-
35 PLATE; CAUTION,CAB
EXC. CAUTIONS ARABIAN<WJ7> 		8-98065-363-0 01 1 1407-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		8-98127-559-0 01 1 1407-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7> 		8-98122-354-0 01 1 1407-
