6-70 — FLOOR PANEL (#144236) — 59 parça

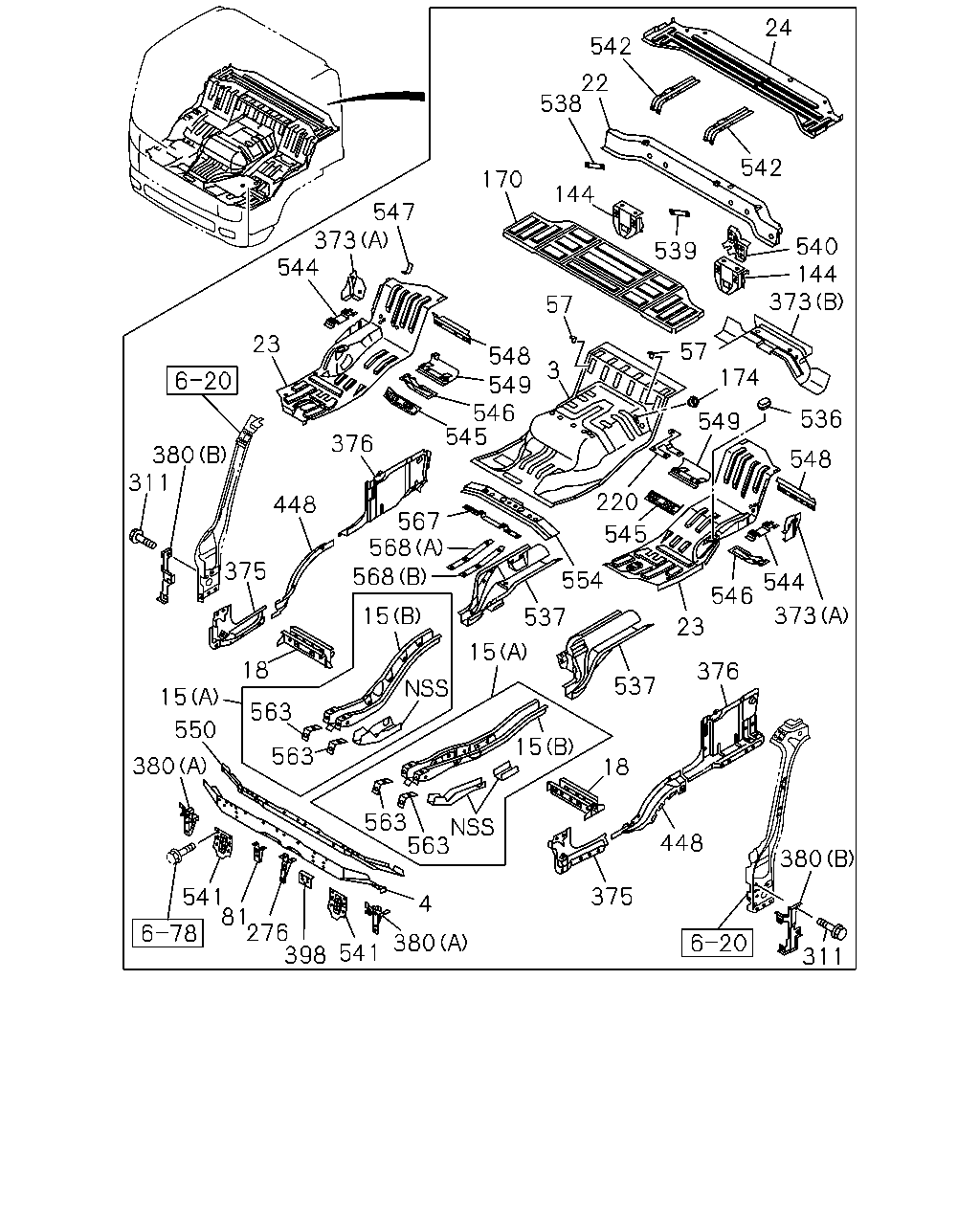

çizim 432776
4 380 541 398 276 81 541 380 550 15 18 375 448 311 380 23 376 544 373 547 170 538 22 542 24 542 539 144 540 144 373 57 174 536 548 544 373 546 23 545 220 376 448 375 380 311 18 537 549 554 537 15 15 563 563 563 563 15 568 568 567 545 546 549 548 57 3
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98066-819-4 01 1 1407-
4 FRAME; FLOOR,FRT 8-98077-806-1 01 1 1407-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1407-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1407-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1407-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1407-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1407-
18 FRAME; FLOOR,CENTER SIDE 8-98017-380-2 01 1 1407-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1407-
23 PANEL; FLOOR,SIDE 8-98017-358-5 01 1 1407-
23 PANEL; FLOOR,SIDE 8-98080-738-0 01 1 1407-
24 PANEL; BED PAN 8-97584-377-6 01 1 1407-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1407-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1407-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1407-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1407-
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 1407-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1407-
220 PATCH 8-97589-704-0 01 1 1407-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1407-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1407-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1407-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1407-
373 REINFORCEMENT; SEAT BELT
(B) 		8-98017-308-4 01 1 1407-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1407-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1407-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1407-
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1407-
380 BRACKET; HEAD LAMP
(A) 		8-97589-707-1 01 1 1407-
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 1407-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1407-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1407-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1407-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1407-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1407-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1407-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1407-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1407-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1407-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1407-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1407-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1407-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1407-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1407-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1407-
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 1407-
545 BRACKET; SEAT FRT 8-97589-706-0 01 1 1407-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1407-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1407-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1407-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1407-
549 BRACKET; SEAT RR 8-98017-363-1 01 1 1407-
549 BRACKET; SEAT RR 8-98017-370-1 01 1 1407-
550 CLOSING ASM; MTG,FRT 8-97589-709-3 01 1 1407-
554 REINFORCEMENT; FLOOR CENTER 8-98017-330-1 01 1 1407-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1407-
567 REINFORCEMENT; CONT LEVER 8-98046-522-3 01 1 1407-
568 BRACKET; ACCEL STOPPER
(A) 		8-98089-177-0 01 1 1407-
568 BRACKET; ACCEL STOPPER
(B) 		8-98089-178-0 01 1 1407-
