6-01 — FRONT BUMPER (#14423) — 51 parça

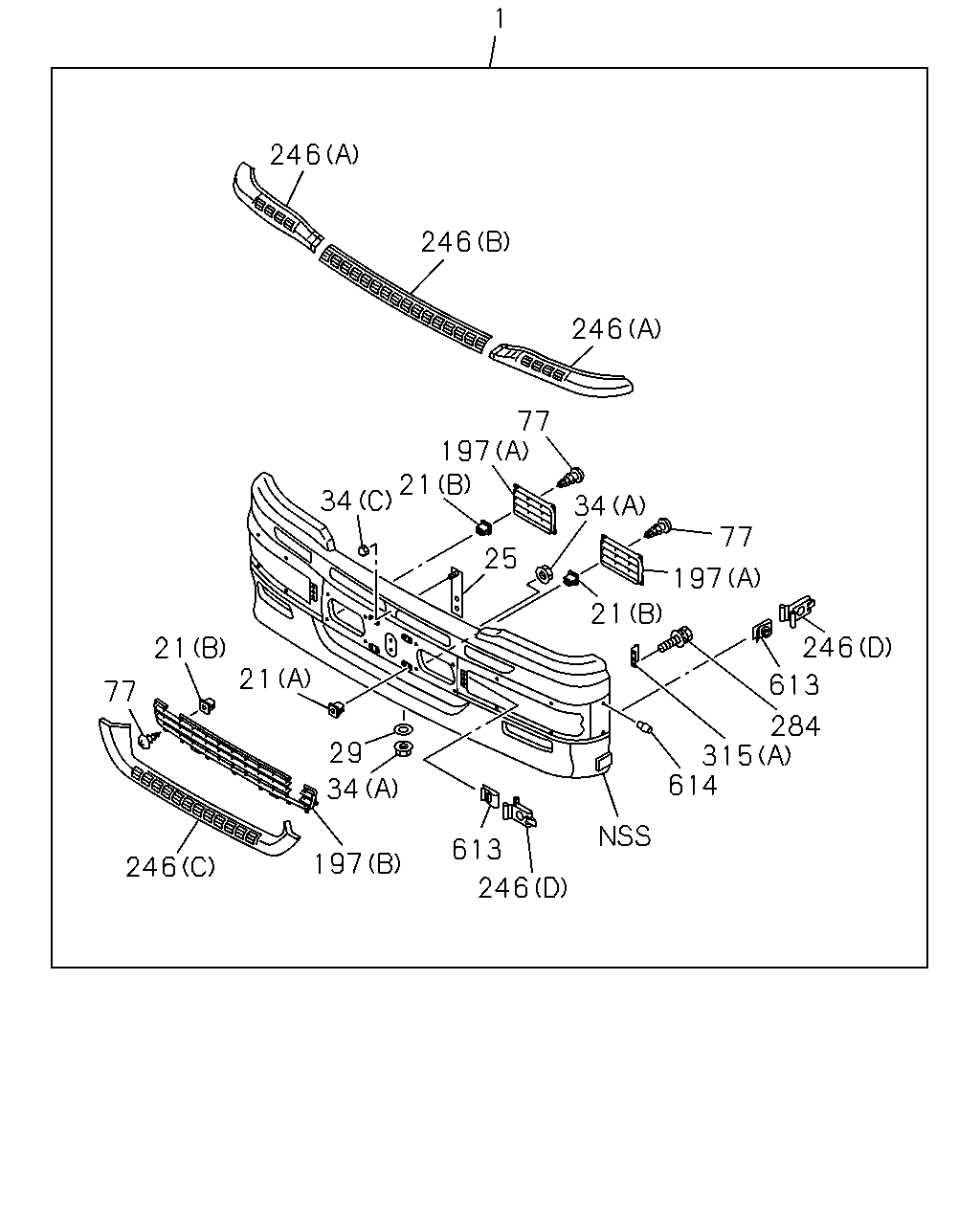

çizim 96093
1 246 246 246 77 197 21 34 34 77 25 197 21 246 613 284 315 614 246 613 197 246 34 29 21 77 21
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71211-419-2 01 1 0710-
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 22 1 0710-
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0710-
25 SPACER; PLATFORM 1-71230-640-0 01 1 0710-
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 17 1 0710-
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 04 1 0710-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 17 1 0710-
34 NUT; BRKT,BUMPER
(C) M10 CAP NUT 		1-09650-480-0 01 1 0710-
77 SCREW; BRKT
M5X16 TAPPING 		0-71240-516-0 22 1 0710-
197 GRILLE; BUMPER
(A) 		1-71260-115-1 01 1 0710-
197 GRILLE; BUMPER
(A) 		1-71260-116-1 01 1 0710-
197 GRILLE; BUMPER
(B) 		8-97617-998-0 01 1 0710-
246 PROTECTOR; BUMPER
(A) 		1-71260-094-2 01 1 0710-
246 PROTECTOR; BUMPER
(A) 		1-71260-095-2 01 1 0710-
246 PROTECTOR; BUMPER
(B) 		1-71260-155-1 01 1 0710-
246 PROTECTOR; BUMPER
(C) 		1-71260-156-1 01 1 0710-
246 PROTECTOR; BUMPER
(D) 		1-71260-162-0 06 1 0710-
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0710-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0710-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0710-
315 STAY; BUMPER
(C) 		1-71230-435-0 02 1 0710-
315 STAY; BUMPER
(B) 		8-97608-941-0 02 1 0710-
613 CLIP 1-71260-174-0 06 1 0710-
614 STOPPER; LID 1-71260-163-0 12 1 0710-

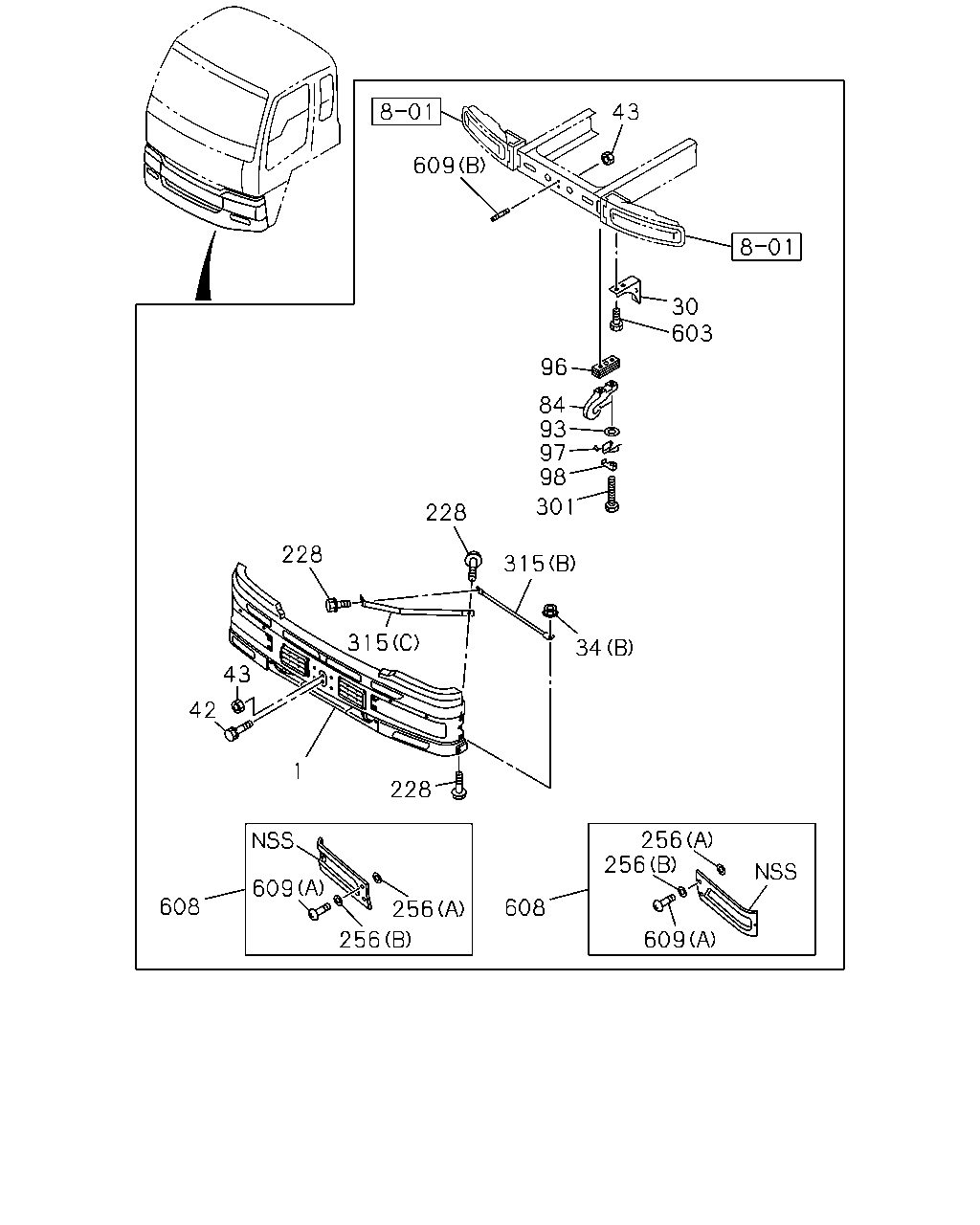

çizim 96359
43 609 30 603 96 84 93 97 98 301 228 315 228 315 34 43 42 1 228 608 609 256 256 608 256 256 609
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71211-419-2 01 1 0710-
30 BRACKET; FRT BUMPER 1-71230-428-0 01 1 0710-
30 BRACKET; FRT BUMPER 1-71230-429-0 01 1 0710-
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 04 1 0710-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 17 1 0710-
34 NUT; BRKT,BUMPER
(C) M10 CAP NUT 		1-09650-480-0 01 1 0710-
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0710-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 01 1 0710-
84 HOOK 1-57181-027-1 01 1 0710-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0710-
96 PLATE; DIST,HOOK 1-53497-473-0 01 1 0710-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0710-
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0710-
228 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0710-
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0710-
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0710-
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0710-
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0710-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0710-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0710-
315 STAY; BUMPER
(C) 		1-71230-435-0 02 1 0710-
315 STAY; BUMPER
(B) 		8-97608-941-0 02 1 0710-
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710-
608 LID; BUMPER 1-71210-753-6 01 1 0710-
608 LID; BUMPER 1-71210-752-6 01 1 0710-
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0710-
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0710-
