5-01 — FRAME AND OTHER PARTS (#144217) — 42 parça

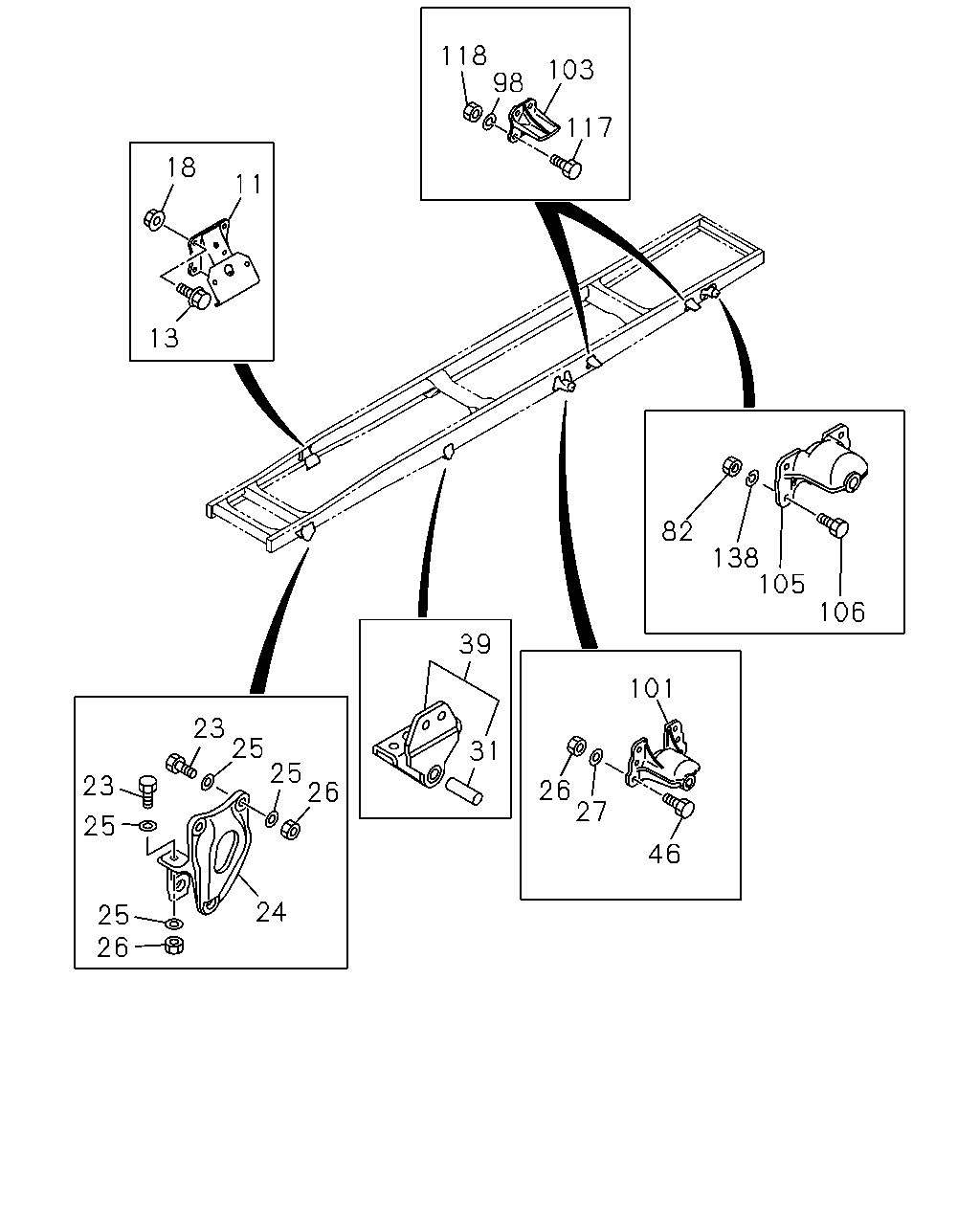

çizim 433038
13 18 11 118 98 103 117 82 138 105 106 101 26 27 46 39 31 23 25 25 26 24 26 25 25 23
BalonParca AdiParca NoAdetTipApplied Date A B
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1407- ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1407- ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1407- ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1407- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 1407- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 1407- ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1407- ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1407- ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1407- ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1407- ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 1407- ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1407- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1407- ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1407- ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1407- ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1407- ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1407- ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1407- ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1407- ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1407- ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1407- ● ●

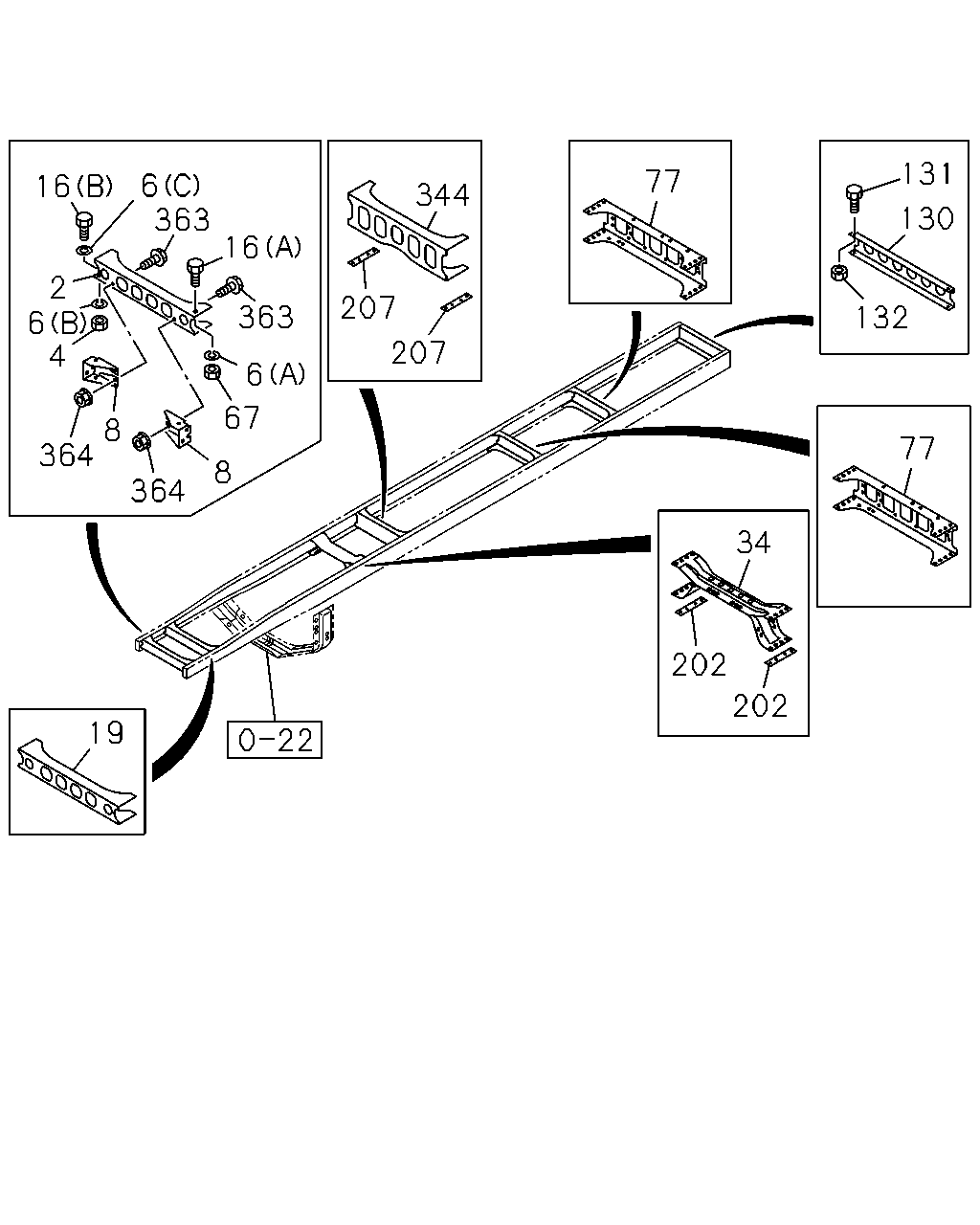

çizim 433248
16 6 363 16 363 6 67 8 364 364 4 2 8 344 207 207 77 131 130 132 77 34 202 202 19 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1407- ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1407- ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1407- ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1407- ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1407- ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-2 01 1 1407- ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-3 01 1 1407- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1407- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1407- ● ●
19 MEMBER; CROSS,2ND 8-97647-731-2 01 1 1407- ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1407- ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1407- ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97609-481-4 02 1 1407- ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1407- ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1407- ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1407- ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1407- ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1407- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1407- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1407- ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1407- ● ●
