Isuzu WW
▶
TRUCKS
▶
FSR
▶
11585 - FSR(MIDDLE EAST)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

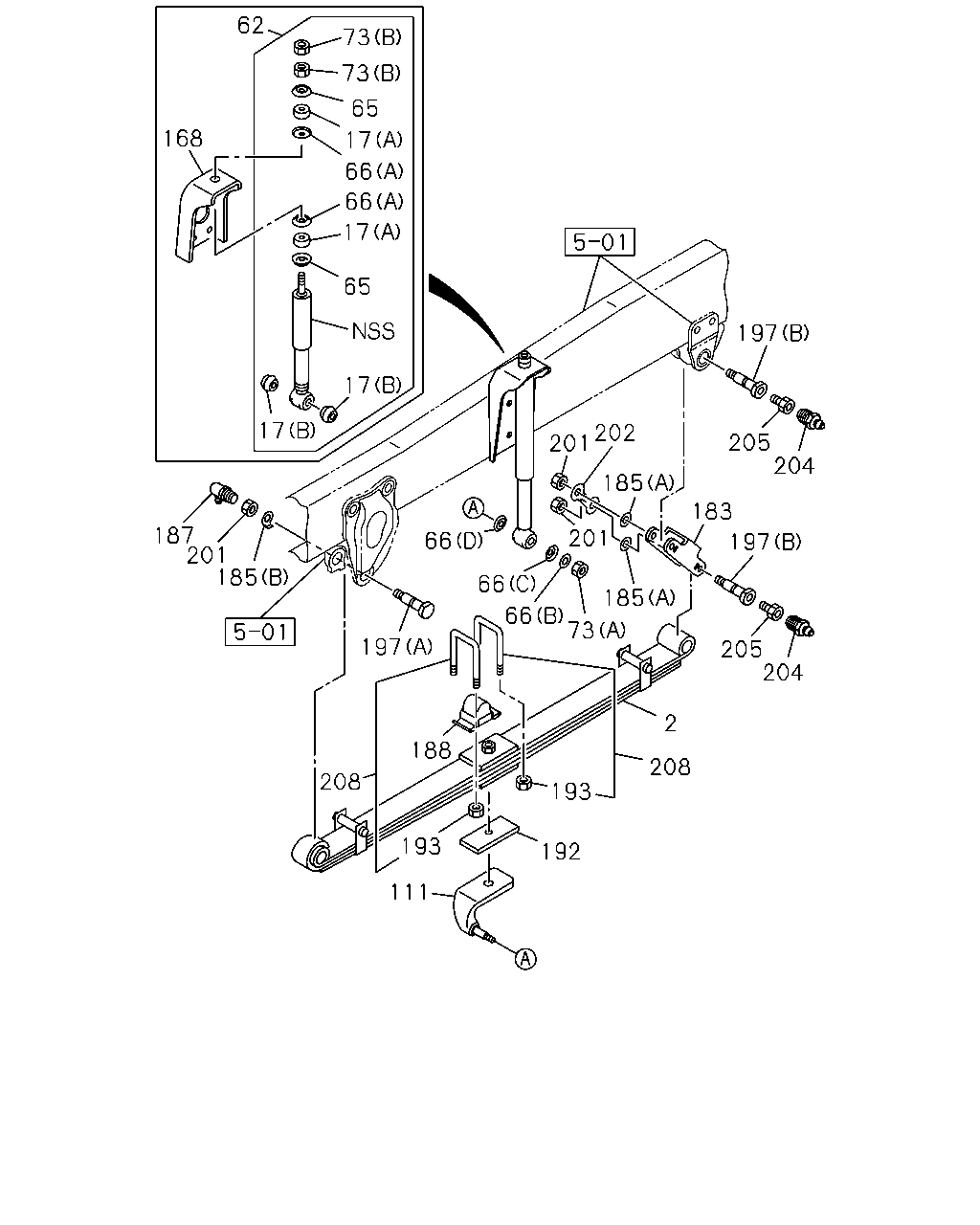

4-50 — FRONT SUSPENSION
(#144212) — 29 parça
62
168
73
65
73
17
66
66
17
65
17
17
187
201
185
197
66
201
202
197
205
183
185
201
197
185
205
204
66
66
73
2
208
193
192
193
111
208
188
204
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98017-556-0
01
1
1407-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98017-557-0
01
1
1407-
17
BUSHING; RUBBER,S/ABS
(B)
1-51631-009-1
04
1
1407-
17
BUSHING; RUBBER,S/ABS
(A)
9-51631-050-0
04
1
1407-
62
ABSORBER ASM; SHOCK,FRT
1-51630-302-1
02
1
1407-
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
1407-
66
WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30
0-91610-516-0
02
1
1407-
66
WASHER; LK,S/ABS SETTING
(D) ID=23
1-51631-019-0
02
1
1407-
66
WASHER; LK,S/ABS SETTING
(C) ID=17
1-51631-020-0
02
1
1407-
66
WASHER; LK,S/ABS SETTING
(A) ID=16.8
1-51631-022-0
04
1
1407-
73
NUT; BRKT,SHOCK
(A) M16
0-91110-516-0
02
1
1407-
73
NUT; BRKT,SHOCK
(B) M12
8-98010-412-0
04
1
1407-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-641-2
01
1
1407-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-642-2
01
1
1407-
168
BRACKET; S/ABS,FRT SUSP
1-51681-820-0
02
1
1407-
183
SHACKLE; FRT SUSP
1-51162-037-0
02
1
1407-
185
WASHER; LK,PIN
(A) ID=25.5
8-98010-404-0
04
1
1407-
185
WASHER; LK,PIN
(B) ID=23
8-98010-411-0
02
1
1407-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1407-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-124-0
02
1
1407-
192
PIECE; DIST
T=4.5
1-51177-149-0
AR
1
1407-
193
NUT; U BOLT
M18 FLANGE
1-09440-039-1
08
1
1407-
197
PIN; FRT SPR,FRT
(B)
8-98060-333-0
04
1
1407-
197
PIN; FRT SPR,FRT
(A)
8-98060-335-0
02
1
1407-
201
NUT; PIN LK
M22
0-91111-522-0
06
1
1407-
202
PLATE; LK,SPR PIN
8-98010-648-0
02
1
1407-
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
0-90301-410-0
04
1
1407-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
04
1
1407-
208
U-BOLT SET; FRT SPRING
L=180
1-87870-484-0
04
1
1407-
