Isuzu WW
▶
TRUCKS
▶
FSR
▶
11585 - FSR(MIDDLE EAST)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-10 - FRONT AXLE
▶

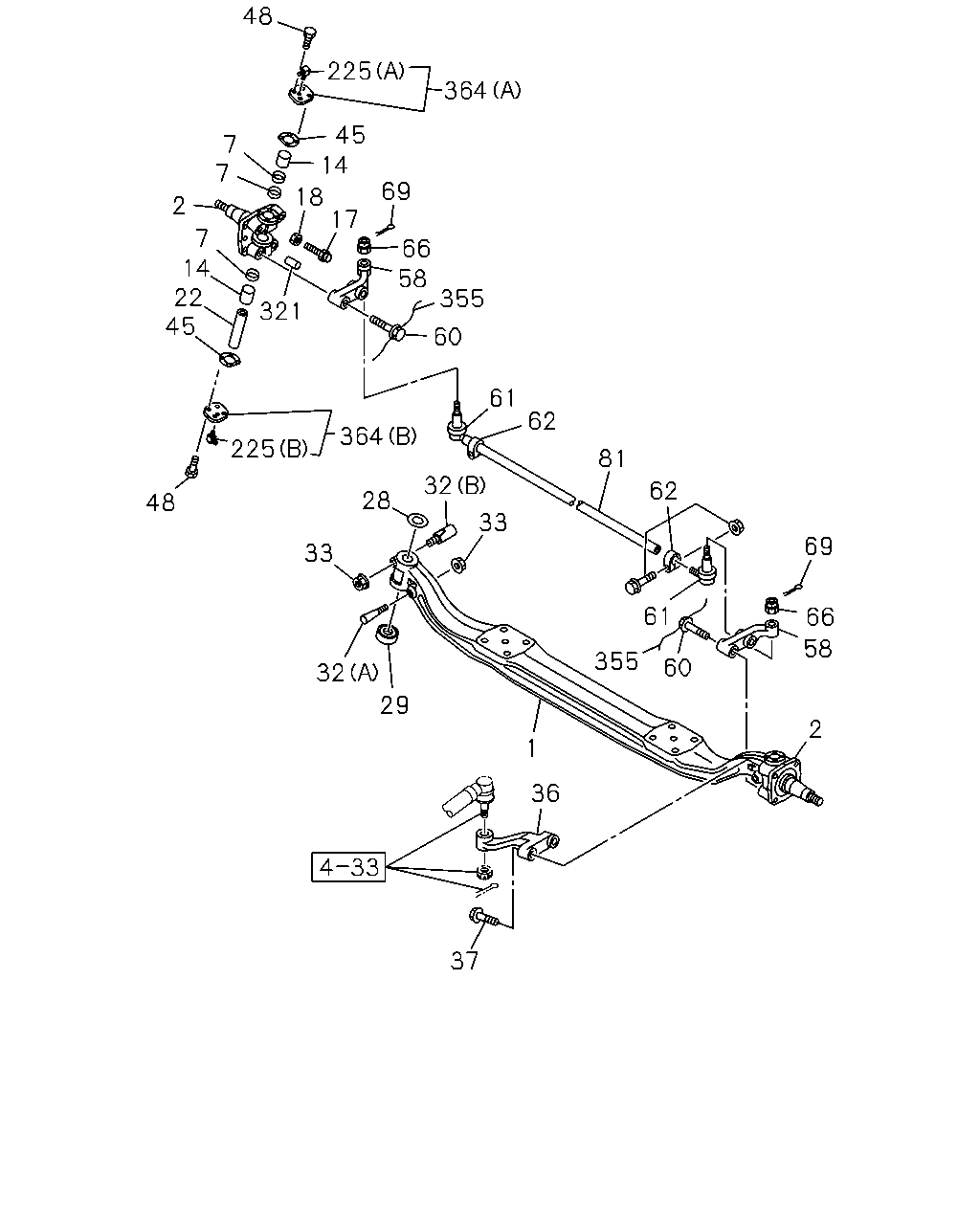

4-10 — FRONT AXLE
(#144201) — 39 parça
48
225
364
7
7
2
14
22
45
14
18
45
321
17
69
66
355
58
60
61
81
62
62
69
66
58
2
60
61
355
33
32
28
33
32
29
36
37
364
225
48
1
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
AXLE; FRT
1-43111-173-0
01
1
1407-
2
KNUCKLE; FRT AXLE
1-43131-131-0
01
1
1407-
2
KNUCKLE; FRT AXLE
1-43132-131-0
01
1
1407-
7
SEAL; OIL,KING PIN
1-09625-648-0
06
1
1407-
14
BUSHING; KING PIN
1-43141-014-0
04
1
1407-
17
BOLT; STOPPER KNUCKLE
1-09009-184-0
02
1
1407-
18
NUT; STOPPER BOLT,KNUCKLE
1-09440-096-0
02
1
1407-
22
PIN; KING,FRT AXLE
1-43161-018-0
02
1
1407-
28
WASHER; KING PIN
T=0.80
1-43171-341-0
AR
1
1407-
28
WASHER; KING PIN
T=1.00
1-43171-342-0
AR
1
1407-
28
WASHER; KING PIN
T=0.12
1-43171-343-0
AR
1
1407-
28
WASHER; KING PIN
T=0.25
1-43171-344-0
AR
1
1407-
28
WASHER; KING PIN
T=0.40
1-43171-345-0
AR
1
1407-
28
WASHER; KING PIN
T=0.60
1-43171-346-0
AR
1
1407-
29
BEARING; KING PIN
1-09829-047-0
02
1
1407-
32
BOLT; KEY,KING PIN
(B) L=70
1-43116-009-0
02
1
1407-
32
BOLT; KEY,KING PIN
(B) L=64
1-43116-010-0
02
1
1407-
32
BOLT; KEY,KING PIN
(A) L=102
1-43116-011-0
02
1
1407-
32
BOLT; KEY,KING PIN
(A) L=96
1-43116-012-0
02
1
1407-
33
NUT; KEY BOLT
1-09440-093-0
04
1
1407-
36
ARM; KNUCKLE
1-43133-086-0
01
1
1407-
37
BOLT; KNUCKLE ARM
1-09000-780-0
02
1
1407-
45
GASKET; KING PIN COVER
1-42319-207-0
04
1
1407-
48
BOLT; COVER
8-98308-436-0
16
1
1407-
58
ARM; TIE ROD
1-43134-064-0
01
1
1407-
58
ARM; TIE ROD
1-43135-061-0
01
1
1407-
60
BOLT; TIE ROD ARM
1-09000-779-0
04
1
1407-
61
ROD END; TIE ROD
LH THREAD
1-43150-875-0
01
1
1407-
61
ROD END; TIE ROD
RH THREAD
1-43150-876-0
01
1
1407-
62
CLAMP; TIE ROD
1-43159-125-0
02
1
1407-
66
NUT; TIE ROD END
1-09442-029-0
02
1
1407-
69
PIN; SPLIT,TIE ROD END
1-09987-282-0
02
1
1407-
81
ROD; TIE
1-43151-156-0
01
1
1407-
225
NIPPLE; GREASE,COVER
(B)
1-43175-035-0
02
1
1407-
225
NIPPLE; GREASE,COVER
(A)
1-43175-036-0
02
1
1407-
321
BUSHING; KNUCKLE
1-83129-474-0
02
1
1407-
355
WIRE; LOCK
1-43004-703-0
06
1
1407-
364
COVER ASM; KING PIN
(A)
1-43175-038-0
02
1
1407-
364
COVER ASM; KING PIN
(B)
1-43175-039-0
02
1
1407-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
