3-70 — BRAKE PIPING; AIR,AIR MASTER (#144196) — 63 parça

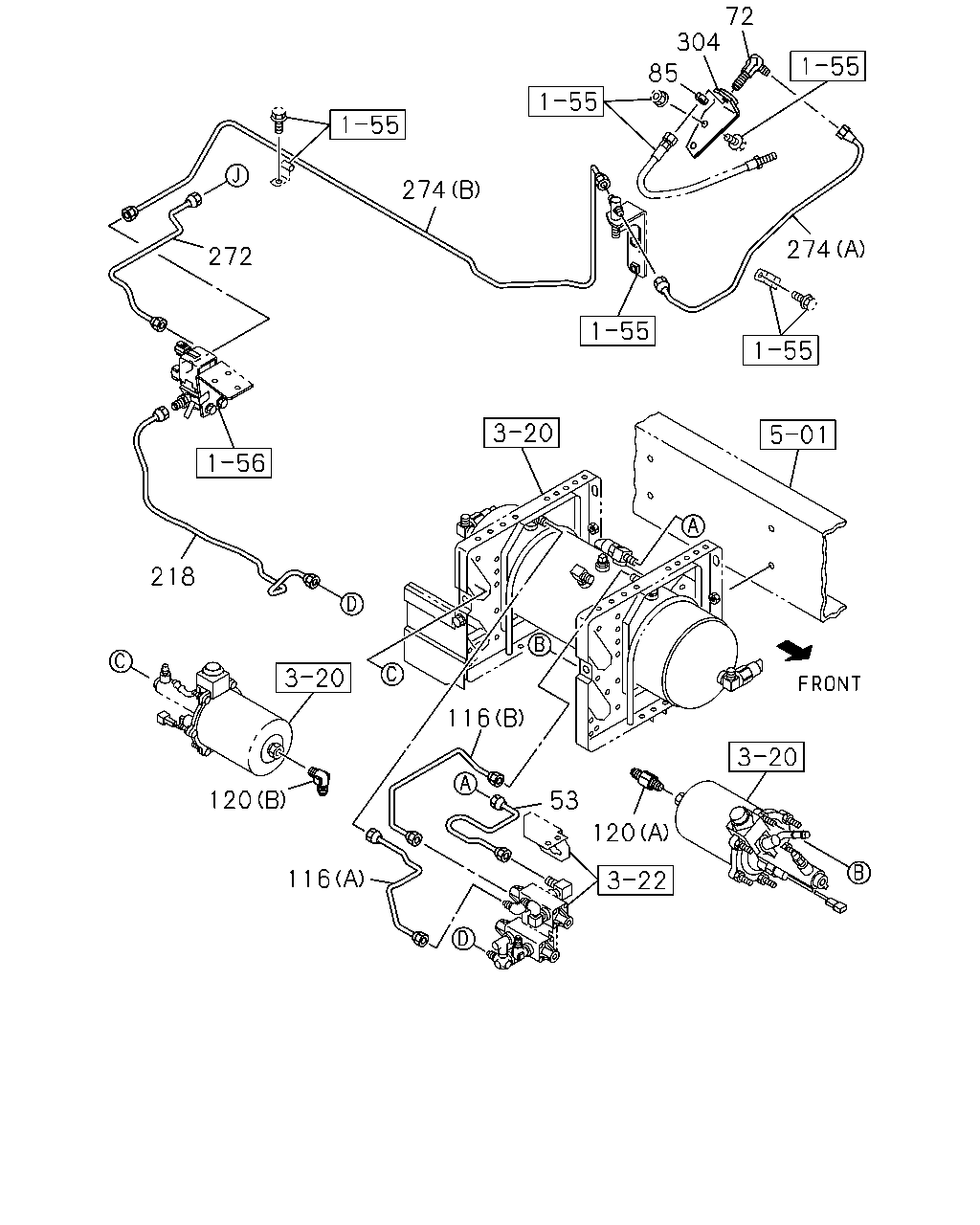

çizim 433165
72 304 85 274 272 218 120 116 53 120 116 274
BalonParca AdiParca NoAdetTipApplied Date
53 PIPE; AIR,AIR TANK TO VALVE 8-98213-331-0 01 1 1407-
72 UNION; AIR PIPE
M12 ELBOW 		0-92125-006-0 01 1 1407-
85 NUT; UNION
M12 		9-09840-280-0 01 1 1407-
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1407-
116 PIPE; AIR,PROTECTION VLV
(A) L=480 		8-98213-332-0 01 1 1407-
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1407-
120 CONNECTOR; AIR PIPE
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1407-
218 PIPE; AIR,PROTECTION VLV
L=648 SERVICED BY L=650 		1-47428-810-0 01 1 1407-
272 PIPE; AIR,MAG VLV TO UNION
EXC. RIGID SEAT WO/ARM REST<TAZ> L=393 		8-98213-179-0 01 1 1407-
274 PIPE; AIR UNION TO UNION
(A) L=522 SERVICED BY L=550 		1-47428-808-0 01 1 1407-
274 PIPE; AIR UNION TO UNION
(B) L=1254 SERVICED BY L=1370 		1-47428-818-0 01 1 1407-
304 BRACKET; UNION 8-98229-691-0 01 1 1407-

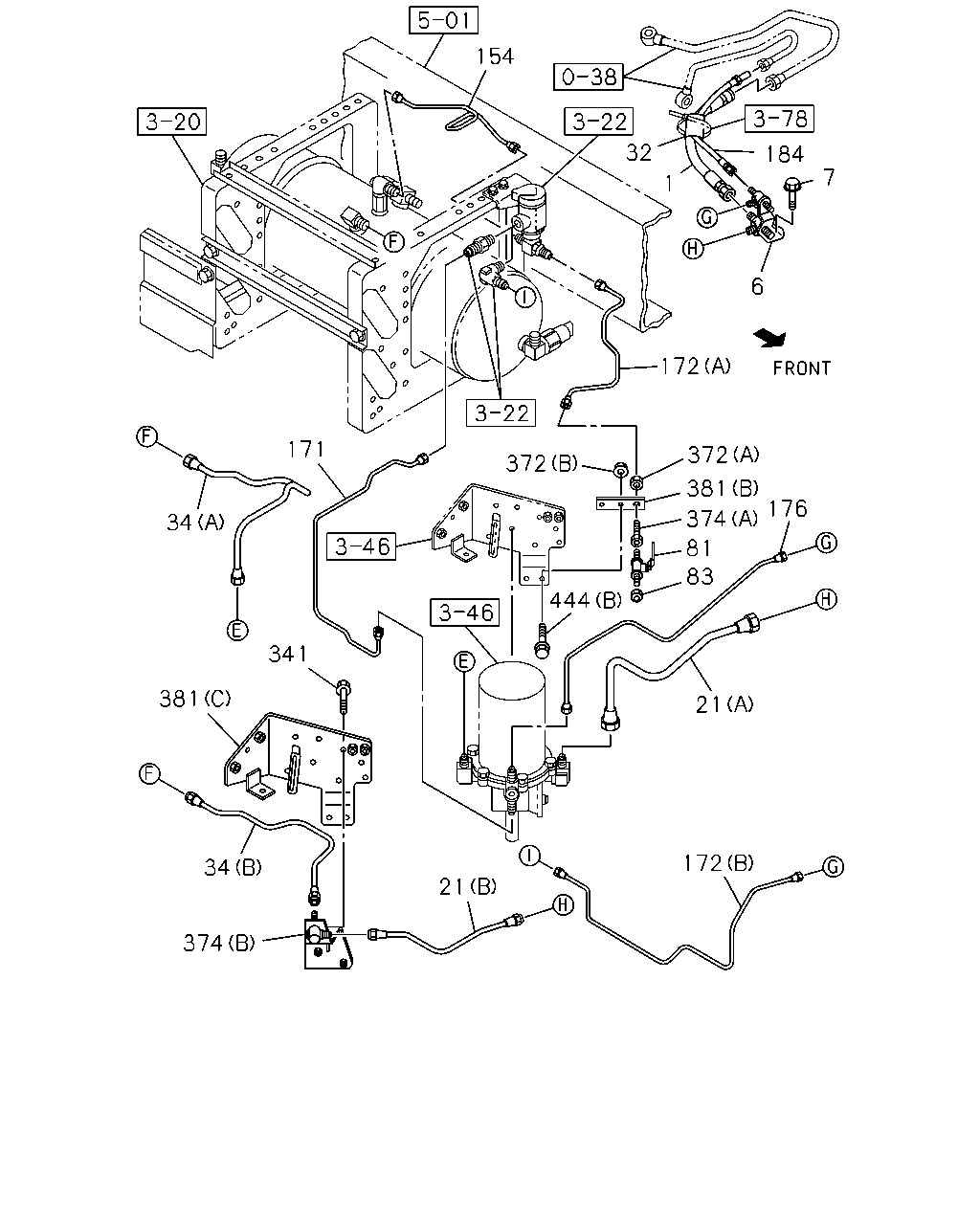

çizim 433257
154 32 1 7 184 6 172 372 381 374 176 81 83 21 444 372 171 34 341 381 34 374 21 172
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=310 		8-97607-730-0 01 1 1407-
6 BRACKET; FLEX HOSE,AIR TANK 8-98260-636-0 01 1 1407-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1407-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (A) L=503 		8-98133-371-0 01 1 1407-
21 PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7> (B) L=496 		8-98133-372-0 01 1 1407-
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1407-
34 PIPE; AIR
AIR DRYER<PS7> (A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1407-
34 PIPE; AIR
EXC. AIR DRYER<PS7> (B) L=412 		8-98190-599-0 01 1 1407-
81 COCK; AIR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1407-
83 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1407-
154 PIPE; AIR,AIR TANK TO AIR GOV 8-98167-336-0 01 1 1407-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1407-
172 PIPE; AIR,GOV TO UNION
TIRE INFLATOR DEVICE<SG4> (A) L=478 		8-98269-409-0 01 1 1407-
172 PIPE; AIR,GOV TO UNION
EXC. AIR DRYER<PS7> (B) 		8-98260-641-0 01 1 1407-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> L=707 SERVICED BY L=800 		1-47428-812-0 01 1 1407-
184 HOSE; FLEX,AIR GOV
L=340 		1-09363-622-0 01 1 1407-
341 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 02 1 1407-
372 NUT
TIRE INFLATOR DEVICE<SG4> (B) M8 FLANGE 		0-91180-108-0 02 1 1407-
372 NUT
TIRE INFLATOR DEVICE<SG4> (A) M12 		9-09840-280-0 01 1 1407-
374 CONNECTOR
TIRE INFLATOR DEVICE<SG4> (A) 		1-09654-280-1 01 1 1407-
374 CONNECTOR
EXC. AIR DRYER<PS7> (B) 		8-98135-407-0 01 1 1407-
381 BRACKET
TIRE INFLATOR DEVICE<SG4> (B) 		8-98135-449-0 01 1 1407-
381 BRACKET
EXC. AIR DRYER<PS7> (C) 		8-98044-548-4 01 1 1407-
381 BRACKET
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98119-700-0 01 1 1407-
444 BOLT; UNION
TIRE INFLATOR DEVICE<SG4> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1407-
444 BOLT; UNION
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M10X30 FLANGE 		0-28651-030-0 02 1 1407-

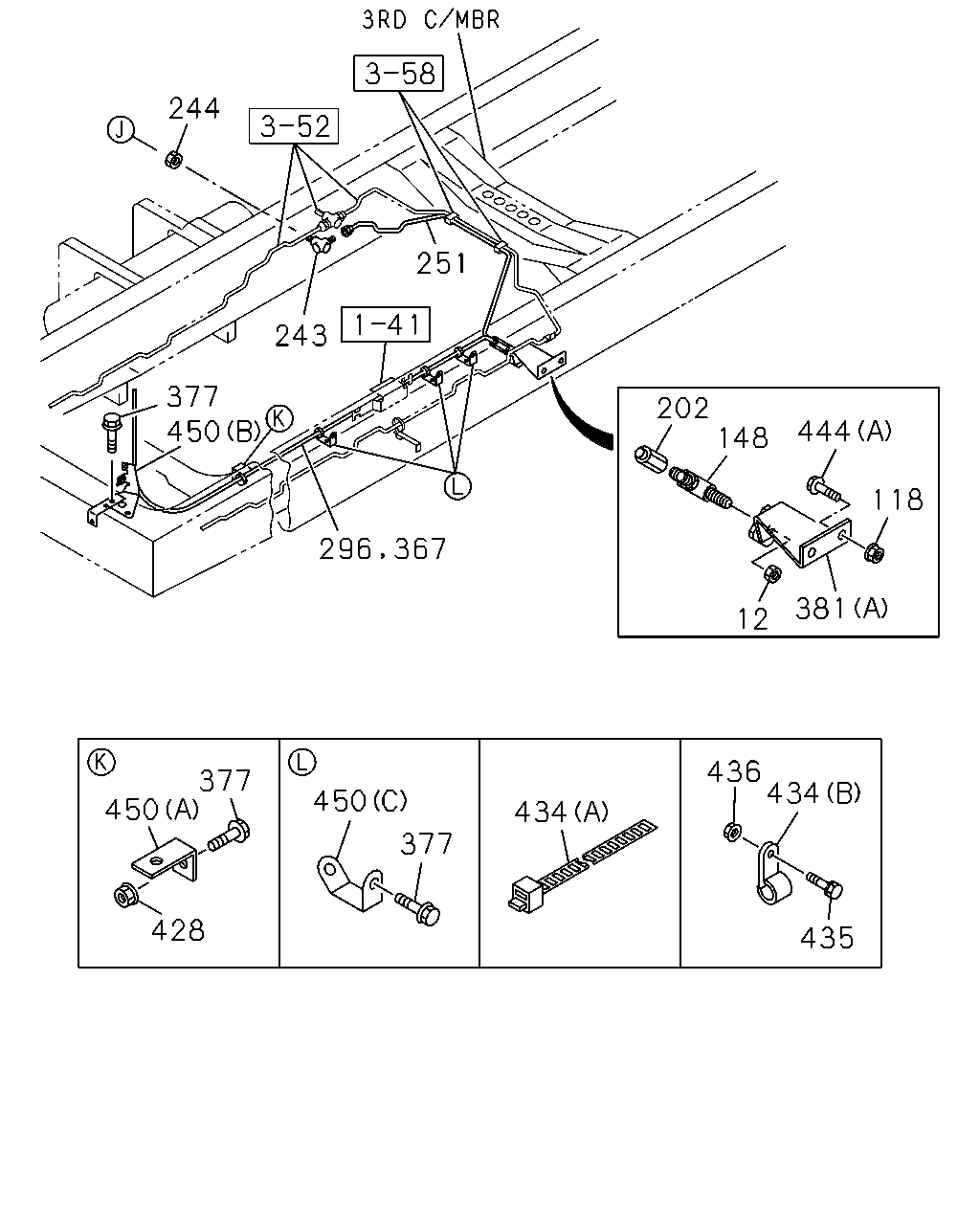

çizim 433284
244 251 243 377 450 296 367 202 148 444 118 381 12 434 436 435 434 377 450 377 450 428
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 		0-91111-512-0 01 1 1407-
118 NUT; UNION
EXC. RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE 		0-91180-210-0 02 1 1407-
148 CONNECTOR; UNION
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 2WAY 		1-09654-059-2 01 1 1407-
202 ADAPTER
EXC. RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1407-
243 UNION; AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 ELBOW 		0-92125-206-0 01 1 1407-
244 NUT; UNION,AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 		9-09840-280-0 01 1 1407-
251 PIPE; AIR,UNION TO MAG VLV
EXC. RIGID SEAT WO/ARM REST<TAZ> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 1407-
296 TUBE; NYLON
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1407-
367 TUBE; CORRUGATE
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1407-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 1407-
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 1407-
381 BRACKET
TIRE INFLATOR DEVICE<SG4> (B) 		8-98135-449-0 01 1 1407-
381 BRACKET
EXC. AIR DRYER<PS7> (C) 		8-98044-548-4 01 1 1407-
381 BRACKET
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98119-700-0 01 1 1407-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1407-
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1407-
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1407-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1407-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1407-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1407-
444 BOLT; UNION
TIRE INFLATOR DEVICE<SG4> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1407-
444 BOLT; UNION
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M10X30 FLANGE 		0-28651-030-0 02 1 1407-
450 BRACKET; CLIP
(A) 		1-47477-694-0 01 1 1407-
450 BRACKET; CLIP
(C) 		8-98117-686-0 03 1 1407-
450 BRACKET; CLIP
(B) 		8-98180-947-0 01 1 1407-
