Isuzu WW
▶
TRUCKS
▶
FSR
▶
11585 - FSR(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#144194) — 18 parça
◀

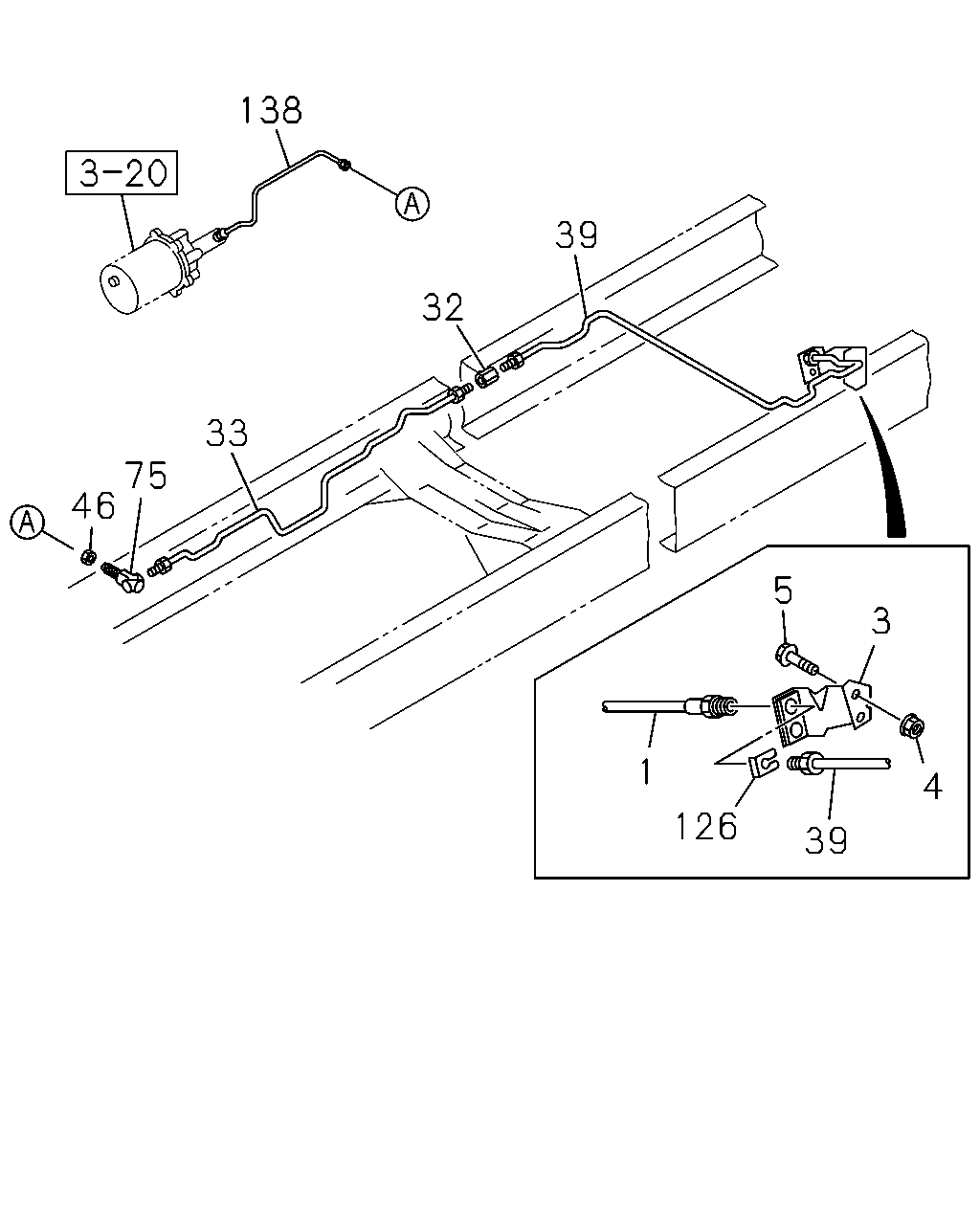

[355A] FRAME SIDE (12 parça)

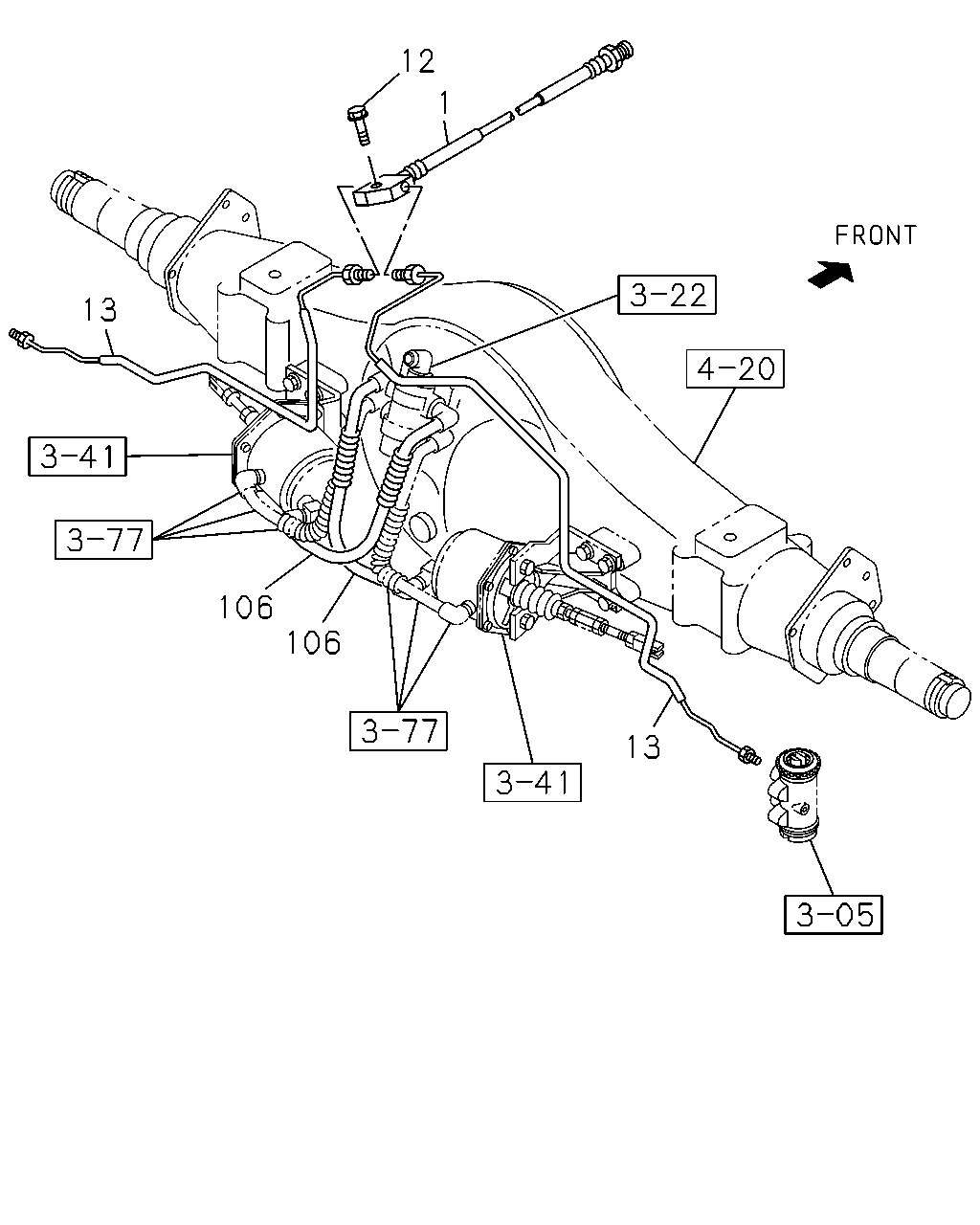

[355A] REAR AXLE SIDE (6 parça)
▶
5
3
125
1
39
4
39
32
33
75
46
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=485
8-98057-386-1
01
1
1407-
3
BRACKET; FLEX HOSE,RR BRK
8-98065-999-2
01
1
1407-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
1407-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
1407-
32
UNION; OIL PIPE
M10 STRAIGHT
0-92107-005-0
01
1
1407-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) L=1622
8-98069-807-0
01
1
1407-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) L=2124
8-98076-347-0
01
1
1407-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=1710
8-98106-485-0
01
1
1407-
46
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
01
1
1407-
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
01
1
1407-
126
CLIP; FLEX HOSE
8-97360-054-0
01
1
1407-
138
PIPE; HYDRAULIC UNIT
L=697
8-98213-366-0
01
1
1407-
12
1
13
106
106
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=485
8-98057-386-1
01
1
1407-
12
BOLT; FLEX HOSE TO RR AXLE
M8X35 FLANGE
0-28650-835-0
01
1
1407-
13
PIPE; BRK,RR AXLE
8-98207-111-0
01
1
1407-
13
PIPE; BRK,RR AXLE
8-98207-112-0
01
1
1407-
106
TUBE; NYLON
8-98061-971-0
02
1
1407-
126
CLIP; FLEX HOSE
8-97360-054-0
01
1
1407-
