3-52 — BRAKE PIPING; OIL,FRONT (#144193) — 14 parça

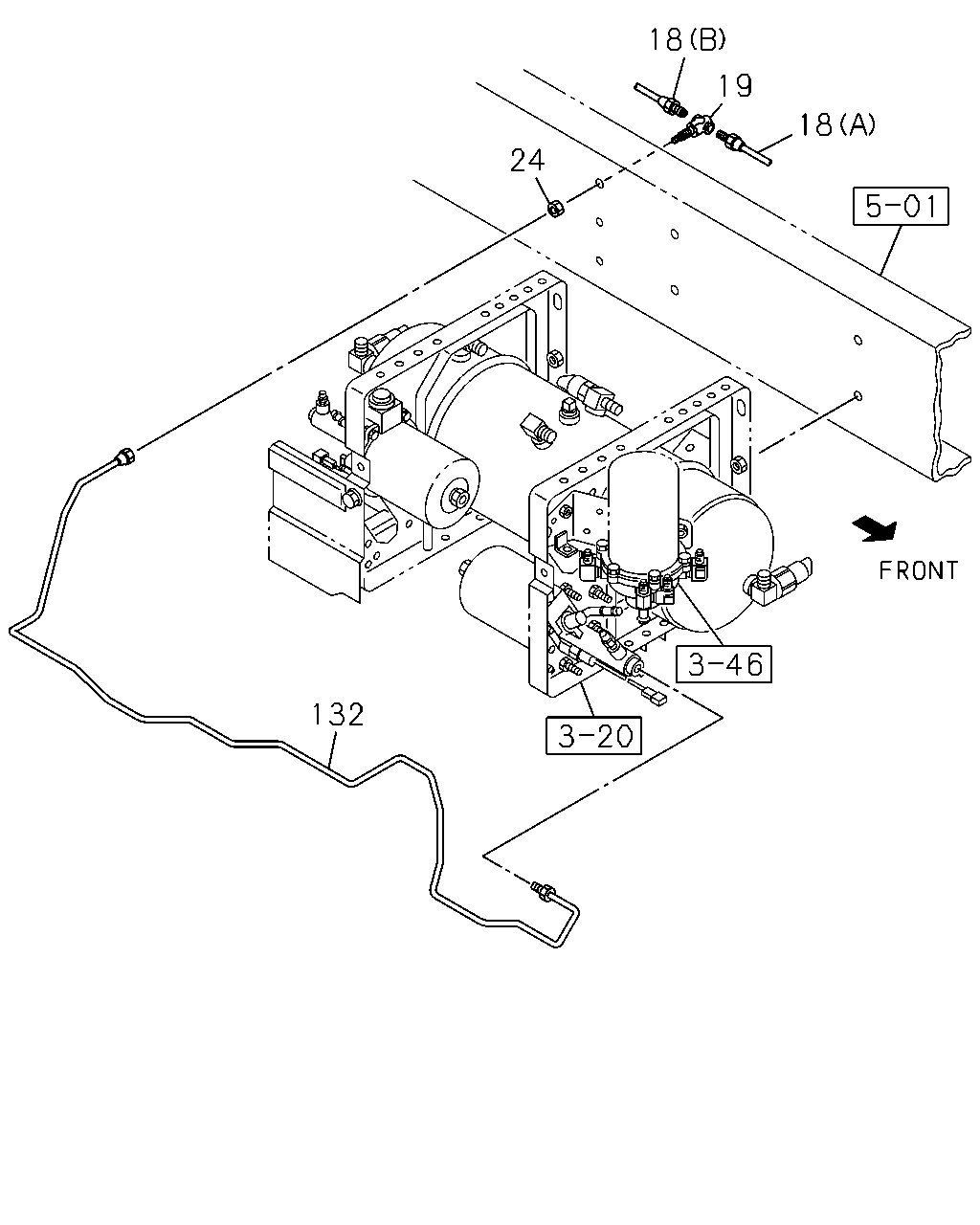

çizim 433199
132 18 18 24 19
BalonParca AdiParca NoAdetTipApplied Date
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3280 		8-98113-895-0 01 1 1407-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=2001 		8-98240-242-0 01 1 1407-
19 UNION; OIL PIPE 8-98113-738-0 01 1 1407-
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 01 1 1407-
132 PIPE; OIL,BRK,HYD UNIT
L=1505 		8-98213-211-0 01 1 1407-

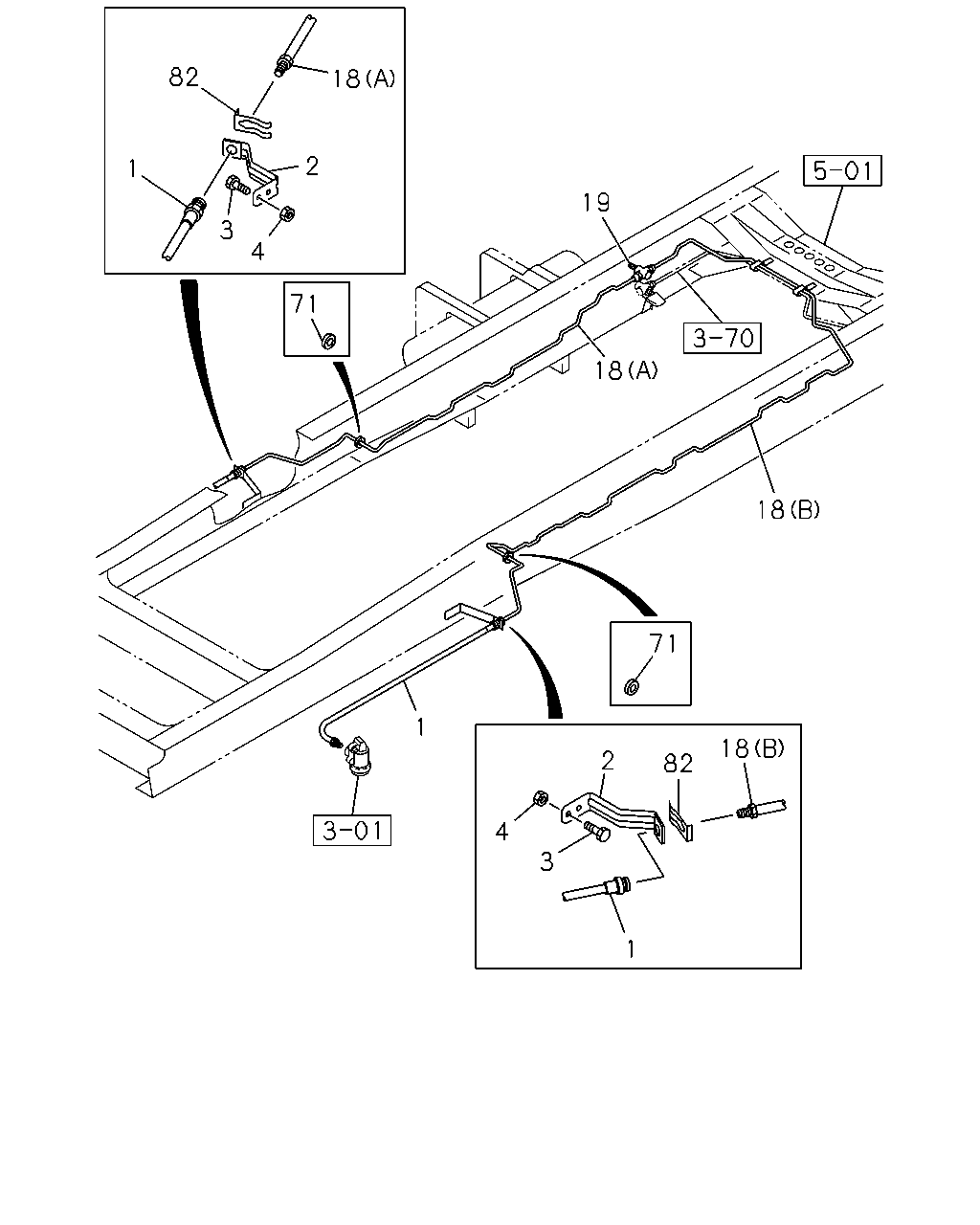

çizim 433253
82 1 3 4 2 18 19 18 18 71 18 82 2 4 3 1 1 71
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
L=330 		8-98024-433-0 02 1 1407-
2 BRACKET; FLEX HOSE,FRT BRK 8-98012-343-1 02 1 1407-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1407-
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 1407-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3280 		8-98113-895-0 01 1 1407-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=2001 		8-98240-242-0 01 1 1407-
19 UNION; OIL PIPE 8-98113-738-0 01 1 1407-
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1407-
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 1407-
