Isuzu WW
▶
TRUCKS
▶
FSR
▶
11585 - FSR(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#144192) — 24 parça
◀

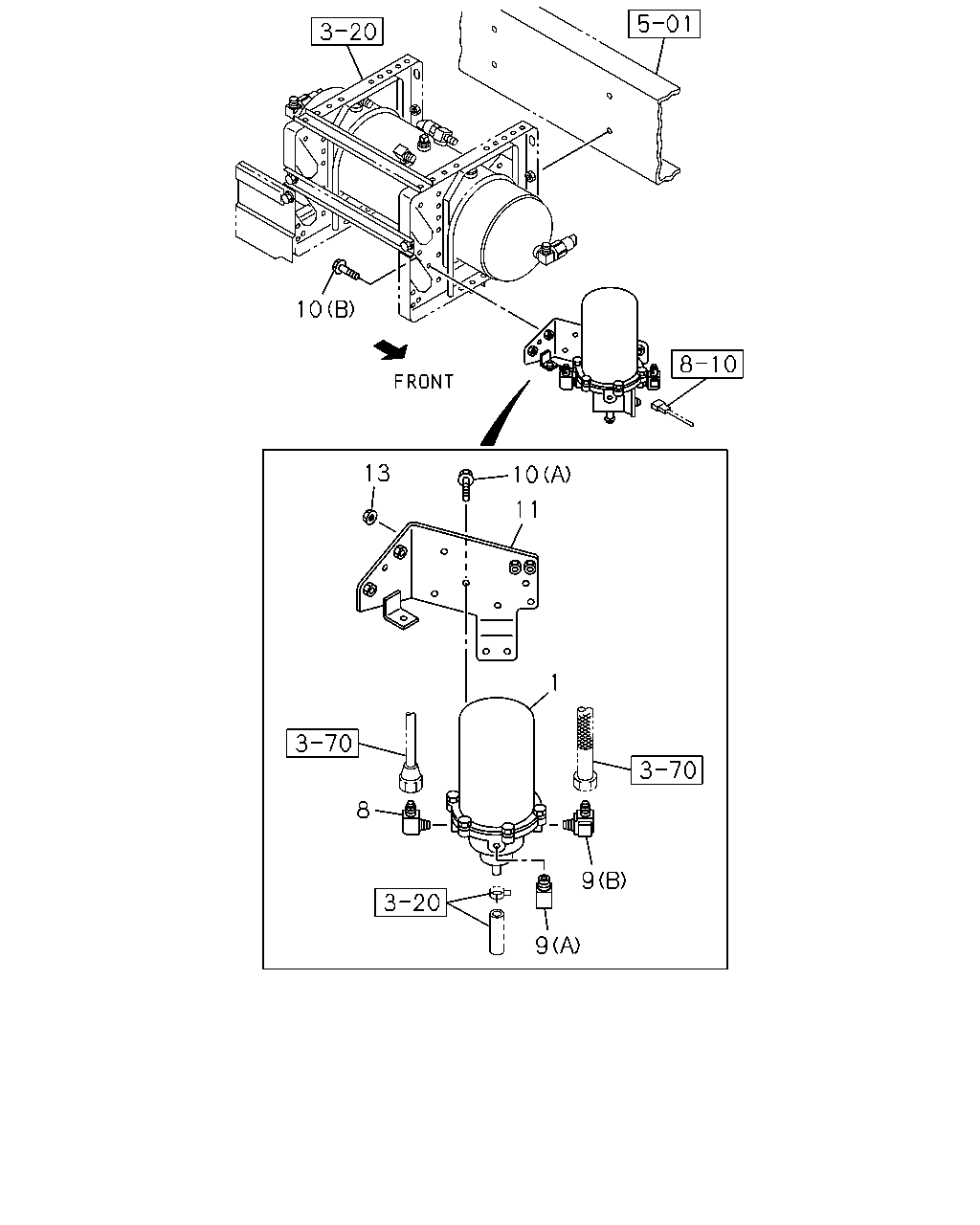

[346A] FIXING (8 parça)

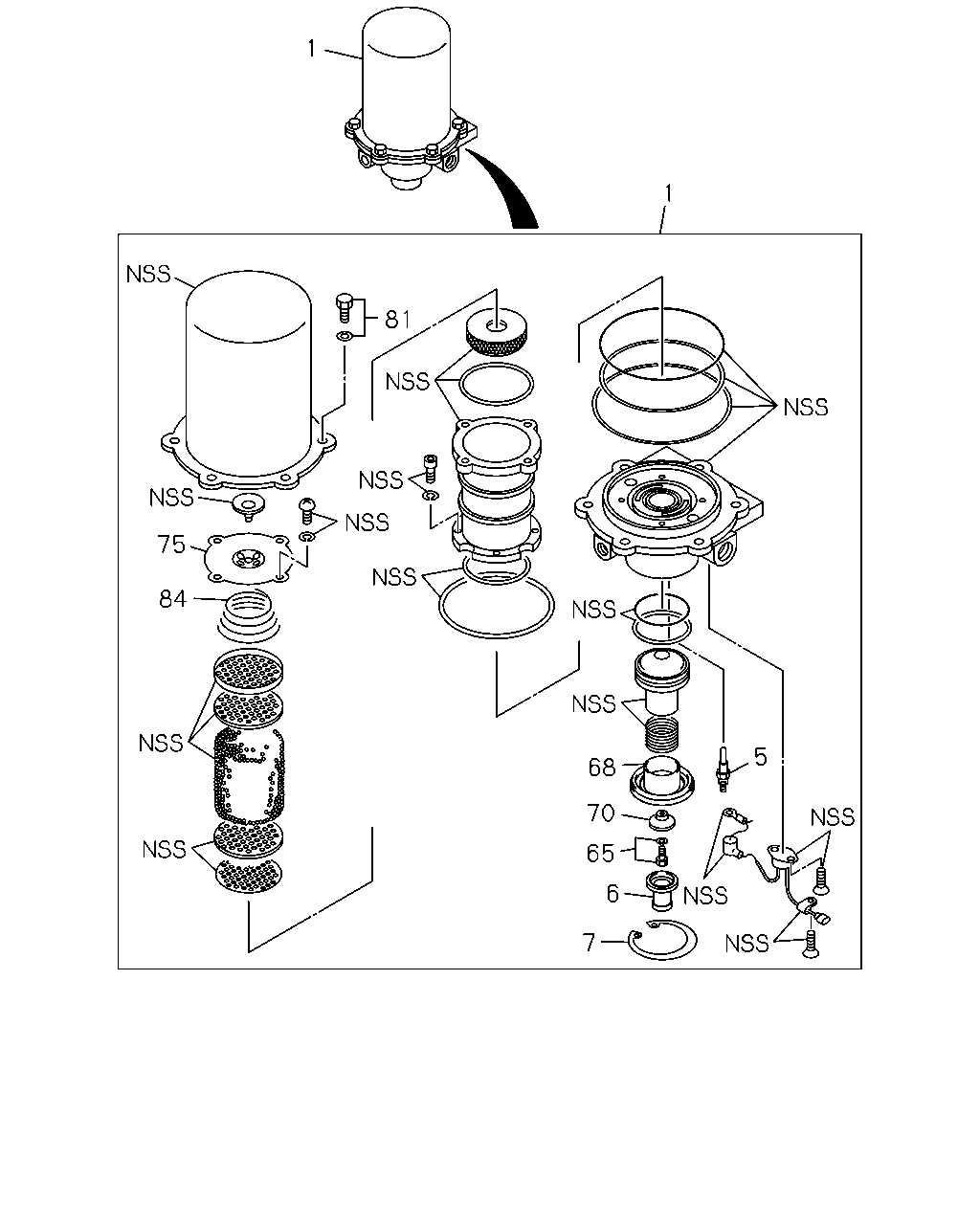

[346A] COMPONENT (10 parça)

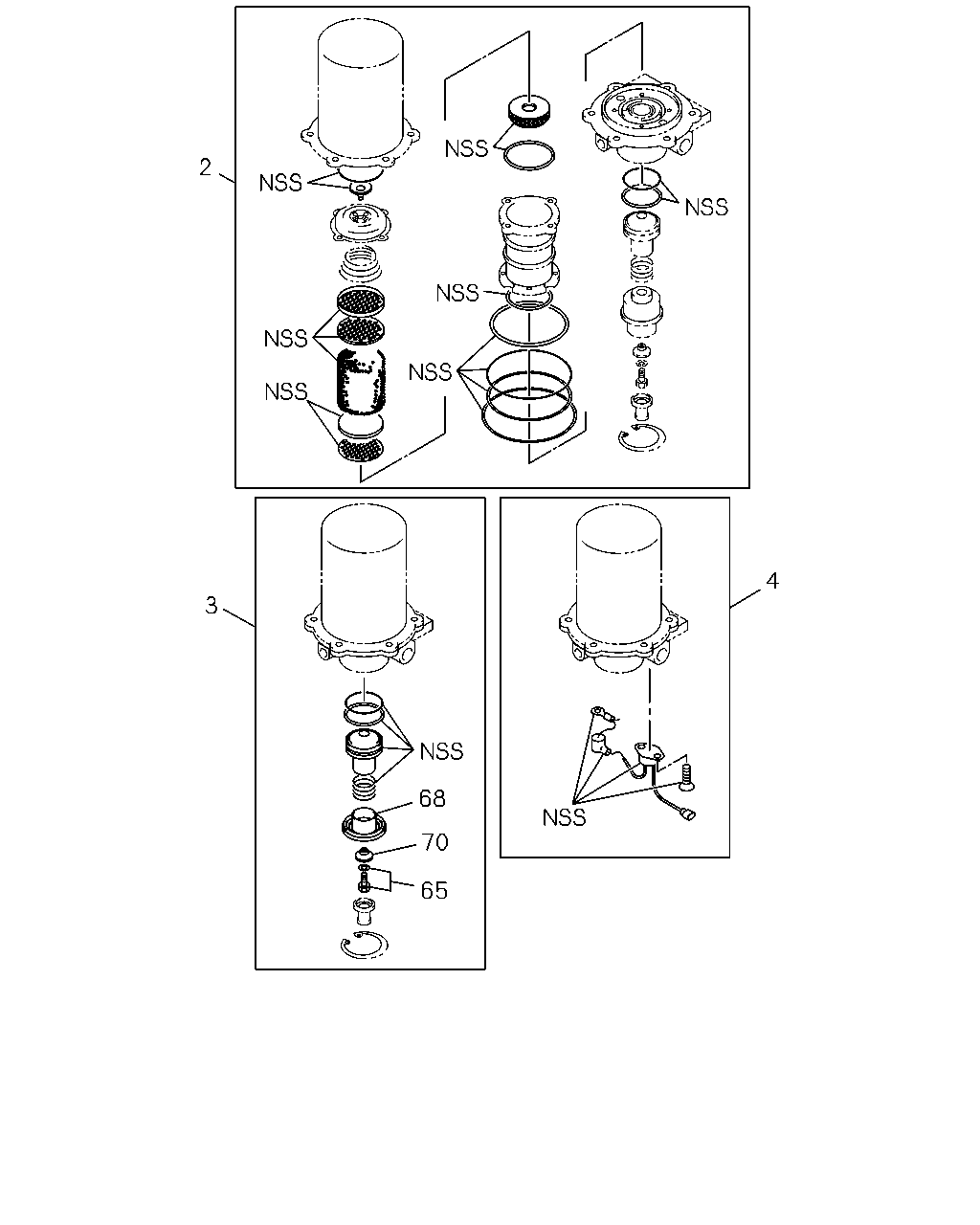

[346A] REPAIR AND PISTON,THERMOSTAT KIT (6 parça)
▶
10
13
10
11
1
9
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-210-1
01
1
1407-
8
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW
1-09650-443-0
01
1
1407-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY
1-09656-229-1
01
1
1407-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & R1/2 W/VALVE
1-48320-026-2
01
1
1407-
10
BOLT; AIR DRYER
AIR DRYER<PS7> (A) M10X20 FLANGE
0-28051-020-0
03
1
1407-
10
BOLT; AIR DRYER
(B) M8X20 FLANGE
0-28050-820-0
02
1
1407-
11
BRACKET; AIR DRYER
AIR DRYER<PS7>
8-98044-548-4
01
1
1407-
13
NUT; AIR DRYER
M8 FLANGE
0-91180-108-0
02
1
1407-
1
1
81
75
84
5
7
6
65
68
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-210-1
01
1
1407-
5
HEATER ASM; AIR DRYER
AIR DRYER<PS7>
1-48199-085-0
01
1
1407-
6
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
1-48199-404-0
01
1
1407-
7
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
1-48199-403-0
01
1
1407-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
1407-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-408-0
01
1
1407-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
1407-
75
COVER; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-427-0
01
1
1407-
81
BOLT; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-436-0
06
1
1407-
84
SPRING; AIR DRYER
AIR DRYER<PS7>
1-48199-425-0
01
1
1407-
2
3
4
68
70
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-217-0
01
1
1407-
3
PISTON KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-193-0
01
1
1407-
4
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-218-0
01
1
1407-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
1407-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-408-0
01
1
1407-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
1407-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
