Isuzu WW
▶
TRUCKS
▶
FSR
▶
11585 - FSR(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#144191) — 22 parça
◀

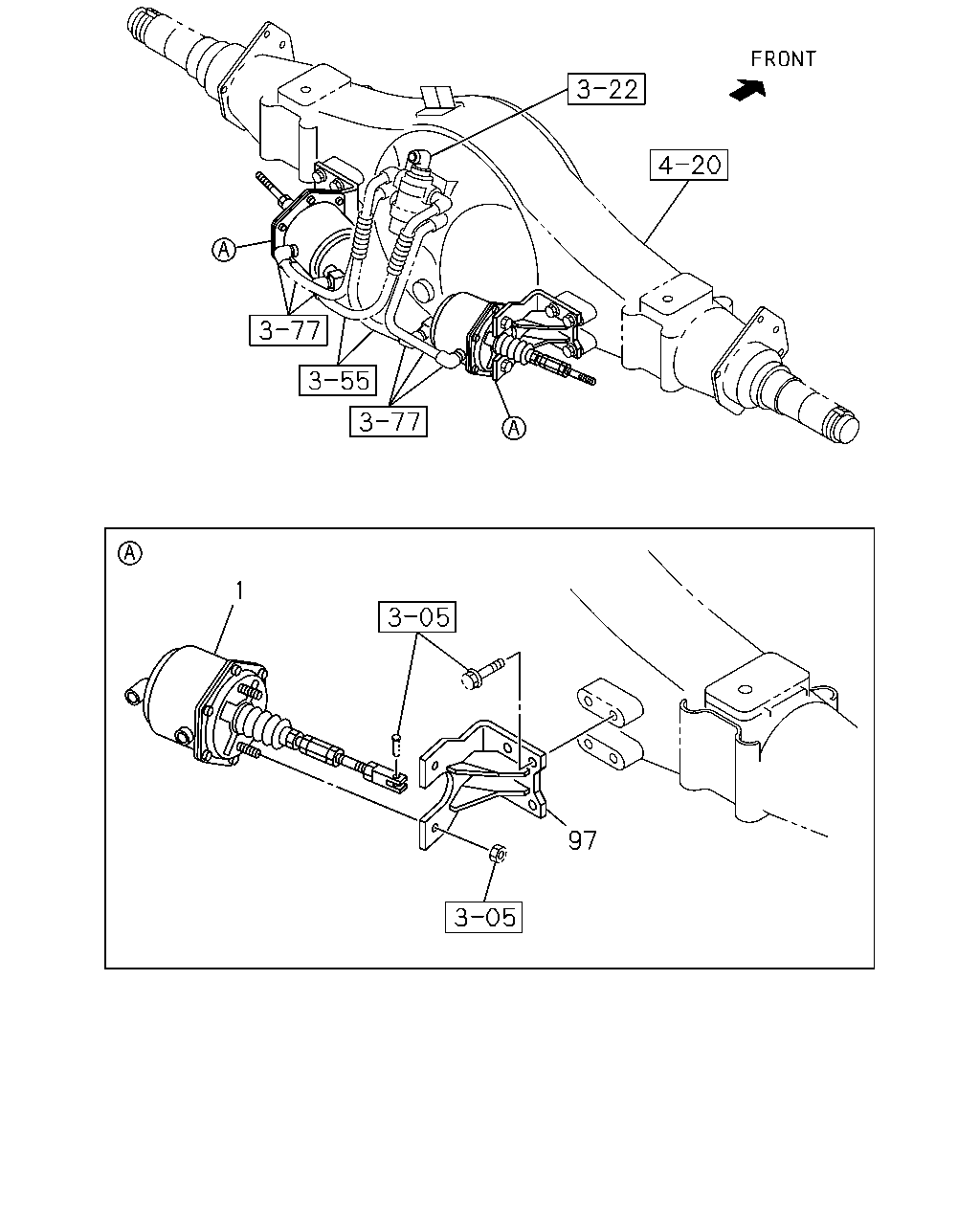

[341A] FIXING (4 parça)

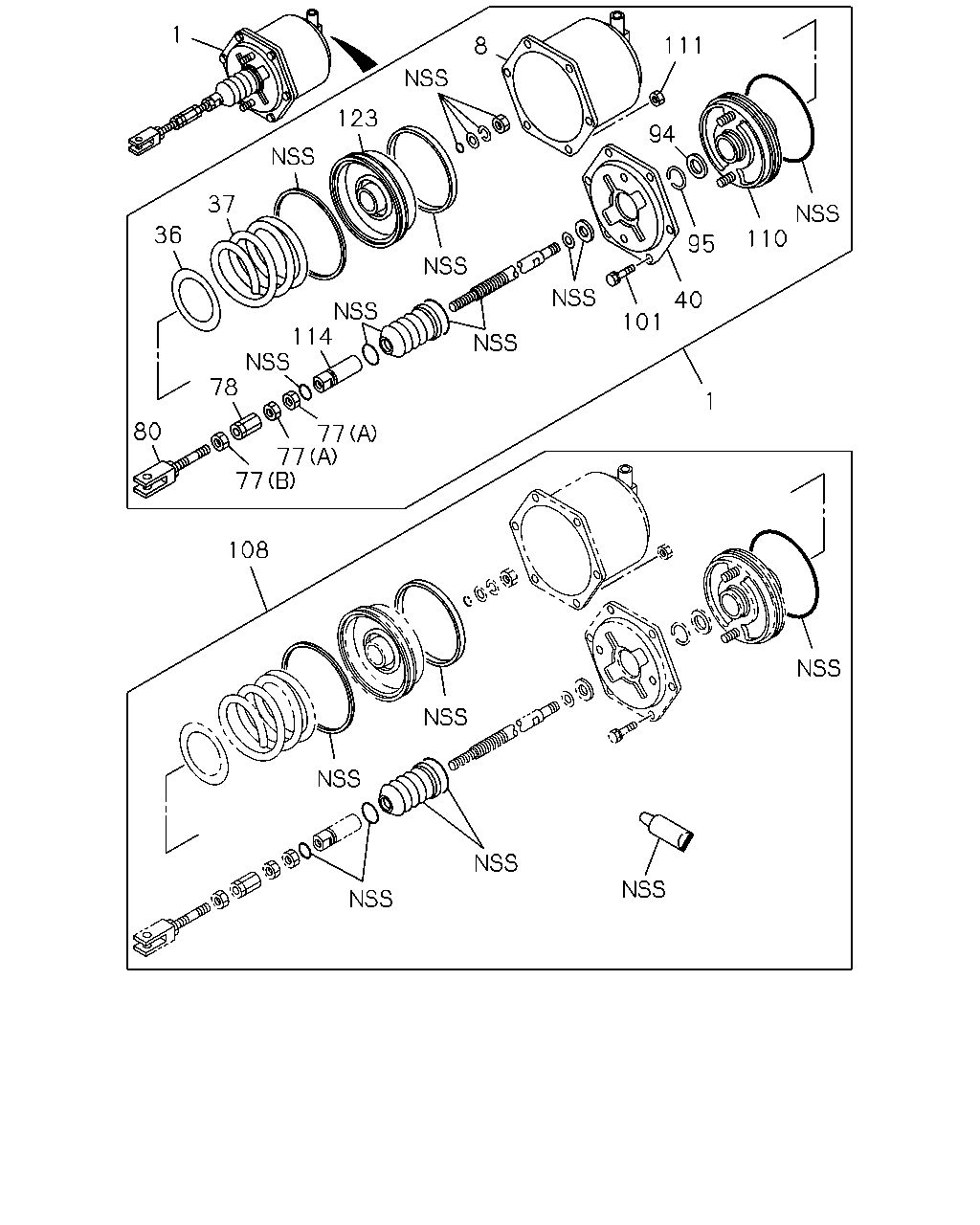

[341A] COMPONENT AND REPAIR KIT (18 parça)
▶
1
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
1-48250-918-1
01
1
1407-
1
CHAMBER ASM; SPRING
1-48250-919-1
01
1
1407-
97
BRACKET; CHAMBER
1-48258-186-1
01
1
1407-
97
BRACKET; CHAMBER
1-48258-187-1
01
1
1407-
1
37
36
123
8
111
94
95
40
101
1
110
114
78
77
77
77
80
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
1-48250-918-1
01
1
1407-
1
CHAMBER ASM; SPRING
1-48250-919-1
01
1
1407-
8
SHELL; CYL,SPR CHAMBER
1-48251-190-1
02
1
1407-
36
RETAINER; SPR CHAMBER
1-48269-099-0
02
1
1407-
37
SPRING; LWR,SPR CHAMBER
1-48265-009-0
02
1
1407-
40
COVER ASM; LWR,SPR CHAMBER
1-48266-013-1
02
1
1407-
77
NUT; SPR CHAMBER BRK
(A)
1-48269-105-0
04
1
1407-
77
NUT; SPR CHAMBER BRK
(B)
1-48269-114-0
02
1
1407-
78
TURNBACKLE; SPR CHAMBER BRK
1-48269-113-0
02
1
1407-
80
CLEVIS; SPR CHAMBER BRK
1-48269-242-0
02
1
1407-
94
PLATE; RELEASE,SPR CHAMBER
1-48269-097-1
02
1
1407-
95
RING; RELEASE,SPR CHAMBER
1-48269-098-0
02
1
1407-
101
BOLT; SPR CHAMBER
1-48269-102-0
12
1
1407-
108
REPAIR KIT; SPR CHAMBER
1-85576-442-0
02
1
1407-
110
PLATE; MOUNTING,SPR CHAMBER
1-48251-189-0
02
1
1407-
111
NUT; SPR CHAMBER
1-48269-101-0
12
1
1407-
114
HOLDER; ROD,SPR CHAMBER
1-48269-250-0
02
1
1407-
123
PISTON ASM; SPR CHAMBER
1-48262-024-2
02
1
1407-
