Isuzu WW
▶
TRUCKS
▶
FSR
▶
11585 - FSR(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶

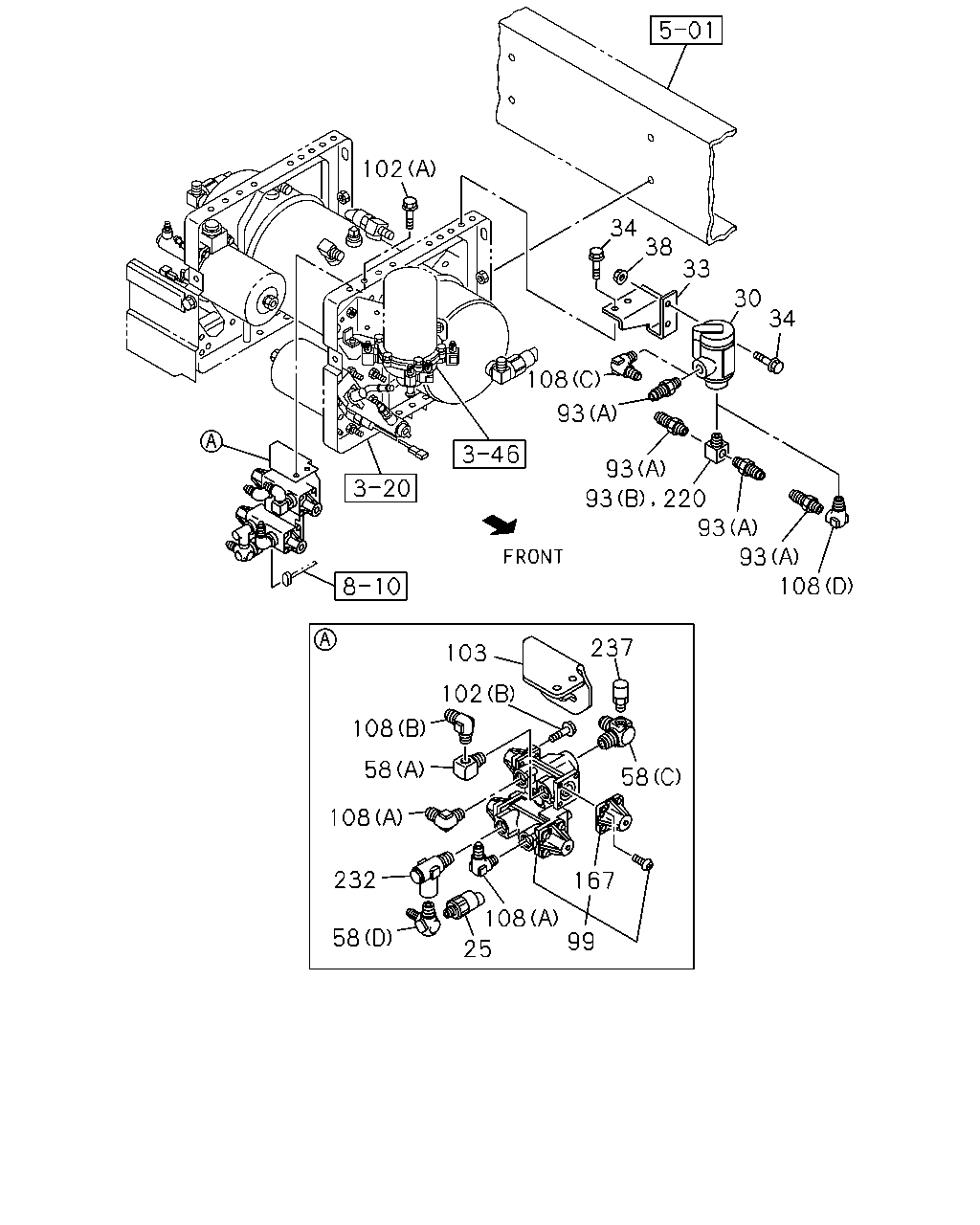

3-22 — AIR CONTROL PARTS
(#144187) — 37 parça
◀
[322A] REPAIR KIT;PROTECTION VALVE (1 parça)
[322A] REPAIR KIT;GOVERNOR (1 parça)
[322A] FIXING (26 parça)
[322A] QUICK RELEASE VALVE (9 parça)
▶
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
REPAIR KIT; PROTECTION VALVE
1-85576-451-2
01
1
1407-
240
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
240
REPAIR KIT; AIR CONT GOV
1-85576-467-0
01
1
1407-
102
34
38
33
30
34
108
93
93
93
220
93
93
108
103
237
58
102
108
58
108
232
58
25
108
99
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
SWITCH; PRESSURE
STAMP 5.5
8-97609-249-0
01
1
1407-
30
GOVERNOR; AIR CONT
1-48350-093-2
01
1
1407-
33
BRACKET; GOV,AIR CONT
8-98133-401-0
01
1
1407-
34
BOLT; BRKT,GOV
M8X25 FLANGE
0-28650-825-0
02
1
1407-
38
NUT; BRKT,GOV
M8 FLANGE
0-91180-108-0
02
1
1407-
58
ADAPTER
(D) DIN6 & PT1/4 & M12 3WAY
1-09656-698-0
01
1
1407-
58
ADAPTER
(A) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1407-
58
ADAPTER
(B) DIN7 & DIN9 ADAPTOR
1-09661-815-0
02
1
1407-
58
ADAPTER
(C) DIN9 & RC3/8 & M20 3WAY
8-98031-239-0
01
1
1407-
93
CONNECTOR; GOV
AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT
1-09650-074-1
03
1
1407-
93
CONNECTOR; GOV
AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> (B) R1/4 & RC1/4X2 3WAY
8-98166-517-0
01
1
1407-
93
CONNECTOR; GOV
AIR DRYER<PS7> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT
1-09650-074-1
02
1
1407-
93
CONNECTOR; GOV
TIRE INFLATOR DEVICE<SG4> EXC. AIR DRYER<PS7> (A) M12 & PT1/4 STRAIGHT
1-09650-074-1
02
1
1407-
93
CONNECTOR; GOV
EXC. AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1407-
99
VALVE; PROTECTION
1-48110-288-3
01
1
1407-
102
BOLT; PROTECTION VALVE
(B) M8X16 FLANGE
0-28050-816-0
02
1
1407-
102
BOLT; PROTECTION VALVE
(A) M8X20 FLANGE
0-28650-820-0
02
1
1407-
103
BRACKET; PROTECTION VALVE
8-98221-293-0
01
1
1407-
108
CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW
0-92134-310-0
01
1
1407-
108
CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
1407-
108
CONNECTOR; ELBOW
EXC. AIR DRYER<PS7> (C) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1407-
108
CONNECTOR; ELBOW
EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 2WAY
1-09660-693-0
01
1
1407-
167
COVER; VALVE
1-48119-625-0
04
1
1407-
220
CONNECTOR; 3WAY
TIRE INFLATOR DEVICE<SG4> EXC. AIR DRYER<PS7> R1/4 & RC1/4X2 3WAY
8-98166-517-0
01
1
1407-
232
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
8-98032-527-0
01
1
1407-
237
VALVE; SAFETY
1-48320-012-2
01
1
1407-
21
13
21
21
58
58
21
21
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
VALVE ASM; QUICK RELEASE
1-48410-783-0
01
1
1407-
21
CONNECTOR; QUICK RELEASE VLV
(A) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
1407-
21
CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1407-
21
CONNECTOR; QUICK RELEASE VLV
(C) DIN4 & DIN6 SWIVEL CONNECTOR
1-09661-816-0
02
1
1407-
58
ADAPTER
(D) DIN6 & PT1/4 & M12 3WAY
1-09656-698-0
01
1
1407-
58
ADAPTER
(A) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1407-
58
ADAPTER
(B) DIN7 & DIN9 ADAPTOR
1-09661-815-0
02
1
1407-
58
ADAPTER
(C) DIN9 & RC3/8 & M20 3WAY
8-98031-239-0
01
1
1407-
59
BOLT; RELEASE VALVE FIX
M8X20 FLANGE
0-28050-820-0
02
1
1407-
