Isuzu WW
▶
TRUCKS
▶
FSR
▶
11585 - FSR(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶
3-05 — REAR WHEEL BRAKE
(#144182) — 112 parça
◀

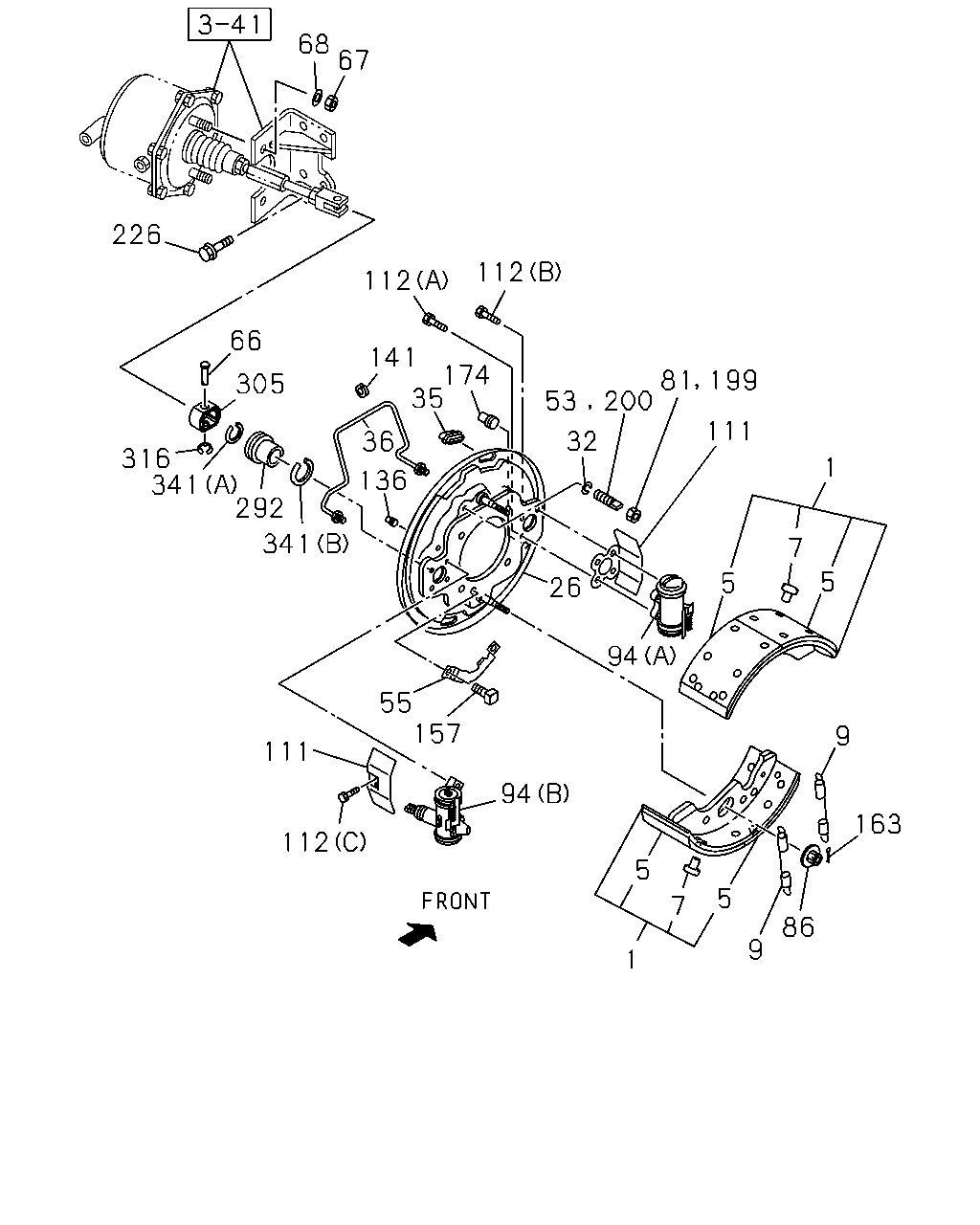

[305A] NO.1 (54 parça)

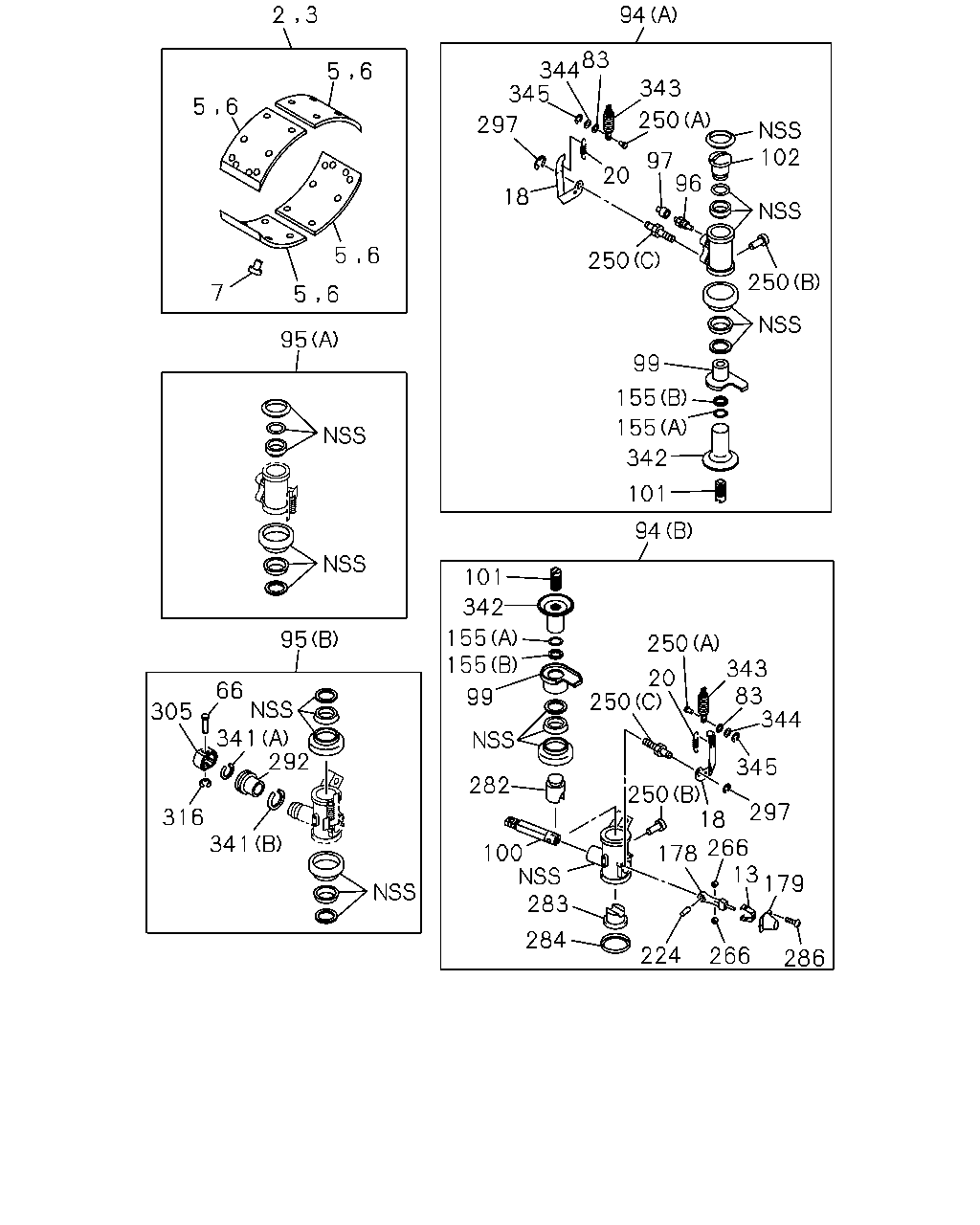

[305A] NO.2 (58 parça)
▶
68
67
112
112
226
141
66
305
316
292
341
341
136
36
35
174
53
32
200
81
199
111
1
26
94
5
7
5
55
157
111
112
94
5
5
7
9
1
86
163
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
1-47170-003-0
04
1
1407-
5
LINING; RR BRK SHOE,STANDARD
1-47126-161-0
08
1
1407-
7
RIVET; LINING,RR BRK
1-09732-029-0
96
1
1407-
9
SPRING; RETURN,BRK SHOE
1-09583-346-0
04
1
1407-
26
PLATE; BACK,RR BRK
1-47150-644-0
01
1
1407-
26
PLATE; BACK,RR BRK
1-47150-645-0
01
1
1407-
32
WASHER; LK
ID=12.2
0-91510-512-0
04
1
1407-1410
32
WASHER; LK
1-09985-346-0
04
1
1411-
35
GROMMET; CHECK HOLE
1-09333-033-0
04
1
1407-
36
PIPE; OIL,RR BRK
1-49162-056-0
01
1
1407-1410
36
PIPE; OIL,RR BRK
1-49167-876-0
01
1
1411-
36
PIPE; OIL,RR BRK
1-49162-057-0
01
1
1407-1410
36
PIPE; OIL,RR BRK
1-49167-875-0
01
1
1411-
53
BOLT; LOCK PLATE
1-47162-050-0
02
1
1407-
55
PLATE; LK,RR WHEEL CYL
1-47139-064-0
04
1
1407-1410
55
PLATE; LK,RR WHEEL CYL
1-47139-169-0
04
1
1411-
66
PIN; JAW JOINT
1-09744-128-0
02
1
1407-
67
NUT; POWER CHAMBER FIX
M16
0-91110-516-0
04
1
1407-
68
WASHER; LK,CHAMBER
ID=16.2
0-91510-816-0
04
1
1407-
81
NUT
1-09400-100-0
02
1
1407-1410
81
NUT
1-09400-167-0
02
1
1411-
86
NUT; FLANGE
1-09440-003-0
04
1
1407-1410
86
NUT; FLANGE
1-09440-102-0
04
1
1411-
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-010-1
01
1
1407-1410
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-185-0
01
1
1411-
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-011-1
01
1
1407-1410
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-184-0
01
1
1411-
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-186-0
01
1
1407-1410
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
8-98289-367-0
01
1
1411-
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-187-0
01
1
1407-1410
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
8-98289-368-0
01
1
1411-
111
COVER; WHEEL CYL
1-47159-164-0
04
1
1407-1410
111
COVER; WHEEL CYL
1-47159-233-0
04
1
1411-
112
BOLT; WHEEL CYL SETTING
(A) M14
1-47159-183-0
08
1
1407-1410
112
BOLT; WHEEL CYL SETTING
(A)
1-47159-231-0
08
1
1411-
112
BOLT; WHEEL CYL SETTING
(B) M12
1-47159-184-0
06
1
1407-1410
112
BOLT; WHEEL CYL SETTING
(B)
1-47159-232-0
06
1
1411-
112
BOLT; WHEEL CYL SETTING
(C) M6X10 FLANGE
8-94134-103-0
08
1
1407-
136
GROMMET
9-09956-640-0
04
1
1407-
141
PROTECTOR; RR BRK PIPE
1-47143-008-0
02
1
1407-
157
BOLT; RR BRK SET
M14X50 SQUARE HEAD
1-09060-013-0
16
1
1407-1410
157
BOLT; RR BRK SET
1-09060-021-0
16
1
1411-
163
PIN; SPLIT,SHOE HOLD
9-09874-040-0
04
1
1407-1410
163
PIN; SPLIT,SHOE HOLD
1-09740-098-0
04
1
1411-
174
COVER; CYL,RR WHEEL CYL
1-47154-008-0
04
1
1407-
199
NUT
1-09400-100-0
02
1
1407-1410
199
NUT
1-09400-167-0
02
1
1411-
200
BOLT
1-47162-050-0
02
1
1407-
226
BOLT; BRKT
M14X35 FLANGE
0-28651-435-0
08
1
1407-
292
BOOT; ROD
1-47616-107-0
02
1
1407-
305
GUIDE; SLACK ADJ
1-46346-023-0
02
1
1407-
316
RING; SNAP
ID=9
0-91805-509-0
02
1
1407-
341
SPRING; ASSIST,BOOT
(A)
1-47619-175-0
02
1
1407-
341
SPRING; ASSIST,BOOT
(B)
1-47619-176-0
02
1
1407-
2
3
5
6
5
6
5
6
5
6
7
95
95
66
305
341
292
316
341
94
83
344
345
297
18
20
97
250
343
102
250
96
250
99
155
155
342
101
94
101
342
155
155
99
282
100
283
284
224
266
286
179
13
266
178
297
18
250
345
344
83
343
250
250
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LINING SET; RR BRK,STANDARD
1-88310-839-1
02
1
1407-
3
LINING SET; RR BRK,OVER SIZE
1-88310-840-1
02
1
1407-
5
LINING; RR BRK SHOE,STANDARD
1-47126-161-0
08
1
1407-
6
LINING; RR BRK SHOE,OVER SIZE
1-47126-162-0
08
1
1407-
7
RIVET; LINING,RR BRK
1-09732-029-0
96
1
1407-
13
CLIP; ROLLER PIN,BRK SHOE
1-47619-139-0
02
1
1407-
18
LEVER; AUTO ADJ
1-47629-164-0
02
1
1407-
18
LEVER; AUTO ADJ
1-47629-165-0
02
1
1407-
20
SPRING; ADJ LEVER
1-09583-345-0
04
1
1407-
66
PIN; JAW JOINT
1-09744-128-0
02
1
1407-
83
WASHER; PL
1-47619-108-0
04
1
1407-
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-010-1
01
1
1407-1410
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-185-0
01
1
1411-
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-011-1
01
1
1407-1410
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-184-0
01
1
1411-
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-186-0
01
1
1407-1410
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
8-98289-367-0
01
1
1411-
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-187-0
01
1
1407-1410
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
8-98289-368-0
01
1
1411-
95
CUP SET; RR WHEEL CYL
(A)
1-87830-933-0
02
1
1407-
95
CUP SET; RR WHEEL CYL
(B)
1-87831-246-1
02
1
1407-
96
SCREW; BLEEDER,RR BRK
8-98050-477-0
02
1
1407-
97
CAP; BLEEDER,RR WHEEL CYL
8-98050-479-0
02
1
1407-
99
PISTON; RR WHEEL CYL
FORWARD
1-47624-349-0
01
1
1407-
99
PISTON; RR WHEEL CYL
FORWARD
1-47624-350-0
01
1
1407-
99
PISTON; RR WHEEL CYL
BACKWARD
1-47624-351-0
01
1
1407-
99
PISTON; RR WHEEL CYL
BACKWARD
1-47624-352-0
01
1
1407-
100
ROD; PUSH,RR WHEEL CYL
1-47619-169-0
02
1
1407-1410
100
ROD; PUSH,RR WHEEL CYL
8-98290-467-0
02
1
1411-
101
SCREW; ADJ,RR WHEEL CYL
1-47622-053-0
02
1
1407-
101
SCREW; ADJ,RR WHEEL CYL
1-47622-054-0
02
1
1407-
102
PISTON; REAR WHEEL CYL
1-47624-333-0
02
1
1407-
155
WASHER; PL,WHEEL CYL
(A)
1-47629-150-0
04
1
1407-
155
WASHER; PL,WHEEL CYL
(B)
1-47629-151-0
04
1
1407-
178
WEDGE; RR WHEEL CYL
1-47619-168-0
02
1
1407-
179
COVER; WEDGE,RR WHEEL CYL
1-47619-141-0
02
1
1407-
224
PIN; ROD
1-47619-130-0
02
1
1407-
250
PIN; RETAINING
(A)
1-47619-106-0
04
1
1407-
250
PIN; RETAINING
(B)
1-47629-112-0
04
1
1407-
250
PIN; RETAINING
(C)
1-47629-262-0
04
1
1407-
266
ROLLER; WEDGE
1-47619-138-0
04
1
1407-
282
PLUNGER; INNER
1-47629-255-0
02
1
1407-
283
PLUNGER; OUTER
1-47629-256-0
01
1
1407-1410
283
PLUNGER; OUTER
1-47629-257-0
01
1
1407-1410
283
PLUNGER; OUTER
1-47629-257-0
02
1
1411-
284
BOOT; PISTON
1-47616-093-0
02
1
1407-
286
SCREW; COVER
1-47619-132-0
06
1
1407-
292
BOOT; ROD
1-47616-107-0
02
1
1407-
297
RING; SNAP
1-47629-263-0
04
1
1407-
305
GUIDE; SLACK ADJ
1-46346-023-0
02
1
1407-
316
RING; SNAP
ID=9
0-91805-509-0
02
1
1407-
341
SPRING; ASSIST,BOOT
(A)
1-47619-175-0
02
1
1407-
341
SPRING; ASSIST,BOOT
(B)
1-47619-176-0
02
1
1407-
342
GEAR; WHEEL CYL
1-47629-158-0
02
1
1407-
342
GEAR; WHEEL CYL
1-47629-159-0
02
1
1407-
343
SPRING; WHEEL CYL
1-47629-141-0
04
1
1407-
344
WASHER; WAVE
1-47619-107-0
04
1
1407-
345
RETAINER; LEVER
1-47619-109-0
04
1
1407-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
