Isuzu WW
▶
TRUCKS
▶
FSR
▶
11585 - FSR(MIDDLE EAST)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶
2-53 — TRANSMISSION OIL COOLER SYSTEM
(#144177) — 49 parça
◀

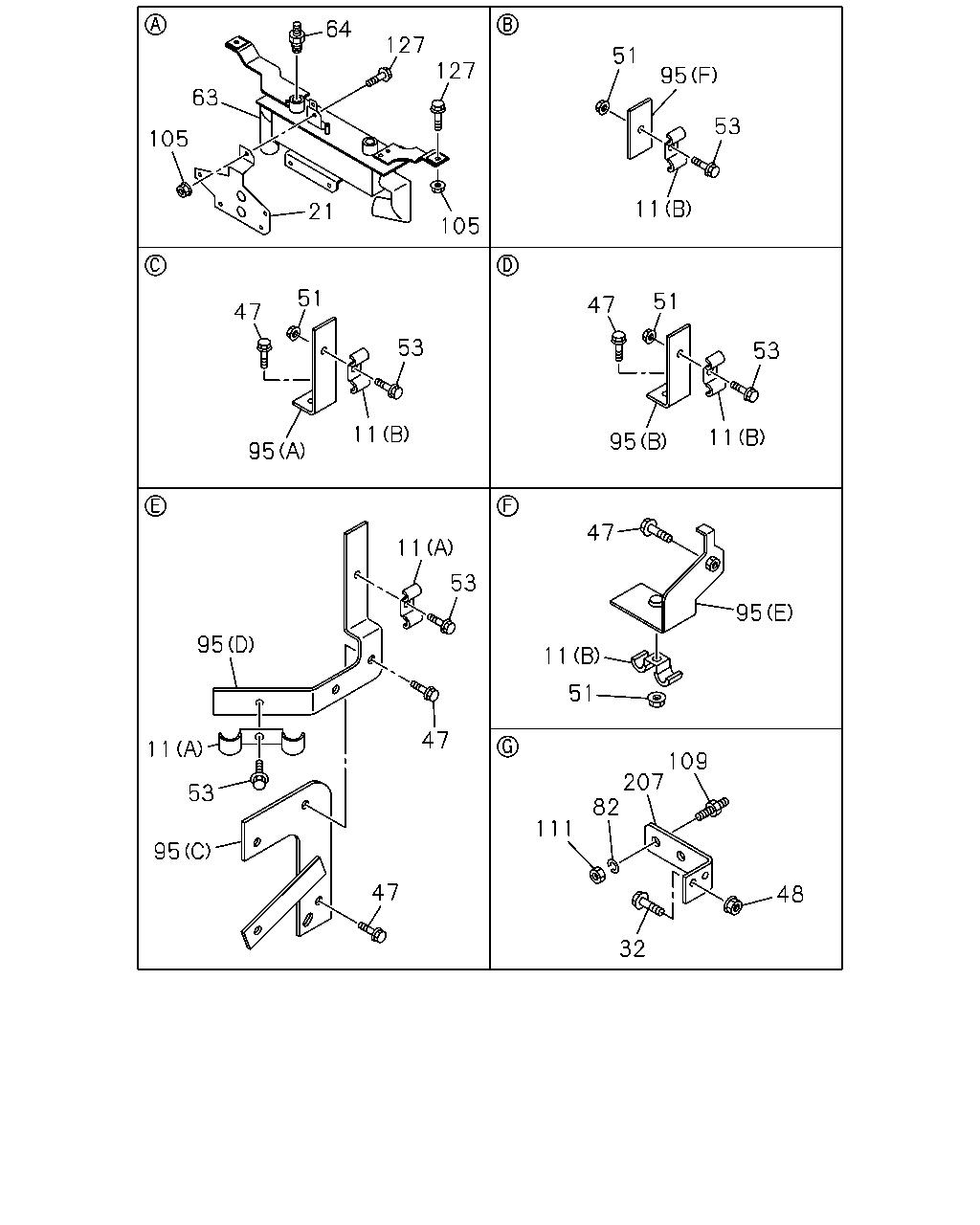

[253A] NO.3 (23 parça)
[253A] NO.1 (13 parça)
[253A] NO.2 (13 parça)
▶
51
53
95
11
51
47
53
11
95
47
95
11
51
48
32
109
207
82
111
47
53
11
47
95
53
11
95
11
53
95
47
51
105
21
105
63
64
127
127
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
CLIP; PIPE
(A) ID=19 & 19 L=32.5 & 32.5
1-09701-034-1
02
1
1407-
11
CLIP; PIPE
(B) ID=19 & 19
1-09701-324-0
05
1
1407-
21
BRACKET; COOLER
8-98087-647-1
01
1
1407-
32
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
02
1
1407-
47
BOLT; BRKT TO FRAME
M8X25 FLANGE
0-28650-825-0
06
1
1407-
47
BOLT; BRKT TO FRAME
M10X30 FLANGE
0-28651-030-0
01
1
1407-
48
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1407-
51
NUT; CLIP TO BRKT
M8 FLANGE
0-91180-108-0
05
1
1407-
53
BOLT; CLIP,FLEX HOSE,A/T
M8X20 FLANGE
0-28650-820-0
06
1
1407-
63
COOLER; OIL
8-98233-275-0
01
1
1407-
64
CONNECTOR; OIL COOLER
1-09660-210-0
02
1
1407-
82
WASHER; LK,UNION
ID=30.5
9-09150-530-0
02
1
1407-
95
BRACKET; CLIP
(F) L=50
1-47475-299-2
02
1
1407-
95
BRACKET; CLIP
(B) L=68.5
1-47475-591-0
01
1
1407-
95
BRACKET; CLIP
(A) L=115 B=25
1-47476-758-0
01
1
1407-
95
BRACKET; CLIP
(C)
8-98245-750-0
01
1
1407-
95
BRACKET; CLIP
(D)
8-98245-751-0
01
1
1407-
95
BRACKET; CLIP
(E)
8-98245-752-0
01
1
1407-
105
NUT; OIL COOLER
M8 FLANGE
0-91180-108-0
07
1
1407-
109
UNION
M30 & M30 STRAIGHT
1-09664-191-0
02
1
1407-
111
NUT; UNION
M30
9-09840-252-1
02
1
1407-
127
BOLT; COOLER
M8X30 FLANGE
0-28650-830-0
07
1
1407-
207
BRACKET; UNION
8-98240-233-0
01
1
1407-

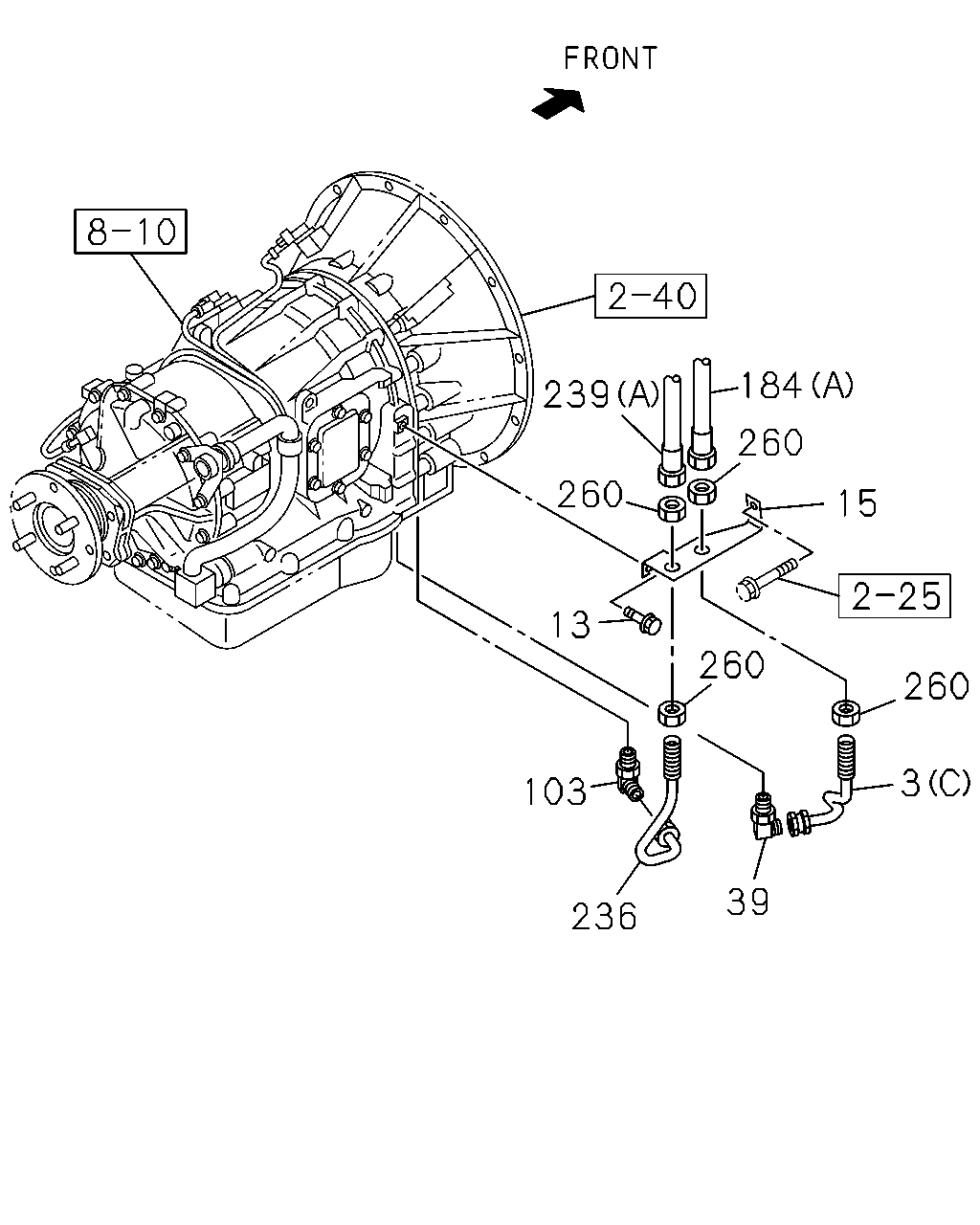

239
260
13
103
236
260
39
260
3
15
260
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
PIPE; OIL,A/T TO OIL COOLER
(C)
8-98158-383-1
01
1
1407-
3
PIPE; OIL,A/T TO OIL COOLER
(A)
8-98260-622-1
01
1
1407-
3
PIPE; OIL,A/T TO OIL COOLER
(B)
8-98260-624-0
01
1
1407-
13
BOLT; BRKT
M8X20 FLANGE
8-98105-048-0
01
1
1407-
15
BRACKET; ATF PIPE
8-98075-836-0
01
1
1407-
39
CONNECTOR; FLEX HOSE,A/T
1-09661-766-1
01
1
1407-
103
CONNECTOR; OIL PIPE
1-09661-766-1
01
1
1407-
184
HOSE; FLEX,PIPE TO COOLER
(B)
8-98010-583-2
01
1
1407-
184
HOSE; FLEX,PIPE TO COOLER
(A)
8-98080-165-0
01
1
1407-
236
PIPE; OIL,OIL COOLER TO A/T
8-98158-384-1
01
1
1407-
239
HOSE; FLEX,COOLER TO PIPE
(B)
8-98010-582-2
01
1
1407-
239
HOSE; FLEX,COOLER TO PIPE
(A)
8-98097-594-0
01
1
1407-
260
NUT
M30
1-09400-166-0
04
1
1407-

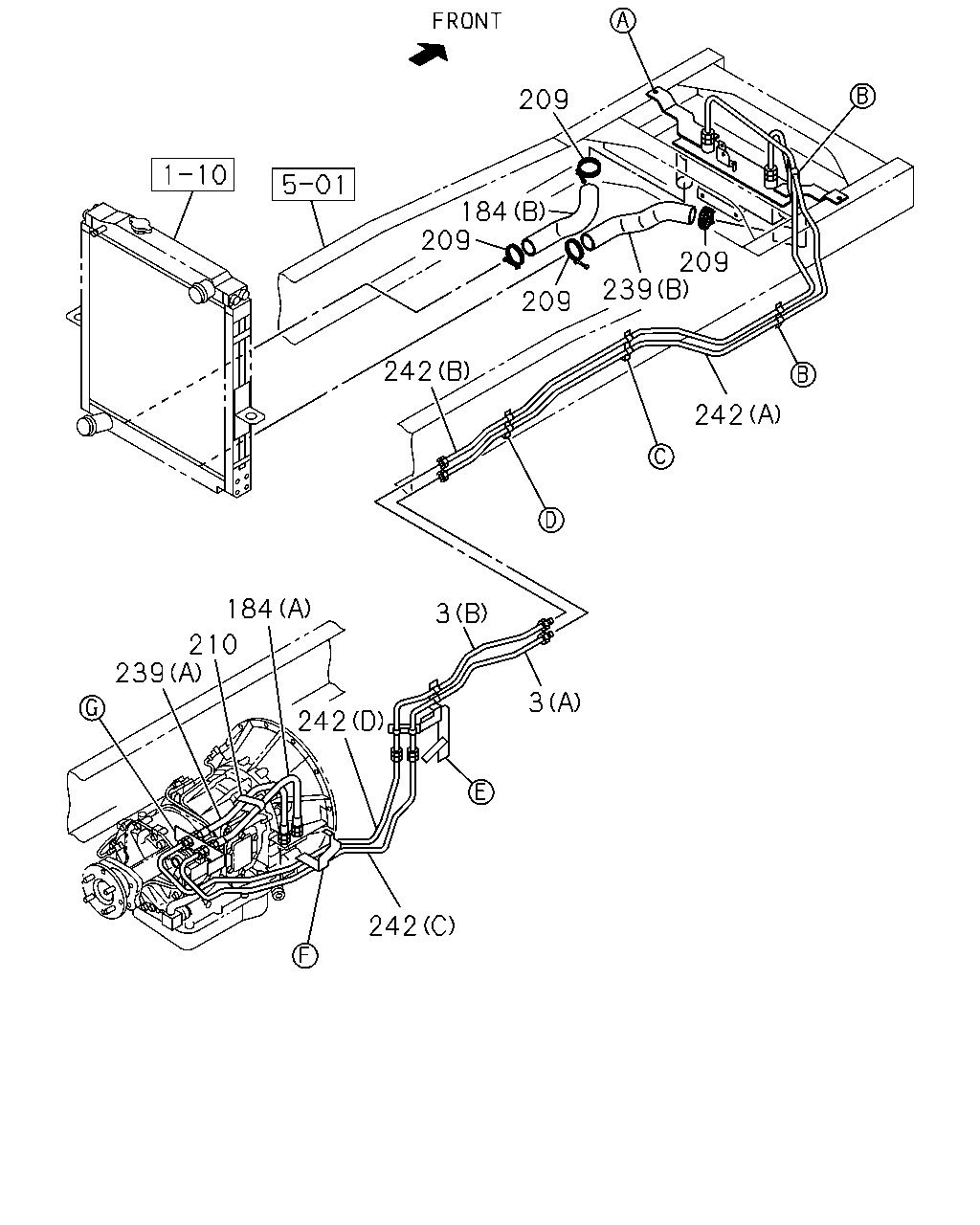

242
3
3
242
184
210
239
242
209
239
209
242
209
184
209
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
PIPE; OIL,A/T TO OIL COOLER
(C)
8-98158-383-1
01
1
1407-
3
PIPE; OIL,A/T TO OIL COOLER
(A)
8-98260-622-1
01
1
1407-
3
PIPE; OIL,A/T TO OIL COOLER
(B)
8-98260-624-0
01
1
1407-
184
HOSE; FLEX,PIPE TO COOLER
(B)
8-98010-583-2
01
1
1407-
184
HOSE; FLEX,PIPE TO COOLER
(A)
8-98080-165-0
01
1
1407-
209
CLIP; HOSE
ID=63
1-09704-067-0
04
1
1407-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
1407-
239
HOSE; FLEX,COOLER TO PIPE
(B)
8-98010-582-2
01
1
1407-
239
HOSE; FLEX,COOLER TO PIPE
(A)
8-98097-594-0
01
1
1407-
242
PIPE; COOLER
(A)
8-98260-619-1
01
1
1407-
242
PIPE; COOLER
(B)
8-98260-620-0
01
1
1407-
242
PIPE; COOLER
(C)
8-98269-403-0
01
1
1407-
242
PIPE; COOLER
(D)
8-98269-404-0
01
1
1407-
