5-01 — FRAME AND OTHER PARTS
(#14417) — 61 parça
◀

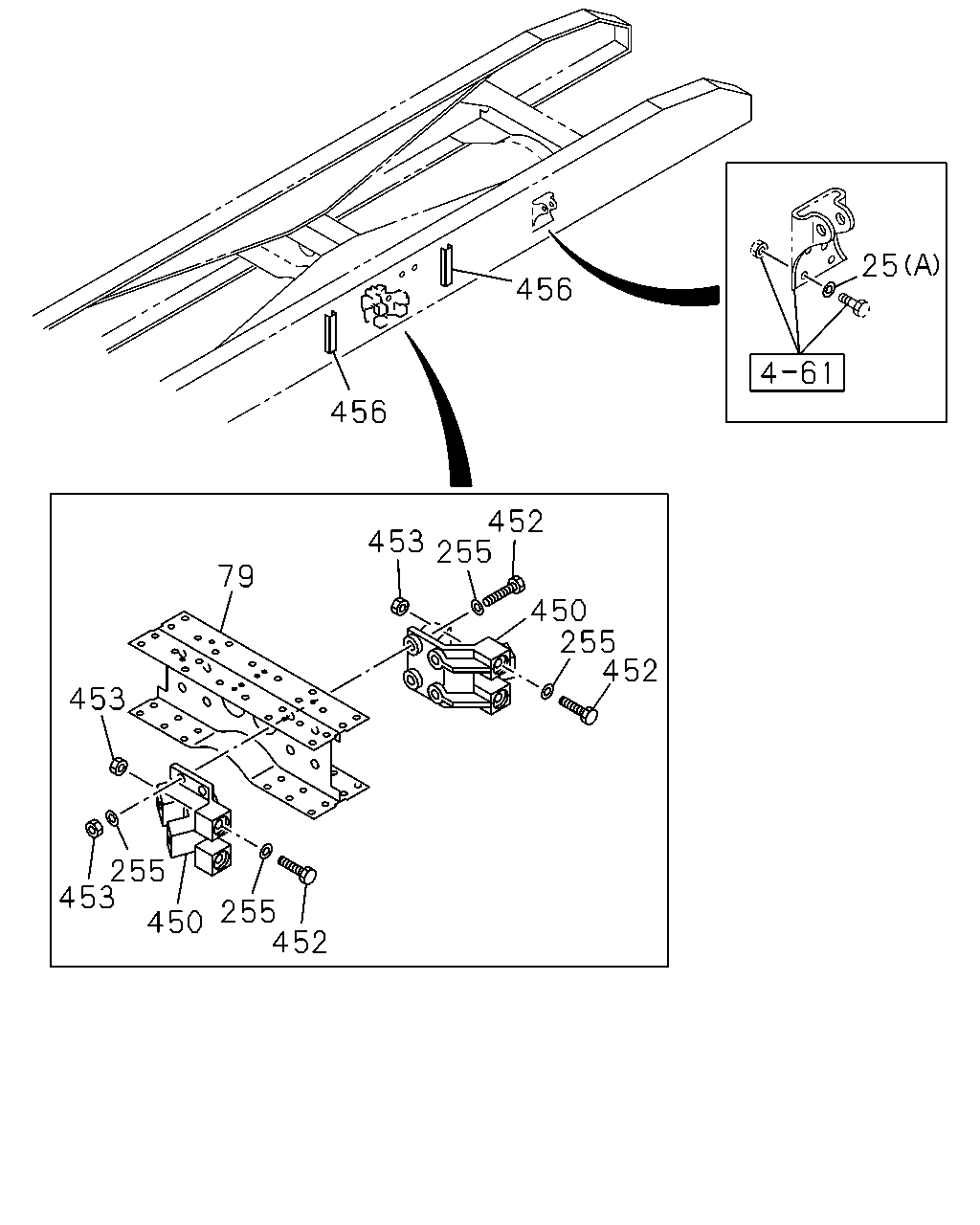

[501A] BRACKET;REAR (9 parça)

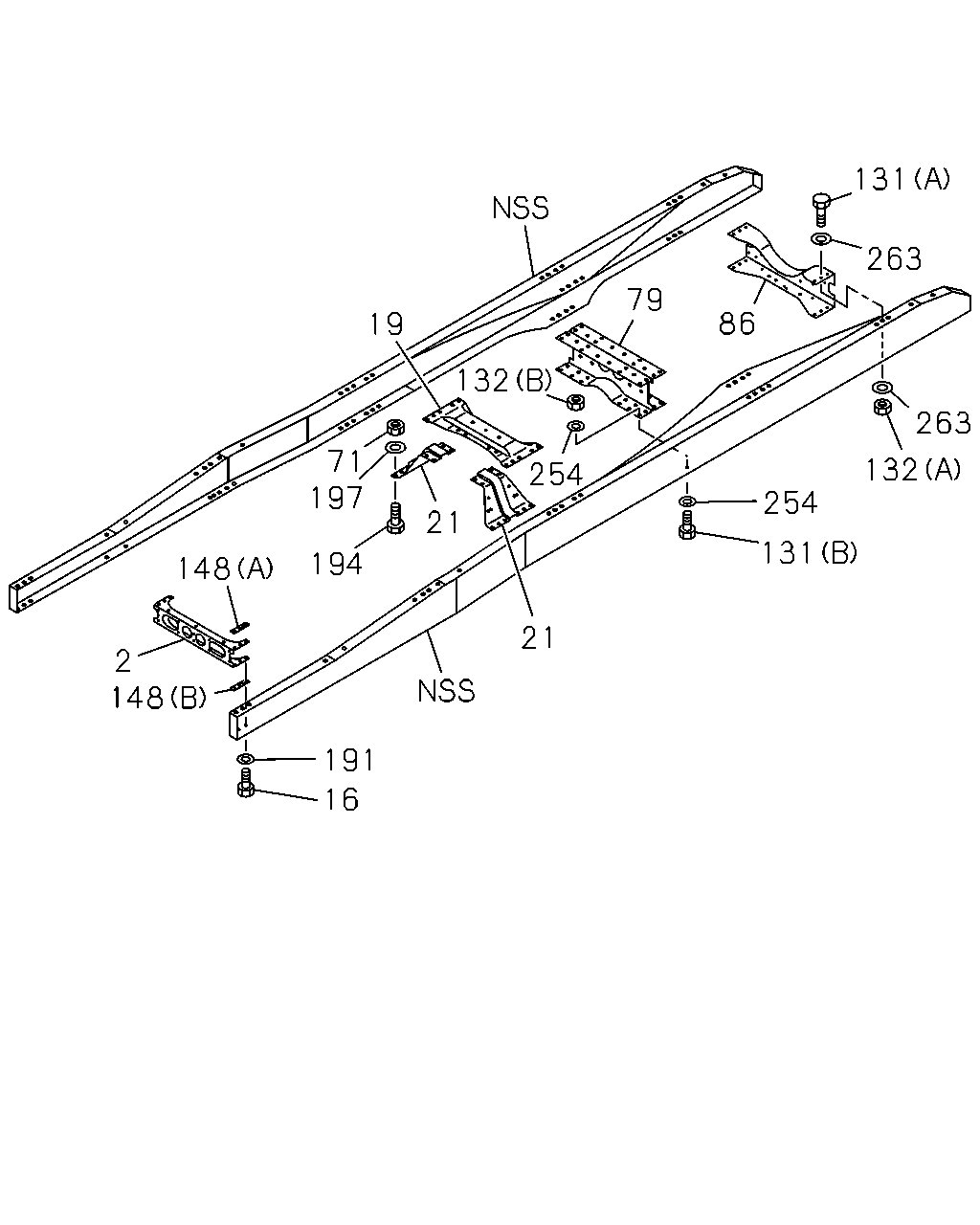

[501A] CROSS MEMBER (21 parça)

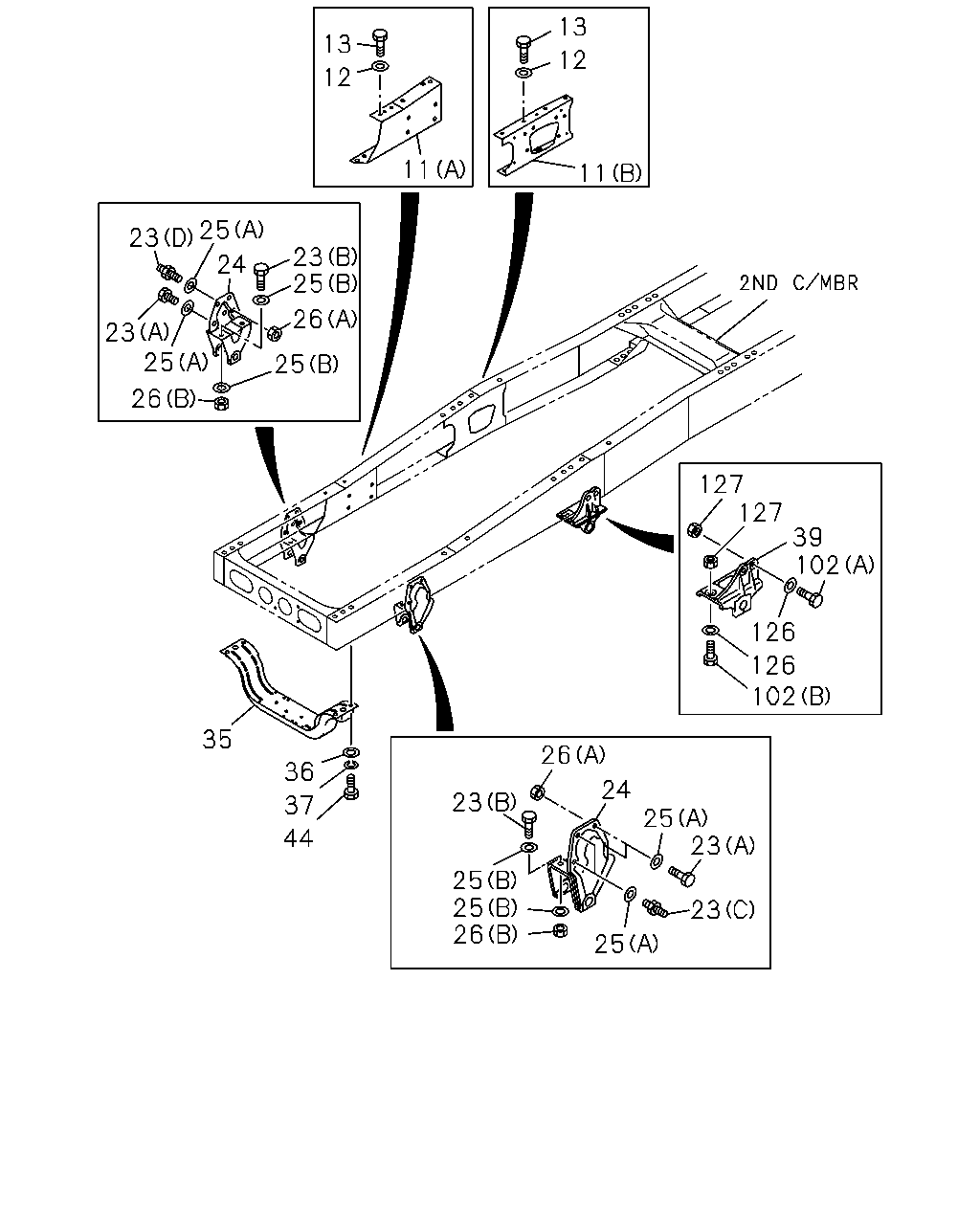

[501A] BRACKET;FRONT AND UNDER MEMBER (31 parça)
▶
25
456
456
452
453
255
450
255
452
79
453
255
453
450
255
452
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0710-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
24
1
0710-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
24
1
1202-
79
MEMBER; CROSS,TRUNNION ASM
1-53182-042-2
01
1
0710-
255
WASHER; PL,BRKT
ID=16.2
1-09503-223-0
16
1
0710-
450
BRACKET; V ROD
1-53353-122-1
04
1
0710-
452
BOLT; V ROD
M16X90
1-09000-675-0
16
1
0710-
453
NUT; V ROD
M16 FLANGE
1-09440-066-0
16
1
0710-
456
PATCH; STOPPER
1-53119-203-0
04
1
0710-
131
263
86
79
19
132
71
197
254
263
132
254
131
21
194
148
2
148
21
191
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97604-959-3
01
1
0710-
16
BOLT; 1ST C/MBR TO S/MBR
M16X40
0-20951-640-0
02
1
0710-
19
MEMBER; CROSS,2ND
1-53174-265-0
01
1
0710-
21
GUSSET; 2ND CROSS
1-53164-226-1
01
1
0710-
21
GUSSET; 2ND CROSS
1-53164-227-1
01
1
0710-
71
NUT; 2ND C/MBR
M14
0-91110-514-0
08
1
0710-
79
MEMBER; CROSS,TRUNNION ASM
1-53182-042-2
01
1
0710-
86
MEMBER; CROSS,RR SUSP RR
1-53182-044-0
01
1
0710-
131
BOLT; END C/MBR
(A) M12X40
0-20951-240-0
02
1
0710-
131
BOLT; END C/MBR
(B) M18X60
9-91066-860-0
16
1
0710-0805
131
BOLT; END C/MBR
(B) M18X60
8-98036-497-0
16
1
0806-
132
NUT; END C/MBR
(A) M12
0-91110-512-0
02
1
0710-
132
NUT; END C/MBR
(B) M18
0-91110-518-0
16
1
0710-
148
SPACER; C/MBR
(A)
1-53168-400-1
02
1
0710-
148
SPACER; C/MBR
(B)
1-53168-403-1
02
1
0710-
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2
1-09503-223-0
02
1
0710-
194
BOLT; 2ND C/MBR
M14X60
0-20951-460-0
08
1
0710-
197
WASHER; PL,2ND C/MBR
ID=15
9-09651-069-0
08
1
0710-1201
197
WASHER; PL,2ND C/MBR
ID=15
8-98010-627-1
08
1
1202-
254
WASHER; PL,C/MBR
ID=19
9-09160-518-0
32
1
0710-
263
WASHER; PL,SUB FRAME
ID=12.5
9-09164-512-0
04
1
0710-
13
12
11
11
12
13
25
23
24
23
25
26
23
25
25
26
127
127
39
102
126
126
102
26
24
25
23
23
25
26
25
25
23
44
37
36
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
0710-
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
0710-
11
BRACKET; ENG MTG
(B)
1-53221-230-4
01
1
0710-0805
11
BRACKET; ENG MTG
(B)
8-98056-611-1
01
1
0806-
11
BRACKET; ENG MTG
(B)
1-53221-231-4
01
1
0710-0805
11
BRACKET; ENG MTG
(B)
8-98056-612-0
01
1
0806-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
04
1
0710-1201
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
04
1
1202-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
04
1
0710-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
05
1
0710-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
0710-
23
BOLT; BRKT,SPR
(D) M12X35,M14X45 L=100
1-09029-075-0
01
1
0710-
23
BOLT; BRKT,SPR
(C) M12X25,M14X45 L=81
1-09029-103-0
02
1
0710-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
0710-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
0710-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0710-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
24
1
0710-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
24
1
1202-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
08
1
0710-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0710-
35
MEMBER; UNDER
1-53174-263-2
01
1
0710-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
0710-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
0710-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
0710-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
0710-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
0710-
102
BOLT; BRKT,RR SPR
(A) M14X40
0-20951-440-0
04
1
0710-
102
BOLT; BRKT,RR SPR
(B) M14X50
0-20951-450-0
04
1
0710-
126
WASHER; PL,BRKT
ID=15
9-09651-069-0
08
1
0710-1201
126
WASHER; PL,BRKT
ID=15
8-98010-627-1
08
1
1202-
127
NUT; BRKT
M14
0-91110-514-0
04
1
0710-
