Isuzu WW
▶
TRUCKS
▶
FSR
▶
11585 - FSR(MIDDLE EAST)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

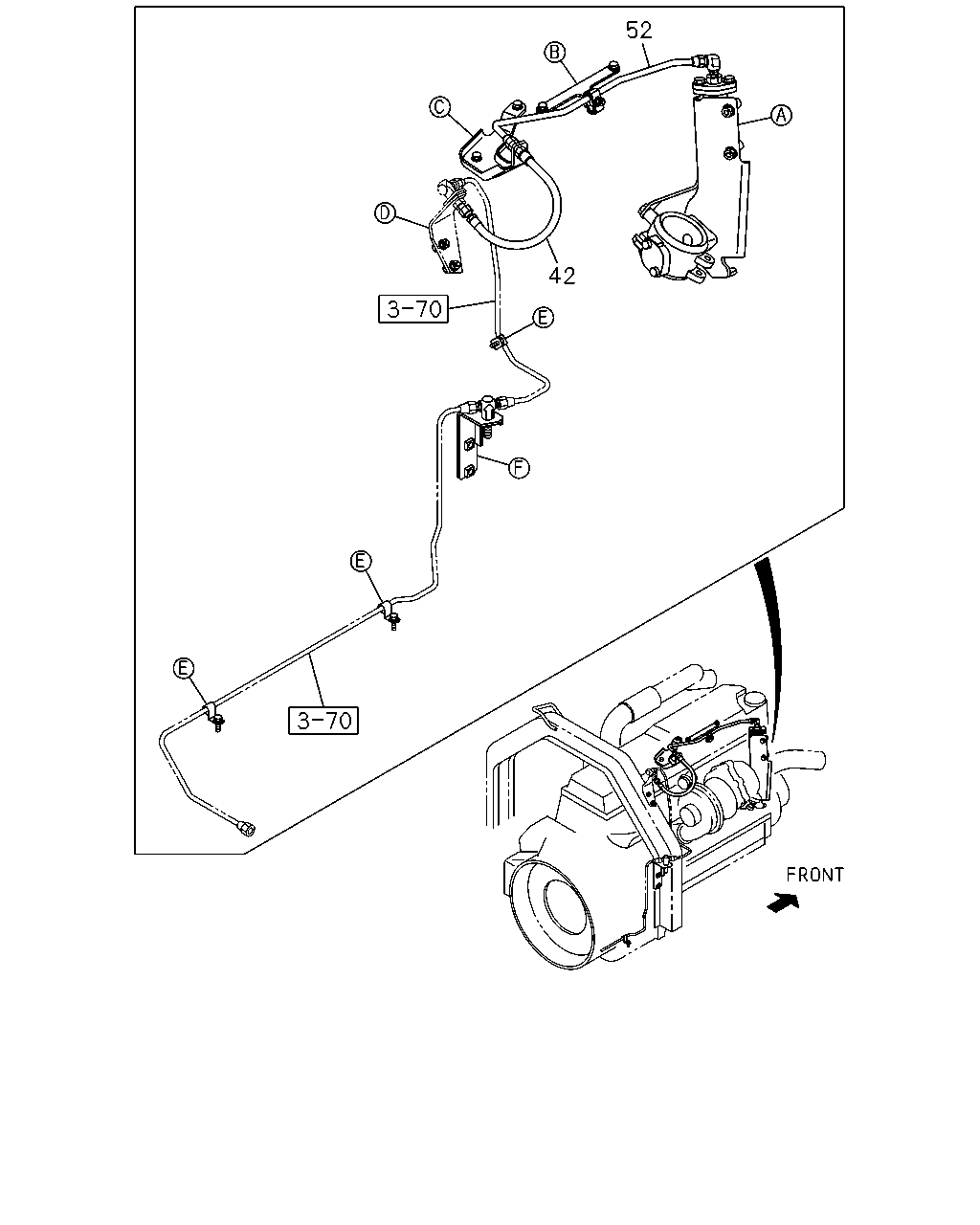

1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#144169) — 21 parça
◀
[155A] DETAIL (19 parça)
[155A] FIXING (2 parça)
▶
52
74
6
81
45
42
80
47
46
50
46
46
89
52
53
81
82
42
74
182
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
8-97602-527-1
01
1
1407-
42
HOSE; FLEX,EXH BRK
L=340
1-09363-622-0
01
1
1407-
45
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
1407-
46
CLIP; AIR PIPE
(B) ID=6 H=20 L=20
1-09700-603-0
01
1
1407-
46
CLIP; AIR PIPE
(B) ID=6 H=20 L=20
1-09700-603-0
02
1
1407-
46
CLIP; AIR PIPE
(A) ID=11 & 11 L=19
8-98148-996-2
02
1
1407-
47
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1407-
47
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1407-
50
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
02
1
1407-
52
PIPE ASM; AIR FLEX HOSE
8-97603-547-0
01
1
1407-
53
BRACKET; CLIP
8-98182-766-0
01
1
1407-
74
CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1407-
74
CONNECTOR; EXH BRK VLV
(B)
8-98260-993-0
01
1
1407-
80
BRACKET; FLEX HOSE
8-98182-767-0
01
1
1407-
81
BOLT; HOSE BRKT
M8X12 FLANGE
0-28050-812-0
02
1
1407-
81
BOLT; HOSE BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1407-
82
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
02
1
1407-
89
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1407-
182
CONNECTOR
M12 3WAY
1-09654-137-2
01
1
1407-
52
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
HOSE; FLEX,EXH BRK
L=340
1-09363-622-0
01
1
1407-
52
PIPE ASM; AIR FLEX HOSE
8-97603-547-0
01
1
1407-
