Isuzu WW
▶
TRUCKS
▶
FVR
▶
11604 - FVR(MALAYSIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

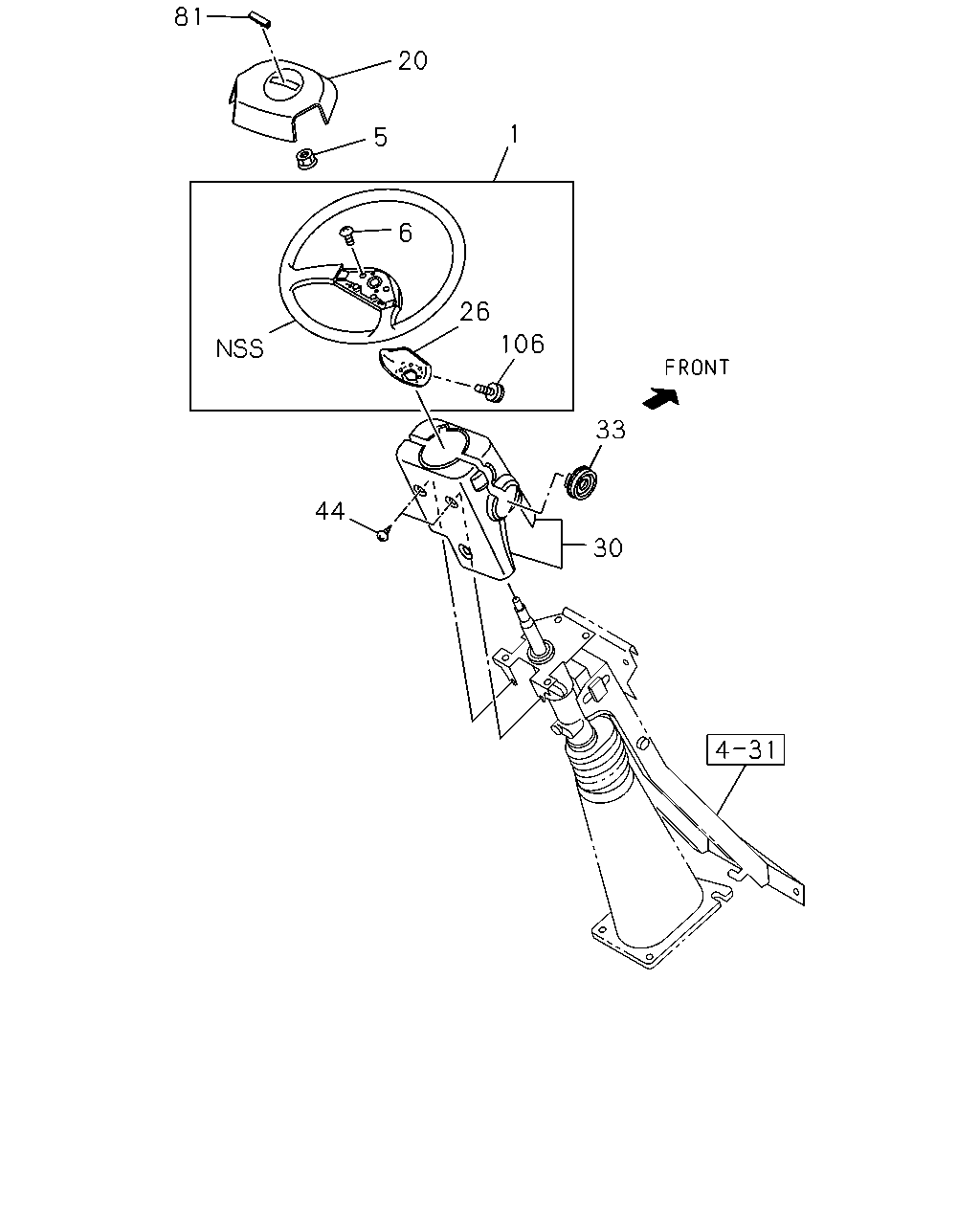

4-30 — STEERING WHEEL AND COWL
(#144167) — 11 parça
81
20
1
5
6
26
33
106
30
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
WHEEL; STRG
DARK GRAY
8-97412-555-1
01
1
1407-
5
NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
1407-
6
SCREW; HORN SPR CONTACT
M4X12
8-97167-588-0
04
1
1407-
20
SHROUD; PAD,STRG WHEEL
DARK GRAY
8-97405-985-1
01
1
1407-
26
COVER; STRG WHEEL,LWR
DARK GRAY
8-97409-275-2
01
1
1407-
30
COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY
8-97411-503-1
01
1
1407-
30
COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY
8-97405-356-5
01
1
1407-
33
COVER; STRG COWL
DARK GRAY
8-97409-495-0
01
1
1407-
44
SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
1407-
81
EMBLEM; STRG WHEEL
DARK GRAY
8-97405-986-0
01
1
1407-
106
BOLT; TORX
8-98231-397-0
02
1
1407-
