4-25 — REAR FINAL DRIVE (#144166) — 586 parça

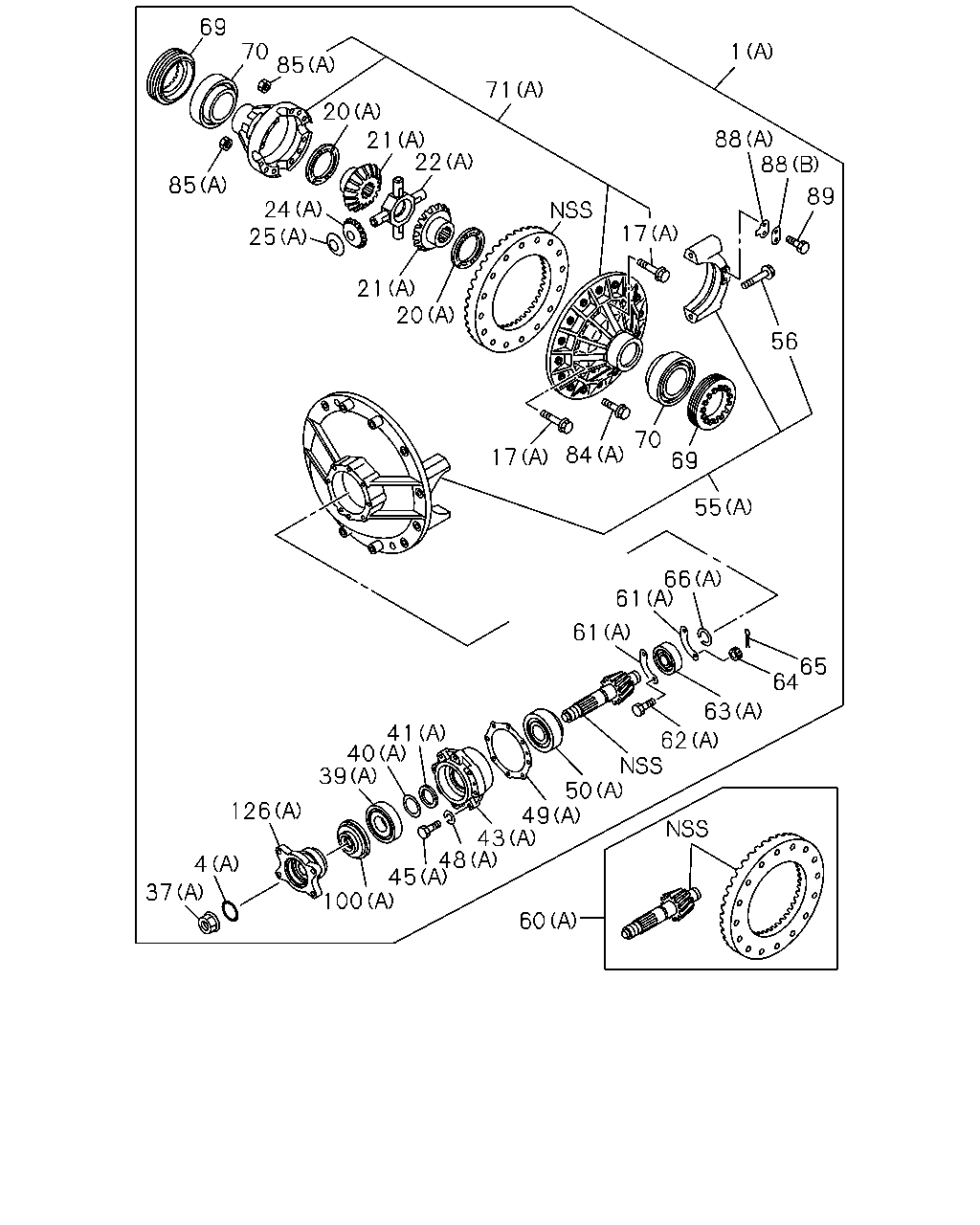

çizim 432266
69 70 85 20 21 22 71 1 88 88 89 56 17 85 24 25 21 20 17 84 70 69 55 66 61 61 65 64 63 62 50 49 43 48 45 100 39 40 41 126 4 37 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 DRIVE ASM; FINAL,RR
(A) 39/6 		1-41001-060-0 01 1 1508- ●
1 DRIVE ASM; FINAL,RR
(B) 45/7 		1-41002-601-0 01 1 1505- ●
1 DRIVE ASM; FINAL,RR
(B) 43/7 		1-41002-375-0 01 1 1505- ●
1 DRIVE ASM; FINAL,RR
(A) 39/7 		1-41001-031-0 01 1 1410- ●
1 DRIVE ASM; FINAL,RR
(A) 43/7 		1-41000-923-0 01 1 1410- ●
1 DRIVE ASM; FINAL,RR
(A) 43/6 		1-41000-937-0 01 1 1407- ●
1 DRIVE ASM; FINAL,RR
(A) 41/6 		1-41003-298-0 01 1 1407- ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 1407-1409 ● ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 1410-1504 ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
(B) ID=57 		1-09623-386-0 01 1 1505- ● ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 1505-1507 ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 1508- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 1505- ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1505- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 1407-1409 ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 1410-1507 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 1508- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X95 FLANGE 		1-09044-007-0 04 1 1407-1409 ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X95 FLANGE 		1-09044-007-0 04 1 1410-1507 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X95 FLANGE 		1-09044-007-0 04 1 1508- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.8 		1-41562-112-0 AR 1 1505- ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.9 		1-41562-113-0 AR 1 1505- ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.0 		1-41562-114-0 AR 1 1505- ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.1 		1-41562-115-0 AR 1 1505- ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.2 		1-41562-116-0 AR 1 1505- ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.3 		1-41562-117-0 AR 1 1505- ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.4 		1-41562-118-0 AR 1 1505- ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 AR 1 1407-1409 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 AR 1 1410-1507 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 AR 1 1508- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 AR 1 1407-1409 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 AR 1 1410-1507 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 AR 1 1508- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 AR 1 1407-1409 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 AR 1 1410-1507 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 AR 1 1508- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 AR 1 1407-1409 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 AR 1 1410-1507 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 AR 1 1508- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 AR 1 1407-1409 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 AR 1 1410-1507 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 AR 1 1508- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 AR 1 1407-1409 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 AR 1 1410-1507 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 AR 1 1508- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 AR 1 1407-1409 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 AR 1 1410-1507 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 AR 1 1508- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 02 1 1407- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 02 1 1407- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 02 1 1407- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 02 1 1407- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 02 1 1407- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 02 1 1407- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 02 1 1407- ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-162-0 02 1 1407-1409 ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-162-0 02 1 1410-1504 ● ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1505- ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-162-0 02 1 1505-1507 ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-162-0 02 1 1508- ● ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1407-1409 ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1410-1504 ● ● ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1505- ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1505-1507 ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1508- ● ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1407-1409 ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1410-1504 ● ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1505- ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1505-1507 ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1508- ● ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1407-1409 ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1410-1504 ● ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1505- ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1505-1507 ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1508- ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 1407-1409 ● ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 1410-1504 ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1505- ● ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 1505-1507 ● ● ● ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 1508- ● ● ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1505- ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1505- ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-086-0 01 1 1407-1409 ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-086-0 01 1 1410-1507 ● ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-086-0 01 1 1508- ● ● ● ● ●
39 BEARING; FINAL PINION
(A) NTN 		9-00093-072-1 01 1 1407-1409 ● ●
39 BEARING; FINAL PINION
(A) NTN 		9-00093-072-1 01 1 1410-1507 ● ● ● ●
39 BEARING; FINAL PINION
(A) NTN 		9-00093-072-1 01 1 1508- ● ● ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		9-00093-206-2 01 1 1407-1409 ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		9-00093-206-2 01 1 1410-1507 ● ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		9-00093-206-2 01 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.25 		1-41229-245-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.26 		1-41229-246-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.27 		1-41229-247-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.28 		1-41229-248-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.29 		1-41229-249-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.30 		1-41229-250-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.31 		1-41229-251-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.32 		1-41229-252-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.33 		1-41229-253-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.34 		1-41229-254-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.35 		1-41229-255-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(A) T=3.50 		1-41229-106-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.50 		1-41229-106-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.50 		1-41229-106-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.51 		1-41229-107-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.51 		1-41229-107-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.51 		1-41229-107-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.52 		1-41229-108-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.52 		1-41229-108-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.52 		1-41229-108-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.53 		1-41229-109-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.53 		1-41229-109-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.53 		1-41229-109-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.54 		1-41229-110-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.54 		1-41229-110-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.54 		1-41229-110-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.55 		1-41229-111-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.55 		1-41229-111-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.55 		1-41229-111-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.56 		1-41229-112-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.56 		1-41229-112-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.56 		1-41229-112-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.58 		1-41229-114-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.58 		1-41229-114-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.58 		1-41229-114-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.59 		1-41229-115-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.59 		1-41229-115-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.59 		1-41229-115-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.60 		1-41229-116-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.60 		1-41229-116-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.60 		1-41229-116-0 AR 1 1508- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.60 		1-41229-237-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.80 		1-41229-238-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.00 		1-41229-239-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.20 		1-41229-240-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.40 		1-41229-241-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.60 		1-41229-242-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.80 		1-41229-243-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=9.00 		1-41229-244-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.600 		1-41229-101-0 AR 1 1407-1409 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.600 		1-41229-101-0 AR 1 1410-1507 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.600 		1-41229-101-0 AR 1 1508- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.800 		1-41229-102-0 AR 1 1407-1409 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.800 		1-41229-102-0 AR 1 1410-1507 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.800 		1-41229-102-0 AR 1 1508- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.000 		1-41229-103-0 AR 1 1407-1409 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.000 		1-41229-103-0 AR 1 1410-1507 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.000 		1-41229-103-0 AR 1 1508- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.200 		1-41229-104-0 AR 1 1407-1409 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.200 		1-41229-104-0 AR 1 1410-1507 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.200 		1-41229-104-0 AR 1 1508- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.400 		1-41229-105-0 AR 1 1407-1409 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.400 		1-41229-105-0 AR 1 1410-1507 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.400 		1-41229-105-0 AR 1 1508- ● ● ● ● ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 1407-1409 ● ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 1410-1504 ● ● ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1505- ● ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 1505-1507 ● ● ● ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 1508- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 1407-1409 ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 1410-1504 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1505- ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 1505-1507 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 1508- ● ● ● ● ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 1407-1409 ● ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 1410-1504 ● ● ● ●
48 WASHER; LK,FINAL PINION
(B) ID=16.2 MAL 		0-91510-516-0 08 1 1505- ● ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 1505-1507 ● ● ● ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 1508- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1505- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1505- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1505- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1505- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-009-0 AR 1 1407-1409 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-009-0 AR 1 1410-1507 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-009-0 AR 1 1508- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 1407-1409 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 1410-1507 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 1508- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.300 		1-41154-104-0 AR 1 1407-1409 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.300 		1-41154-104-0 AR 1 1410-1507 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.300 		1-41154-104-0 AR 1 1508- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.400 		1-41154-105-0 AR 1 1407-1409 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.400 		1-41154-105-0 AR 1 1410-1507 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.400 		1-41154-105-0 AR 1 1508- ● ● ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1505- ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1505- ● ●
50 BEARING; FINAL PINION
(A) NTN 		1-09812-013-0 01 1 1407-1409 ● ●
50 BEARING; FINAL PINION
(A) NTN 		1-09812-013-0 01 1 1410-1507 ● ● ● ●
50 BEARING; FINAL PINION
(A) NTN 		1-09812-013-0 01 1 1508- ● ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-070-1 01 1 1407-1409 ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-070-1 01 1 1410-1507 ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-070-1 01 1 1508- ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 1407-1409 ● ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 1410-1504 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1505- ● ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 1505-1507 ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 1508- ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1407-1409 ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1410-1504 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1505-1507 ● ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1508- ● ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/6 		1-41210-371-2 01 1 1508- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 45/7 		1-41210-602-0 01 1 1505- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/7 		1-41210-603-0 01 1 1505- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-517-0 01 1 1410- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-549-0 01 1 1410- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/6 		1-41210-375-2 01 1 1407- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/6 		1-41210-515-0 01 1 1407- ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 1407-1409 ● ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 1410-1504 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
(B) T=3.2 		1-41227-012-0 02 1 1505- ● ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 1505-1507 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 1508- ● ● ● ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1407-1409 ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1410-1504 ● ● ● ●
62 BOLT; RET
(B) M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1505- ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1505-1507 ● ● ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1508- ● ● ● ● ●
63 BEARING; PINION PILOT
(B) JTEKT 		1-09810-182-0 01 1 1505- ● ●
63 BEARING; PINION PILOT
(B) NSK 		1-09810-183-0 01 1 1505- ● ●
63 BEARING; PINION PILOT
(A) JTEKT 		1-09810-229-2 01 1 1407-1409 ● ●
63 BEARING; PINION PILOT
(A) JTEKT 		1-09810-229-2 01 1 1410-1507 ● ● ● ●
63 BEARING; PINION PILOT
(A) JTEKT 		1-09810-229-2 01 1 1508- ● ● ● ● ●
63 BEARING; PINION PILOT
(A) NSK 		1-09810-230-1 01 1 1407-1409 ● ●
63 BEARING; PINION PILOT
(A) NSK 		1-09810-230-1 01 1 1410-1507 ● ● ● ●
63 BEARING; PINION PILOT
(A) NSK 		1-09810-230-1 01 1 1508- ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1407-1409 ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1410-1504 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1505-1507 ● ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1508- ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1407-1409 ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1410-1504 ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1505-1507 ● ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1508- ● ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 1407-1409 ● ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 1410-1504 ● ● ● ●
66 RING; SNAP,PILOT BRG
(B) OD=37.2 		1-09588-086-2 01 1 1505- ● ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 1505-1507 ● ● ● ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 1508- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1407-1409 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1410-1504 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1505-1507 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1508- ● ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1407-1409 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1410-1504 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1505-1507 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1508- ● ● ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1407-1409 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1410-1504 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1505-1507 ● ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1508- ● ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 1407-1409 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 1410-1504 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(B) 		1-41510-141-0 01 1 1505- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 1505-1507 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 1508- ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 1407-1409 ● ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 1410-1504 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
(B) M18X38 FLANGE 		1-09009-049-1 16 1 1505- ● ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 1505-1507 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 1508- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 1407-1409 ● ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 1410-1504 ● ● ● ●
85 NUT; DIFF CAGE SETTING
(B) M16 		0-91110-516-0 12 1 1505- ● ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 1505-1507 ● ● ● ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 1508- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1407-1409 ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1410-1504 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1505-1507 ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1508- ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1407-1409 ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1410-1504 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1505-1507 ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1508- ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1407-1409 ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1410-1504 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1505-1507 ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1508- ● ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 1407-1409 ● ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 1410-1504 ● ● ● ●
100 SEAL; OIL,FINAL PINION
(B) NOK 		1-09625-322-0 01 1 1505- ● ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 1505-1507 ● ● ● ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 1508- ● ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-387-0 01 1 1407-1409 ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-387-0 01 1 1410-1504 ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-343-0 01 1 1505- ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-387-0 01 1 1505-1507 ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-387-0 01 1 1508- ● ● ● ● ●

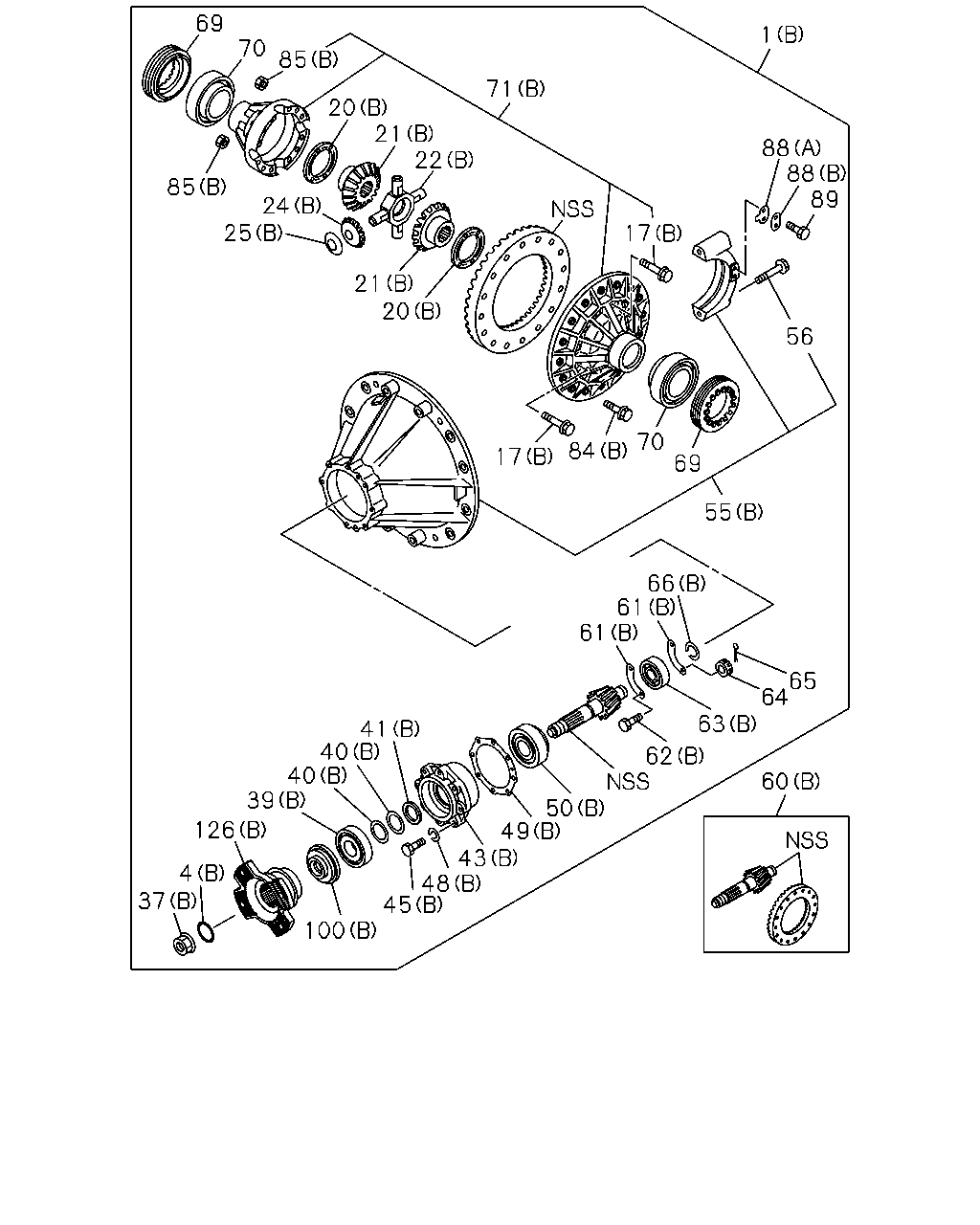

çizim 476176
69 70 85 20 21 22 71 1 88 88 89 17 56 69 70 84 17 55 66 61 61 63 64 65 62 50 49 43 48 45 100 126 4 37 39 40 40 41 60 21 20 24 25 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 DRIVE ASM; FINAL,RR
(A) 39/6 		1-41001-060-0 01 1 1508- ●
1 DRIVE ASM; FINAL,RR
(B) 45/7 		1-41002-601-0 01 1 1505- ●
1 DRIVE ASM; FINAL,RR
(B) 43/7 		1-41002-375-0 01 1 1505- ●
1 DRIVE ASM; FINAL,RR
(A) 39/7 		1-41001-031-0 01 1 1410- ●
1 DRIVE ASM; FINAL,RR
(A) 43/7 		1-41000-923-0 01 1 1410- ●
1 DRIVE ASM; FINAL,RR
(A) 43/6 		1-41000-937-0 01 1 1407- ●
1 DRIVE ASM; FINAL,RR
(A) 41/6 		1-41003-298-0 01 1 1407- ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 1407-1409 ● ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 1410-1504 ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
(B) ID=57 		1-09623-386-0 01 1 1505- ● ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 1505-1507 ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 1508- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 1505- ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 1505- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 1407-1409 ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 1410-1507 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 1508- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X95 FLANGE 		1-09044-007-0 04 1 1407-1409 ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X95 FLANGE 		1-09044-007-0 04 1 1410-1507 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X95 FLANGE 		1-09044-007-0 04 1 1508- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.8 		1-41562-112-0 AR 1 1505- ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.9 		1-41562-113-0 AR 1 1505- ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.0 		1-41562-114-0 AR 1 1505- ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.1 		1-41562-115-0 AR 1 1505- ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.2 		1-41562-116-0 AR 1 1505- ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.3 		1-41562-117-0 AR 1 1505- ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.4 		1-41562-118-0 AR 1 1505- ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 AR 1 1407-1409 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 AR 1 1410-1507 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 AR 1 1508- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 AR 1 1407-1409 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 AR 1 1410-1507 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 AR 1 1508- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 AR 1 1407-1409 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 AR 1 1410-1507 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 AR 1 1508- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 AR 1 1407-1409 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 AR 1 1410-1507 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 AR 1 1508- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 AR 1 1407-1409 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 AR 1 1410-1507 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 AR 1 1508- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 AR 1 1407-1409 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 AR 1 1410-1507 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 AR 1 1508- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 AR 1 1407-1409 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 AR 1 1410-1507 ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 AR 1 1508- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 02 1 1407- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 02 1 1407- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 02 1 1407- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 02 1 1407- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 02 1 1407- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 02 1 1407- ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 02 1 1407- ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-162-0 02 1 1407-1409 ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-162-0 02 1 1410-1504 ● ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 1505- ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-162-0 02 1 1505-1507 ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-162-0 02 1 1508- ● ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1407-1409 ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1410-1504 ● ● ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 1505- ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1505-1507 ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 1508- ● ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1407-1409 ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1410-1504 ● ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 1505- ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1505-1507 ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 1508- ● ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1407-1409 ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1410-1504 ● ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 1505- ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1505-1507 ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 1508- ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 1407-1409 ● ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 1410-1504 ● ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1505- ● ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 1505-1507 ● ● ● ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 1508- ● ● ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1505- ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1505- ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-086-0 01 1 1407-1409 ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-086-0 01 1 1410-1507 ● ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-086-0 01 1 1508- ● ● ● ● ●
39 BEARING; FINAL PINION
(A) NTN 		9-00093-072-1 01 1 1407-1409 ● ●
39 BEARING; FINAL PINION
(A) NTN 		9-00093-072-1 01 1 1410-1507 ● ● ● ●
39 BEARING; FINAL PINION
(A) NTN 		9-00093-072-1 01 1 1508- ● ● ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		9-00093-206-2 01 1 1407-1409 ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		9-00093-206-2 01 1 1410-1507 ● ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		9-00093-206-2 01 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.25 		1-41229-245-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.26 		1-41229-246-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.27 		1-41229-247-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.28 		1-41229-248-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.29 		1-41229-249-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.30 		1-41229-250-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.31 		1-41229-251-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.32 		1-41229-252-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.33 		1-41229-253-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.34 		1-41229-254-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(B) T=3.35 		1-41229-255-0 AR 1 1505- ● ●
40 SHIM; FINAL PINION
(A) T=3.50 		1-41229-106-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.50 		1-41229-106-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.50 		1-41229-106-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.51 		1-41229-107-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.51 		1-41229-107-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.51 		1-41229-107-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.52 		1-41229-108-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.52 		1-41229-108-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.52 		1-41229-108-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.53 		1-41229-109-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.53 		1-41229-109-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.53 		1-41229-109-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.54 		1-41229-110-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.54 		1-41229-110-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.54 		1-41229-110-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.55 		1-41229-111-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.55 		1-41229-111-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.55 		1-41229-111-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.56 		1-41229-112-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.56 		1-41229-112-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.56 		1-41229-112-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.58 		1-41229-114-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.58 		1-41229-114-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.58 		1-41229-114-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.59 		1-41229-115-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.59 		1-41229-115-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.59 		1-41229-115-0 AR 1 1508- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.60 		1-41229-116-0 AR 1 1407-1409 ● ●
40 SHIM; FINAL PINION
(A) T=3.60 		1-41229-116-0 AR 1 1410-1507 ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.60 		1-41229-116-0 AR 1 1508- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.60 		1-41229-237-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.80 		1-41229-238-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.00 		1-41229-239-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.20 		1-41229-240-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.40 		1-41229-241-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.60 		1-41229-242-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.80 		1-41229-243-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=9.00 		1-41229-244-0 AR 1 1505- ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.600 		1-41229-101-0 AR 1 1407-1409 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.600 		1-41229-101-0 AR 1 1410-1507 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.600 		1-41229-101-0 AR 1 1508- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.800 		1-41229-102-0 AR 1 1407-1409 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.800 		1-41229-102-0 AR 1 1410-1507 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.800 		1-41229-102-0 AR 1 1508- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.000 		1-41229-103-0 AR 1 1407-1409 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.000 		1-41229-103-0 AR 1 1410-1507 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.000 		1-41229-103-0 AR 1 1508- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.200 		1-41229-104-0 AR 1 1407-1409 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.200 		1-41229-104-0 AR 1 1410-1507 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.200 		1-41229-104-0 AR 1 1508- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.400 		1-41229-105-0 AR 1 1407-1409 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.400 		1-41229-105-0 AR 1 1410-1507 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.400 		1-41229-105-0 AR 1 1508- ● ● ● ● ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 1407-1409 ● ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 1410-1504 ● ● ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1505- ● ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 1505-1507 ● ● ● ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 1508- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 1407-1409 ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 1410-1504 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1505- ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 1505-1507 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 1508- ● ● ● ● ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 1407-1409 ● ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 1410-1504 ● ● ● ●
48 WASHER; LK,FINAL PINION
(B) ID=16.2 MAL 		0-91510-516-0 08 1 1505- ● ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 1505-1507 ● ● ● ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 1508- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1505- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1505- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1505- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1505- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-009-0 AR 1 1407-1409 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-009-0 AR 1 1410-1507 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-009-0 AR 1 1508- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 1407-1409 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 1410-1507 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 1508- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.300 		1-41154-104-0 AR 1 1407-1409 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.300 		1-41154-104-0 AR 1 1410-1507 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.300 		1-41154-104-0 AR 1 1508- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.400 		1-41154-105-0 AR 1 1407-1409 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.400 		1-41154-105-0 AR 1 1410-1507 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.400 		1-41154-105-0 AR 1 1508- ● ● ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1505- ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1505- ● ●
50 BEARING; FINAL PINION
(A) NTN 		1-09812-013-0 01 1 1407-1409 ● ●
50 BEARING; FINAL PINION
(A) NTN 		1-09812-013-0 01 1 1410-1507 ● ● ● ●
50 BEARING; FINAL PINION
(A) NTN 		1-09812-013-0 01 1 1508- ● ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-070-1 01 1 1407-1409 ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-070-1 01 1 1410-1507 ● ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-070-1 01 1 1508- ● ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 1407-1409 ● ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 1410-1504 ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1505- ● ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 1505-1507 ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 1508- ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1407-1409 ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1410-1504 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1505-1507 ● ● ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1508- ● ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/6 		1-41210-371-2 01 1 1508- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 45/7 		1-41210-602-0 01 1 1505- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/7 		1-41210-603-0 01 1 1505- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-517-0 01 1 1410- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-549-0 01 1 1410- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/6 		1-41210-375-2 01 1 1407- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/6 		1-41210-515-0 01 1 1407- ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 1407-1409 ● ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 1410-1504 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
(B) T=3.2 		1-41227-012-0 02 1 1505- ● ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 1505-1507 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 1508- ● ● ● ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1407-1409 ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1410-1504 ● ● ● ●
62 BOLT; RET
(B) M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1505- ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1505-1507 ● ● ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 1508- ● ● ● ● ●
63 BEARING; PINION PILOT
(B) JTEKT 		1-09810-182-0 01 1 1505- ● ●
63 BEARING; PINION PILOT
(B) NSK 		1-09810-183-0 01 1 1505- ● ●
63 BEARING; PINION PILOT
(A) JTEKT 		1-09810-229-2 01 1 1407-1409 ● ●
63 BEARING; PINION PILOT
(A) JTEKT 		1-09810-229-2 01 1 1410-1507 ● ● ● ●
63 BEARING; PINION PILOT
(A) JTEKT 		1-09810-229-2 01 1 1508- ● ● ● ● ●
63 BEARING; PINION PILOT
(A) NSK 		1-09810-230-1 01 1 1407-1409 ● ●
63 BEARING; PINION PILOT
(A) NSK 		1-09810-230-1 01 1 1410-1507 ● ● ● ●
63 BEARING; PINION PILOT
(A) NSK 		1-09810-230-1 01 1 1508- ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1407-1409 ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1410-1504 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1505-1507 ● ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1508- ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1407-1409 ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1410-1504 ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1505-1507 ● ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1508- ● ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 1407-1409 ● ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 1410-1504 ● ● ● ●
66 RING; SNAP,PILOT BRG
(B) OD=37.2 		1-09588-086-2 01 1 1505- ● ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 1505-1507 ● ● ● ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 1508- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1407-1409 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1410-1504 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1505-1507 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1508- ● ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1407-1409 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1410-1504 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1505-1507 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1508- ● ● ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1407-1409 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1410-1504 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1505-1507 ● ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1508- ● ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 1407-1409 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 1410-1504 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(B) 		1-41510-141-0 01 1 1505- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 1505-1507 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 1508- ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 1407-1409 ● ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 1410-1504 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
(B) M18X38 FLANGE 		1-09009-049-1 16 1 1505- ● ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 1505-1507 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 1508- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 1407-1409 ● ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 1410-1504 ● ● ● ●
85 NUT; DIFF CAGE SETTING
(B) M16 		0-91110-516-0 12 1 1505- ● ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 1505-1507 ● ● ● ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 1508- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1407-1409 ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1410-1504 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1505-1507 ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1508- ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1407-1409 ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1410-1504 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1505-1507 ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1508- ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1407-1409 ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1410-1504 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1505-1507 ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1508- ● ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 1407-1409 ● ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 1410-1504 ● ● ● ●
100 SEAL; OIL,FINAL PINION
(B) NOK 		1-09625-322-0 01 1 1505- ● ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 1505-1507 ● ● ● ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 1508- ● ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-387-0 01 1 1407-1409 ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-387-0 01 1 1410-1504 ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-343-0 01 1 1505- ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-387-0 01 1 1505-1507 ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-387-0 01 1 1508- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
