4-20 — REAR AXLE CASE AND SHAFT (#144165) — 129 parça

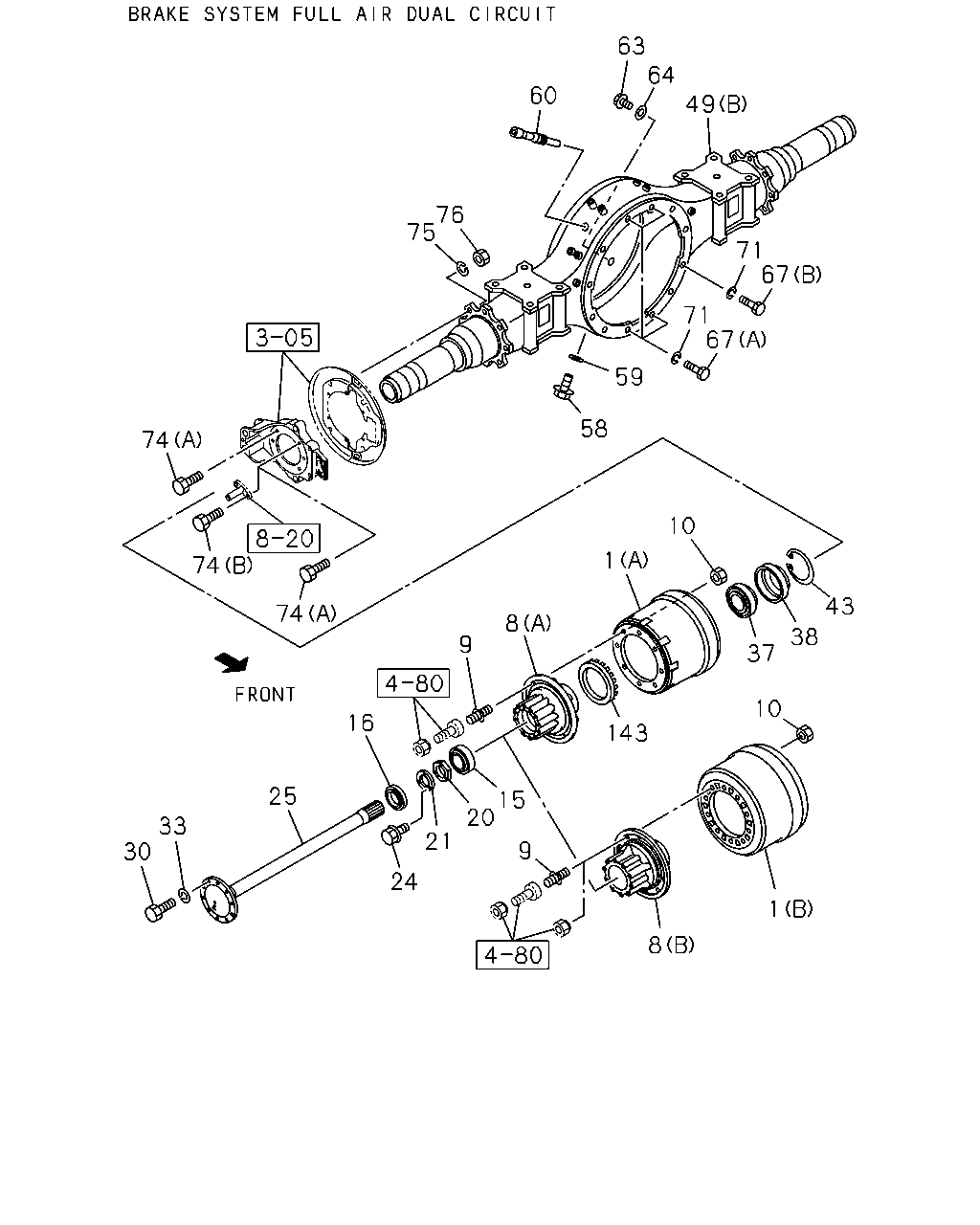

10 37 10 38 43 1 8 9 16 25 33 30 24 20 21 9 15 8 1 59 58 71 71 67 67 49 64 63 60 76 75 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-42315-401-0	02	1	1410-
1	DRUM; BRK,RR DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B)	1-42315-383-0	02	1	1407-
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A)	1-42315-194-4	02	1	1407-1409
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) BRAKE ADJUSTER MANUAL<BJR> (A)	1-42315-194-4	02	1	1410-
8	HUB; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (B)	1-42311-094-0	02	1	1505-
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B)	1-42311-085-0	02	1	1407-1504
8	HUB; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. ANTI LOCK BRAKE<JE5> (B)	1-42311-085-0	02	1	1505-
8	HUB; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B)	1-42311-085-0	02	1	1505-
8	HUB; RR AXLE DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A)	1-42311-104-0	02	1	1407-
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	1407-
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	1407-
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	1407-
10	NUT; WHEEL PIN,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22	1-09400-071-0	20	1	1407-
10	NUT; WHEEL PIN,RR AXLE DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M22 FLANGE	1-09440-065-0	16	1	1407-
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1407-
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1407-
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1407-
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1407-
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1407-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1407-
24	BOLT; LK WASHER M6X16 FLANGE MAL	0-28650-616-0	06	1	1407-
25	SHAFT; AXLE,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1050	8-98146-111-0	02	1	1505-1507
25	SHAFT; AXLE,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MZW6P M/T(RSZ) L=1050	8-98146-111-0	02	1	1505-1507
25	SHAFT; AXLE,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1050	8-98146-111-0	02	1	1508-
25	SHAFT; AXLE,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MZW6P M/T(RSZ),ALLISON MD3060P A/T(Y4G) L=1050	8-98146-111-0	02	1	1508-
25	SHAFT; AXLE,RR L=1050	8-98146-111-0	02	1	1407-1504
25	SHAFT; AXLE,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF9S1110 M/T(Y5E) L=1050	8-98146-164-0	02	1	1505-
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1407-
33	WASHER; AXLE SHAFT ID=14.2 MAL	0-91510-814-0	20	1	1407-
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1407-
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1407-
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1407-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1407-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1407-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1407-
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MZW6P M/T(RSZ) (B)	8-98024-660-0	01	1	1505-1507
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MZW6P M/T(RSZ),ALLISON MD3060P A/T(Y4G) (B)	8-98024-660-1	01	1	1508-
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> STABILIZER REAR LIGHT DUTY<GN1> (B)	8-98098-896-0	01	1	1505-
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. STABILIZER REAR LIGHT DUTY<GN1> (B)	8-98024-657-0	01	1	1505-
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF9S1110 M/T(Y5E) STABILIZER REAR LIGHT DUTY<GN1> EXC. ANTI LOCK BRAKE<JE5> (B)	8-98098-895-0	01	1	1505-
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF9S1110 M/T(Y5E) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5> (B)	8-98024-656-0	01	1	1505-
49	CASE; RR AXLE (A)	8-98003-968-1	01	1	1407-1504
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98003-968-1	01	1	1505-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1407-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1407-
60	BREATHER; RR AXLE CASE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09893-016-0	01	1	1505-
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	1407-1504
60	BREATHER; RR AXLE CASE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09893-003-0	01	1	1505-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1407-
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1407-
67	BOLT; FINAL DRIVE SETTING (A) M16X70	0-10956-670-0	04	1	1407-
67	BOLT; FINAL DRIVE SETTING (B) M16X40	0-20951-640-0	08	1	1407-
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1407-
74	BOLT; RR BRK ASM SETTING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A) M14X50	1-09040-066-0	12	1	1505-
74	BOLT; RR BRK ASM SETTING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (B) M14X80	9-92621-480-0	04	1	1505-1505
74	BOLT; RR BRK ASM SETTING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (B) M14X60	1-09040-084-0	04	1	1505-
74	BOLT; RR BRK ASM SETTING EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M14X50	1-09040-066-0	16	1	1410-1504
74	BOLT; RR BRK ASM SETTING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) M14X50	1-09040-066-0	16	1	1505-
74	BOLT; RR BRK ASM SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M14X50	1-09040-066-0	16	1	1505-
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	14	1	1407-1409
74	BOLT; RR BRK ASM SETTING BRAKE ADJUSTER MANUAL<BJR> (A) M14X50	1-09040-066-0	14	1	1410-1504
74	BOLT; RR BRK ASM SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A) M14X50	1-09040-066-0	14	1	1505-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2 MAL	0-91510-814-0	16	1	1407-
76	NUT; RR BRK ASM SETTING M14 MAL	0-91110-514-0	16	1	1407-

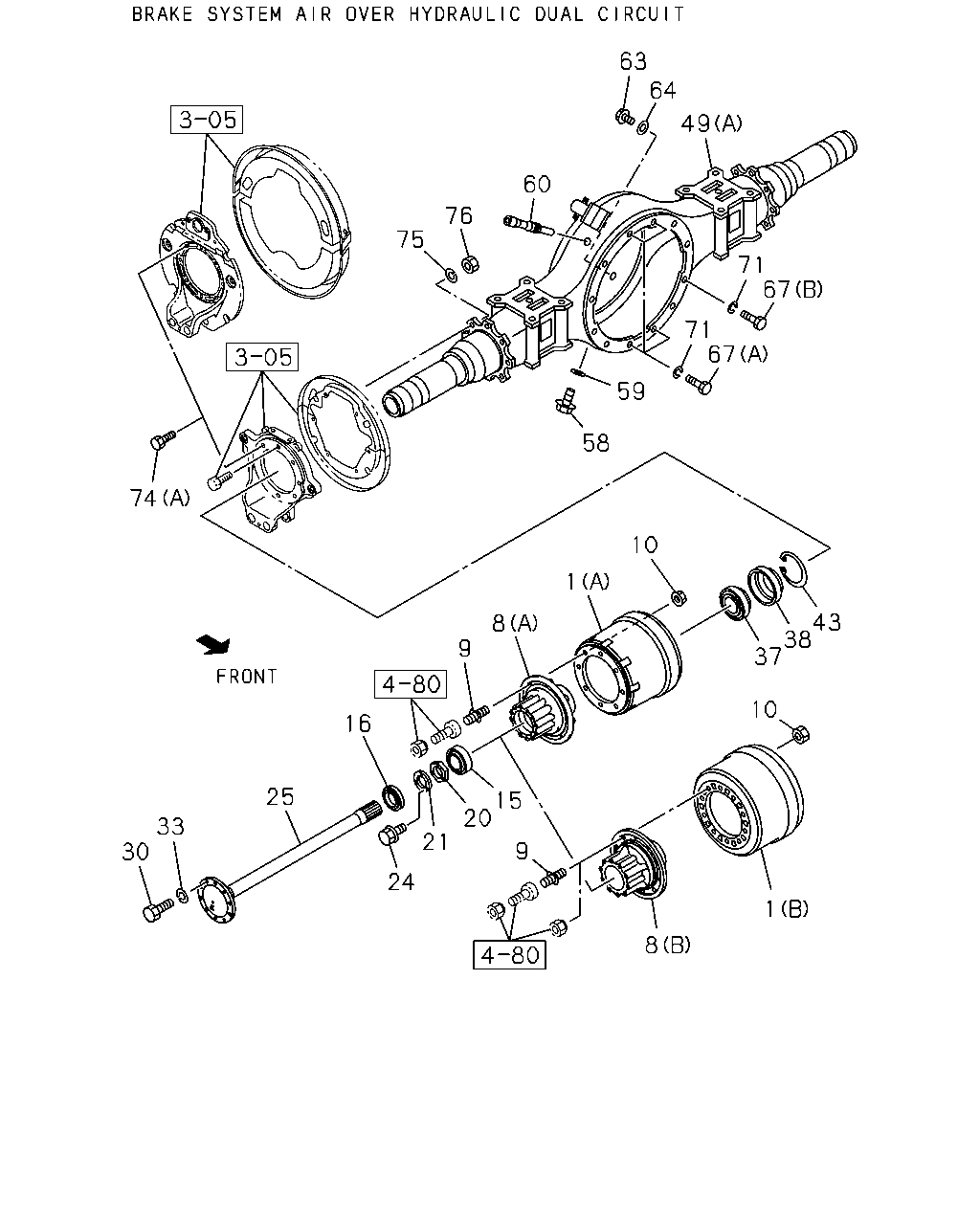

63 64 49 60 76 75 58 59 71 67 67 71 10 1 8 9 16 25 24 21 20 15 9 143 10 37 38 43 8 1 33 30 74 74 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-42315-401-0	02	1	1410-
1	DRUM; BRK,RR DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B)	1-42315-383-0	02	1	1407-
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A)	1-42315-194-4	02	1	1407-1409
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) BRAKE ADJUSTER MANUAL<BJR> (A)	1-42315-194-4	02	1	1410-
8	HUB; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (B)	1-42311-094-0	02	1	1505-
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B)	1-42311-085-0	02	1	1407-1504
8	HUB; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. ANTI LOCK BRAKE<JE5> (B)	1-42311-085-0	02	1	1505-
8	HUB; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B)	1-42311-085-0	02	1	1505-
8	HUB; RR AXLE DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A)	1-42311-104-0	02	1	1407-
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	1407-
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	1407-
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	1407-
10	NUT; WHEEL PIN,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22	1-09400-071-0	20	1	1407-
10	NUT; WHEEL PIN,RR AXLE DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M22 FLANGE	1-09440-065-0	16	1	1407-
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1407-
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1407-
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1407-
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1407-
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1407-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1407-
24	BOLT; LK WASHER M6X16 FLANGE MAL	0-28650-616-0	06	1	1407-
25	SHAFT; AXLE,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1050	8-98146-111-0	02	1	1505-1507
25	SHAFT; AXLE,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MZW6P M/T(RSZ) L=1050	8-98146-111-0	02	1	1505-1507
25	SHAFT; AXLE,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1050	8-98146-111-0	02	1	1508-
25	SHAFT; AXLE,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MZW6P M/T(RSZ),ALLISON MD3060P A/T(Y4G) L=1050	8-98146-111-0	02	1	1508-
25	SHAFT; AXLE,RR L=1050	8-98146-111-0	02	1	1407-1504
25	SHAFT; AXLE,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF9S1110 M/T(Y5E) L=1050	8-98146-164-0	02	1	1505-
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1407-
33	WASHER; AXLE SHAFT ID=14.2 MAL	0-91510-814-0	20	1	1407-
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1407-
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1407-
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1407-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1407-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1407-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1407-
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MZW6P M/T(RSZ) (B)	8-98024-660-0	01	1	1505-1507
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MZW6P M/T(RSZ),ALLISON MD3060P A/T(Y4G) (B)	8-98024-660-1	01	1	1508-
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> STABILIZER REAR LIGHT DUTY<GN1> (B)	8-98098-896-0	01	1	1505-
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> EXC. STABILIZER REAR LIGHT DUTY<GN1> (B)	8-98024-657-0	01	1	1505-
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF9S1110 M/T(Y5E) STABILIZER REAR LIGHT DUTY<GN1> EXC. ANTI LOCK BRAKE<JE5> (B)	8-98098-895-0	01	1	1505-
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF9S1110 M/T(Y5E) EXC. STABILIZER REAR LIGHT DUTY<GN1>,ANTI LOCK BRAKE<JE5> (B)	8-98024-656-0	01	1	1505-
49	CASE; RR AXLE (A)	8-98003-968-1	01	1	1407-1504
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98003-968-1	01	1	1505-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1407-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1407-
60	BREATHER; RR AXLE CASE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09893-016-0	01	1	1505-
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	1407-1504
60	BREATHER; RR AXLE CASE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09893-003-0	01	1	1505-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1407-
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1407-
67	BOLT; FINAL DRIVE SETTING (A) M16X70	0-10956-670-0	04	1	1407-
67	BOLT; FINAL DRIVE SETTING (B) M16X40	0-20951-640-0	08	1	1407-
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1407-
74	BOLT; RR BRK ASM SETTING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A) M14X50	1-09040-066-0	12	1	1505-
74	BOLT; RR BRK ASM SETTING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (B) M14X80	9-92621-480-0	04	1	1505-1505
74	BOLT; RR BRK ASM SETTING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (B) M14X60	1-09040-084-0	04	1	1505-
74	BOLT; RR BRK ASM SETTING EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M14X50	1-09040-066-0	16	1	1410-1504
74	BOLT; RR BRK ASM SETTING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) M14X50	1-09040-066-0	16	1	1505-
74	BOLT; RR BRK ASM SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M14X50	1-09040-066-0	16	1	1505-
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	14	1	1407-1409
74	BOLT; RR BRK ASM SETTING BRAKE ADJUSTER MANUAL<BJR> (A) M14X50	1-09040-066-0	14	1	1410-1504
74	BOLT; RR BRK ASM SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A) M14X50	1-09040-066-0	14	1	1505-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2 MAL	0-91510-814-0	16	1	1407-
76	NUT; RR BRK ASM SETTING M14 MAL	0-91110-514-0	16	1	1407-
143	RING; EXCITER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	1-42319-173-0	02	1	1505-
