◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#144164) — 85 parça

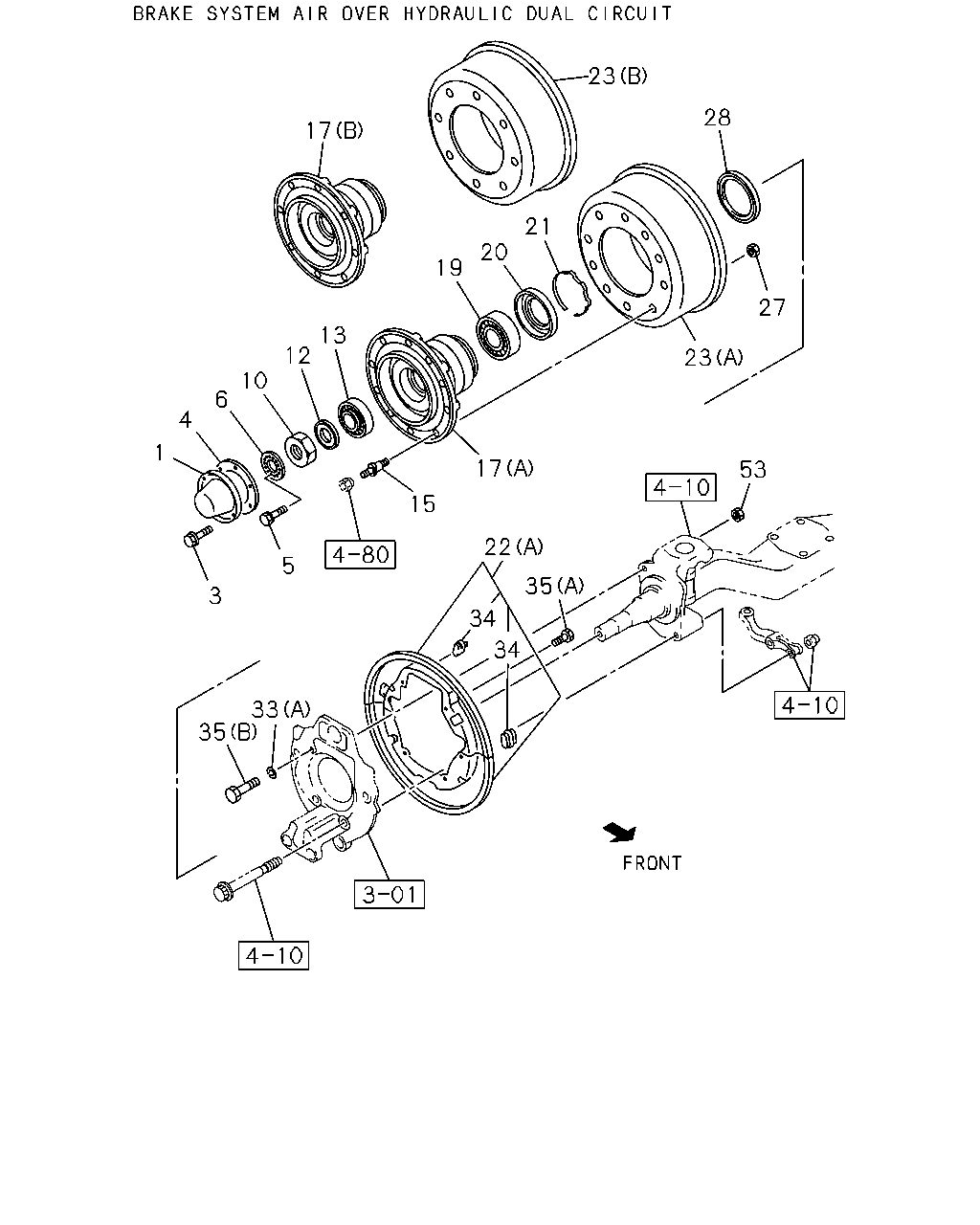

çizim 433318
23 28 27 23 21 20 19 17 13 12 10 6 4 1 5 3 15 17 22 35 34 34 33 35 53
BalonParca AdiParca NoAdetTipApplied Date
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 1407-
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28050-812-0 12 1 1407-
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-2 02 1 1407-
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98200-943-0 04 1 1407-
6 WASHER; LK,FRT HUB
ID=48 		8-98084-561-0 02 1 1407-
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 1407-
12 WASHER; LK,FRT HUB BRG
ID=48 		8-98156-755-0 02 1 1407-
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 1407-
15 PIN; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M24X37.5,M22X57.5 RH THREAD 		1-42331-109-1 08 1 1407-
15 PIN; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-1 08 1 1407-
15 PIN; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22X42.8,M22X55.5 RH THREAD 		1-42337-067-1 20 1 1407-
17 HUB; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42312-160-0 02 1 1505-
17 HUB; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) 		1-42312-151-3 02 1 1505-
17 HUB; FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42312-100-1 02 1 1407-1504
17 HUB; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42312-100-1 02 1 1505-
17 HUB; FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) 		1-42312-128-2 02 1 1407-1504
17 HUB; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) 		1-42312-128-2 02 1 1505-
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 1407-
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 1407-
21 RING; SNAP,HUB 1-09587-017-0 02 1 1407-
22 COVER SET; FRT BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-87831-225-0 02 1 1505-
22 COVER SET; FRT BRK DRUM
(A) 		1-47151-458-1 02 1 1407-1504
22 COVER SET; FRT BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-47151-458-1 02 1 1505-
23 DRUM; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42315-365-0 02 1 1505-
23 DRUM; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) 		1-42315-397-0 02 1 1505-
23 DRUM; BRK,FRT
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42315-380-0 02 1 1407-1504
23 DRUM; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42315-380-0 02 1 1505-
23 DRUM; BRK,FRT
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) 		1-42315-355-0 02 1 1407-1504
23 DRUM; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) 		1-42315-355-0 02 1 1505-
27 NUT; WHEEL PIN,FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M22 FLANGE 		1-09440-065-0 16 1 1407-
27 NUT; WHEEL PIN,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22 		1-09400-071-0 20 1 1407-
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 1407-
33 WASHER; LK,DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=18.2 		0-91510-818-0 12 1 1505-
33 WASHER; LK,DRUM COVER
(A) ID=16.2 		0-91510-816-0 04 1 1407-1504
33 WASHER; LK,DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16.2 		0-91510-816-0 04 1 1505-
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1407-
35 BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M18X65 		1-09000-789-0 04 1 1505-
35 BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M18X45 		1-09000-790-0 08 1 1505-
35 BOLT; DRUM COVER
(B) M16X52 		1-09044-120-0 04 1 1407-1504
35 BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16X52 		1-09044-120-0 04 1 1505-
35 BOLT; DRUM COVER
(A) M10X12 		1-47159-187-0 12 1 1407-
53 NUT; DRUM COVER
M16 		0-91110-516-0 04 1 1407-1504
53 NUT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 		0-91110-516-0 04 1 1505-

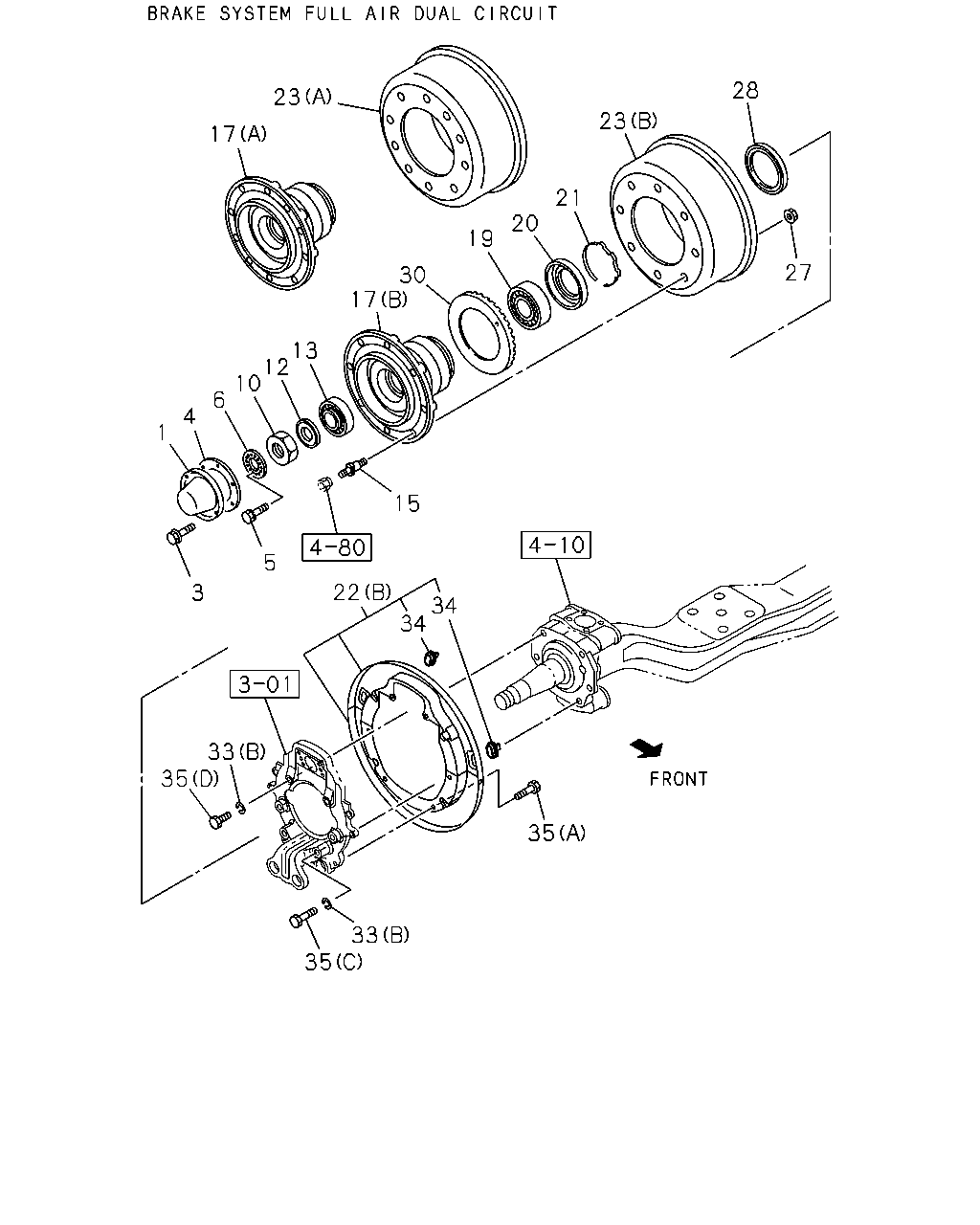

çizim 475709
23 17 17 30 19 20 21 23 28 27 15 5 3 1 4 6 10 12 13 33 35 22 34 34 35 33 35
BalonParca AdiParca NoAdetTipApplied Date
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 1407-
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28050-812-0 12 1 1407-
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-2 02 1 1407-
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98200-943-0 04 1 1407-
6 WASHER; LK,FRT HUB
ID=48 		8-98084-561-0 02 1 1407-
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 1407-
12 WASHER; LK,FRT HUB BRG
ID=48 		8-98156-755-0 02 1 1407-
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 1407-
15 PIN; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M24X37.5,M22X57.5 RH THREAD 		1-42331-109-1 08 1 1407-
15 PIN; WHEEL,FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-1 08 1 1407-
15 PIN; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22X42.8,M22X55.5 RH THREAD 		1-42337-067-1 20 1 1407-
17 HUB; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42312-160-0 02 1 1505-
17 HUB; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) 		1-42312-151-3 02 1 1505-
17 HUB; FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42312-100-1 02 1 1407-1504
17 HUB; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42312-100-1 02 1 1505-
17 HUB; FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) 		1-42312-128-2 02 1 1407-1504
17 HUB; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) 		1-42312-128-2 02 1 1505-
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 1407-
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 1407-
21 RING; SNAP,HUB 1-09587-017-0 02 1 1407-
22 COVER SET; FRT BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-87831-225-0 02 1 1505-
22 COVER SET; FRT BRK DRUM
(A) 		1-47151-458-1 02 1 1407-1504
22 COVER SET; FRT BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-47151-458-1 02 1 1505-
23 DRUM; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42315-365-0 02 1 1505-
23 DRUM; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) 		1-42315-397-0 02 1 1505-
23 DRUM; BRK,FRT
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42315-380-0 02 1 1407-1504
23 DRUM; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-42315-380-0 02 1 1505-
23 DRUM; BRK,FRT
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) 		1-42315-355-0 02 1 1407-1504
23 DRUM; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) 		1-42315-355-0 02 1 1505-
27 NUT; WHEEL PIN,FRT AXLE
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M22 FLANGE 		1-09440-065-0 16 1 1407-
27 NUT; WHEEL PIN,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22 		1-09400-071-0 20 1 1407-
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 1407-
30 RING; EXCITER,FRT HUB
ANTI LOCK BRAKE<JE5> 		1-42319-203-0 02 1 1505-
33 WASHER; LK,DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=18.2 		0-91510-818-0 12 1 1505-
33 WASHER; LK,DRUM COVER
(A) ID=16.2 		0-91510-816-0 04 1 1407-1504
33 WASHER; LK,DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16.2 		0-91510-816-0 04 1 1505-
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1407-
35 BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M18X65 		1-09000-789-0 04 1 1505-
35 BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M18X45 		1-09000-790-0 08 1 1505-
35 BOLT; DRUM COVER
(B) M16X52 		1-09044-120-0 04 1 1407-1504
35 BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16X52 		1-09044-120-0 04 1 1505-
35 BOLT; DRUM COVER
(A) M10X12 		1-47159-187-0 12 1 1407-
