Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#144163) — 218 parça

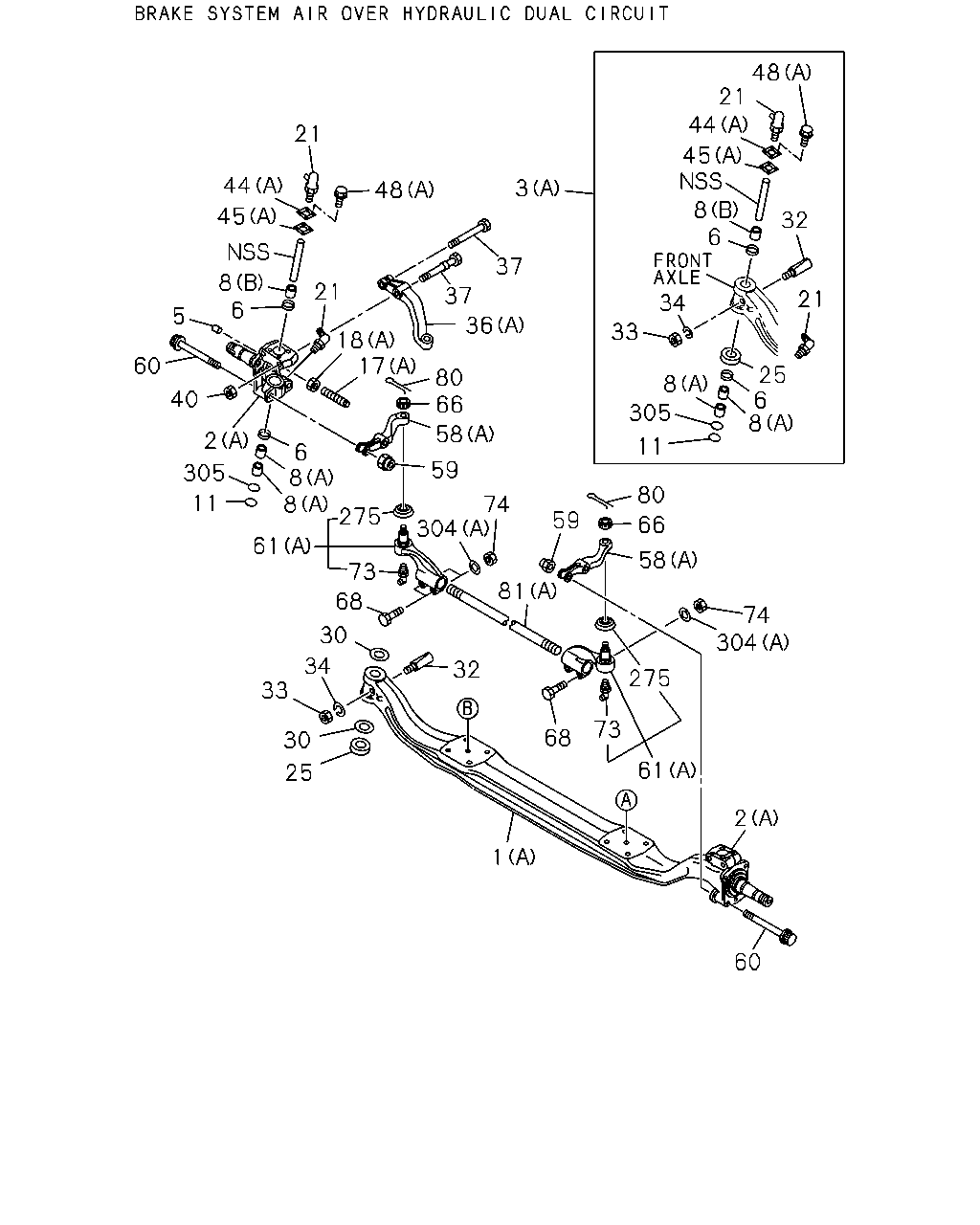

21 44 45 48 3 37 37 36 80 66 58 59 17 18 21 8 6 5 60 40 2 305 11 6 8 8 275 61 73 68 30 34 33 30 25 1 60 2 61 68 73 275 304 74 58 66 80 81 32 304 74 59 11 8 6 25 21 32 48 21 44 45 8 6 34 33 8 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98170-180-2	01	1	1505-
1	AXLE; FRT (A)	1-43111-113-6	01	1	1407-1504
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43111-113-6	01	1	1505-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43131-118-1	01	1	1505-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43132-101-1	01	1	1505-
2	KNUCKLE; FRT AXLE (A)	1-43131-079-1	01	1	1407-1504
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43131-079-1	01	1	1505-
2	KNUCKLE; FRT AXLE (A)	1-43132-079-1	01	1	1407-1504
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43132-079-1	01	1	1505-
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-87831-410-3	02	1	1505-
3	KING PIN SET (A)	1-87831-302-3	02	1	1407-1504
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-87831-302-3	02	1	1505-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	1407-1504
5	PIN; KNUCKLE TO DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09740-072-0	02	1	1505-
6	SEAL; KING PIN	9-09926-024-0	04	1	1407-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1407-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1407-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	1407-1504
11	RING; SNAP,KNUCKLE PLUG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09950-204-0	02	1	1505-
17	BOLT; STOPPER KNUCKLE (A) M18X43	1-09009-190-0	02	1	1407-1504
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M18X53	1-09009-066-0	01	1	1505-
17	BOLT; STOPPER KNUCKLE (A) M18X43	1-09009-190-0	02	1	1505-
18	NUT; STOPPER BOLT,KNUCKLE (A) M18	0-91110-518-0	02	1	1407-1504
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OCTAGON M18	1-09469-011-1	01	1	1505-
18	NUT; STOPPER BOLT,KNUCKLE (A) M18	0-91110-518-0	02	1	1505-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1407-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1407-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1407-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1407-
33	NUT; KEY BOLT M10 MAL	0-91110-510-0	02	1	1407-
34	WASHER; LK,KEY BOLT ID=10.2 MAL	0-91510-510-0	02	1	1407-
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43133-073-3	01	1	1505-
36	ARM; KNUCKLE (A)	1-43133-063-3	01	1	1407-1504
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43133-063-3	01	1	1505-
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	1407-1504
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X179	8-98052-380-1	01	1	1505-
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	1407-1504
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X167	8-98052-381-1	01	1	1505-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1407-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-654-0	02	1	1505-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98100-655-0	02	1	1505-
44	COVER; KING PIN (A)	1-43175-014-1	02	1	1407-1504
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43175-014-1	02	1	1505-
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-656-1	04	1	1505-
45	GASKET; KING PIN COVER (A)	1-42319-044-0	02	1	1407-1504
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-42319-044-0	02	1	1505-
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28751-025-0	12	1	1505-
48	BOLT; COVER (A) M12X16 FLANGE	0-28051-216-0	08	1	1407-1504
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12X16 FLANGE	0-28051-216-0	08	1	1505-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43134-049-4	01	1	1505-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43135-049-4	01	1	1505-
58	ARM; TIE ROD (A)	1-43134-042-3	01	1	1407-1504
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43134-042-3	01	1	1505-
58	ARM; TIE ROD (A)	1-43135-042-3	01	1	1407-1504
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43135-042-3	01	1	1505-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1407-
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	1407-1504
60	BOLT; TIE ROD ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X193	8-98052-379-1	04	1	1505-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98228-106-0	01	1	1505-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98228-107-0	01	1	1505-
61	ROD END; TIE ROD (A)	8-98236-800-0	01	1	1407-1504
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98236-800-0	01	1	1505-
61	ROD END; TIE ROD (A)	8-98236-801-0	01	1	1407-1504
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98236-801-0	01	1	1505-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1407-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1407-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1407-
74	NUT; TIE ROD END M12 MAL	0-91110-512-0	04	1	1407-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1407-
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98171-947-0	01	1	1505-
81	ROD; TIE (A)	8-98193-965-0	01	1	1407-1504
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98193-965-0	01	1	1505-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1407-
304	WASHER; PL 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1410-1504
304	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1505-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1407-
304	WASHER; PL 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1407-
305	COVER; KNUCKLE	8-98052-291-0	02	1	1407-1504
305	COVER; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98052-291-0	02	1	1505-

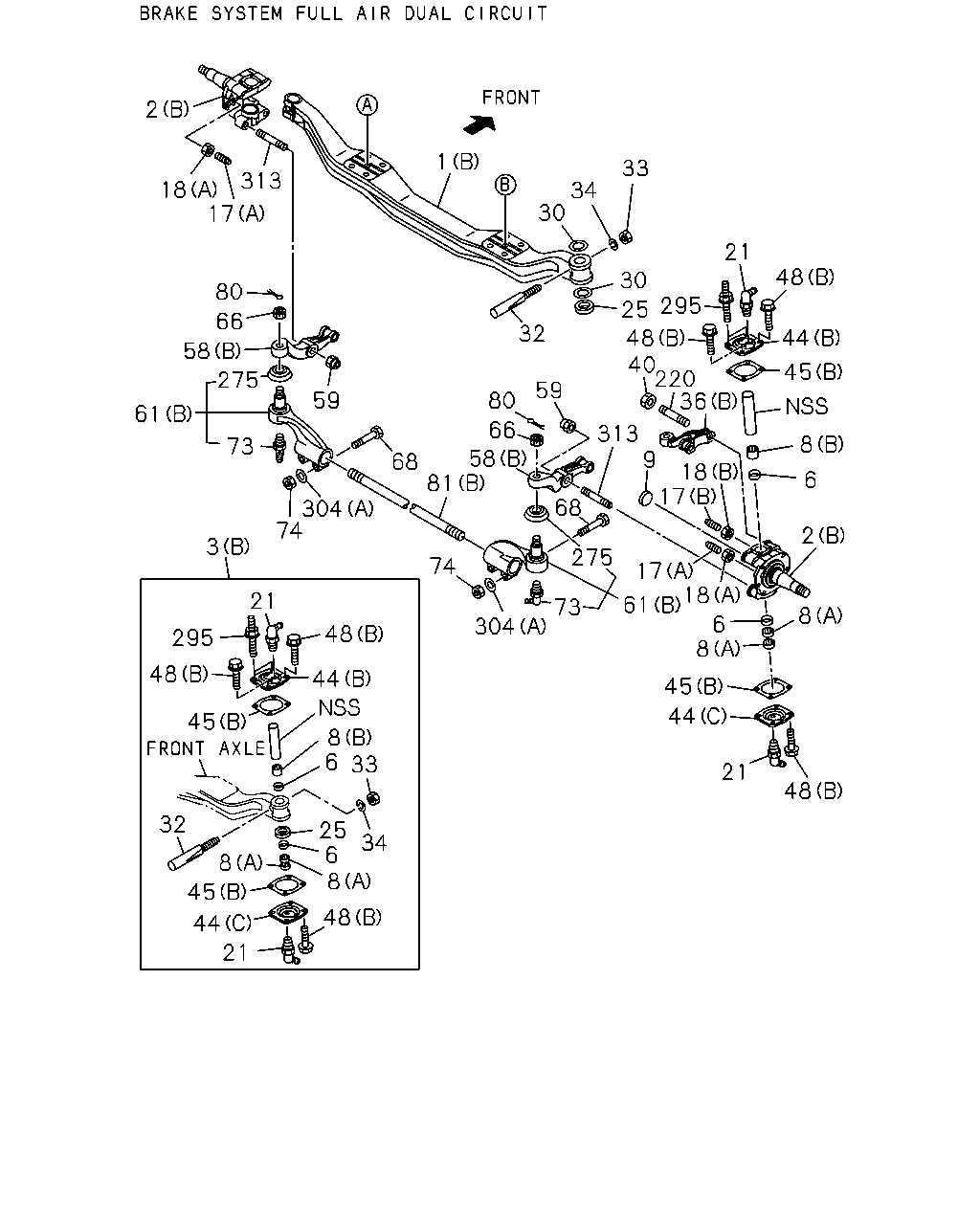

295 21 33 34 30 1 313 17 18 2 61 80 275 66 58 59 73 74 304 3 21 295 48 48 44 8 6 33 34 8 25 6 8 32 45 44 21 48 45 304 275 73 74 81 68 58 66 80 59 32 30 48 25 40 313 17 9 36 220 48 44 8 45 6 2 18 17 18 6 61 8 8 45 44 21 48 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98170-180-2	01	1	1505-
1	AXLE; FRT (A)	1-43111-113-6	01	1	1407-1504
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43111-113-6	01	1	1505-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43131-118-1	01	1	1505-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43132-101-1	01	1	1505-
2	KNUCKLE; FRT AXLE (A)	1-43131-079-1	01	1	1407-1504
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43131-079-1	01	1	1505-
2	KNUCKLE; FRT AXLE (A)	1-43132-079-1	01	1	1407-1504
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43132-079-1	01	1	1505-
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-87831-410-3	02	1	1505-
3	KING PIN SET (A)	1-87831-302-3	02	1	1407-1504
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-87831-302-3	02	1	1505-
6	SEAL; KING PIN	9-09926-024-0	04	1	1407-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1407-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1407-
9	PLUG; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> OD=22	1-09600-011-2	02	1	1505-
17	BOLT; STOPPER KNUCKLE (A) M18X43	1-09009-190-0	02	1	1407-1504
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M18X53	1-09009-066-0	01	1	1505-
17	BOLT; STOPPER KNUCKLE (A) M18X43	1-09009-190-0	02	1	1505-
18	NUT; STOPPER BOLT,KNUCKLE (A) M18	0-91110-518-0	02	1	1407-1504
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OCTAGON M18	1-09469-011-1	01	1	1505-
18	NUT; STOPPER BOLT,KNUCKLE (A) M18	0-91110-518-0	02	1	1505-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1407-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1407-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1407-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1407-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1407-
33	NUT; KEY BOLT M10 MAL	0-91110-510-0	02	1	1407-
34	WASHER; LK,KEY BOLT ID=10.2 MAL	0-91510-510-0	02	1	1407-
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43133-073-3	01	1	1505-
36	ARM; KNUCKLE (A)	1-43133-063-3	01	1	1407-1504
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43133-063-3	01	1	1505-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1407-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-654-0	02	1	1505-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98100-655-0	02	1	1505-
44	COVER; KING PIN (A)	1-43175-014-1	02	1	1407-1504
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43175-014-1	02	1	1505-
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-656-1	04	1	1505-
45	GASKET; KING PIN COVER (A)	1-42319-044-0	02	1	1407-1504
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-42319-044-0	02	1	1505-
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28751-025-0	12	1	1505-
48	BOLT; COVER (A) M12X16 FLANGE	0-28051-216-0	08	1	1407-1504
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12X16 FLANGE	0-28051-216-0	08	1	1505-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43134-049-4	01	1	1505-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43135-049-4	01	1	1505-
58	ARM; TIE ROD (A)	1-43134-042-3	01	1	1407-1504
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43134-042-3	01	1	1505-
58	ARM; TIE ROD (A)	1-43135-042-3	01	1	1407-1504
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43135-042-3	01	1	1505-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1407-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98228-106-0	01	1	1505-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98228-107-0	01	1	1505-
61	ROD END; TIE ROD (A)	8-98236-800-0	01	1	1407-1504
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98236-800-0	01	1	1505-
61	ROD END; TIE ROD (A)	8-98236-801-0	01	1	1407-1504
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98236-801-0	01	1	1505-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1407-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1407-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1407-
74	NUT; TIE ROD END M12 MAL	0-91110-512-0	04	1	1407-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1407-
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98171-947-0	01	1	1505-
81	ROD; TIE (A)	8-98193-965-0	01	1	1407-1504
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98193-965-0	01	1	1505-
220	STUD; KNUCKLE ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22X145	1-09300-127-1	02	1	1505-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1407-
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20,M10X26 L=56	8-98010-334-0	04	1	1505-
304	WASHER; PL 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1410-1504
304	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1505-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1407-
304	WASHER; PL 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1407-
313	STUD; TIE ROD ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22X145	1-09300-127-1	04	1	1505-

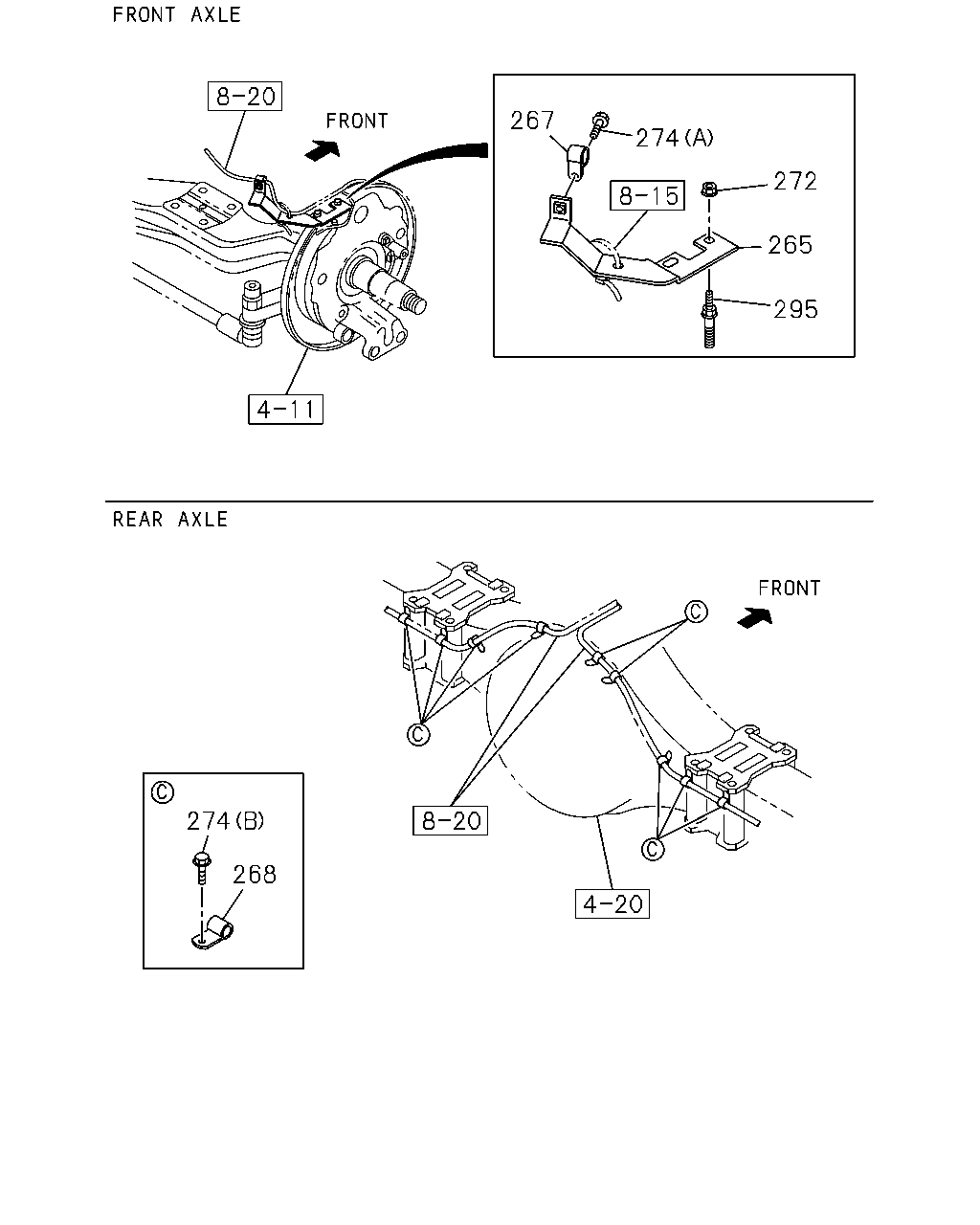

267 272 265 295 268 274 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5>	8-98073-525-0	01	1	1505-
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5>	8-98073-526-0	01	1	1505-
267	CLIP; HARNESS ANTI LOCK BRAKE<JE5> ID=11 L=20	0-95235-035-0	02	1	1505-
268	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> ID=11 L=20	0-95235-035-0	09	1	1505-
272	NUT; CLIP ANTI LOCK BRAKE<JE5> M10 FLANGE MAL	0-91180-110-0	04	1	1505-
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (A) M8X16 FLANGE MAL	0-28050-816-0	02	1	1505-
274	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (B) M8X10 FLANGE	0-28050-810-0	09	1	1505-
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20,M10X26 L=56	8-98010-334-0	04	1	1505-

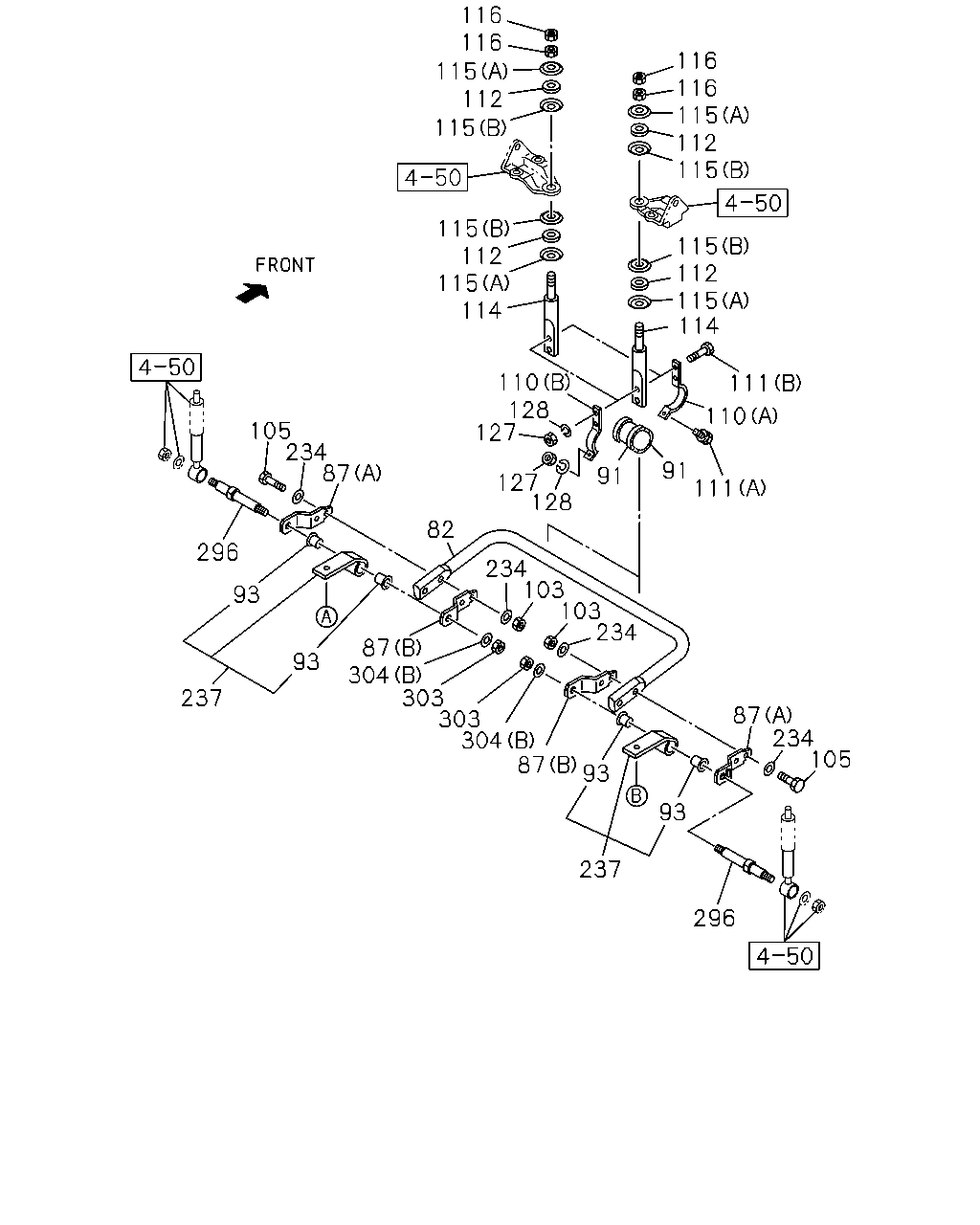

116 116 112 115 115 115 115 112 114 111 110 111 91 91 128 116 116 115 115 112 115 115 112 114 110 127 128 127 87 234 105 296 93 93 237 87 304 303 303 304 87 93 93 296 237 87 234 105 234 103 103 234 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59>	8-98012-961-1	01	1	1410-1504
82	BAR; STAB,FRT SUSP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59>	8-98012-961-1	01	1	1505-
82	BAR; STAB,FRT SUSP 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59>	8-98206-778-0	01	1	1407-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1407-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1407-
91	BUSHING; RUBBER,STAB BAR 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1410-1504
91	BUSHING; RUBBER,STAB BAR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1505-
91	BUSHING; RUBBER,STAB BAR 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59>	1-51779-121-1	04	1	1407-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1407-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14 MAL	0-91110-514-0	04	1	1407-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1407-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1407-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1407-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30 MAL	0-20851-230-0	02	1	1407-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1407-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59> MAL	9-51631-050-0	04	1	1407-
114	ROD; STAB BAR 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	1410-1504
114	ROD; STAB BAR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	1505-
114	ROD; STAB BAR 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59>	1-51773-084-0	02	1	1407-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	1407-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	1407-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1407-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12 MAL	0-91110-512-0	06	1	1407-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2 MAL	0-91510-812-0	06	1	1407-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1407-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	1407-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	1407-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1407-
304	WASHER; PL 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1410-1504
304	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1505-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1407-
304	WASHER; PL 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
