◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#144162) — 661 parça

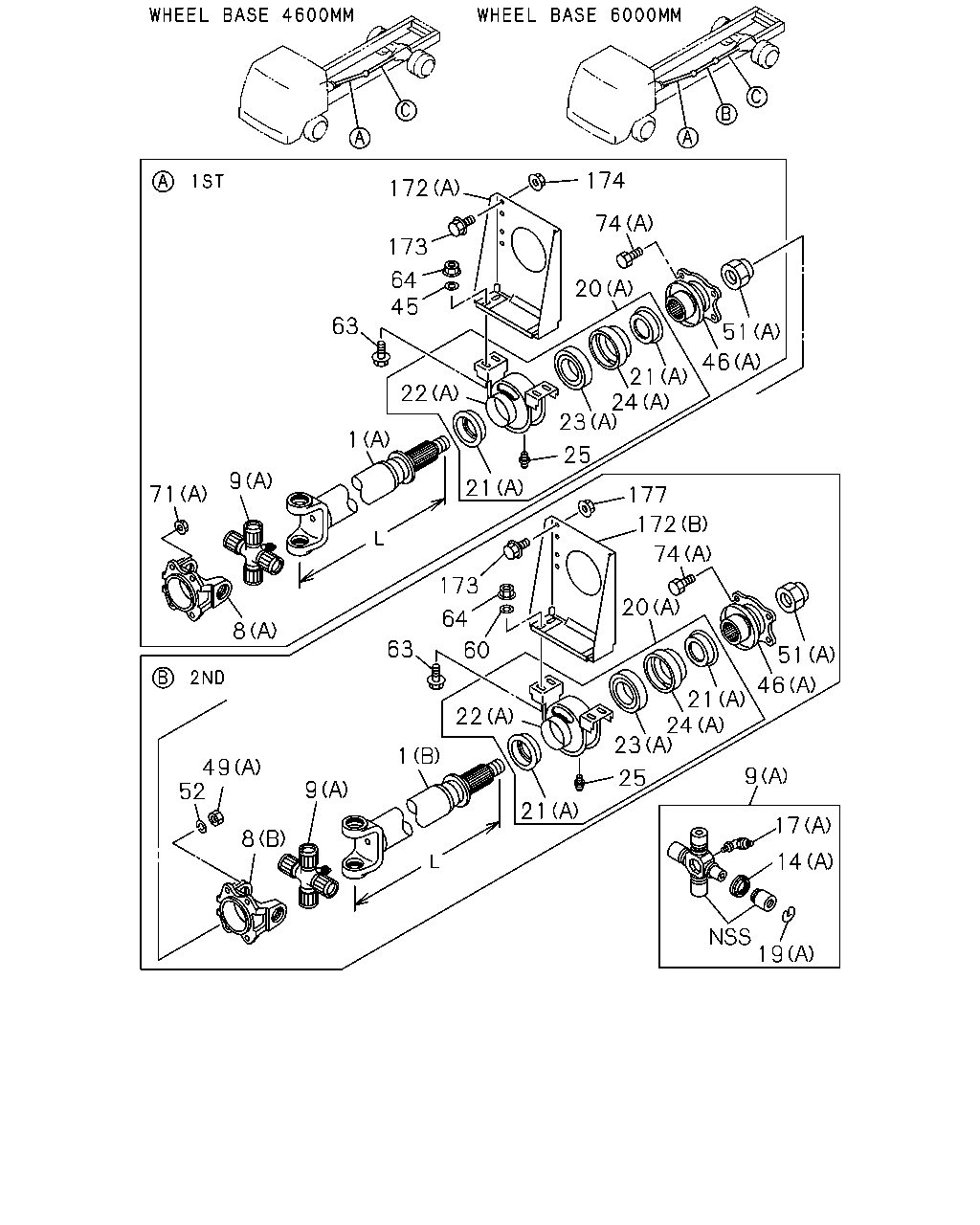

çizim 432434
172 173 174 74 20 21 24 23 25 46 51 21 22 1 63 45 64 9 71 8 63 60 64 173 177 172 74 20 51 46 21 24 23 25 21 22 1 9 8 49 52 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (A) L=1074 		8-98069-600-0 01 1 1508- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=974 		1-37124-611-1 01 1 1505- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1095 		8-98091-482-1 01 1 1505- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1480 		8-98232-010-1 01 1 1505- ●
1 SHAFT; PROP
(A) L=1119 		8-98069-589-0 01 1 1410- ●
1 SHAFT; PROP
(C) L=1331 		8-98069-683-0 01 1 1410- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (A) L=1219 		8-98090-948-0 01 1 1410-1504 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (A) L=1219 		8-98090-948-0 01 1 1505- ●
1 SHAFT; PROP
(B) L=1234 		8-98069-590-0 01 1 1407-1504 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1234 		8-98069-590-0 01 1 1505- ●
1 SHAFT; PROP
(C) L=1321 		8-98090-990-0 01 1 1407-1504 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1321 		8-98090-990-0 01 1 1505- ●
1 SHAFT; PROP
(A) L=1454 		8-98116-103-0 01 1 1407-1409 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) (A) L=1454 		8-98116-103-0 01 1 1410-1504 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) L=1454 		8-98116-103-0 01 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-079-1 04 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 03 1 1407-1504 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 03 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1407-1409 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1410-1504 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98178-052-0 01 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1505- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 02 1 1503- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-110-0 04 1 1505-1507 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 1ST,END 		1-37300-110-0 03 1 1508- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 2ND 		1-37300-111-0 01 1 1508- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-0 AR 1 1407-1409 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1410-1504 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1505- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1505- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 03 1 1407-1504 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 03 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 12 1 1407-1409 ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 12 1 1410-1502 ● ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 12 1 1503-1504 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 12 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 08 1 1503- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 16 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1407-1502 ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1503-1504 ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1505- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1503- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1505- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1407-1409 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1410-1502 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1503-1504 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1505- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1407-1502 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1503-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1503- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1503- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1503- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) T=2.2 		1-09587-102-1 16 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1407-1502 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1503-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1407-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1410-1502 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1503-1504 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1407-1502 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1503-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1407-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1410-1502 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1503-1504 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1407-1502 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1503-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1407-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1410-1502 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1503-1504 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1505- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 02 1 1505- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		8-98020-881-0 01 1 1407-1409 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		8-98020-881-0 01 1 1407-1409 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		8-98020-881-0 01 1 1410-1504 ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		8-98020-881-0 01 1 1410-1504 ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1505- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1505- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		8-98020-881-0 01 1 1505- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 02 1 1505- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 02 1 1505- ●
21 SEAL; OIL,CENTER BRG
(A) ID=54 		1-09625-161-0 02 1 1407-1409 ●
21 SEAL; OIL,CENTER BRG
(A) ID=54 		1-09625-161-0 02 1 1407-1409 ●
21 SEAL; OIL,CENTER BRG
(A) ID=54 		1-09625-161-0 02 1 1410-1504 ● ●
21 SEAL; OIL,CENTER BRG
(A) ID=54 		1-09625-161-0 02 1 1410-1504 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1505- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1505- ●
21 SEAL; OIL,CENTER BRG
(A) ID=54 		1-09625-161-0 02 1 1505- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 02 1 1505- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-059-0 01 1 1407-1409 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-059-0 01 1 1407-1409 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-059-0 01 1 1410-1504 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-059-0 01 1 1410-1504 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1505- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1505- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-059-0 01 1 1505- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 02 1 1505- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-071-0 01 1 1407-1409 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-071-0 01 1 1407-1409 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-071-0 01 1 1410-1504 ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-071-0 01 1 1410-1504 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1505- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1505- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-071-0 01 1 1505- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 02 1 1505- ●
24 RETAINER; CENTER BRG,1ST
(A) 		8-98020-882-0 01 1 1407-1409 ●
24 RETAINER; CENTER BRG,1ST
(A) 		8-98020-882-0 01 1 1407-1409 ●
24 RETAINER; CENTER BRG,1ST
(A) 		8-98020-882-0 01 1 1410-1504 ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		8-98020-882-0 01 1 1410-1504 ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1505- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1505- ●
24 RETAINER; CENTER BRG,1ST
(A) 		8-98020-882-0 01 1 1505- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) 1ST,2ND MT6 STRAIGHT 		1-09380-006-0 02 1 1505- ●
25 NIPPLE; GREASE,CENTER BRG
1ST,2ND MT6 STRAIGHT 		1-09380-006-0 02 1 1407-1409 ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1410-1504 ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1505- ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1505- ●
25 NIPPLE; GREASE,CENTER BRG
2ND 		8-98020-889-0 01 1 1410-1504 ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 2ND 		8-98020-889-0 01 1 1505- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1407-1409 ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1410-1504 ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		0-91614-610-0 04 1 1505- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1505- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 02 1 1505- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		8-98020-815-0 01 1 1407-1409 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		8-98020-815-0 01 1 1407-1409 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		8-98020-815-0 01 1 1410-1504 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		8-98020-815-0 01 1 1410-1504 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1505- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1505- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		8-98020-815-0 01 1 1505- ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1505- ●
49 NUT; YOKE
(A) M14 MAL 		0-91110-514-0 04 1 1407-1504 ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 MAL 		0-91110-514-0 04 1 1505- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 02 1 1505- ●
51 NUT; FLANGE,SPLINED
(A) M30 		8-97160-857-0 01 1 1407-1409 ●
51 NUT; FLANGE,SPLINED
(A) M30 		8-97160-857-0 01 1 1407-1409 ●
51 NUT; FLANGE,SPLINED
(A) M30 		8-97160-857-0 01 1 1410-1504 ● ●
51 NUT; FLANGE,SPLINED
(A) M30 		8-97160-857-0 01 1 1410-1504 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1505- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1505- ●
51 NUT; FLANGE,SPLINED
(A) M30 		8-97160-857-0 01 1 1505- ●
52 WASHER; LK,YOKE
ID=14.2 MAL 		0-91510-614-0 04 1 1407-1504 ●
52 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 MAL 		0-91510-614-0 04 1 1505- ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1407-1504 ●
60 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		0-91614-610-0 04 1 1505- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE MAL 		0-28651-035-0 04 1 1407-1409 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE MAL 		0-28651-035-0 04 1 1407-1409 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE MAL 		0-28651-035-0 04 1 1410-1504 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE MAL 		0-28651-035-0 04 1 1410-1504 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE MAL 		0-28651-035-0 04 1 1505- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE MAL 		0-28651-035-0 04 1 1505- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE MAL 		0-28651-035-0 04 1 1505- ●
64 NUT; RET TO BRKT
M10 FLANGE MAL 		0-91180-210-0 04 1 1407-1409 ●
64 NUT; RET TO BRKT
M10 FLANGE MAL 		0-91180-210-0 04 1 1407-1409 ●
64 NUT; RET TO BRKT
M10 FLANGE MAL 		0-91180-210-0 04 1 1410-1504 ● ●
64 NUT; RET TO BRKT
M10 FLANGE MAL 		0-91180-210-0 04 1 1410-1504 ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE MAL 		0-91180-210-0 04 1 1505- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE MAL 		0-91180-210-0 04 1 1505- ●
64 NUT; RET TO BRKT
M10 FLANGE MAL 		0-91180-210-0 04 1 1505- ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1505- ●
71 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1407-1409 ●
71 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1410-1504 ● ●
71 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M16 FLANGE 		1-09449-065-0 04 1 1505- ●
71 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1505- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (B) M14X50 		1-09000-645-0 12 1 1505- ●
74 BOLT; YOKE,TRANS
(A) M14X37 		1-09000-121-0 08 1 1407-1409 ●
74 BOLT; YOKE,TRANS
(A) M14X37 		1-09000-121-0 08 1 1410-1504 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1505- ●
74 BOLT; YOKE,TRANS
(A) M14X37 		1-09000-121-0 08 1 1505- ●
74 BOLT; YOKE,TRANS
(A) M14X37 		1-09000-121-0 04 1 1407-1504 ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1505- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-074-1 01 1 1410- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) (A) 		1-37515-102-0 01 1 1410-1504 ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 1505- ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) (B) 		1-37515-135-0 01 1 1410-1504 ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (B) 		1-37515-135-0 01 1 1505- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-127-0 01 1 1407-1409 ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) (B) 		1-37515-127-0 01 1 1410-1504 ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (B) 		1-37515-127-0 01 1 1505- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-134-0 01 1 1407-1409 ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) (A) 		1-37515-134-0 01 1 1410-1504 ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) 		1-37515-134-0 01 1 1505- ●
173 BOLT; BRKT
M10X25 FLANGE MAL 		0-28651-025-0 04 1 1407-1409 ●
173 BOLT; BRKT
M10X25 FLANGE MAL 		0-28651-025-0 04 1 1407-1409 ●
173 BOLT; BRKT
M10X25 FLANGE MAL 		0-28651-025-0 04 1 1410-1504 ● ●
173 BOLT; BRKT
M10X25 FLANGE MAL 		0-28651-025-0 04 1 1410-1504 ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE MAL 		0-28651-025-0 04 1 1505- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE MAL 		0-28651-025-0 04 1 1505- ●
173 BOLT; BRKT
M10X25 FLANGE MAL 		0-28651-025-0 04 1 1505- ●
174 NUT; BRKT
M10 FLANGE MAL 		0-91180-210-0 04 1 1407-1409 ●
174 NUT; BRKT
M10 FLANGE MAL 		0-91180-210-0 04 1 1410-1504 ● ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE MAL 		0-91180-210-0 04 1 1505- ●
174 NUT; BRKT
M10 FLANGE MAL 		0-91180-210-0 04 1 1505- ●
177 NUT
M10 FLANGE MAL 		0-91180-210-0 04 1 1407-1504 ●
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE MAL 		0-91180-210-0 04 1 1505- ●
çizim 433028
74 8 9 1 128 225 106 9 56 57 104 8 9 17 14 19 56 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (A) L=1074 		8-98069-600-0 01 1 1508- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=974 		1-37124-611-1 01 1 1505- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1095 		8-98091-482-1 01 1 1505- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1480 		8-98232-010-1 01 1 1505- ●
1 SHAFT; PROP
(A) L=1119 		8-98069-589-0 01 1 1410- ●
1 SHAFT; PROP
(C) L=1331 		8-98069-683-0 01 1 1410- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (A) L=1219 		8-98090-948-0 01 1 1410-1504 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (A) L=1219 		8-98090-948-0 01 1 1505- ●
1 SHAFT; PROP
(B) L=1234 		8-98069-590-0 01 1 1407-1504 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1234 		8-98069-590-0 01 1 1505- ●
1 SHAFT; PROP
(C) L=1321 		8-98090-990-0 01 1 1407-1504 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1321 		8-98090-990-0 01 1 1505- ●
1 SHAFT; PROP
(A) L=1454 		8-98116-103-0 01 1 1407-1409 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) (A) L=1454 		8-98116-103-0 01 1 1410-1504 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) L=1454 		8-98116-103-0 01 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-079-1 04 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 03 1 1407-1504 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 03 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1407-1409 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1410-1504 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98178-052-0 01 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1505- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 02 1 1503- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-110-0 04 1 1505-1507 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 1ST,END 		1-37300-110-0 03 1 1508- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 2ND 		1-37300-111-0 01 1 1508- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-0 AR 1 1407-1409 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1410-1504 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1505- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1505- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 03 1 1407-1504 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 03 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 12 1 1407-1409 ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 12 1 1410-1502 ● ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 12 1 1503-1504 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 12 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 08 1 1503- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 16 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1407-1502 ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1503-1504 ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1505- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1503- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1505- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1407-1409 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1410-1502 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1503-1504 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1505- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1407-1502 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1503-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1503- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1503- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1503- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) T=2.2 		1-09587-102-1 16 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1407-1502 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1503-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1407-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1410-1502 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1503-1504 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1407-1502 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1503-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1407-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1410-1502 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1503-1504 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1407-1502 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1503-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1407-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1410-1502 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1503-1504 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1505- ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 08 1 1505- ●
56 NUT; YOKE
(A) M14 MAL 		0-91110-514-0 08 1 1407-1409 ●
56 NUT; YOKE
(A) M14 MAL 		0-91110-514-0 08 1 1410-1504 ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 MAL 		0-91110-514-0 08 1 1505- ●
56 NUT; YOKE
(A) M14 MAL 		0-91110-514-0 08 1 1505- ●
57 WASHER; LK,YOKE
ID=14.2 MAL 		0-91510-614-0 08 1 1407-1409 ●
57 WASHER; LK,YOKE
ID=14.2 MAL 		0-91510-614-0 08 1 1410-1504 ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 MAL 		0-91510-614-0 08 1 1505- ●
57 WASHER; LK,YOKE
ID=14.2 MAL 		0-91510-614-0 08 1 1505- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (B) M14X50 		1-09000-645-0 12 1 1505- ●
74 BOLT; YOKE,TRANS
(A) M14X37 		1-09000-121-0 08 1 1407-1409 ●
74 BOLT; YOKE,TRANS
(A) M14X37 		1-09000-121-0 08 1 1410-1504 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1505- ●
74 BOLT; YOKE,TRANS
(A) M14X37 		1-09000-121-0 08 1 1505- ●
74 BOLT; YOKE,TRANS
(A) M14X37 		1-09000-121-0 04 1 1407-1504 ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1505- ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) (B) 		1-09600-067-0 01 1 1505- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1407-1409 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1410-1504 ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (A) 		1-09600-064-0 01 1 1505- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1505- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1505- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) M6 STRAIGHT 		0-90301-406-0 01 1 1407-1409 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) M6 STRAIGHT 		0-90301-406-0 01 1 1410-1504 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) M6 STRAIGHT 		0-90301-406-0 01 1 1505- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) M6 STRAIGHT 		0-90301-406-0 01 1 1505- ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (B) 		1-37247-019-0 01 1 1505- ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1407-1409 ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1410-1504 ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (A) 		1-37247-024-0 01 1 1505- ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1505- ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) L=330 		1-37241-124-0 01 1 1505- ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1407-1409 ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1410-1504 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 1505- ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1505- ●

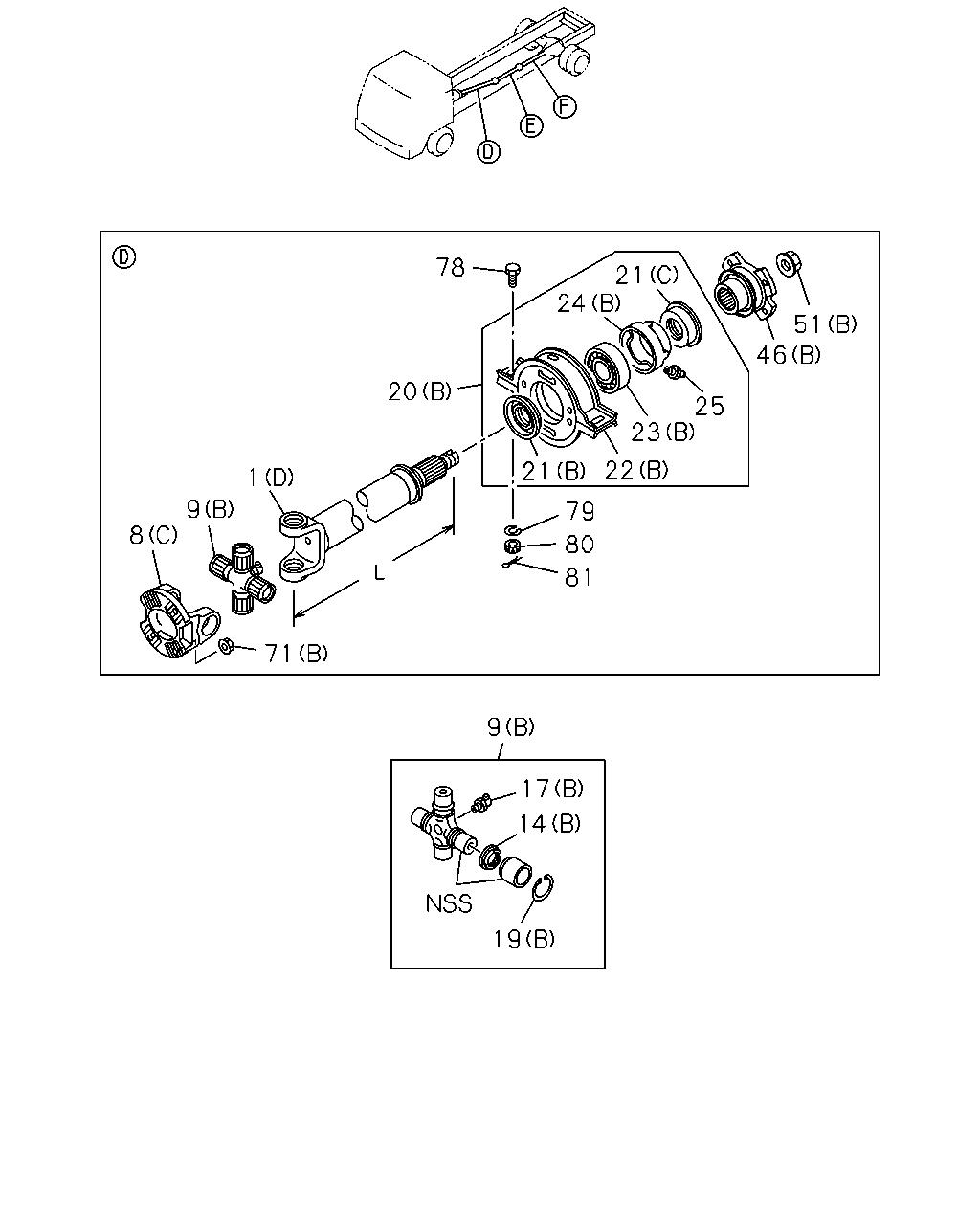

çizim 475808
78 20 1 9 8 71 24 21 51 46 25 23 22 21 79 80 81 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (A) L=1074 		8-98069-600-0 01 1 1508- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=974 		1-37124-611-1 01 1 1505- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1095 		8-98091-482-1 01 1 1505- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1480 		8-98232-010-1 01 1 1505- ●
1 SHAFT; PROP
(A) L=1119 		8-98069-589-0 01 1 1410- ●
1 SHAFT; PROP
(C) L=1331 		8-98069-683-0 01 1 1410- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (A) L=1219 		8-98090-948-0 01 1 1410-1504 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (A) L=1219 		8-98090-948-0 01 1 1505- ●
1 SHAFT; PROP
(B) L=1234 		8-98069-590-0 01 1 1407-1504 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1234 		8-98069-590-0 01 1 1505- ●
1 SHAFT; PROP
(C) L=1321 		8-98090-990-0 01 1 1407-1504 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1321 		8-98090-990-0 01 1 1505- ●
1 SHAFT; PROP
(A) L=1454 		8-98116-103-0 01 1 1407-1409 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) (A) L=1454 		8-98116-103-0 01 1 1410-1504 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) L=1454 		8-98116-103-0 01 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-079-1 04 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 03 1 1407-1504 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 03 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1407-1409 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1410-1504 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98178-052-0 01 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1505- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 02 1 1503- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-110-0 04 1 1505-1507 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 1ST,END 		1-37300-110-0 03 1 1508- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 2ND 		1-37300-111-0 01 1 1508- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-0 AR 1 1407-1409 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1410-1504 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1505- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1505- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 03 1 1407-1504 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 03 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 12 1 1407-1409 ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 12 1 1410-1502 ● ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 12 1 1503-1504 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 12 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 08 1 1503- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 16 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1407-1502 ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1503-1504 ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1505- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1503- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1505- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1407-1409 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1410-1502 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1503-1504 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1505- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1407-1502 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1503-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1503- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1503- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1503- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) T=2.2 		1-09587-102-1 16 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1407-1502 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1503-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1407-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1410-1502 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1503-1504 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1407-1502 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1503-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1407-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1410-1502 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1503-1504 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1407-1502 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1503-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1407-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1410-1502 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1503-1504 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1505- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 02 1 1505- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		8-98020-881-0 01 1 1407-1409 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		8-98020-881-0 01 1 1407-1409 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		8-98020-881-0 01 1 1410-1504 ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		8-98020-881-0 01 1 1410-1504 ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1505- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1505- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		8-98020-881-0 01 1 1505- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 02 1 1505- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 02 1 1505- ●
21 SEAL; OIL,CENTER BRG
(A) ID=54 		1-09625-161-0 02 1 1407-1409 ●
21 SEAL; OIL,CENTER BRG
(A) ID=54 		1-09625-161-0 02 1 1407-1409 ●
21 SEAL; OIL,CENTER BRG
(A) ID=54 		1-09625-161-0 02 1 1410-1504 ● ●
21 SEAL; OIL,CENTER BRG
(A) ID=54 		1-09625-161-0 02 1 1410-1504 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1505- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1505- ●
21 SEAL; OIL,CENTER BRG
(A) ID=54 		1-09625-161-0 02 1 1505- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 02 1 1505- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-059-0 01 1 1407-1409 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-059-0 01 1 1407-1409 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-059-0 01 1 1410-1504 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-059-0 01 1 1410-1504 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1505- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1505- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-059-0 01 1 1505- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 02 1 1505- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-071-0 01 1 1407-1409 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-071-0 01 1 1407-1409 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-071-0 01 1 1410-1504 ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-071-0 01 1 1410-1504 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1505- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1505- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-071-0 01 1 1505- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 02 1 1505- ●
24 RETAINER; CENTER BRG,1ST
(A) 		8-98020-882-0 01 1 1407-1409 ●
24 RETAINER; CENTER BRG,1ST
(A) 		8-98020-882-0 01 1 1407-1409 ●
24 RETAINER; CENTER BRG,1ST
(A) 		8-98020-882-0 01 1 1410-1504 ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		8-98020-882-0 01 1 1410-1504 ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1505- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1505- ●
24 RETAINER; CENTER BRG,1ST
(A) 		8-98020-882-0 01 1 1505- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) 1ST,2ND MT6 STRAIGHT 		1-09380-006-0 02 1 1505- ●
25 NIPPLE; GREASE,CENTER BRG
1ST,2ND MT6 STRAIGHT 		1-09380-006-0 02 1 1407-1409 ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1410-1504 ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1505- ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1505- ●
25 NIPPLE; GREASE,CENTER BRG
2ND 		8-98020-889-0 01 1 1410-1504 ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 2ND 		8-98020-889-0 01 1 1505- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 02 1 1505- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		8-98020-815-0 01 1 1407-1409 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		8-98020-815-0 01 1 1407-1409 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		8-98020-815-0 01 1 1410-1504 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		8-98020-815-0 01 1 1410-1504 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1505- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1505- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		8-98020-815-0 01 1 1505- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 02 1 1505- ●
51 NUT; FLANGE,SPLINED
(A) M30 		8-97160-857-0 01 1 1407-1409 ●
51 NUT; FLANGE,SPLINED
(A) M30 		8-97160-857-0 01 1 1407-1409 ●
51 NUT; FLANGE,SPLINED
(A) M30 		8-97160-857-0 01 1 1410-1504 ● ●
51 NUT; FLANGE,SPLINED
(A) M30 		8-97160-857-0 01 1 1410-1504 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1505- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1505- ●
51 NUT; FLANGE,SPLINED
(A) M30 		8-97160-857-0 01 1 1505- ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1505- ●
71 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1407-1409 ●
71 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1410-1504 ● ●
71 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M16 FLANGE 		1-09449-065-0 04 1 1505- ●
71 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1505- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1505- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1505- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1505- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1505- ●

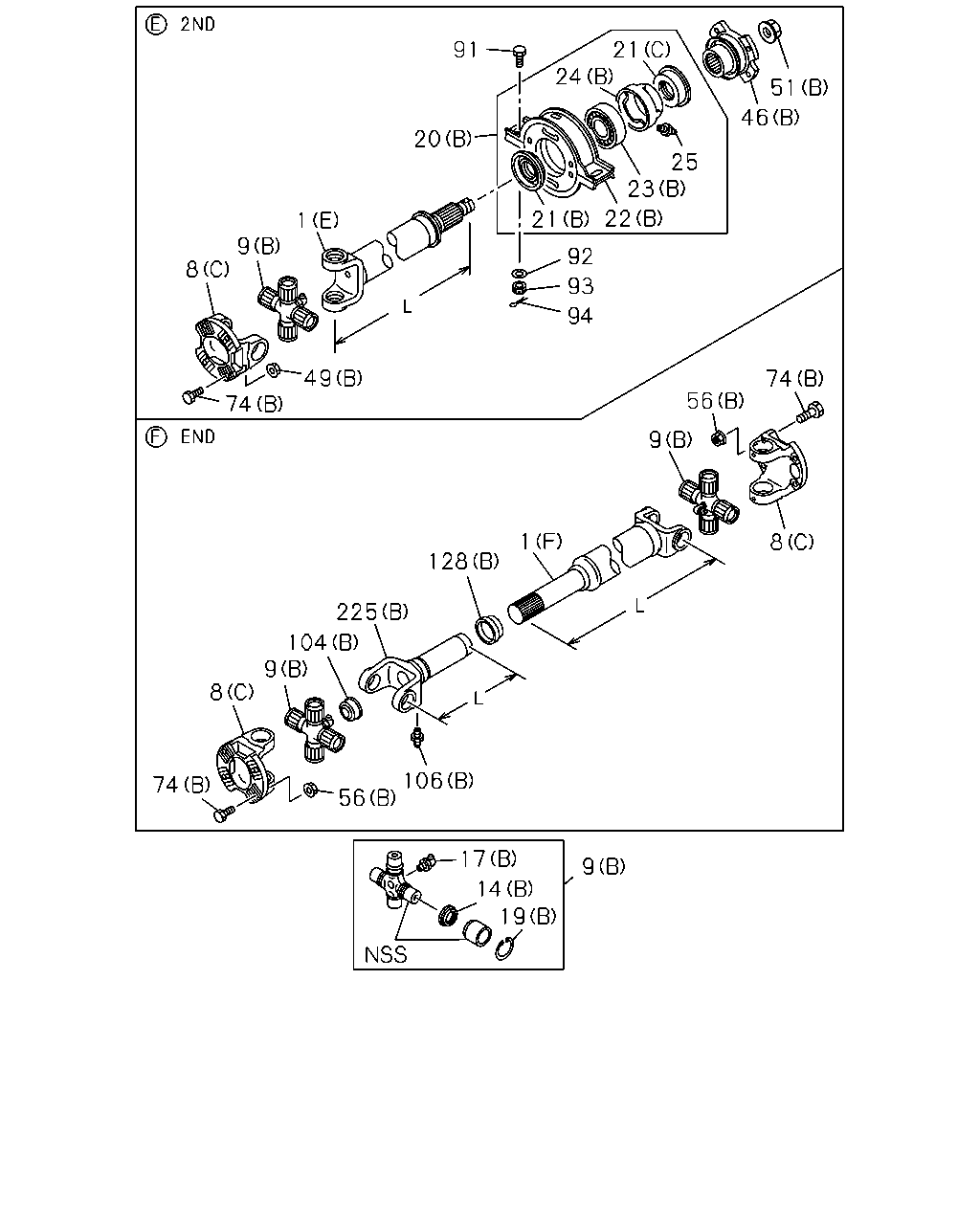

çizim 476329
91 21 24 20 1 9 8 49 74 21 92 93 94 22 23 25 46 51 74 56 9 8 1 128 225 104 9 8 74 56 106 17 14 19 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (A) L=1074 		8-98069-600-0 01 1 1508- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=974 		1-37124-611-1 01 1 1505- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1095 		8-98091-482-1 01 1 1505- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1480 		8-98232-010-1 01 1 1505- ●
1 SHAFT; PROP
(A) L=1119 		8-98069-589-0 01 1 1410- ●
1 SHAFT; PROP
(C) L=1331 		8-98069-683-0 01 1 1410- ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) (A) L=1219 		8-98090-948-0 01 1 1410-1504 ●
1 SHAFT; PROP
6HK1-TCN ENG(82L) P46 PROP SHAFT(C4Z) (A) L=1219 		8-98090-948-0 01 1 1505- ●
1 SHAFT; PROP
(B) L=1234 		8-98069-590-0 01 1 1407-1504 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1234 		8-98069-590-0 01 1 1505- ●
1 SHAFT; PROP
(C) L=1321 		8-98090-990-0 01 1 1407-1504 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1321 		8-98090-990-0 01 1 1505- ●
1 SHAFT; PROP
(A) L=1454 		8-98116-103-0 01 1 1407-1409 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) (A) L=1454 		8-98116-103-0 01 1 1410-1504 ●
1 SHAFT; PROP
4HK1-TCS ENG(RJS) P46 PROP SHAFT(C4Z) (A) L=1454 		8-98116-103-0 01 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-079-1 04 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 03 1 1407-1504 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 03 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1407-1409 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1410-1504 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98178-052-0 01 1 1505- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1505- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 02 1 1503- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-110-0 04 1 1505-1507 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 1ST,END 		1-37300-110-0 03 1 1508- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 2ND 		1-37300-111-0 01 1 1508- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-0 AR 1 1407-1409 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1410-1504 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1505- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1505- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 03 1 1407-1504 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 03 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 12 1 1407-1409 ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 12 1 1410-1502 ● ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 12 1 1503-1504 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 12 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 08 1 1503- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 16 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1407-1502 ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1503-1504 ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1505- ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1505- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1503- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1505- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1407-1409 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1410-1502 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1503-1504 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 03 1 1505- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1407-1502 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1503-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1503- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1503- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1503- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) T=2.2 		1-09587-102-1 16 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1407-1502 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1503-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1407-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 1410-1502 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1503-1504 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1407-1502 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1503-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1407-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 1410-1502 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1503-1504 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1407-1502 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1503-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1407-1409 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 1410-1502 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1503-1504 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1505- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1505- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 02 1 1505- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		8-98020-881-0 01 1 1407-1409 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		8-98020-881-0 01 1 1407-1409 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		8-98020-881-0 01 1 1410-1504 ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		8-98020-881-0 01 1 1410-1504 ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1505- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1505- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		8-98020-881-0 01 1 1505- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 02 1 1505- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 02 1 1505- ●
21 SEAL; OIL,CENTER BRG
(A) ID=54 		1-09625-161-0 02 1 1407-1409 ●
21 SEAL; OIL,CENTER BRG
(A) ID=54 		1-09625-161-0 02 1 1407-1409 ●
21 SEAL; OIL,CENTER BRG
(A) ID=54 		1-09625-161-0 02 1 1410-1504 ● ●
21 SEAL; OIL,CENTER BRG
(A) ID=54 		1-09625-161-0 02 1 1410-1504 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1505- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1505- ●
21 SEAL; OIL,CENTER BRG
(A) ID=54 		1-09625-161-0 02 1 1505- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 02 1 1505- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-059-0 01 1 1407-1409 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-059-0 01 1 1407-1409 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-059-0 01 1 1410-1504 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-059-0 01 1 1410-1504 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1505- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1505- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-059-0 01 1 1505- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 02 1 1505- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-071-0 01 1 1407-1409 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-071-0 01 1 1407-1409 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-071-0 01 1 1410-1504 ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-071-0 01 1 1410-1504 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1505- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1505- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-071-0 01 1 1505- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 02 1 1505- ●
24 RETAINER; CENTER BRG,1ST
(A) 		8-98020-882-0 01 1 1407-1409 ●
24 RETAINER; CENTER BRG,1ST
(A) 		8-98020-882-0 01 1 1407-1409 ●
24 RETAINER; CENTER BRG,1ST
(A) 		8-98020-882-0 01 1 1410-1504 ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		8-98020-882-0 01 1 1410-1504 ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1505- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1505- ●
24 RETAINER; CENTER BRG,1ST
(A) 		8-98020-882-0 01 1 1505- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) 1ST,2ND MT6 STRAIGHT 		1-09380-006-0 02 1 1505- ●
25 NIPPLE; GREASE,CENTER BRG
1ST,2ND MT6 STRAIGHT 		1-09380-006-0 02 1 1407-1409 ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1410-1504 ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1505- ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1505- ●
25 NIPPLE; GREASE,CENTER BRG
2ND 		8-98020-889-0 01 1 1410-1504 ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 2ND 		8-98020-889-0 01 1 1505- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 02 1 1505- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		8-98020-815-0 01 1 1407-1409 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		8-98020-815-0 01 1 1407-1409 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		8-98020-815-0 01 1 1410-1504 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		8-98020-815-0 01 1 1410-1504 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1505- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1505- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		8-98020-815-0 01 1 1505- ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1505- ●
49 NUT; YOKE
(A) M14 MAL 		0-91110-514-0 04 1 1407-1504 ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 MAL 		0-91110-514-0 04 1 1505- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 02 1 1505- ●
51 NUT; FLANGE,SPLINED
(A) M30 		8-97160-857-0 01 1 1407-1409 ●
51 NUT; FLANGE,SPLINED
(A) M30 		8-97160-857-0 01 1 1407-1409 ●
51 NUT; FLANGE,SPLINED
(A) M30 		8-97160-857-0 01 1 1410-1504 ● ●
51 NUT; FLANGE,SPLINED
(A) M30 		8-97160-857-0 01 1 1410-1504 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1505- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1505- ●
51 NUT; FLANGE,SPLINED
(A) M30 		8-97160-857-0 01 1 1505- ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 08 1 1505- ●
56 NUT; YOKE
(A) M14 MAL 		0-91110-514-0 08 1 1407-1409 ●
56 NUT; YOKE
(A) M14 MAL 		0-91110-514-0 08 1 1410-1504 ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 MAL 		0-91110-514-0 08 1 1505- ●
56 NUT; YOKE
(A) M14 MAL 		0-91110-514-0 08 1 1505- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (B) M14X50 		1-09000-645-0 12 1 1505- ●
74 BOLT; YOKE,TRANS
(A) M14X37 		1-09000-121-0 08 1 1407-1409 ●
74 BOLT; YOKE,TRANS
(A) M14X37 		1-09000-121-0 08 1 1410-1504 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1505- ●
74 BOLT; YOKE,TRANS
(A) M14X37 		1-09000-121-0 08 1 1505- ●
74 BOLT; YOKE,TRANS
(A) M14X37 		1-09000-121-0 04 1 1407-1504 ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1505- ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1505- ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1505- ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1505- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1505- ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) (B) 		1-09600-067-0 01 1 1505- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1407-1409 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1410-1504 ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (A) 		1-09600-064-0 01 1 1505- ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1505- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1505- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) M6 STRAIGHT 		0-90301-406-0 01 1 1407-1409 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) M6 STRAIGHT 		0-90301-406-0 01 1 1410-1504 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) M6 STRAIGHT 		0-90301-406-0 01 1 1505- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) M6 STRAIGHT 		0-90301-406-0 01 1 1505- ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (B) 		1-37247-019-0 01 1 1505- ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1407-1409 ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1410-1504 ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (A) 		1-37247-024-0 01 1 1505- ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1505- ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) L=330 		1-37241-124-0 01 1 1505- ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1407-1409 ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1410-1504 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 1505- ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
