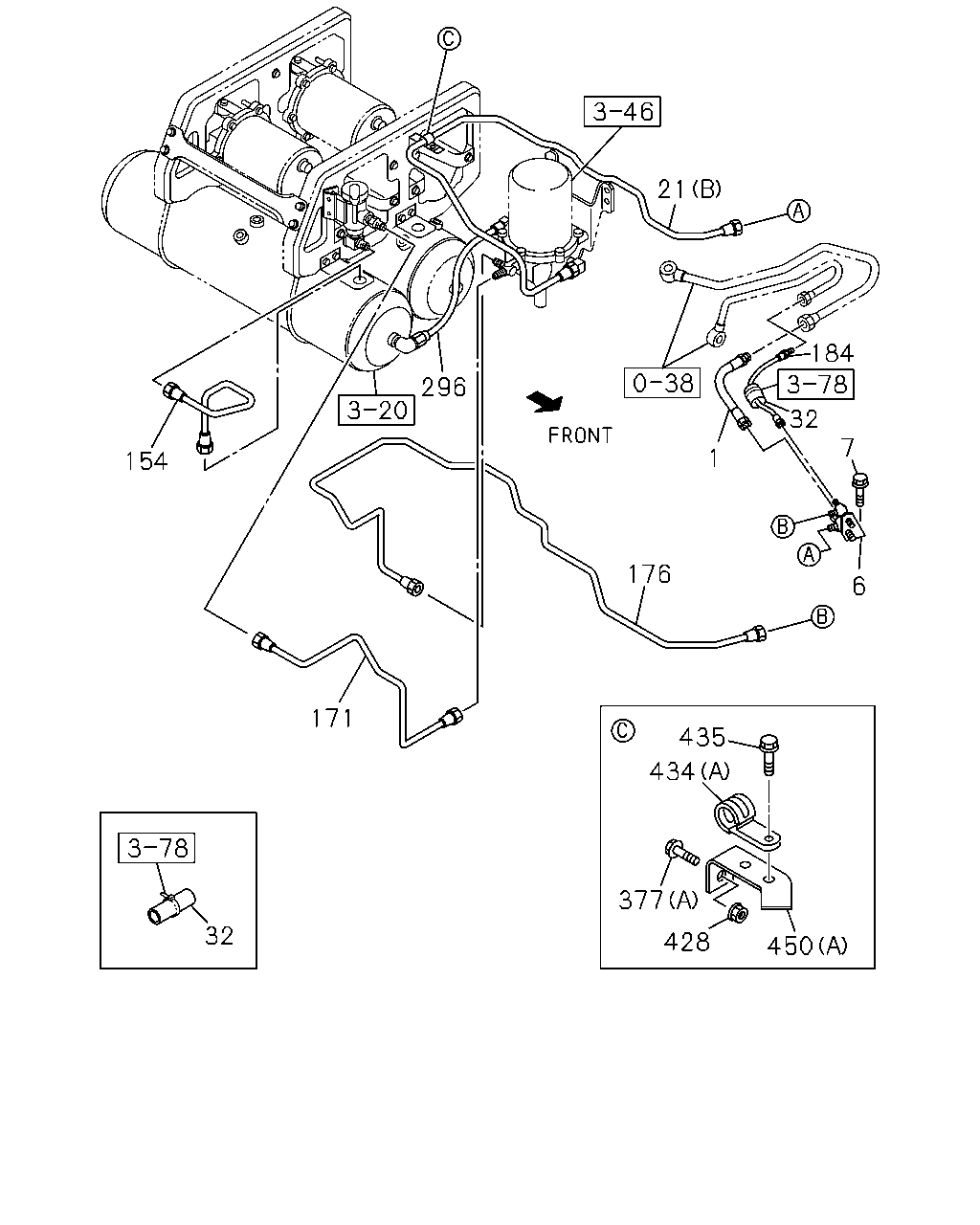

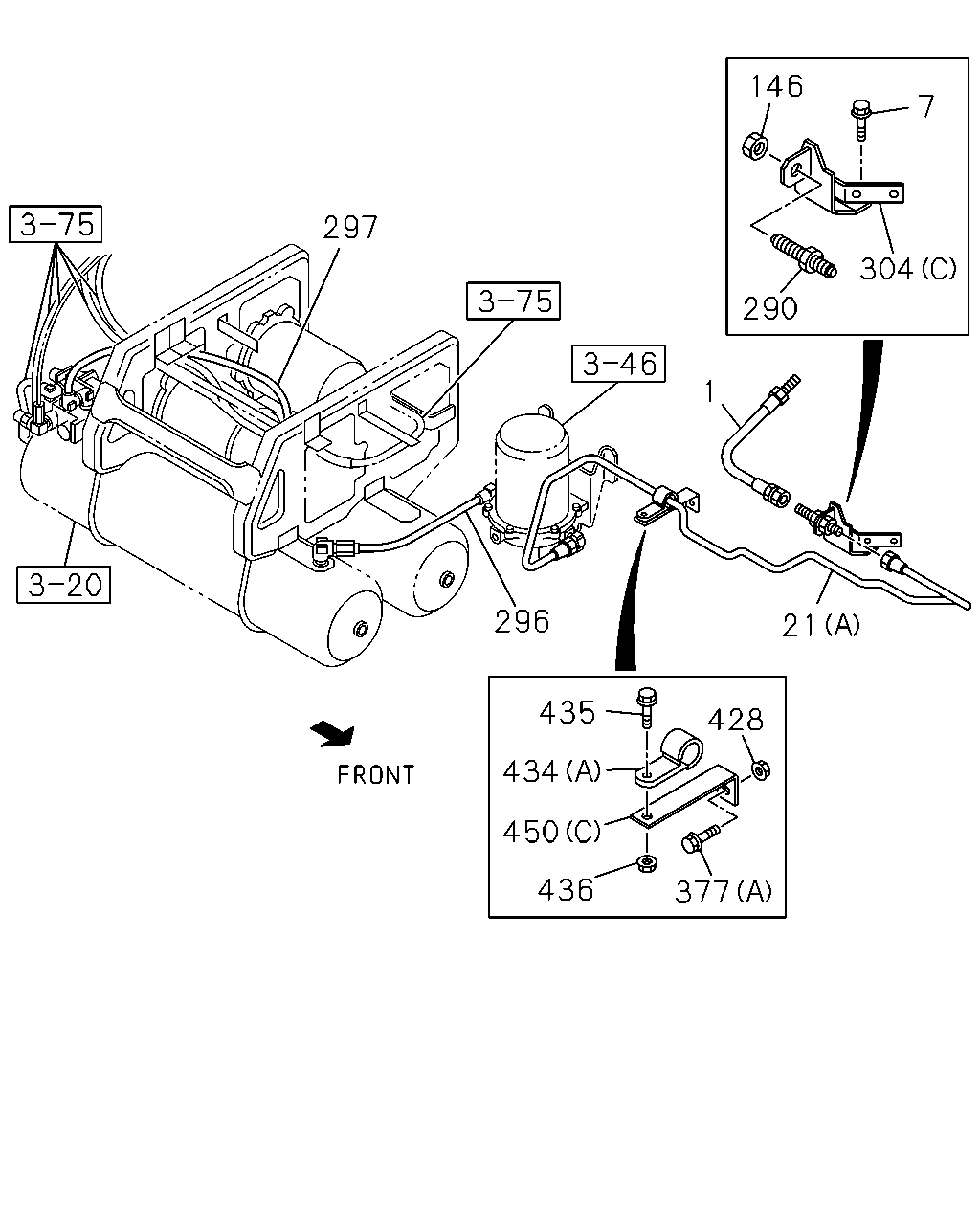

3-70 — BRAKE PIPING; AIR,AIR MASTER (#144158) — 271 parça

146 290 304 7 1 21 428 377 436 450 434 435 296 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) L=310	8-97607-730-0	01	1	1410-1504
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=310	8-97607-730-0	01	1	1505-
1	HOSE; FLEX,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=310	8-97607-730-0	01	1	1505-
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS) L=430	1-09363-653-0	01	1	1407-1504
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=430	1-09363-653-0	01	1	1505-
7	BOLT; BRKT,FLEX HOSE,AIR TANK AIR DRYER<PS7> M8X30 FLANGE	0-28650-830-0	02	1	1407-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98184-503-0	01	1	1505-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=1545	8-98211-175-0	01	1	1505-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) (B) L=1819	8-98211-170-0	01	1	1410-1504
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1819	8-98211-170-0	01	1	1505-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) (A) L=1955	8-98226-430-0	01	1	1407-1504
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1955	8-98226-430-0	01	1	1505-
146	NUT; UNION 4HK1-TCS ENG(RJS) M22	0-91110-522-0	01	1	1407-1504
146	NUT; UNION 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22	0-91110-522-0	01	1	1505-
273	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1407-1409
273	GROMMET 6HK1-TCN ENG(82L) ID=28 OD=35 T=25	1-09332-011-1	01	1	1410-
273	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1410-
273	GROMMET 4HK1-TCS ENG(RJS) ID=24 OD=30 T=22	1-09332-104-0	01	1	1407-1504
273	GROMMET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24 OD=30 T=22	1-09332-104-0	01	1	1505-
290	UNION; AIR PIPE 4HK1-TCS ENG(RJS) M22	0-92123-315-0	01	1	1407-1504
290	UNION; AIR PIPE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22	0-92123-315-0	01	1	1505-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1407-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1407-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1407-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1407-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1407-
304	BRACKET; UNION 6HK1-TCN ENG(82L) (B)	8-98211-164-1	01	1	1410-1504
304	BRACKET; UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98211-164-1	01	1	1505-
304	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98211-164-1	01	1	1505-
304	BRACKET; UNION 6HK1-TCN ENG(82L) (A)	8-98229-691-0	01	1	1410-1504
304	BRACKET; UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98229-691-0	01	1	1505-
304	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98229-691-0	01	1	1505-
304	BRACKET; UNION 4HK1-TCS ENG(RJS) (C)	8-98226-311-0	01	1	1407-1504
304	BRACKET; UNION 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	8-98226-311-0	01	1	1505-
377	BOLT; BRKT FIX AIR DRYER<PS7> (A) M8X30 FLANGE	0-28650-830-0	01	1	1407-
377	BOLT; BRKT FIX AIR SUSP DRIVER SEAT<A56> (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1407-1504
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1505-
428	NUT; BRKT AIR DRYER<PS7> M8 FLANGE MAL	0-91180-108-0	01	1	1407-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=20	0-95235-536-0	01	1	1505-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1505-
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	1407-1504
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 L=20	0-95235-536-0	02	1	1505-
434	CLIP AIR SUSP DRIVER SEAT<A56> (B) ID=7 L=20	0-95234-635-0	01	1	1407-
435	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE MAL	0-28650-820-0	03	1	1505-
435	BOLT; CLIP M8X20 FLANGE MAL	0-28650-820-0	02	1	1407-1504
435	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE MAL	0-28650-820-0	01	1	1505-
435	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE MAL	0-28650-820-0	01	1	1407-1504
435	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
436	NUT; CLIP 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	02	1	1407-1504
436	NUT; CLIP 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
436	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
436	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE MAL	0-91180-108-0	01	1	1407-1409
436	NUT; CLIP 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	01	1	1410-1504
436	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE MAL	0-91180-108-0	01	1	1410-1504
436	NUT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE MAL	0-91180-108-0	01	1	1505-
436	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE MAL	0-91180-108-0	01	1	1505-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-98232-692-0	01	1	1410-1504
450	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98232-692-0	01	1	1505-
450	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98232-692-0	01	1	1505-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (C) L=90 B=25	1-47475-530-0	01	1	1407-1504
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90 B=25	1-47475-530-0	01	1	1505-
450	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> (B)	8-98106-046-0	01	1	1407-1504
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (B)	8-98106-046-0	01	1	1505-

6 7 32 184 176 1 21 154 171 32 377 428 450 434 435 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) L=310	8-97607-730-0	01	1	1410-1504
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=310	8-97607-730-0	01	1	1505-
1	HOSE; FLEX,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=310	8-97607-730-0	01	1	1505-
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS) L=430	1-09363-653-0	01	1	1407-1504
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=430	1-09363-653-0	01	1	1505-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L)	8-98117-117-0	01	1	1410-1504
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98117-117-0	01	1	1505-
6	BRACKET; FLEX HOSE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98117-117-0	01	1	1505-
7	BOLT; BRKT,FLEX HOSE,AIR TANK AIR DRYER<PS7> M8X30 FLANGE	0-28650-830-0	02	1	1407-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98184-503-0	01	1	1505-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=1545	8-98211-175-0	01	1	1505-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) (B) L=1819	8-98211-170-0	01	1	1410-1504
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1819	8-98211-170-0	01	1	1505-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) (A) L=1955	8-98226-430-0	01	1	1407-1504
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1955	8-98226-430-0	01	1	1505-
32	SLEEVE; RUBBER,AIR PIPE 6HK1-TCN ENG(82L) ID=32 OD=36 L=50	1-09337-023-0	01	1	1410-1504
32	SLEEVE; RUBBER,AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=32 OD=36 L=50	1-09337-023-0	01	1	1505-
32	SLEEVE; RUBBER,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=32 OD=36 L=50	1-09337-023-0	01	1	1505-
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L)	8-98167-337-0	01	1	1410-1504
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98167-337-0	01	1	1505-
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=507 SERVICED BY L=550	1-47428-808-0	01	1	1505-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) L=521 SERVICED BY L=550	1-47428-808-0	01	1	1410-1504
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=521 SERVICED BY L=550	1-47428-808-0	01	1	1505-
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=864 SERVICED BY L=900	1-47428-813-0	01	1	1505-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) L=852 SERVICED BY L=900	1-47428-813-0	01	1	1410-1504
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=852 SERVICED BY L=900	1-47428-813-0	01	1	1505-
184	HOSE; FLEX,AIR GOV 6HK1-TCN ENG(82L) L=350	1-09363-624-0	01	1	1410-1504
184	HOSE; FLEX,AIR GOV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350	1-09363-624-0	01	1	1505-
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09363-624-0	01	1	1505-
273	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1407-1409
273	GROMMET 6HK1-TCN ENG(82L) ID=28 OD=35 T=25	1-09332-011-1	01	1	1410-
273	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1410-
273	GROMMET 4HK1-TCS ENG(RJS) ID=24 OD=30 T=22	1-09332-104-0	01	1	1407-1504
273	GROMMET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24 OD=30 T=22	1-09332-104-0	01	1	1505-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1407-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1407-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1407-
377	BOLT; BRKT FIX AIR DRYER<PS7> (A) M8X30 FLANGE	0-28650-830-0	01	1	1407-
377	BOLT; BRKT FIX AIR SUSP DRIVER SEAT<A56> (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1407-1504
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1505-
428	NUT; BRKT AIR DRYER<PS7> M8 FLANGE MAL	0-91180-108-0	01	1	1407-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=20	0-95235-536-0	01	1	1505-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1505-
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	1407-1504
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 L=20	0-95235-536-0	02	1	1505-
434	CLIP AIR SUSP DRIVER SEAT<A56> (B) ID=7 L=20	0-95234-635-0	01	1	1407-
435	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE MAL	0-28650-820-0	03	1	1505-
435	BOLT; CLIP M8X20 FLANGE MAL	0-28650-820-0	02	1	1407-1504
435	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE MAL	0-28650-820-0	01	1	1505-
435	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE MAL	0-28650-820-0	01	1	1407-1504
435	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-98232-692-0	01	1	1410-1504
450	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98232-692-0	01	1	1505-
450	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98232-692-0	01	1	1505-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (C) L=90 B=25	1-47475-530-0	01	1	1407-1504
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90 B=25	1-47475-530-0	01	1	1505-
450	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> (B)	8-98106-046-0	01	1	1407-1504
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (B)	8-98106-046-0	01	1	1505-

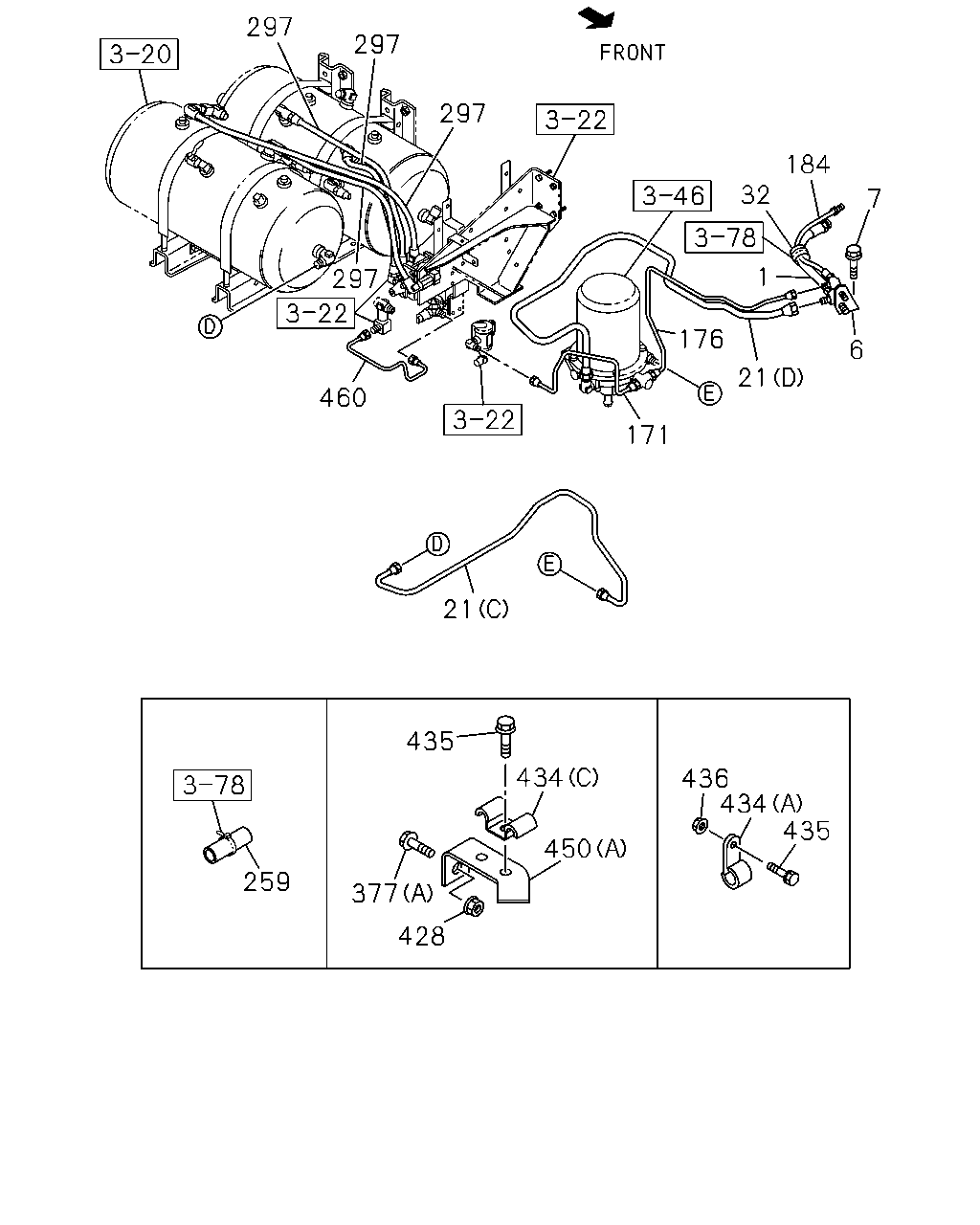

297 297 297 32 184 21 176 1 6 171 460 297 21 435 434 450 436 434 435 377 428 259 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) L=310	8-97607-730-0	01	1	1410-1504
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=310	8-97607-730-0	01	1	1505-
1	HOSE; FLEX,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=310	8-97607-730-0	01	1	1505-
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS) L=430	1-09363-653-0	01	1	1407-1504
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=430	1-09363-653-0	01	1	1505-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L)	8-98117-117-0	01	1	1410-1504
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98117-117-0	01	1	1505-
6	BRACKET; FLEX HOSE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98117-117-0	01	1	1505-
7	BOLT; BRKT,FLEX HOSE,AIR TANK AIR DRYER<PS7> M8X30 FLANGE	0-28650-830-0	02	1	1407-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98184-503-0	01	1	1505-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=1545	8-98211-175-0	01	1	1505-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) (B) L=1819	8-98211-170-0	01	1	1410-1504
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1819	8-98211-170-0	01	1	1505-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) (A) L=1955	8-98226-430-0	01	1	1407-1504
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1955	8-98226-430-0	01	1	1505-
32	SLEEVE; RUBBER,AIR PIPE 6HK1-TCN ENG(82L) ID=32 OD=36 L=50	1-09337-023-0	01	1	1410-1504
32	SLEEVE; RUBBER,AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=32 OD=36 L=50	1-09337-023-0	01	1	1505-
32	SLEEVE; RUBBER,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=32 OD=36 L=50	1-09337-023-0	01	1	1505-
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=507 SERVICED BY L=550	1-47428-808-0	01	1	1505-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) L=521 SERVICED BY L=550	1-47428-808-0	01	1	1410-1504
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=521 SERVICED BY L=550	1-47428-808-0	01	1	1505-
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=864 SERVICED BY L=900	1-47428-813-0	01	1	1505-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) L=852 SERVICED BY L=900	1-47428-813-0	01	1	1410-1504
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=852 SERVICED BY L=900	1-47428-813-0	01	1	1505-
184	HOSE; FLEX,AIR GOV 6HK1-TCN ENG(82L) L=350	1-09363-624-0	01	1	1410-1504
184	HOSE; FLEX,AIR GOV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350	1-09363-624-0	01	1	1505-
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09363-624-0	01	1	1505-
259	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	01	1	1505-
273	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1407-1409
273	GROMMET 6HK1-TCN ENG(82L) ID=28 OD=35 T=25	1-09332-011-1	01	1	1410-
273	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1410-
273	GROMMET 4HK1-TCS ENG(RJS) ID=24 OD=30 T=22	1-09332-104-0	01	1	1407-1504
273	GROMMET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24 OD=30 T=22	1-09332-104-0	01	1	1505-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1407-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1407-
377	BOLT; BRKT FIX AIR DRYER<PS7> (A) M8X30 FLANGE	0-28650-830-0	01	1	1407-
377	BOLT; BRKT FIX AIR SUSP DRIVER SEAT<A56> (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1407-1504
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1505-
428	NUT; BRKT AIR DRYER<PS7> M8 FLANGE MAL	0-91180-108-0	01	1	1407-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=20	0-95235-536-0	01	1	1505-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1505-
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	1407-1504
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 L=20	0-95235-536-0	02	1	1505-
434	CLIP AIR SUSP DRIVER SEAT<A56> (B) ID=7 L=20	0-95234-635-0	01	1	1407-
435	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE MAL	0-28650-820-0	03	1	1505-
435	BOLT; CLIP M8X20 FLANGE MAL	0-28650-820-0	02	1	1407-1504
435	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE MAL	0-28650-820-0	01	1	1505-
435	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE MAL	0-28650-820-0	01	1	1407-1504
435	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
436	NUT; CLIP 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	02	1	1407-1504
436	NUT; CLIP 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
436	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
436	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE MAL	0-91180-108-0	01	1	1407-1409
436	NUT; CLIP 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	01	1	1410-1504
436	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE MAL	0-91180-108-0	01	1	1410-1504
436	NUT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE MAL	0-91180-108-0	01	1	1505-
436	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE MAL	0-91180-108-0	01	1	1505-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-98232-692-0	01	1	1410-1504
450	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98232-692-0	01	1	1505-
450	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98232-692-0	01	1	1505-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (C) L=90 B=25	1-47475-530-0	01	1	1407-1504
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90 B=25	1-47475-530-0	01	1	1505-
450	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> (B)	8-98106-046-0	01	1	1407-1504
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (B)	8-98106-046-0	01	1	1505-
460	PIPE; AIR,PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98184-394-0	01	1	1505-

224 217 72 85 304 72 304 85

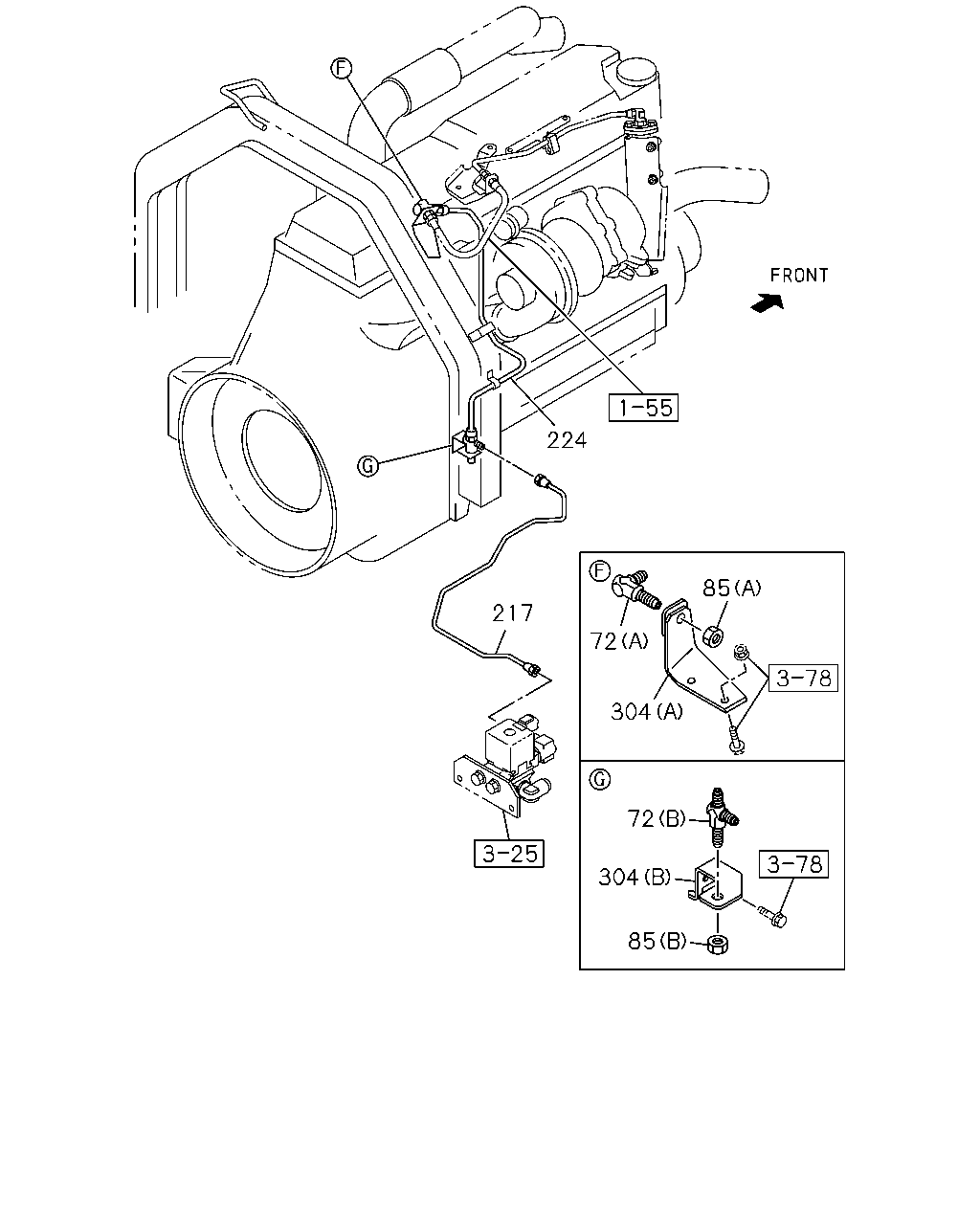

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	UNION; AIR PIPE 6HK1-TCN ENG(82L) (A) M12 ELBOW	0-92125-006-0	01	1	1410-1504
72	UNION; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 ELBOW	0-92125-006-0	01	1	1505-
72	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 ELBOW	0-92125-006-0	01	1	1505-
72	UNION; AIR PIPE 6HK1-TCN ENG(82L) (B) M12 2WAY MAL	1-09654-059-2	01	1	1410-1504
72	UNION; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 2WAY MAL	1-09654-059-2	01	1	1505-
72	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 2WAY MAL	1-09654-059-2	01	1	1505-
85	NUT; UNION 6HK1-TCN ENG(82L) (B) M12	0-91111-512-0	01	1	1410-1504
85	NUT; UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12	0-91111-512-0	01	1	1505-
85	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12	0-91111-512-0	01	1	1505-
85	NUT; UNION 6HK1-TCN ENG(82L) (A) M12	9-09840-280-0	01	1	1410-1504
85	NUT; UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12	9-09840-280-0	01	1	1505-
85	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12	9-09840-280-0	01	1	1505-
217	PIPE; VAC,UNION TO MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1870 SERVICED BY L=2000	1-47428-823-0	01	1	1505-
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) L=891 SERVICED BY L=900	1-47428-813-0	01	1	1410-1504
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=891 SERVICED BY L=900	1-47428-813-0	01	1	1505-
224	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCN ENG(82L) L=667 SERVICED BY L=700	1-47428-811-0	01	1	1410-1504
224	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=667 SERVICED BY L=700	1-47428-811-0	01	1	1505-
224	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=667 SERVICED BY L=700	1-47428-811-0	01	1	1505-
273	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1407-1409
273	GROMMET 6HK1-TCN ENG(82L) ID=28 OD=35 T=25	1-09332-011-1	01	1	1410-
273	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1410-
273	GROMMET 4HK1-TCS ENG(RJS) ID=24 OD=30 T=22	1-09332-104-0	01	1	1407-1504
273	GROMMET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24 OD=30 T=22	1-09332-104-0	01	1	1505-
304	BRACKET; UNION 6HK1-TCN ENG(82L) (B)	8-98211-164-1	01	1	1410-1504
304	BRACKET; UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98211-164-1	01	1	1505-
304	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98211-164-1	01	1	1505-
304	BRACKET; UNION 6HK1-TCN ENG(82L) (A)	8-98229-691-0	01	1	1410-1504
304	BRACKET; UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98229-691-0	01	1	1505-
304	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98229-691-0	01	1	1505-
304	BRACKET; UNION 4HK1-TCS ENG(RJS) (C)	8-98226-311-0	01	1	1407-1504
304	BRACKET; UNION 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	8-98226-311-0	01	1	1505-

367 296 229 435 434 296 436 377 450 202 258 374 296 296 374 80 374 465 305 12 221 35 123 367 296

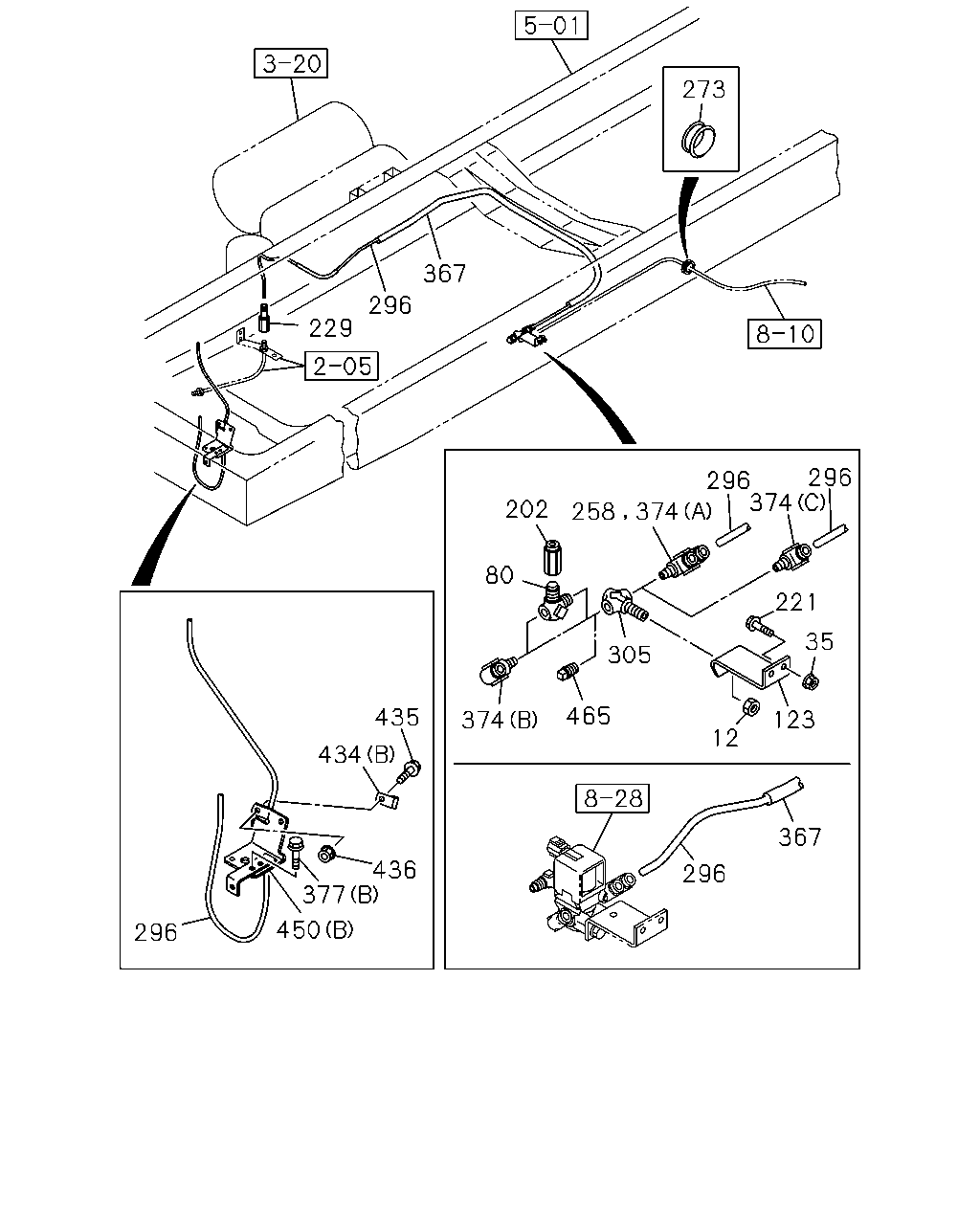

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION M12	0-91111-512-0	01	1	1407-
35	NUT; BRKT EXC. PTO CONTROL<SV6> M8 FLANGE MAL	0-91180-108-0	02	1	1407-
80	UNION; 3 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	1505-
123	BRACKET; UNION	8-98118-545-0	01	1	1407-
202	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1505-
221	BOLT; BRKT EXC. PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	1407-
229	ADAPTER; NYLON TUBE MZW6P M/T(RSZ) DIN8 & M12 STRAIGHT MAL	1-09660-873-0	01	1	1407-
258	CONNECTOR; NYLON TUBE 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6> DIN8X2 & PT1/4 DOUBLE ELBOW MAL	8-98179-708-0	01	1	1410-
273	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1407-1409
273	GROMMET 6HK1-TCN ENG(82L) ID=28 OD=35 T=25	1-09332-011-1	01	1	1410-
273	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1410-
273	GROMMET 4HK1-TCS ENG(RJS) ID=24 OD=30 T=22	1-09332-104-0	01	1	1407-1504
273	GROMMET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24 OD=30 T=22	1-09332-104-0	01	1	1505-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1407-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1407-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1407-
305	UNION ASM; NYLON TUBE M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1407-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1407-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1407-
374	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	1505-
374	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> (C) DIN8 & R1/4 ELBOW MAL	1-09660-956-0	01	1	1505-
374	CONNECTOR AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW MAL	1-09661-067-0	01	1	1407-1504
374	CONNECTOR MZW6P M/T(RSZ) AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW MAL	1-09661-067-0	01	1	1505-
374	CONNECTOR 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (A) DIN8X2 & PT1/4 DOUBLE ELBOW MAL	8-98179-708-0	01	1	1407-
377	BOLT; BRKT FIX AIR DRYER<PS7> (A) M8X30 FLANGE	0-28650-830-0	01	1	1407-
377	BOLT; BRKT FIX AIR SUSP DRIVER SEAT<A56> (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1407-1504
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1505-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=20	0-95235-536-0	01	1	1505-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1505-
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	1407-1504
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 L=20	0-95235-536-0	02	1	1505-
434	CLIP AIR SUSP DRIVER SEAT<A56> (B) ID=7 L=20	0-95234-635-0	01	1	1407-
435	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE MAL	0-28650-820-0	03	1	1505-
435	BOLT; CLIP M8X20 FLANGE MAL	0-28650-820-0	02	1	1407-1504
435	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE MAL	0-28650-820-0	01	1	1505-
435	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE MAL	0-28650-820-0	01	1	1407-1504
435	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
436	NUT; CLIP 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	02	1	1407-1504
436	NUT; CLIP 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
436	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
436	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE MAL	0-91180-108-0	01	1	1407-1409
436	NUT; CLIP 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	01	1	1410-1504
436	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE MAL	0-91180-108-0	01	1	1410-1504
436	NUT; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE MAL	0-91180-108-0	01	1	1505-
436	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE MAL	0-91180-108-0	01	1	1505-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-98232-692-0	01	1	1410-1504
450	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98232-692-0	01	1	1505-
450	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98232-692-0	01	1	1505-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (C) L=90 B=25	1-47475-530-0	01	1	1407-1504
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90 B=25	1-47475-530-0	01	1	1505-
450	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56> (B)	8-98106-046-0	01	1	1407-1504
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (B)	8-98106-046-0	01	1	1505-
465	PLUG RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> PT1/4 MAL	9-99204-513-0	01	1	1407-1504
465	PLUG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> PT1/4 MAL	9-99204-513-0	01	1	1505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
