3-52 — BRAKE PIPING; OIL,FRONT (#144155) — 82 parça

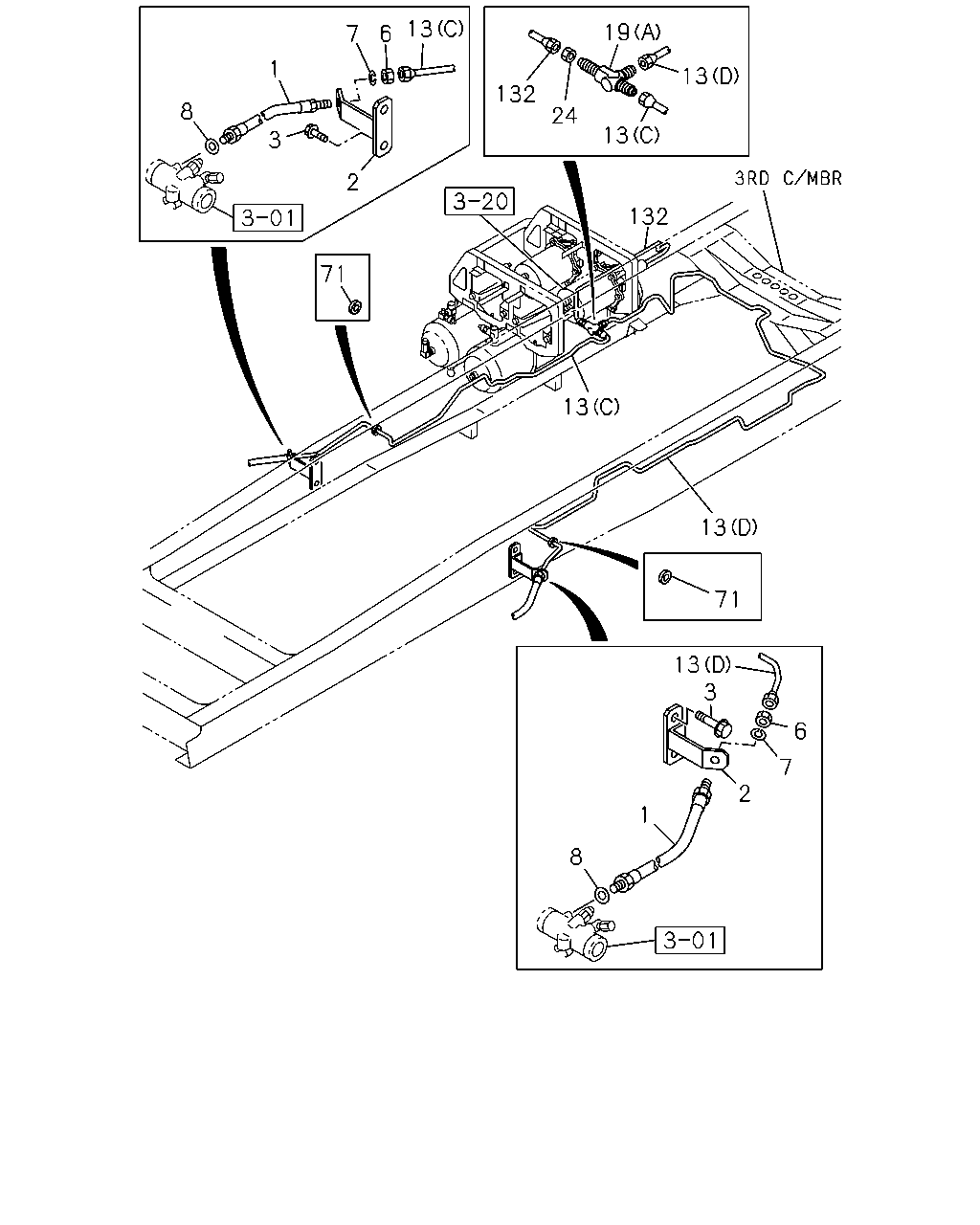

1 8 7 18 6 3 2 71 18 132 19 13 13 24 132 13 18 71 13 18 6 7 2 3 1 8 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK L=610	0-05212-610-0	02	1	1407-1504
1	HOSE; FLEX,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=610	0-05212-610-0	02	1	1505-
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L)	8-98177-524-0	02	1	1410-1504
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98177-524-0	02	1	1505-
2	BRACKET; FLEX HOSE,FRT BRK 4HK1-TCS ENG(RJS)	8-98180-131-0	02	1	1407-1504
2	BRACKET; FLEX HOSE,FRT BRK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98180-131-0	02	1	1505-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE MAL	0-28650-825-0	04	1	1407-1504
3	BOLT; BRKT,FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE MAL	0-28650-825-0	04	1	1505-
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1407-1504
6	NUT; FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	1505-
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2 MAL	0-91510-512-0	02	1	1407-1504
7	WASHER; LK,FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 MAL	0-91510-512-0	02	1	1505-
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1407-1504
8	GASKET; FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	1505-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (D) L=3328 SERVICED BY L=3400	1-47428-746-0	01	1	1410-1504
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=3328 SERVICED BY L=3400	1-47428-746-0	01	1	1505-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) (C) L=1614	8-98250-242-0	01	1	1410-1504
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1614	8-98250-242-0	01	1	1505-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (D) L=3332 SERVICED BY L=3400	1-47428-746-0	01	1	1410-1504
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=3332 SERVICED BY L=3400	1-47428-746-0	01	1	1505-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) FUEL TANK 400L<SDH> (B) L=2386 SERVICED BY L=2500	1-47428-742-0	01	1	1408-1504
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) FUEL TANK 400L<SDH> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2386 SERVICED BY L=2500	1-47428-742-0	01	1	1505-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) (B) L=2385 SERVICED BY L=2500	1-47428-742-0	01	1	1407-1407
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) FUEL TANK 200L FRAME SIDE<N20> (B) L=2385 SERVICED BY L=2500	1-47428-742-0	01	1	1408-1504
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) FUEL TANK 200L FRAME SIDE<N20> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2385 SERVICED BY L=2500	1-47428-742-0	01	1	1505-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) (A) L=1250 SERVICED BY L=1250	1-47428-733-0	01	1	1407-1504
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1250 SERVICED BY L=1250	1-47428-733-0	01	1	1505-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) (B) L=737 SERVICED BY L=800	1-47428-728-0	01	1	1407-1504
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=737 SERVICED BY L=800	1-47428-728-0	01	1	1505-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) (A) L=643 SERVICED BY L=650	1-47428-726-0	01	1	1407-1504
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=643 SERVICED BY L=650	1-47428-726-0	01	1	1505-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (B) M12 L=40	0-92113-006-0	02	1	1407-1504
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	0-92113-006-0	02	1	1505-
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	1407-1504
19	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 3WAY	0-92138-906-0	01	1	1505-
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1407-1504
24	NUT; UNION,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	1505-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1407-1504
71	GROMMET; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24 OD=30 T=17	9-09956-092-1	02	1	1505-
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCN ENG(82L) L=895 SERVICED BY L=900	1-47428-729-0	01	1	1410-1504
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=895 SERVICED BY L=900	1-47428-729-0	01	1	1505-
132	PIPE; OIL,BRK,HYD UNIT 4HK1-TCS ENG(RJS) L=943	8-98229-713-0	01	1	1407-1504
132	PIPE; OIL,BRK,HYD UNIT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=943	8-98229-713-0	01	1	1505-

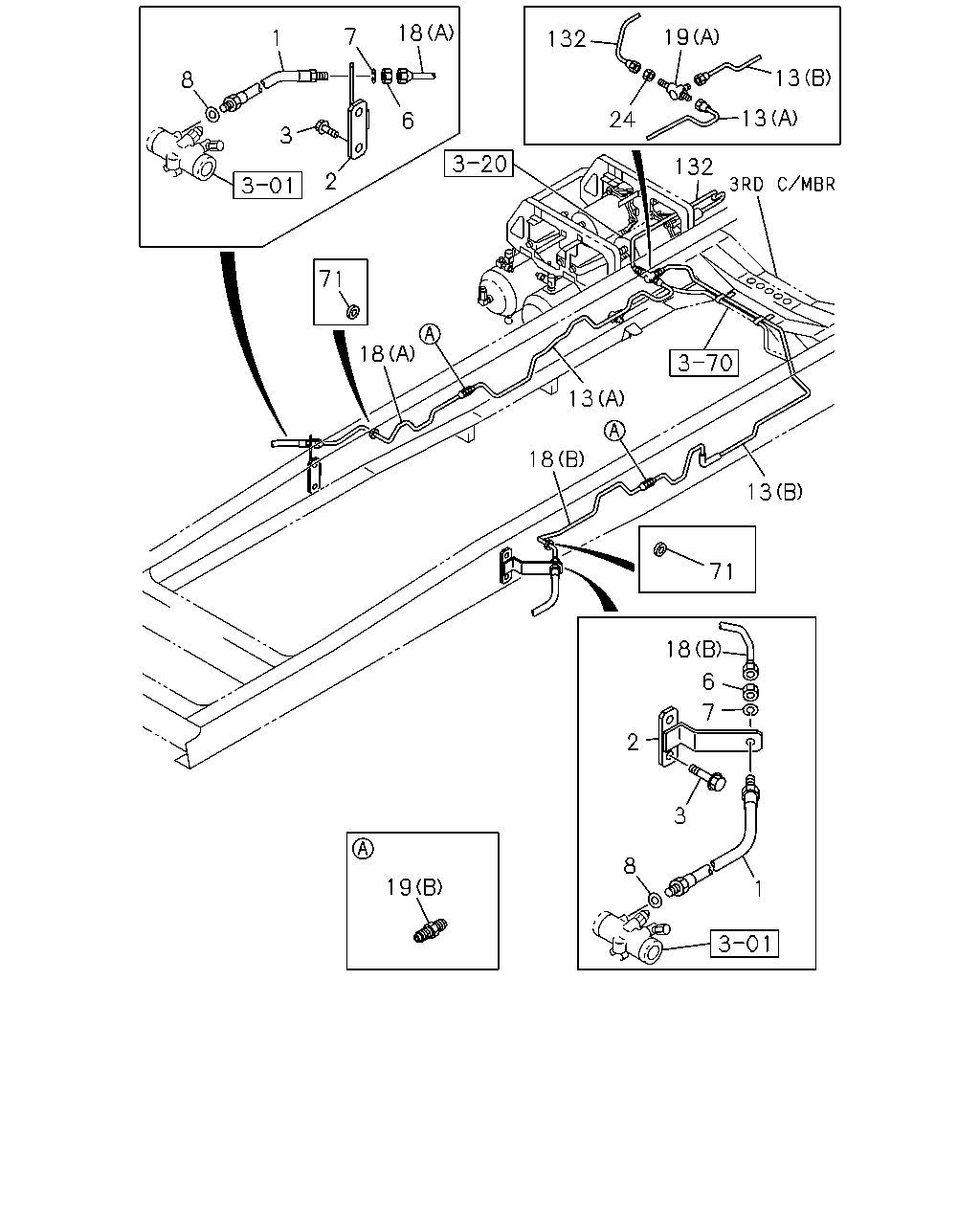

6 7 13 1 3 8 2 24 132 19 13 13 132 13 13 71 13 3 6 7 2 1 8 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK L=610	0-05212-610-0	02	1	1407-1504
1	HOSE; FLEX,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=610	0-05212-610-0	02	1	1505-
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L)	8-98177-524-0	02	1	1410-1504
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98177-524-0	02	1	1505-
2	BRACKET; FLEX HOSE,FRT BRK 4HK1-TCS ENG(RJS)	8-98180-131-0	02	1	1407-1504
2	BRACKET; FLEX HOSE,FRT BRK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98180-131-0	02	1	1505-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE MAL	0-28650-825-0	04	1	1407-1504
3	BOLT; BRKT,FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE MAL	0-28650-825-0	04	1	1505-
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1407-1504
6	NUT; FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	1505-
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2 MAL	0-91510-512-0	02	1	1407-1504
7	WASHER; LK,FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 MAL	0-91510-512-0	02	1	1505-
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1407-1504
8	GASKET; FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	1505-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (D) L=3328 SERVICED BY L=3400	1-47428-746-0	01	1	1410-1504
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=3328 SERVICED BY L=3400	1-47428-746-0	01	1	1505-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) (C) L=1614	8-98250-242-0	01	1	1410-1504
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1614	8-98250-242-0	01	1	1505-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> (D) L=3332 SERVICED BY L=3400	1-47428-746-0	01	1	1410-1504
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) FUEL TANK 400L<SDH> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=3332 SERVICED BY L=3400	1-47428-746-0	01	1	1505-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) FUEL TANK 400L<SDH> (B) L=2386 SERVICED BY L=2500	1-47428-742-0	01	1	1408-1504
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) FUEL TANK 400L<SDH> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2386 SERVICED BY L=2500	1-47428-742-0	01	1	1505-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) (B) L=2385 SERVICED BY L=2500	1-47428-742-0	01	1	1407-1407
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) FUEL TANK 200L FRAME SIDE<N20> (B) L=2385 SERVICED BY L=2500	1-47428-742-0	01	1	1408-1504
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) FUEL TANK 200L FRAME SIDE<N20> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2385 SERVICED BY L=2500	1-47428-742-0	01	1	1505-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) (A) L=1250 SERVICED BY L=1250	1-47428-733-0	01	1	1407-1504
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1250 SERVICED BY L=1250	1-47428-733-0	01	1	1505-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (B) M12 L=40	0-92113-006-0	02	1	1407-1504
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	0-92113-006-0	02	1	1505-
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	1407-1504
19	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 3WAY	0-92138-906-0	01	1	1505-
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1407-1504
24	NUT; UNION,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	1505-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1407-1504
71	GROMMET; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24 OD=30 T=17	9-09956-092-1	02	1	1505-
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCN ENG(82L) L=895 SERVICED BY L=900	1-47428-729-0	01	1	1410-1504
132	PIPE; OIL,BRK,HYD UNIT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=895 SERVICED BY L=900	1-47428-729-0	01	1	1505-
132	PIPE; OIL,BRK,HYD UNIT 4HK1-TCS ENG(RJS) L=943	8-98229-713-0	01	1	1407-1504
132	PIPE; OIL,BRK,HYD UNIT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=943	8-98229-713-0	01	1	1505-
