Sayfa 3-46 - Isuzu EPC

3-46 — AIR DRYER (#144154) — 341 parça

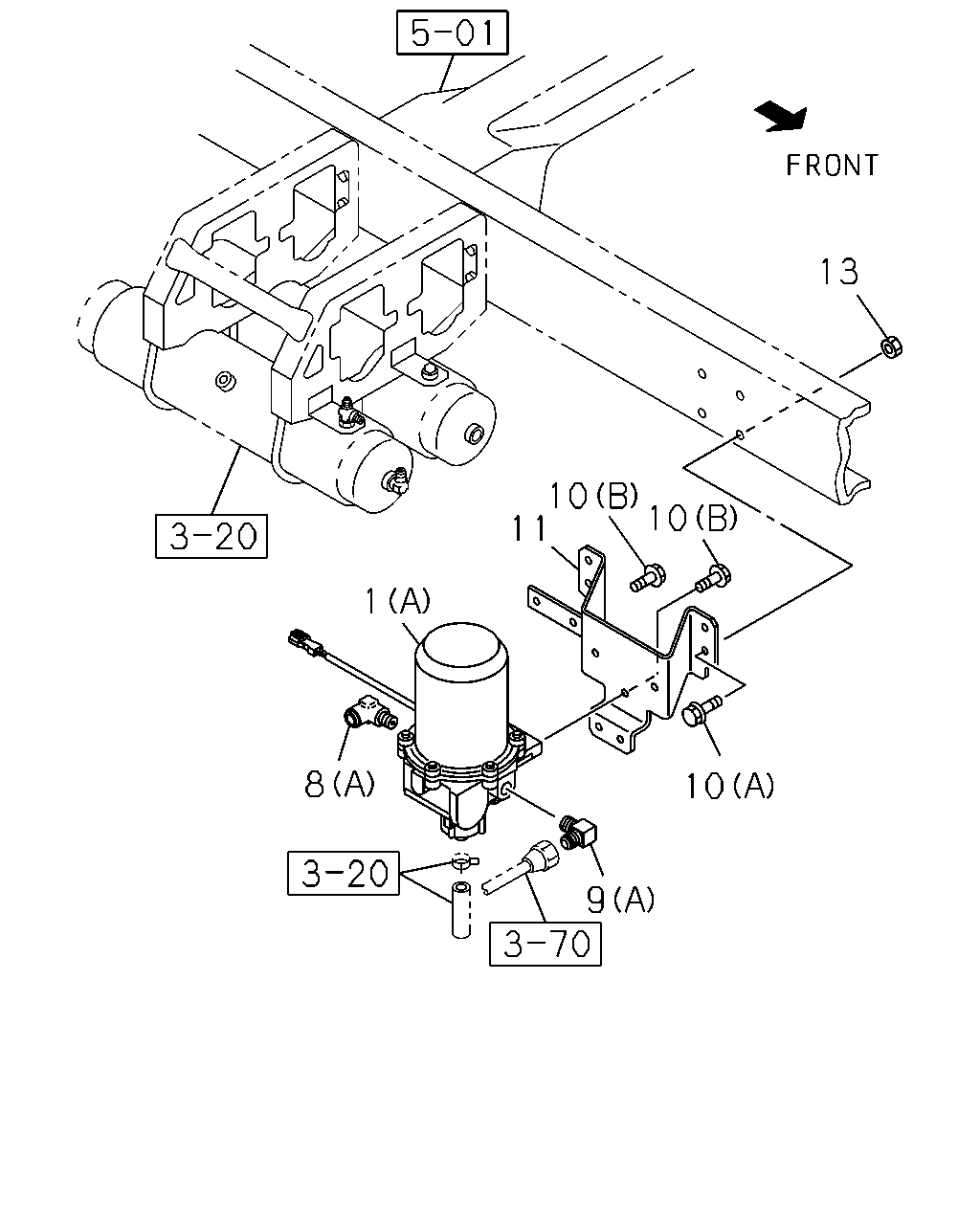

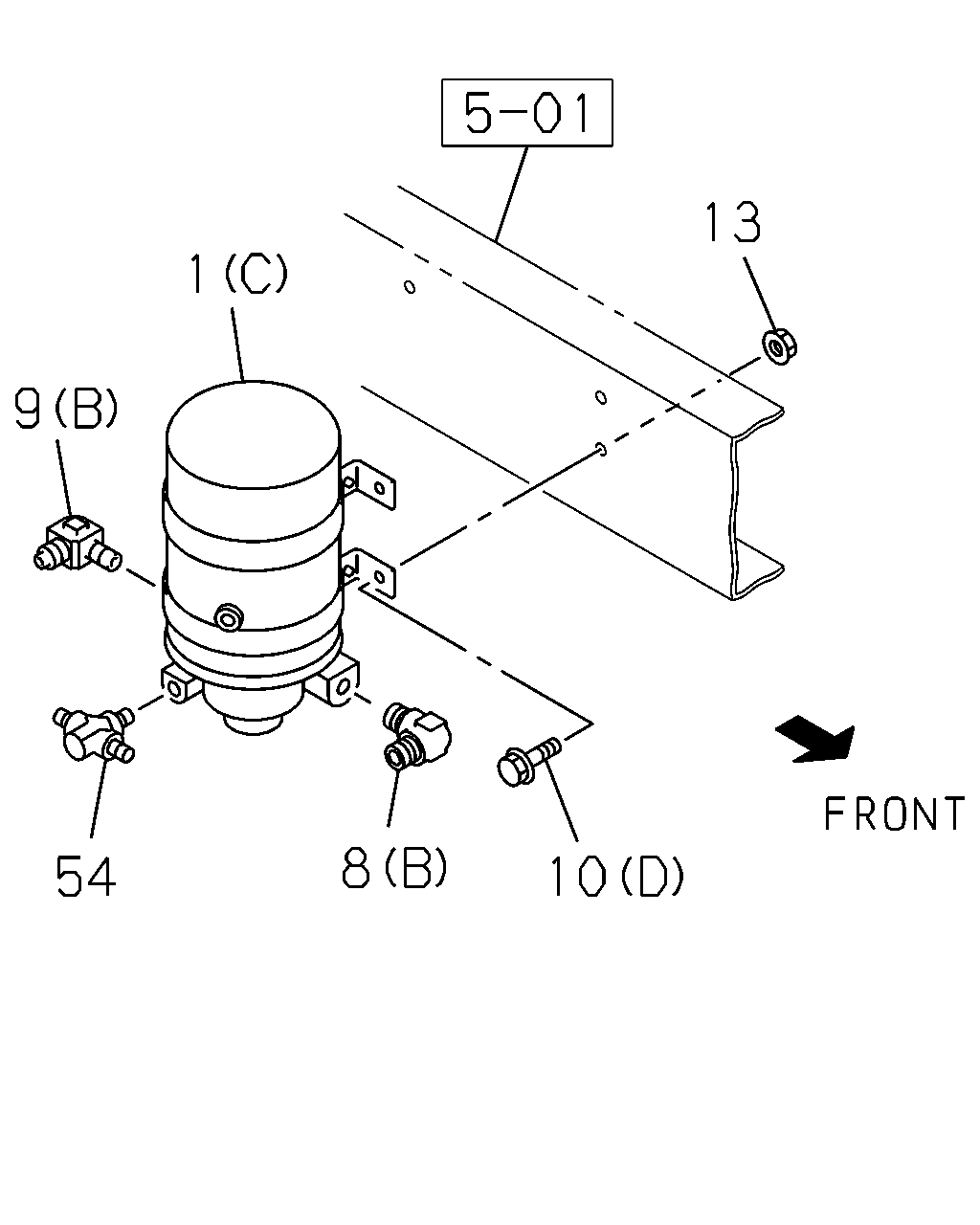

10 10 11 10 9 8 1 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48190-277-1	01	1	1505-
1	DRYER; AIR 6HK1-TCN ENG(82L) (B)	1-48190-210-1	01	1	1410-1504
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48190-210-1	01	1	1505-
1	DRYER; AIR 4HK1-TCS ENG(RJS) (A)	8-98225-285-0	01	1	1407-1504
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98225-285-0	01	1	1505-
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 & PT1/2 ELBOW MAL	1-09650-443-0	01	1	1505-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> (A) DIN12 & R1/2 ELBOW MAL	1-09660-960-0	01	1	1407-1504
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R1/2 ELBOW MAL	1-09660-960-0	01	1	1505-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) (C) M12X2 & PT1/4 3WAY MAL	1-09656-230-1	01	1	1410-1504
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12X2 & PT1/4 3WAY MAL	1-09656-230-1	01	1	1505-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1410-1504
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1505-
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1505-
9	CONNECTOR; PIPE,AIR DRYER 4HK1-TCS ENG(RJS) (A) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1407-1504
9	CONNECTOR; PIPE,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1505-
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M10X25 FLANGE MAL	0-28651-025-0	04	1	1505-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) (C) M10X20 FLANGE	0-28051-020-0	03	1	1410-1504
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M10X20 FLANGE	0-28051-020-0	03	1	1505-
10	BOLT; AIR DRYER 4HK1-TCS ENG(RJS) (B) M10X25 FLANGE	0-28051-025-0	03	1	1407-1504
10	BOLT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 FLANGE	0-28051-025-0	03	1	1505-
10	BOLT; AIR DRYER (A) M10X35 FLANGE MAL	0-28651-035-0	02	1	1407-1504
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X35 FLANGE MAL	0-28651-035-0	02	1	1505-
11	BRACKET; AIR DRYER 6HK1-TCN ENG(82L)	8-98120-190-0	01	1	1410-1504
11	BRACKET; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98120-190-0	01	1	1505-
11	BRACKET; AIR DRYER 4HK1-TCS ENG(RJS)	8-98225-807-0	01	1	1407-1504
11	BRACKET; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98225-807-0	01	1	1505-
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE MAL	0-91180-210-0	04	1	1407-

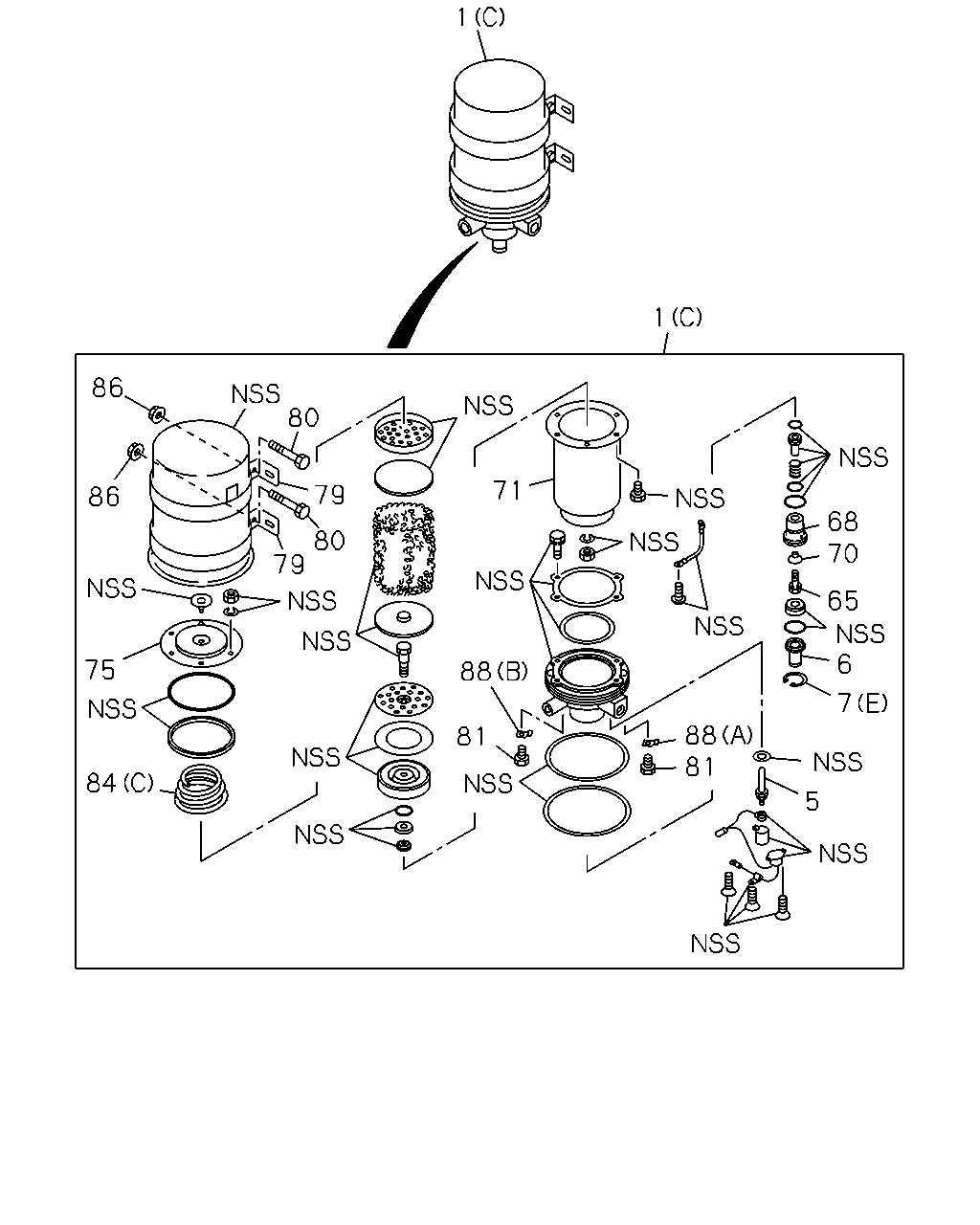

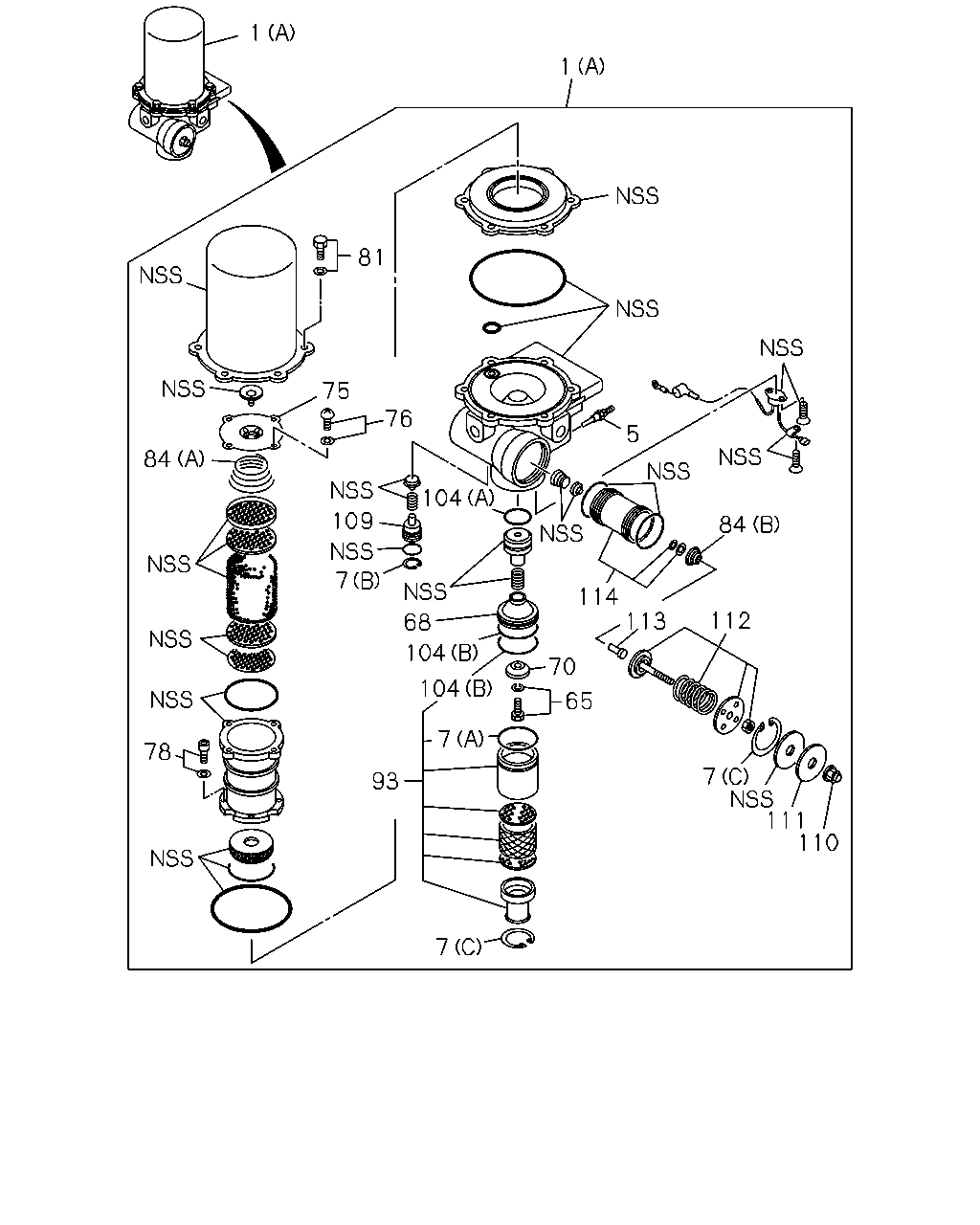

110 111 7 112 113 114 84 5 1 81 75 109 7 93 7 7 104 104 68 84 78 1 76 104 70 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48190-277-1	01	1	1505-
1	DRYER; AIR 6HK1-TCN ENG(82L) (B)	1-48190-210-1	01	1	1410-1504
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48190-210-1	01	1	1505-
1	DRYER; AIR 4HK1-TCS ENG(RJS) (A)	8-98225-285-0	01	1	1407-1504
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98225-285-0	01	1	1505-
5	HEATER ASM; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-085-0	02	1	1505-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L)	1-48199-085-0	01	1	1410-1504
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-085-0	01	1	1505-
5	HEATER ASM; AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-530-0	01	1	1407-1504
5	HEATER ASM; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-530-0	01	1	1505-
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-48199-154-0	01	1	1505-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) (D)	1-48199-403-0	01	1	1410-1504
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48199-403-0	01	1	1505-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) (C)	1-48199-520-0	02	1	1407-1504
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48199-520-0	02	1	1505-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-529-0	01	1	1407-1504
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-529-0	01	1	1505-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) (A)	1-48199-579-0	01	1	1407-1504
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-579-0	01	1	1505-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L)	1-48199-393-0	01	1	1410-1504
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-393-0	01	1	1505-
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-393-0	01	1	1505-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS)	1-48199-517-0	01	1	1407-1504
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-517-0	01	1	1505-
68	BODY; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-216-0	01	1	1505-
68	BODY; VALVE 6HK1-TCN ENG(82L)	1-48199-408-0	01	1	1410-1504
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-408-0	01	1	1505-
68	BODY; VALVE 4HK1-TCS ENG(RJS)	1-48199-515-0	01	1	1407-1504
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-515-0	01	1	1505-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L)	1-48199-105-0	01	1	1410-1504
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	1505-
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-105-0	01	1	1505-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-504-0	01	1	1407-1504
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-504-0	01	1	1505-
75	COVER; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-167-0	01	1	1505-
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-427-0	01	1	1407-1504
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-427-0	01	1	1505-
76	BOLT; COVER,AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-412-0	04	1	1407-1504
76	BOLT; COVER,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-412-0	04	1	1505-
78	BOLT; OIL FILTER,AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-417-0	04	1	1407-1504
78	BOLT; OIL FILTER,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-417-0	04	1	1505-
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-177-0	02	1	1505-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-436-0	06	1	1407-1504
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-436-0	06	1	1505-
84	SPRING; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48199-166-0	01	1	1505-
84	SPRING; AIR DRYER AIR DRYER<PS7> (A)	1-48199-425-0	01	1	1407-1504
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-425-0	01	1	1505-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-523-0	01	1	1407-1504
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-523-0	01	1	1505-
93	SILENCER; AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-619-0	01	1	1407-1504
93	SILENCER; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-619-0	01	1	1505-
104	GASKET 4HK1-TCS ENG(RJS) (B)	1-48199-496-0	02	1	1407-1504
104	GASKET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-496-0	02	1	1505-
104	GASKET 4HK1-TCS ENG(RJS) (A)	8-98226-321-0	01	1	1407-1504
104	GASKET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98226-321-0	01	1	1505-
109	STOPPER; CHECK VALVE 4HK1-TCS ENG(RJS)	1-48199-539-0	01	1	1407-1504
109	STOPPER; CHECK VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-539-0	01	1	1505-
110	NUT; CAP 4HK1-TCS ENG(RJS)	1-48199-527-0	01	1	1407-1504
110	NUT; CAP 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-527-0	01	1	1505-
111	PLATE; GOVERNOR 4HK1-TCS ENG(RJS)	1-48199-526-0	01	1	1407-1504
111	PLATE; GOVERNOR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-526-0	01	1	1505-
112	SCREW & SPRING ASM; AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-524-0	01	1	1407-1504
112	SCREW & SPRING ASM; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-524-0	01	1	1505-
113	STEM; EXHAUST 4HK1-TCS ENG(RJS)	1-48199-522-0	01	1	1407-1504
113	STEM; EXHAUST 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-522-0	01	1	1505-
114	PISTON ASM; GOVERNOR 4HK1-TCS ENG(RJS)	1-48199-521-0	01	1	1407-1504
114	PISTON ASM; GOVERNOR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-521-0	01	1	1505-

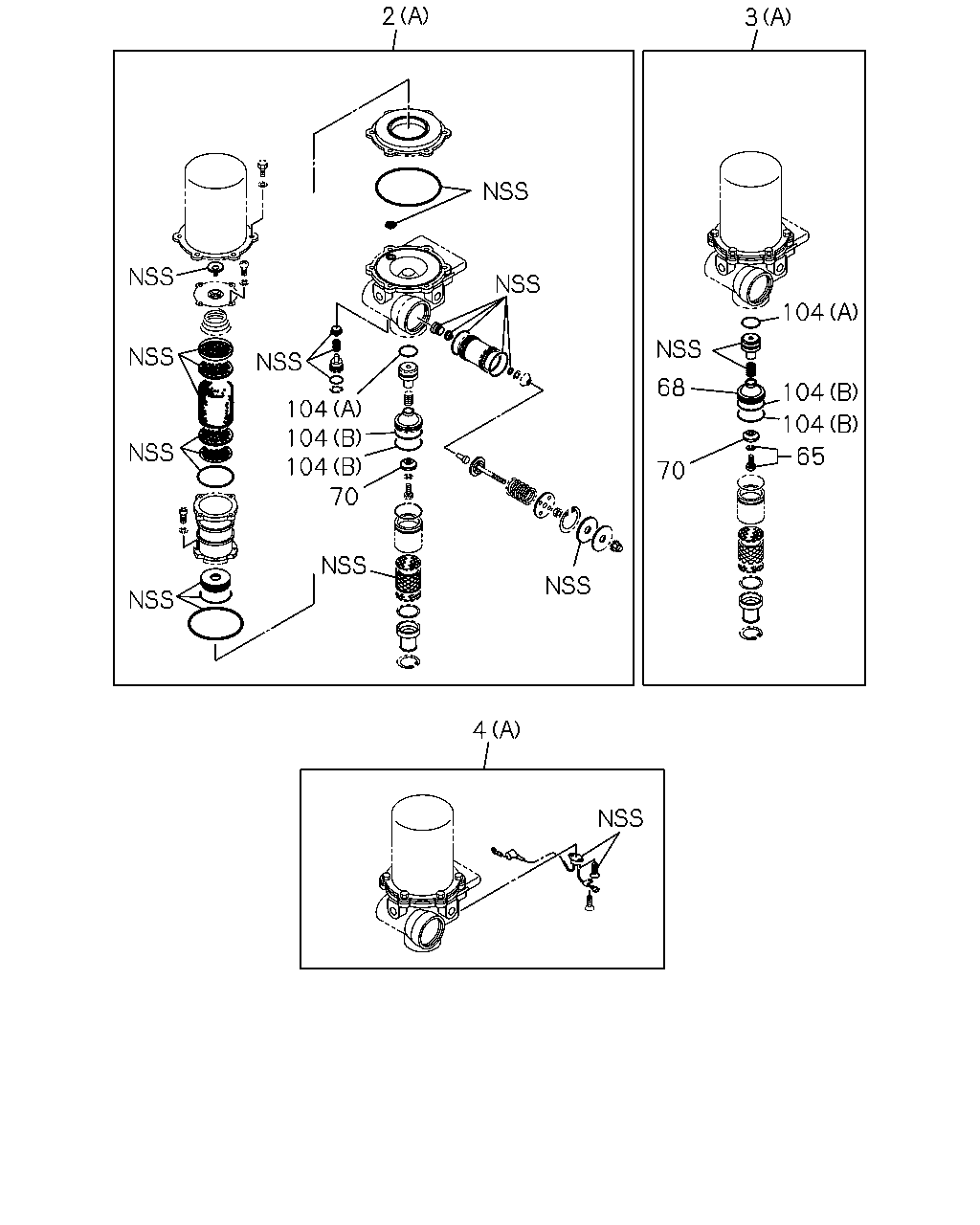

4 70 104 104 104 2 70 68 65 104 104 104 3

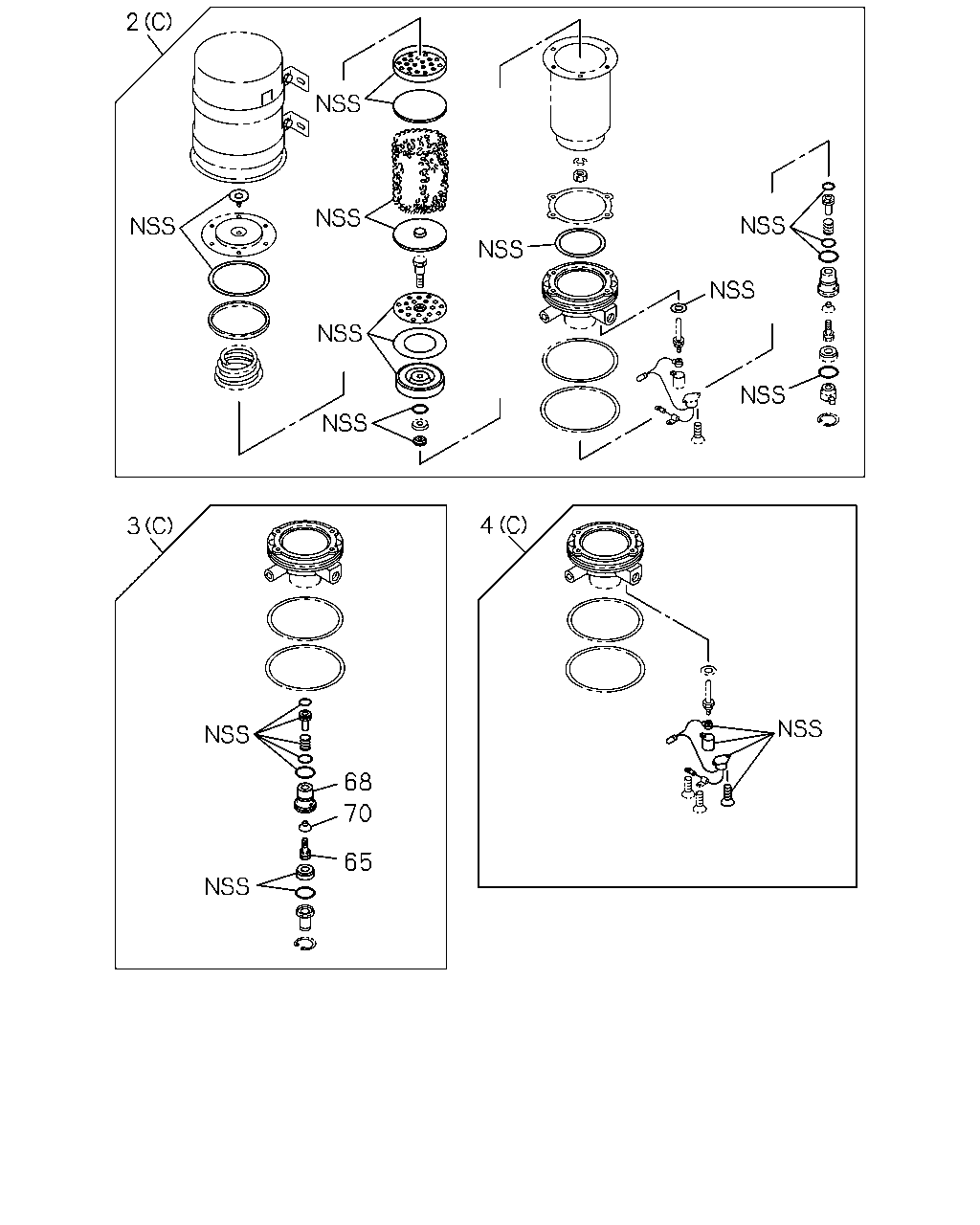

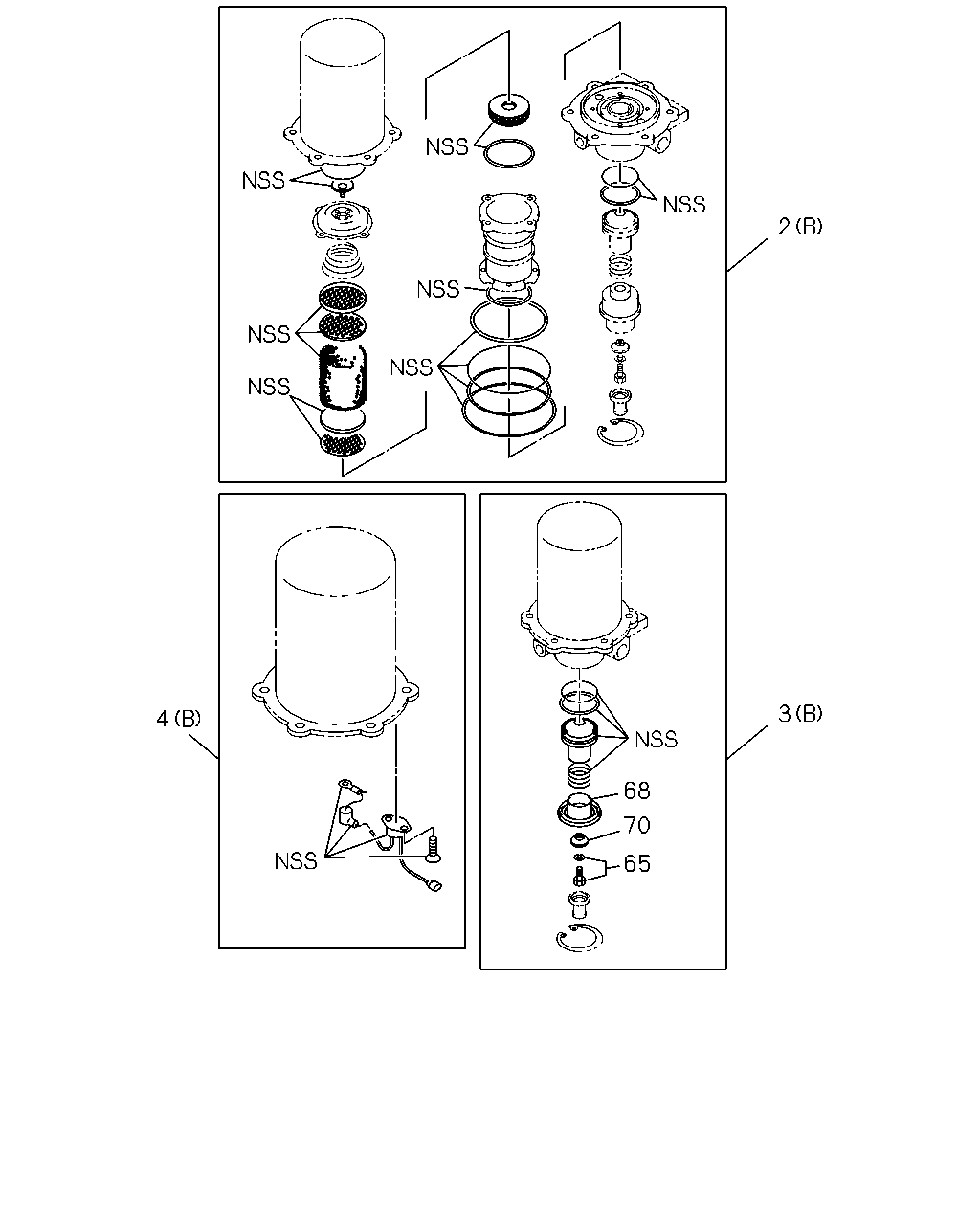

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-85576-226-0	01	1	1505-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) (B)	1-85576-217-0	01	1	1410-1504
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-85576-217-0	01	1	1505-
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) (A)	8-98226-323-0	01	1	1407-1504
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98226-323-0	01	1	1505-
3	PISTON KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-85576-057-1	01	1	1505-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) (B)	1-85576-193-0	01	1	1410-1504
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-85576-193-0	01	1	1505-
3	PISTON KIT; AIR DRYER 4HK1-TCS ENG(RJS) (A)	8-98226-322-0	01	1	1407-1504
3	PISTON KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98226-322-0	01	1	1505-
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-85576-254-0	01	1	1505-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) (B)	1-85576-218-0	01	1	1410-1504
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-85576-218-0	01	1	1505-
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) (A)	1-85576-443-0	01	1	1407-1504
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-85576-443-0	01	1	1505-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L)	1-48199-393-0	01	1	1410-1504
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-393-0	01	1	1505-
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-393-0	01	1	1505-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS)	1-48199-517-0	01	1	1407-1504
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-517-0	01	1	1505-
68	BODY; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-216-0	01	1	1505-
68	BODY; VALVE 6HK1-TCN ENG(82L)	1-48199-408-0	01	1	1410-1504
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-408-0	01	1	1505-
68	BODY; VALVE 4HK1-TCS ENG(RJS)	1-48199-515-0	01	1	1407-1504
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-515-0	01	1	1505-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L)	1-48199-105-0	01	1	1410-1504
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	1505-
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-105-0	01	1	1505-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-504-0	01	1	1407-1504
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-504-0	01	1	1505-
104	GASKET 4HK1-TCS ENG(RJS) (B)	1-48199-496-0	02	1	1407-1504
104	GASKET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-496-0	02	1	1505-
104	GASKET 4HK1-TCS ENG(RJS) (A)	8-98226-321-0	01	1	1407-1504
104	GASKET 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98226-321-0	01	1	1505-

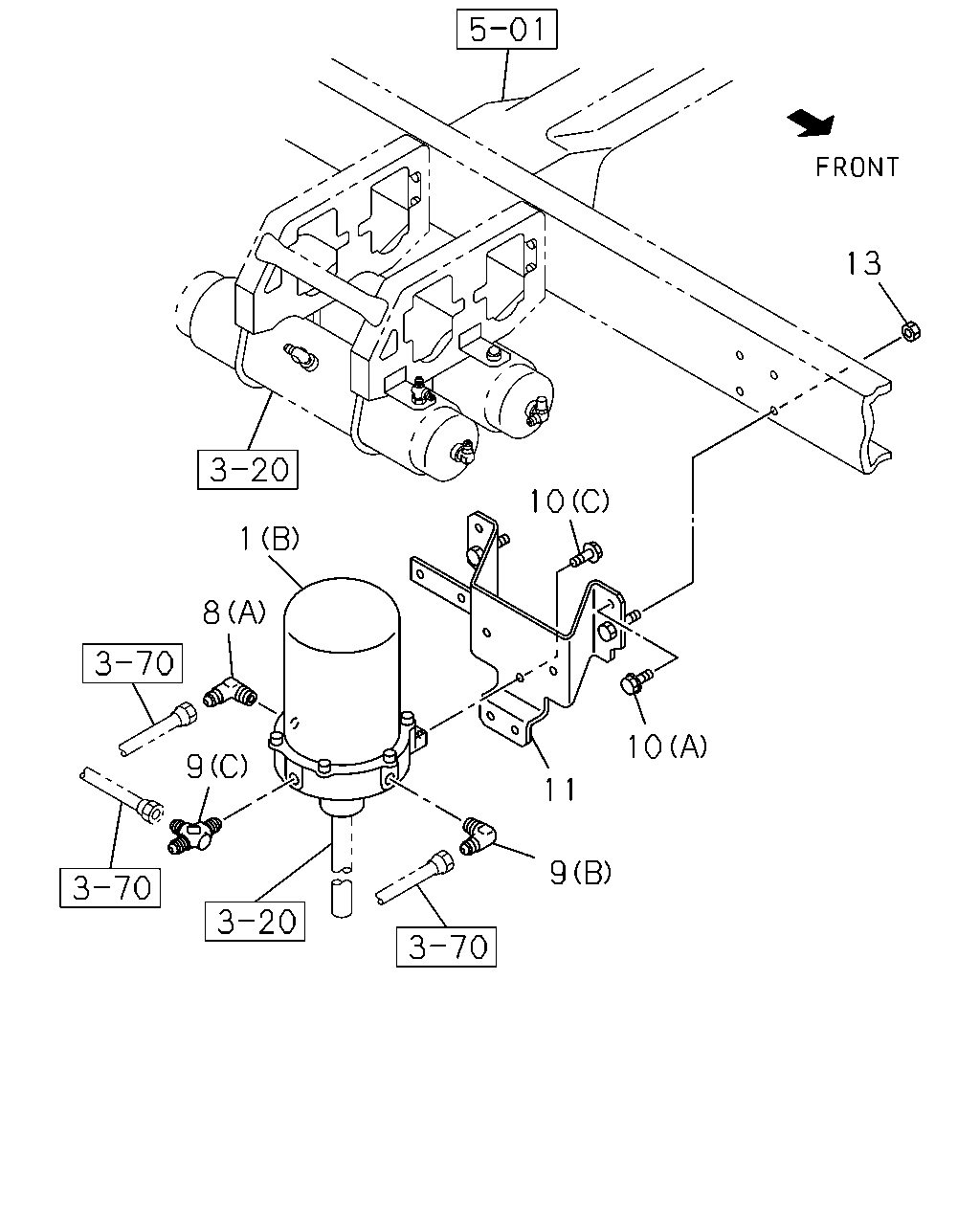

13 10 1 8 9 9 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48190-277-1	01	1	1505-
1	DRYER; AIR 6HK1-TCN ENG(82L) (B)	1-48190-210-1	01	1	1410-1504
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48190-210-1	01	1	1505-
1	DRYER; AIR 4HK1-TCS ENG(RJS) (A)	8-98225-285-0	01	1	1407-1504
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98225-285-0	01	1	1505-
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 & PT1/2 ELBOW MAL	1-09650-443-0	01	1	1505-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> (A) DIN12 & R1/2 ELBOW MAL	1-09660-960-0	01	1	1407-1504
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R1/2 ELBOW MAL	1-09660-960-0	01	1	1505-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) (C) M12X2 & PT1/4 3WAY MAL	1-09656-230-1	01	1	1410-1504
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12X2 & PT1/4 3WAY MAL	1-09656-230-1	01	1	1505-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1410-1504
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1505-
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1505-
9	CONNECTOR; PIPE,AIR DRYER 4HK1-TCS ENG(RJS) (A) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1407-1504
9	CONNECTOR; PIPE,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1505-
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M10X25 FLANGE MAL	0-28651-025-0	04	1	1505-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) (C) M10X20 FLANGE	0-28051-020-0	03	1	1410-1504
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M10X20 FLANGE	0-28051-020-0	03	1	1505-
10	BOLT; AIR DRYER 4HK1-TCS ENG(RJS) (B) M10X25 FLANGE	0-28051-025-0	03	1	1407-1504
10	BOLT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 FLANGE	0-28051-025-0	03	1	1505-
10	BOLT; AIR DRYER (A) M10X35 FLANGE MAL	0-28651-035-0	02	1	1407-1504
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X35 FLANGE MAL	0-28651-035-0	02	1	1505-
11	BRACKET; AIR DRYER 6HK1-TCN ENG(82L)	8-98120-190-0	01	1	1410-1504
11	BRACKET; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98120-190-0	01	1	1505-
11	BRACKET; AIR DRYER 4HK1-TCS ENG(RJS)	8-98225-807-0	01	1	1407-1504
11	BRACKET; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98225-807-0	01	1	1505-
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE MAL	0-91180-210-0	04	1	1407-

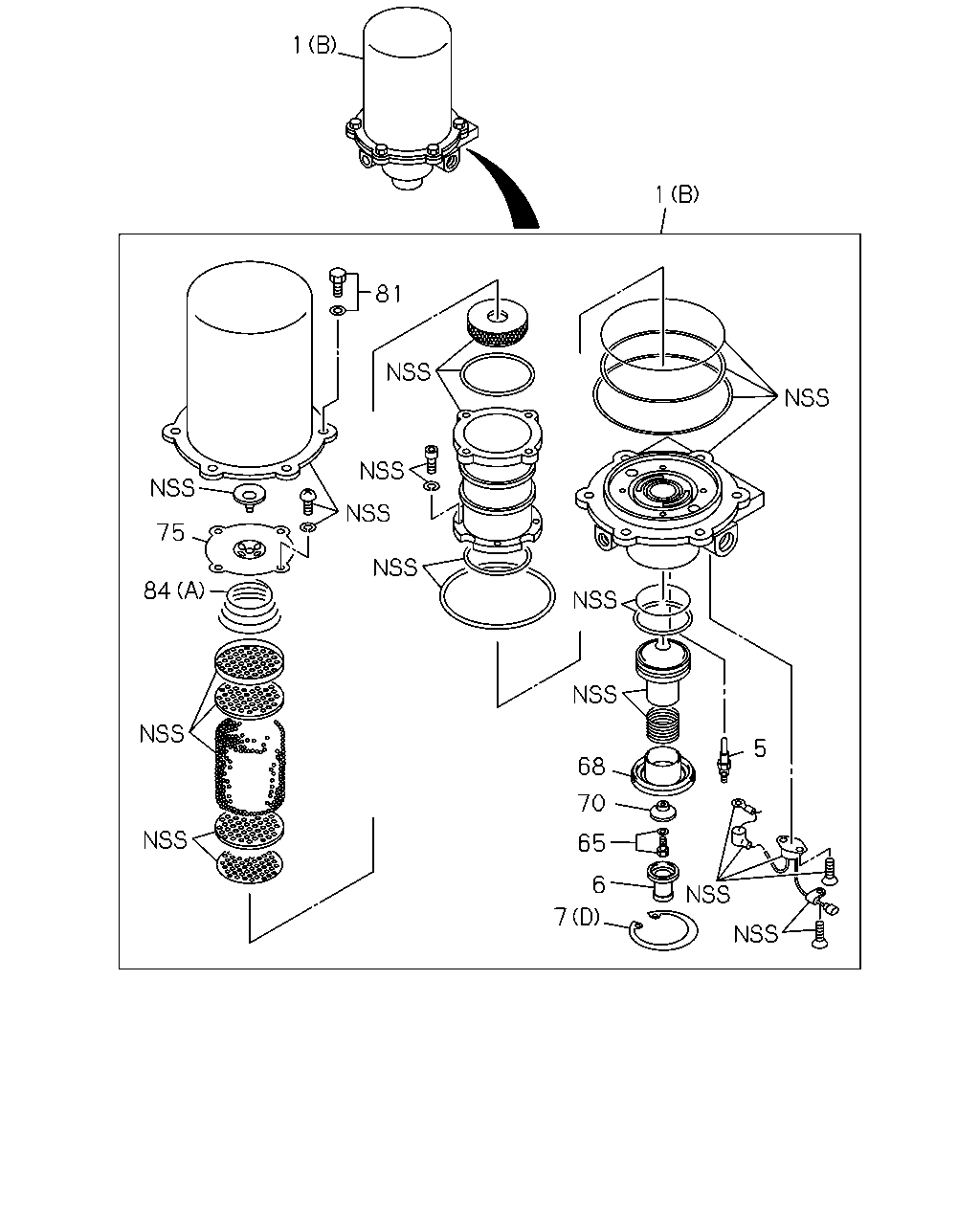

1 1 81 75 84 68 70 65 6 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48190-277-1	01	1	1505-
1	DRYER; AIR 6HK1-TCN ENG(82L) (B)	1-48190-210-1	01	1	1410-1504
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48190-210-1	01	1	1505-
1	DRYER; AIR 4HK1-TCS ENG(RJS) (A)	8-98225-285-0	01	1	1407-1504
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98225-285-0	01	1	1505-
5	HEATER ASM; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-085-0	02	1	1505-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L)	1-48199-085-0	01	1	1410-1504
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-085-0	01	1	1505-
5	HEATER ASM; AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-530-0	01	1	1407-1504
5	HEATER ASM; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-530-0	01	1	1505-
6	COVER; EXH,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-101-0	01	1	1505-
6	COVER; EXH,AIR DRYER 6HK1-TCN ENG(82L)	1-48199-404-0	01	1	1410-1504
6	COVER; EXH,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-404-0	01	1	1505-
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-48199-154-0	01	1	1505-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) (D)	1-48199-403-0	01	1	1410-1504
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48199-403-0	01	1	1505-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) (C)	1-48199-520-0	02	1	1407-1504
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48199-520-0	02	1	1505-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-529-0	01	1	1407-1504
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-529-0	01	1	1505-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) (A)	1-48199-579-0	01	1	1407-1504
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-579-0	01	1	1505-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L)	1-48199-393-0	01	1	1410-1504
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-393-0	01	1	1505-
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-393-0	01	1	1505-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS)	1-48199-517-0	01	1	1407-1504
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-517-0	01	1	1505-
68	BODY; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-216-0	01	1	1505-
68	BODY; VALVE 6HK1-TCN ENG(82L)	1-48199-408-0	01	1	1410-1504
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-408-0	01	1	1505-
68	BODY; VALVE 4HK1-TCS ENG(RJS)	1-48199-515-0	01	1	1407-1504
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-515-0	01	1	1505-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L)	1-48199-105-0	01	1	1410-1504
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	1505-
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-105-0	01	1	1505-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-504-0	01	1	1407-1504
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-504-0	01	1	1505-
75	COVER; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-167-0	01	1	1505-
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-427-0	01	1	1407-1504
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-427-0	01	1	1505-
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-177-0	02	1	1505-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-436-0	06	1	1407-1504
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-436-0	06	1	1505-
84	SPRING; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48199-166-0	01	1	1505-
84	SPRING; AIR DRYER AIR DRYER<PS7> (A)	1-48199-425-0	01	1	1407-1504
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-425-0	01	1	1505-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-523-0	01	1	1407-1504
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-523-0	01	1	1505-

2 3 68 70 65 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-85576-226-0	01	1	1505-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) (B)	1-85576-217-0	01	1	1410-1504
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-85576-217-0	01	1	1505-
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) (A)	8-98226-323-0	01	1	1407-1504
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98226-323-0	01	1	1505-
3	PISTON KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-85576-057-1	01	1	1505-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) (B)	1-85576-193-0	01	1	1410-1504
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-85576-193-0	01	1	1505-
3	PISTON KIT; AIR DRYER 4HK1-TCS ENG(RJS) (A)	8-98226-322-0	01	1	1407-1504
3	PISTON KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98226-322-0	01	1	1505-
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-85576-254-0	01	1	1505-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) (B)	1-85576-218-0	01	1	1410-1504
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-85576-218-0	01	1	1505-
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) (A)	1-85576-443-0	01	1	1407-1504
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-85576-443-0	01	1	1505-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L)	1-48199-393-0	01	1	1410-1504
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-393-0	01	1	1505-
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-393-0	01	1	1505-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS)	1-48199-517-0	01	1	1407-1504
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-517-0	01	1	1505-
68	BODY; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-216-0	01	1	1505-
68	BODY; VALVE 6HK1-TCN ENG(82L)	1-48199-408-0	01	1	1410-1504
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-408-0	01	1	1505-
68	BODY; VALVE 4HK1-TCS ENG(RJS)	1-48199-515-0	01	1	1407-1504
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-515-0	01	1	1505-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L)	1-48199-105-0	01	1	1410-1504
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	1505-
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-105-0	01	1	1505-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-504-0	01	1	1407-1504
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-504-0	01	1	1505-

1 13 10 8 9 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48190-277-1	01	1	1505-
1	DRYER; AIR 6HK1-TCN ENG(82L) (B)	1-48190-210-1	01	1	1410-1504
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48190-210-1	01	1	1505-
1	DRYER; AIR 4HK1-TCS ENG(RJS) (A)	8-98225-285-0	01	1	1407-1504
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98225-285-0	01	1	1505-
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 & PT1/2 ELBOW MAL	1-09650-443-0	01	1	1505-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> (A) DIN12 & R1/2 ELBOW MAL	1-09660-960-0	01	1	1407-1504
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R1/2 ELBOW MAL	1-09660-960-0	01	1	1505-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) (C) M12X2 & PT1/4 3WAY MAL	1-09656-230-1	01	1	1410-1504
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12X2 & PT1/4 3WAY MAL	1-09656-230-1	01	1	1505-
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1410-1504
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1505-
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1505-
9	CONNECTOR; PIPE,AIR DRYER 4HK1-TCS ENG(RJS) (A) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1407-1504
9	CONNECTOR; PIPE,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1505-
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M10X25 FLANGE MAL	0-28651-025-0	04	1	1505-
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) (C) M10X20 FLANGE	0-28051-020-0	03	1	1410-1504
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M10X20 FLANGE	0-28051-020-0	03	1	1505-
10	BOLT; AIR DRYER 4HK1-TCS ENG(RJS) (B) M10X25 FLANGE	0-28051-025-0	03	1	1407-1504
10	BOLT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 FLANGE	0-28051-025-0	03	1	1505-
10	BOLT; AIR DRYER (A) M10X35 FLANGE MAL	0-28651-035-0	02	1	1407-1504
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X35 FLANGE MAL	0-28651-035-0	02	1	1505-
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE MAL	0-91180-210-0	04	1	1407-
54	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X2 & PT1/4 3WAY MAL	1-09656-229-1	01	1	1505-

2 3 68 70 65 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-85576-226-0	01	1	1505-
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) (B)	1-85576-217-0	01	1	1410-1504
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-85576-217-0	01	1	1505-
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) (A)	8-98226-323-0	01	1	1407-1504
2	REPAIR KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98226-323-0	01	1	1505-
3	PISTON KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-85576-057-1	01	1	1505-
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) (B)	1-85576-193-0	01	1	1410-1504
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-85576-193-0	01	1	1505-
3	PISTON KIT; AIR DRYER 4HK1-TCS ENG(RJS) (A)	8-98226-322-0	01	1	1407-1504
3	PISTON KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98226-322-0	01	1	1505-
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-85576-254-0	01	1	1505-
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) (B)	1-85576-218-0	01	1	1410-1504
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-85576-218-0	01	1	1505-
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) (A)	1-85576-443-0	01	1	1407-1504
4	THERMOSTAT KIT; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-85576-443-0	01	1	1505-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L)	1-48199-393-0	01	1	1410-1504
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-393-0	01	1	1505-
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-393-0	01	1	1505-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS)	1-48199-517-0	01	1	1407-1504
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-517-0	01	1	1505-
68	BODY; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-216-0	01	1	1505-
68	BODY; VALVE 6HK1-TCN ENG(82L)	1-48199-408-0	01	1	1410-1504
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-408-0	01	1	1505-
68	BODY; VALVE 4HK1-TCS ENG(RJS)	1-48199-515-0	01	1	1407-1504
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-515-0	01	1	1505-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L)	1-48199-105-0	01	1	1410-1504
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	1505-
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-105-0	01	1	1505-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-504-0	01	1	1407-1504
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-504-0	01	1	1505-

1 1 68 70 65 6 7 5 81 88 71 88 81 79 80 79 80 86 86 75 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48190-277-1	01	1	1505-
1	DRYER; AIR 6HK1-TCN ENG(82L) (B)	1-48190-210-1	01	1	1410-1504
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48190-210-1	01	1	1505-
1	DRYER; AIR 4HK1-TCS ENG(RJS) (A)	8-98225-285-0	01	1	1407-1504
1	DRYER; AIR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98225-285-0	01	1	1505-
5	HEATER ASM; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-085-0	02	1	1505-
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L)	1-48199-085-0	01	1	1410-1504
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-085-0	01	1	1505-
5	HEATER ASM; AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-530-0	01	1	1407-1504
5	HEATER ASM; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-530-0	01	1	1505-
6	COVER; EXH,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-101-0	01	1	1505-
6	COVER; EXH,AIR DRYER 6HK1-TCN ENG(82L)	1-48199-404-0	01	1	1410-1504
6	COVER; EXH,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-404-0	01	1	1505-
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-48199-154-0	01	1	1505-
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) (D)	1-48199-403-0	01	1	1410-1504
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48199-403-0	01	1	1505-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) (C)	1-48199-520-0	02	1	1407-1504
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48199-520-0	02	1	1505-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-529-0	01	1	1407-1504
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-529-0	01	1	1505-
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) (A)	1-48199-579-0	01	1	1407-1504
7	RING; SNAP,AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-579-0	01	1	1505-
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L)	1-48199-393-0	01	1	1410-1504
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-393-0	01	1	1505-
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-393-0	01	1	1505-
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS)	1-48199-517-0	01	1	1407-1504
65	BOLT; PURGE VLV 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-517-0	01	1	1505-
68	BODY; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-216-0	01	1	1505-
68	BODY; VALVE 6HK1-TCN ENG(82L)	1-48199-408-0	01	1	1410-1504
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-408-0	01	1	1505-
68	BODY; VALVE 4HK1-TCS ENG(RJS)	1-48199-515-0	01	1	1407-1504
68	BODY; VALVE 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-515-0	01	1	1505-
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L)	1-48199-105-0	01	1	1410-1504
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	1505-
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-105-0	01	1	1505-
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS)	1-48199-504-0	01	1	1407-1504
70	VALVE; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-504-0	01	1	1505-
71	CASE; INNER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-156-1	01	1	1505-
75	COVER; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-167-0	01	1	1505-
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-427-0	01	1	1407-1504
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-427-0	01	1	1505-
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-189-0	02	1	1505-
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-190-0	02	1	1505-
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-177-0	02	1	1505-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-436-0	06	1	1407-1504
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-436-0	06	1	1505-
84	SPRING; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48199-166-0	01	1	1505-
84	SPRING; AIR DRYER AIR DRYER<PS7> (A)	1-48199-425-0	01	1	1407-1504
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-425-0	01	1	1505-
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) (B)	1-48199-523-0	01	1	1407-1504
84	SPRING; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-523-0	01	1	1505-
86	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-320-0	02	1	1505-
88	PLATE; STOPPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48199-178-0	01	1	1505-
88	PLATE; STOPPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48199-179-0	01	1	1505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
