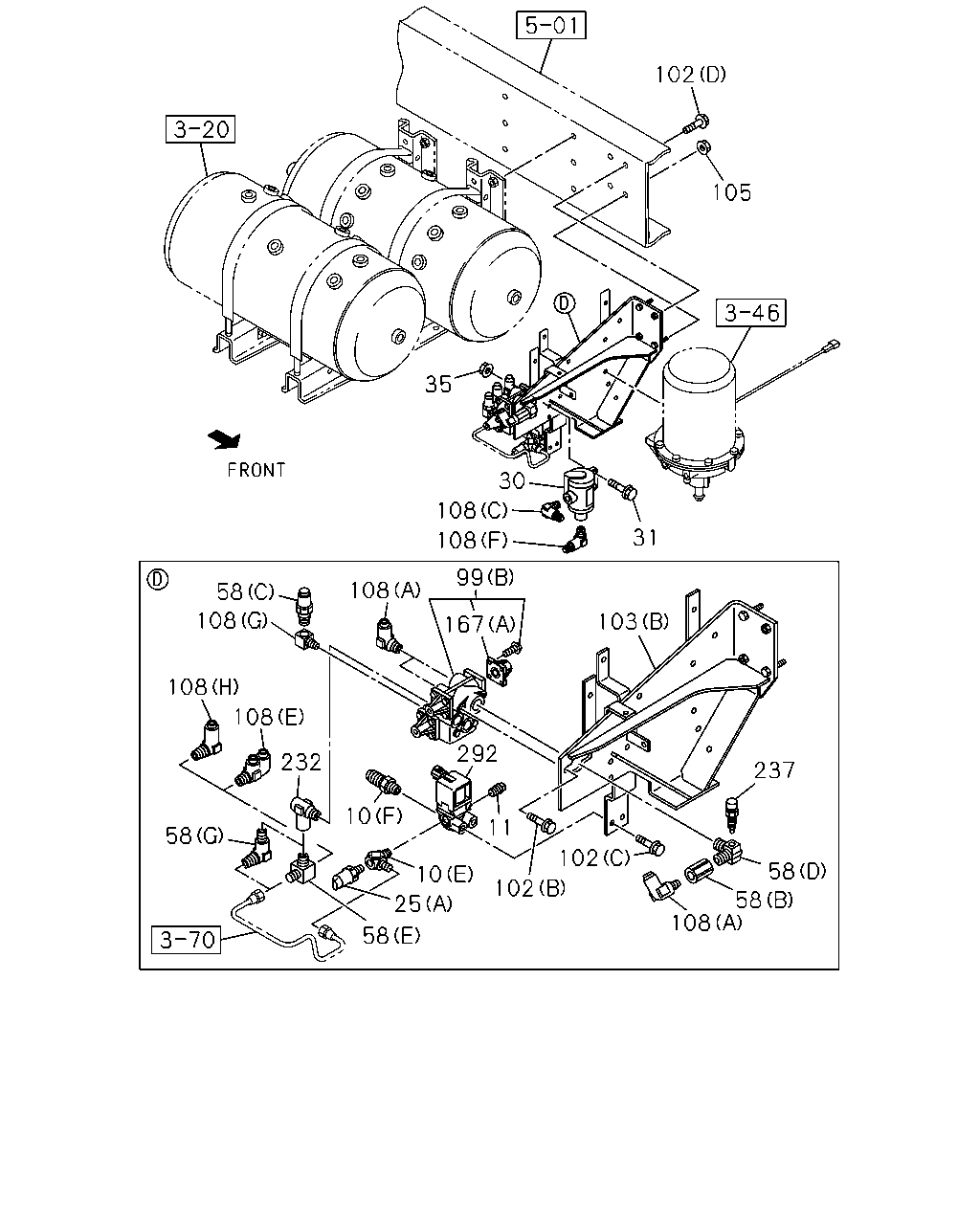

3-22 — AIR CONTROL PARTS (#144151) — 232 parça

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	REPAIR KIT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-451-2	01	1	1505-
241	REPAIR KIT; PROTECTION VALVE MAL	1-85576-452-2	01	1	1407-1504
241	REPAIR KIT; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL	1-85576-452-2	01	1	1505-

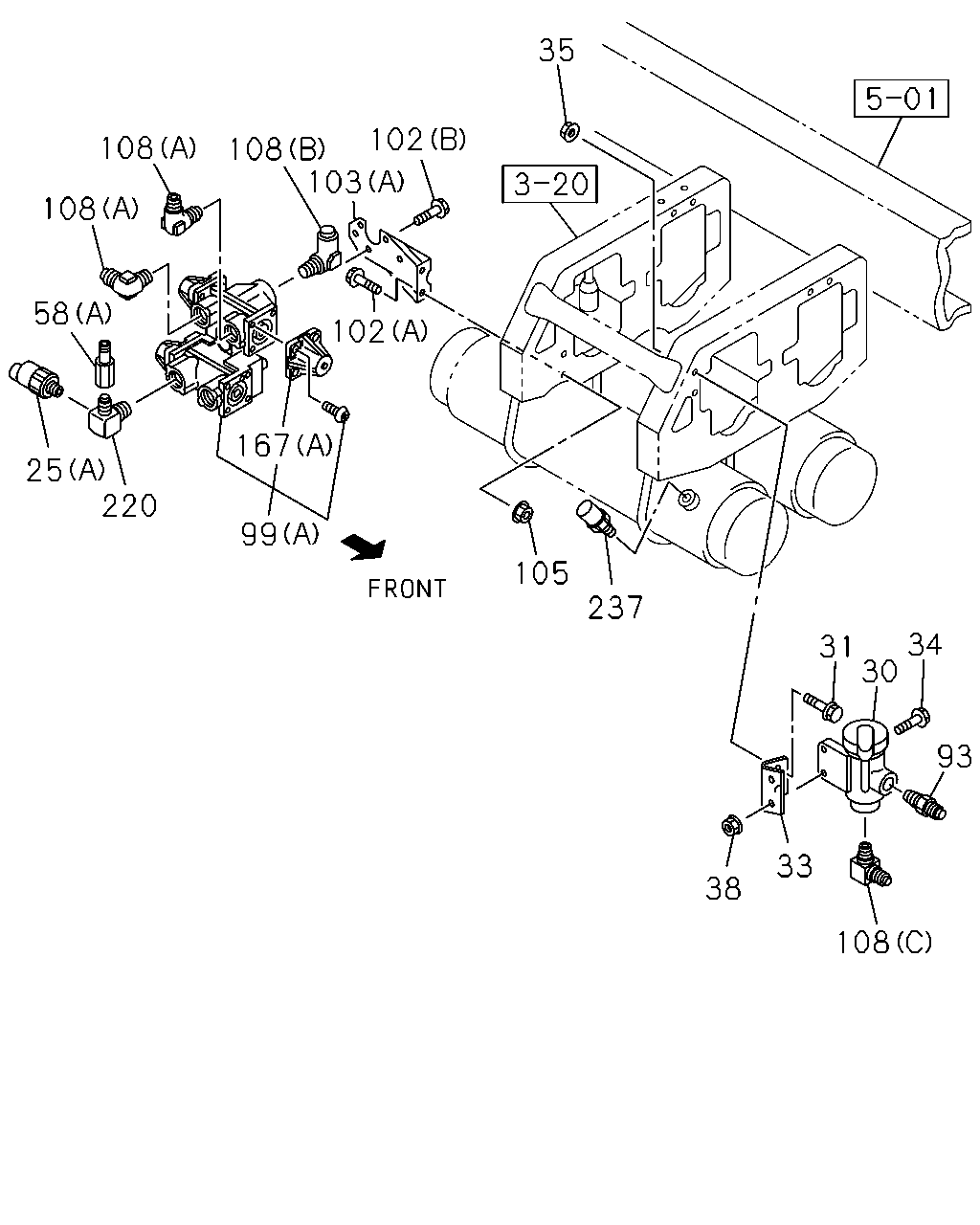

237 105 102 103 108 108 108 58 25 99 35 102 167 220 31 30 34 93 33 38 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) STAMP 2.0	8-98010-856-2	01	1	1505-
25	SWITCH; PRESSURE (A) STAMP 5.5 MAL	8-97609-249-0	01	1	1407-
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L)	1-48350-093-2	01	1	1410-1504
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48350-093-2	01	1	1505-
30	GOVERNOR; AIR CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48350-093-2	01	1	1505-
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	1505-
31	BOLT; GOV TO FRAME 6HK1-TCN ENG(82L) M8X20 FLANGE MAL	0-28650-820-0	02	1	1410-1504
31	BOLT; GOV TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L)	8-98120-459-1	01	1	1410-1504
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98120-459-1	01	1	1505-
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) M8X25 FLANGE MAL	0-28650-825-0	02	1	1410-1504
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE MAL	0-28650-825-0	02	1	1505-
35	NUT; GOV TO FRAME 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1504
35	NUT; GOV TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
35	NUT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1504
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
58	ADAPTER ALLISON MD3060P A/T(Y4G) RIGID SEAT WO/ARM REST<TAZ> (G) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1508-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1505-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1505-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	01	1	1505-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1505-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	8-98148-475-0	01	1	1505-1507
58	ADAPTER ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	8-98148-475-0	01	1	1508-
58	ADAPTER ALLISON MD3060P A/T(Y4G) (E)	8-98148-475-0	01	1	1508-
58	ADAPTER (A) DIN8 & M12 STRAIGHT MAL	1-09660-873-0	01	1	1407-1504
58	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN8 & M12 STRAIGHT MAL	1-09660-873-0	01	1	1505-
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	01	1	1410-1504
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	01	1	1505-
99	VALVE; PROTECTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48110-290-3	01	1	1505-
99	VALVE; PROTECTION (A) MAL	1-48110-287-3	01	1	1407-1504
99	VALVE; PROTECTION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAL	1-48110-287-3	01	1	1505-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M10X35 FLANGE MAL	0-28651-035-0	02	1	1505-1507
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (D) M10X35 FLANGE MAL	0-28651-035-0	02	1	1508-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE MAL	0-28050-816-0	02	1	1407-
102	BOLT; PROTECTION VALVE (A) M10X25 FLANGE MAL	0-28651-025-0	02	1	1407-1504
102	BOLT; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE MAL	0-28651-025-0	02	1	1505-
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98173-454-0	01	1	1505-
103	BRACKET; PROTECTION VALVE (A) MAL	8-98098-183-0	01	1	1407-1504
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAL	8-98098-183-0	01	1	1505-
105	NUT; BRKT,VALVE M10 FLANGE MAL	0-91180-210-0	02	1	1407-
108	CONNECTOR; ELBOW ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56> (H) DIN6 & R1/4 ELBOW MAL	1-09661-067-0	01	1	1508-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & M22 ELBOW MAL	1-09661-497-0	04	1	1505-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) PT3/8 ELBOW	1-09660-696-0	01	1	1505-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	03	1	1505-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8X2 & PT1/4 DOUBLE ELBOW MAL	8-98179-708-0	01	1	1505-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN8 & R1/4 ELBOW MAL	1-09660-956-0	01	1	1505-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (C) M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	1410-1504
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	1505-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	1505-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	02	1	1407-1504
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	02	1	1505-
108	CONNECTOR; ELBOW (B) DIN12 & R1/2 ELBOW MAL	1-09660-960-0	01	1	1407-1504
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R1/2 ELBOW MAL	1-09660-960-0	01	1	1505-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAL	1-48119-625-0	04	1	1505-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-070-0	01	1	1505-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-070-0	01	1	1505-
167	COVER; VALVE (A) MAL	1-48119-625-0	03	1	1407-1504
167	COVER; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAL	1-48119-625-0	03	1	1505-
220	CONNECTOR; 3WAY DIN6 & PT1/4 & M12 3WAY MAL	1-09656-698-0	01	1	1407-1504
220	CONNECTOR; 3WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN6 & PT1/4 & M12 3WAY MAL	1-09656-698-0	01	1	1505-
237	VALVE; SAFETY	1-48320-012-2	01	1	1407-

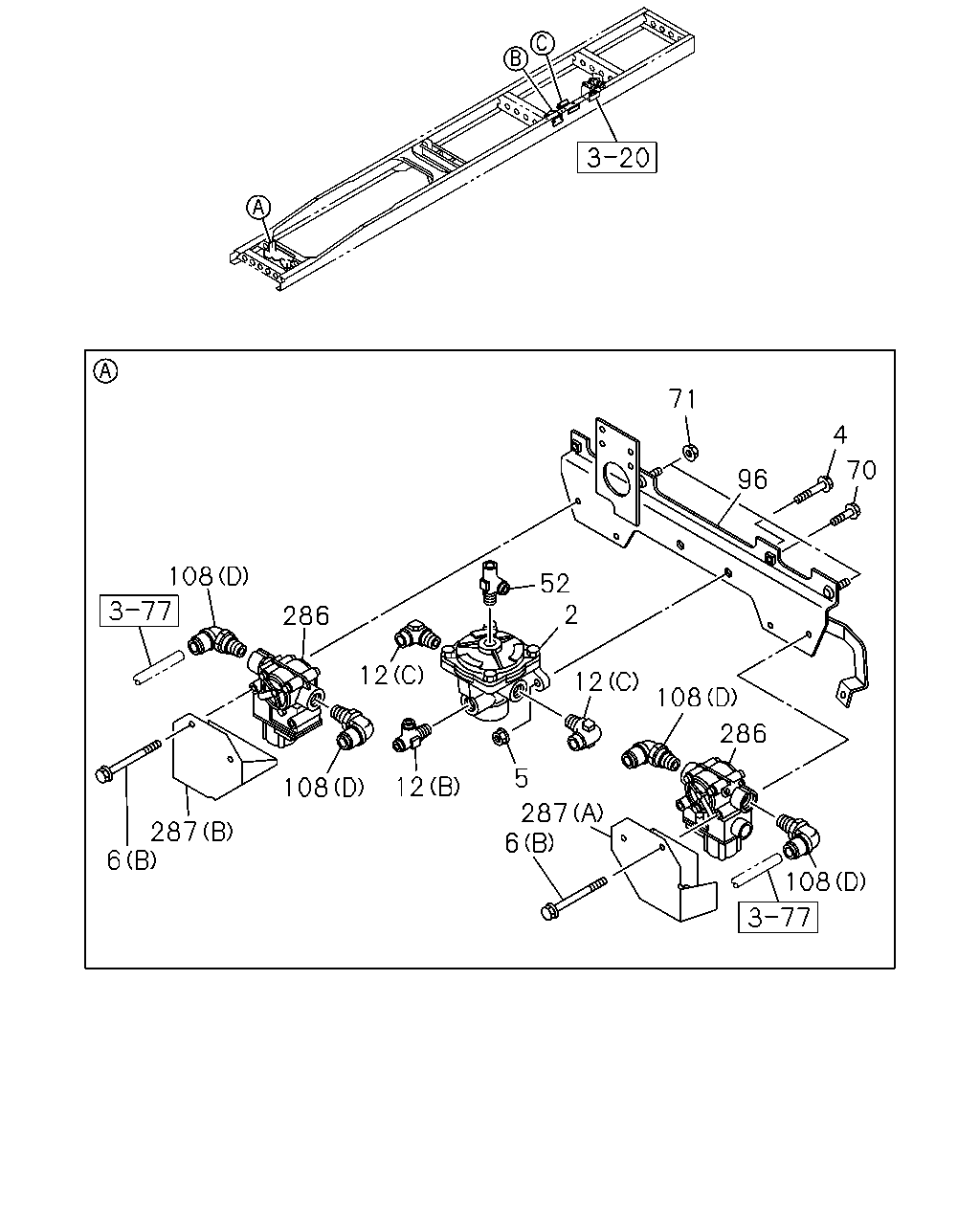

4 70 71 96 52 2 12 108 286 108 287 5 6 12 12 286 108 108 287 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1505-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1505-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE MAL	0-28651-035-0	02	1	1505-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE MAL	0-28651-035-0	02	1	1505-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE MAL	0-91180-210-0	02	1	1505-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE MAL	0-91180-210-0	02	1	1505-
6	BOLT; VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X85 MAL	1-09044-074-0	04	1	1505-
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X35 FLANGE	0-28650-835-0	02	1	1505-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW MAL	1-09660-957-0	01	1	1505-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	01	1	1505-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	02	1	1505-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	02	1	1505-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY MAL	1-09661-207-0	01	1	1505-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8X2 & R3/8 3WAY MAL	1-09660-997-0	01	1	1505-
70	BOLT; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE MAL	0-28650-825-0	02	1	1505-
71	NUT; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
96	BRACKET ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98273-496-0	01	1	1505-
96	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98074-613-3	01	1	1505-
108	CONNECTOR; ELBOW ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56> (H) DIN6 & R1/4 ELBOW MAL	1-09661-067-0	01	1	1508-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & M22 ELBOW MAL	1-09661-497-0	04	1	1505-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) PT3/8 ELBOW	1-09660-696-0	01	1	1505-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	03	1	1505-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8X2 & PT1/4 DOUBLE ELBOW MAL	8-98179-708-0	01	1	1505-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN8 & R1/4 ELBOW MAL	1-09660-956-0	01	1	1505-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (C) M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	1410-1504
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	1505-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	1505-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	02	1	1407-1504
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	02	1	1505-
108	CONNECTOR; ELBOW (B) DIN12 & R1/2 ELBOW MAL	1-09660-960-0	01	1	1407-1504
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R1/2 ELBOW MAL	1-09660-960-0	01	1	1505-
286	MODULATOR; FRT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MAL	8-98215-454-0	02	1	1505-
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) MAL	8-98273-493-0	01	1	1505-
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAL	8-98273-494-0	01	1	1505-

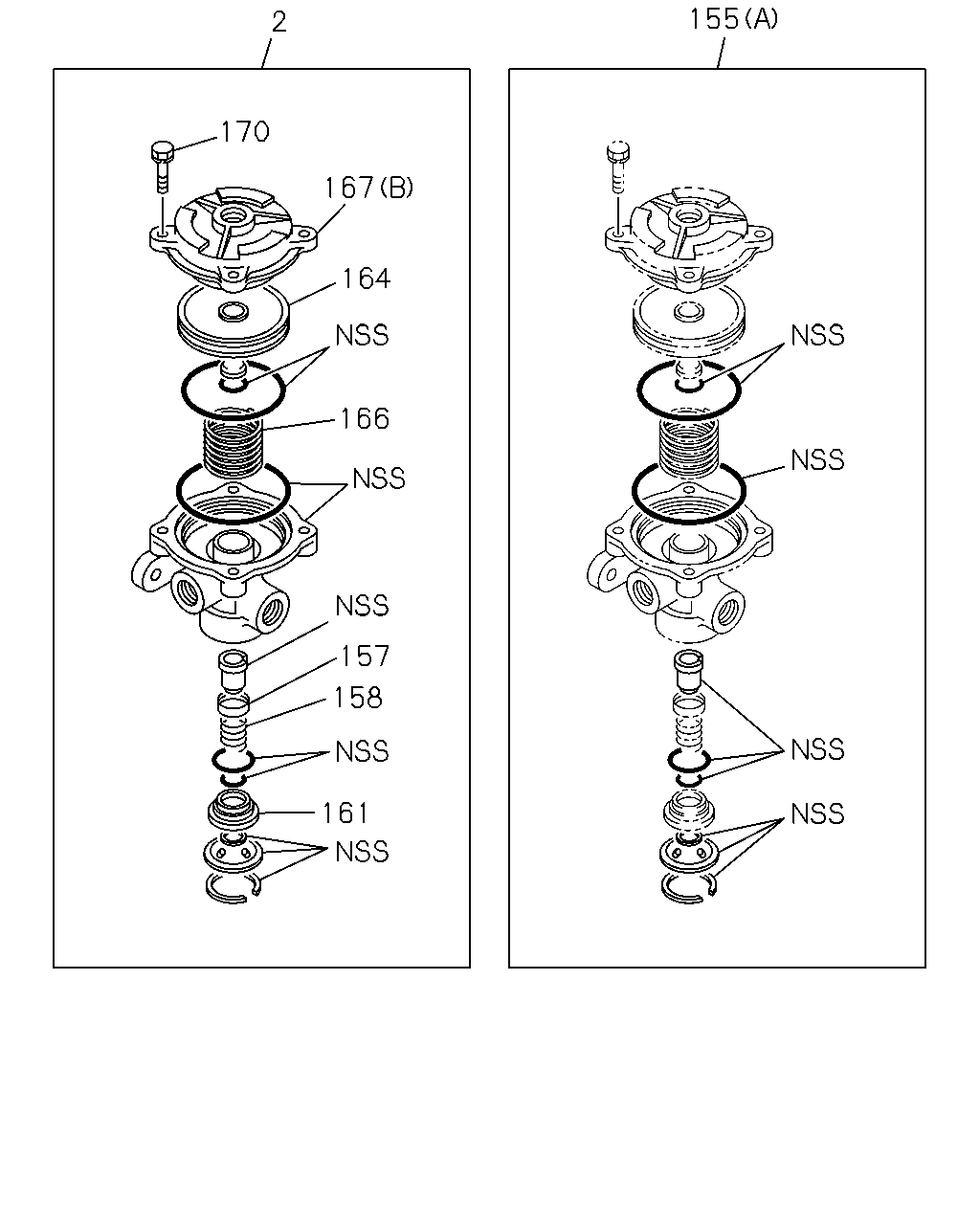

2 170 167 164 166 157 158 161 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1505-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1505-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1505-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1505-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1505-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1505-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1505-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1505-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1505-
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1505-
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1505-
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1505-
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1505-
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1505-
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1505-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAL	1-48119-625-0	04	1	1505-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-070-0	01	1	1505-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-070-0	01	1	1505-
167	COVER; VALVE (A) MAL	1-48119-625-0	03	1	1407-1504
167	COVER; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAL	1-48119-625-0	03	1	1505-
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1505-
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1505-

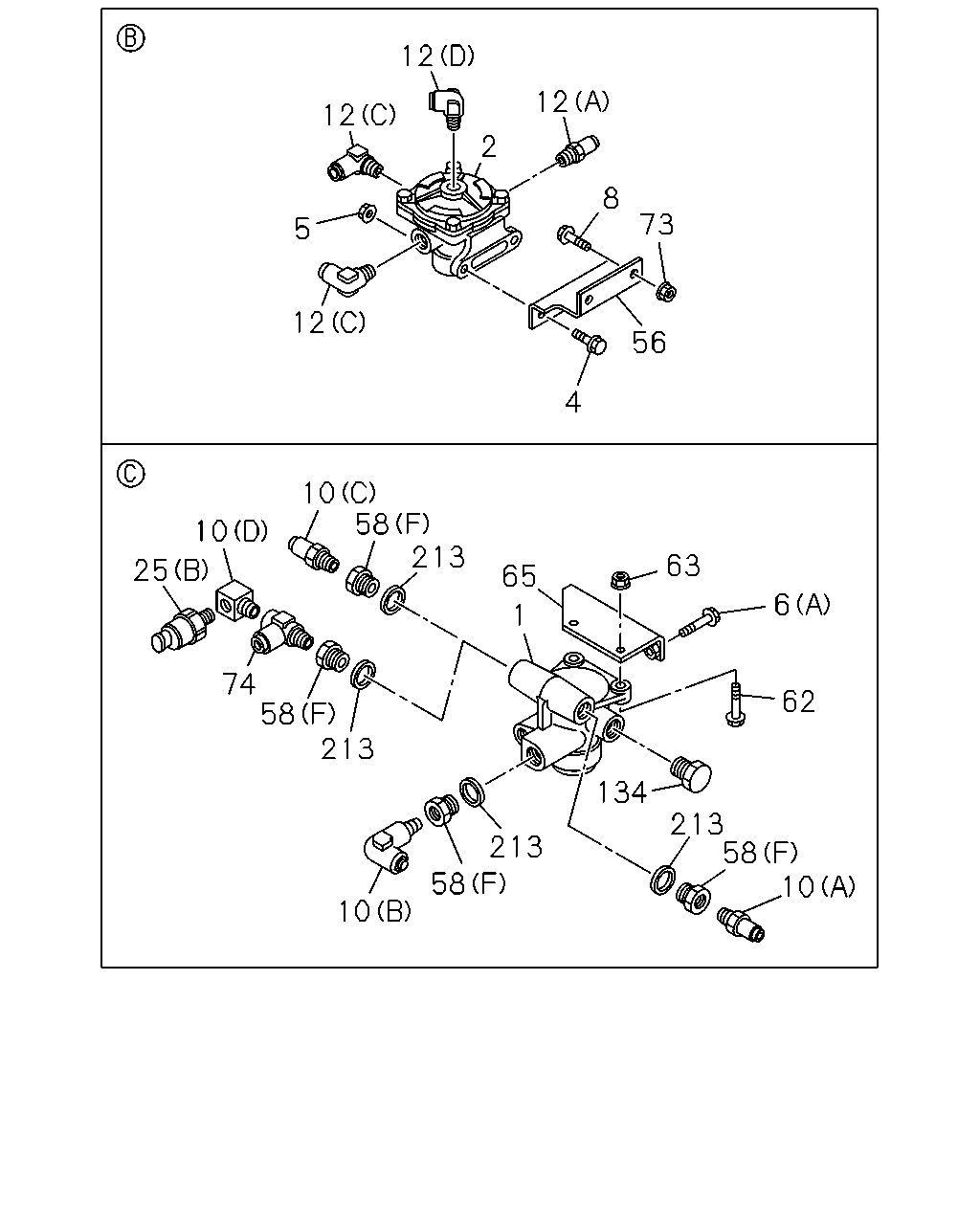

12 2 12 8 73 56 4 12 5 12 10 58 213 10 25 74 58 213 10 58 213 134 213 58 10 62 6 63 65 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48240-354-1	01	1	1505-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1505-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1505-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE MAL	0-28651-035-0	02	1	1505-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE MAL	0-28651-035-0	02	1	1505-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE MAL	0-91180-210-0	02	1	1505-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE MAL	0-91180-210-0	02	1	1505-
6	BOLT; VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X85 MAL	1-09044-074-0	04	1	1505-
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X35 FLANGE	0-28650-835-0	02	1	1505-
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE MAL	0-28651-035-0	02	1	1505-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) PT1/4 & PT1/4 2WAY MAL	1-09660-693-0	01	1	1505-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	01	1	1505-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 STRAIGHT MAL	1-09660-964-0	01	1	1505-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	01	1	1505-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	01	1	1505-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1505-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW MAL	1-09660-957-0	01	1	1505-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	01	1	1505-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	02	1	1505-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	02	1	1505-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY MAL	1-09661-207-0	01	1	1505-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) STAMP 2.0	8-98010-856-2	01	1	1505-
25	SWITCH; PRESSURE (A) STAMP 5.5 MAL	8-97609-249-0	01	1	1407-
56	BRACKET; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98126-366-0	01	1	1505-
58	ADAPTER ALLISON MD3060P A/T(Y4G) RIGID SEAT WO/ARM REST<TAZ> (G) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1508-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1505-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1505-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	01	1	1505-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1505-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	8-98148-475-0	01	1	1505-1507
58	ADAPTER ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	8-98148-475-0	01	1	1508-
58	ADAPTER ALLISON MD3060P A/T(Y4G) (E)	8-98148-475-0	01	1	1508-
58	ADAPTER (A) DIN8 & M12 STRAIGHT MAL	1-09660-873-0	01	1	1407-1504
58	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN8 & M12 STRAIGHT MAL	1-09660-873-0	01	1	1505-
62	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	1505-
63	NUT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
65	BRACKET; RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47471-032-0	01	1	1505-
73	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE MAL	0-91180-210-0	02	1	1505-
74	CONNECTOR; 3WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1505-
134	PLUG; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22 MAL	1-09661-502-0	01	1	1505-
213	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=22.5	9-09571-422-0	04	1	1505-

31 30 35 108 108 108 58 108 108 108 232 58 10 10 25 58 102 11 292 167 99 103 237 58 58 108 102 105 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) PT1/4 & PT1/4 2WAY MAL	1-09660-693-0	01	1	1505-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	01	1	1505-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 STRAIGHT MAL	1-09660-964-0	01	1	1505-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	01	1	1505-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	01	1	1505-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1505-
11	PLUG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/4 MAL	9-99204-513-0	01	1	1505-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) STAMP 2.0	8-98010-856-2	01	1	1505-
25	SWITCH; PRESSURE (A) STAMP 5.5 MAL	8-97609-249-0	01	1	1407-
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L)	1-48350-093-2	01	1	1410-1504
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48350-093-2	01	1	1505-
30	GOVERNOR; AIR CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48350-093-2	01	1	1505-
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	1505-
31	BOLT; GOV TO FRAME 6HK1-TCN ENG(82L) M8X20 FLANGE MAL	0-28650-820-0	02	1	1410-1504
31	BOLT; GOV TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
35	NUT; GOV TO FRAME 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1504
35	NUT; GOV TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
35	NUT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
58	ADAPTER ALLISON MD3060P A/T(Y4G) RIGID SEAT WO/ARM REST<TAZ> (G) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1508-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1505-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1505-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	01	1	1505-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1505-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	8-98148-475-0	01	1	1505-1507
58	ADAPTER ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	8-98148-475-0	01	1	1508-
58	ADAPTER ALLISON MD3060P A/T(Y4G) (E)	8-98148-475-0	01	1	1508-
58	ADAPTER (A) DIN8 & M12 STRAIGHT MAL	1-09660-873-0	01	1	1407-1504
58	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN8 & M12 STRAIGHT MAL	1-09660-873-0	01	1	1505-
99	VALVE; PROTECTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48110-290-3	01	1	1505-
99	VALVE; PROTECTION (A) MAL	1-48110-287-3	01	1	1407-1504
99	VALVE; PROTECTION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAL	1-48110-287-3	01	1	1505-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M10X35 FLANGE MAL	0-28651-035-0	02	1	1505-1507
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> (D) M10X35 FLANGE MAL	0-28651-035-0	02	1	1508-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE MAL	0-28050-816-0	02	1	1407-
102	BOLT; PROTECTION VALVE (A) M10X25 FLANGE MAL	0-28651-025-0	02	1	1407-1504
102	BOLT; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE MAL	0-28651-025-0	02	1	1505-
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98173-454-0	01	1	1505-
103	BRACKET; PROTECTION VALVE (A) MAL	8-98098-183-0	01	1	1407-1504
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAL	8-98098-183-0	01	1	1505-
105	NUT; BRKT,VALVE M10 FLANGE MAL	0-91180-210-0	02	1	1407-
108	CONNECTOR; ELBOW ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56> (H) DIN6 & R1/4 ELBOW MAL	1-09661-067-0	01	1	1508-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & M22 ELBOW MAL	1-09661-497-0	04	1	1505-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) PT3/8 ELBOW	1-09660-696-0	01	1	1505-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	03	1	1505-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8X2 & PT1/4 DOUBLE ELBOW MAL	8-98179-708-0	01	1	1505-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN8 & R1/4 ELBOW MAL	1-09660-956-0	01	1	1505-
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (C) M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	1410-1504
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	1505-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	1505-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	02	1	1407-1504
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	02	1	1505-
108	CONNECTOR; ELBOW (B) DIN12 & R1/2 ELBOW MAL	1-09660-960-0	01	1	1407-1504
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R1/2 ELBOW MAL	1-09660-960-0	01	1	1505-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAL	1-48119-625-0	04	1	1505-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-070-0	01	1	1505-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-070-0	01	1	1505-
167	COVER; VALVE (A) MAL	1-48119-625-0	03	1	1407-1504
167	COVER; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAL	1-48119-625-0	03	1	1505-
232	VALVE; CHECK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1505-
237	VALVE; SAFETY	1-48320-012-2	01	1	1407-
292	VALVE ASM; MAGNETIC BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MAL	1-82563-871-2	01	1	1505-

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1505-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1505-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1505-
279	REPAIR KIT; SILENCER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-409-0	01	1	1505-

240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
240	REPAIR KIT; AIR CONT GOV 6HK1-TCN ENG(82L)	1-85576-467-0	01	1	1410-1504
240	REPAIR KIT; AIR CONT GOV 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-467-0	01	1	1505-
240	REPAIR KIT; AIR CONT GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-467-0	01	1	1505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
