Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#144150) — 349 parça

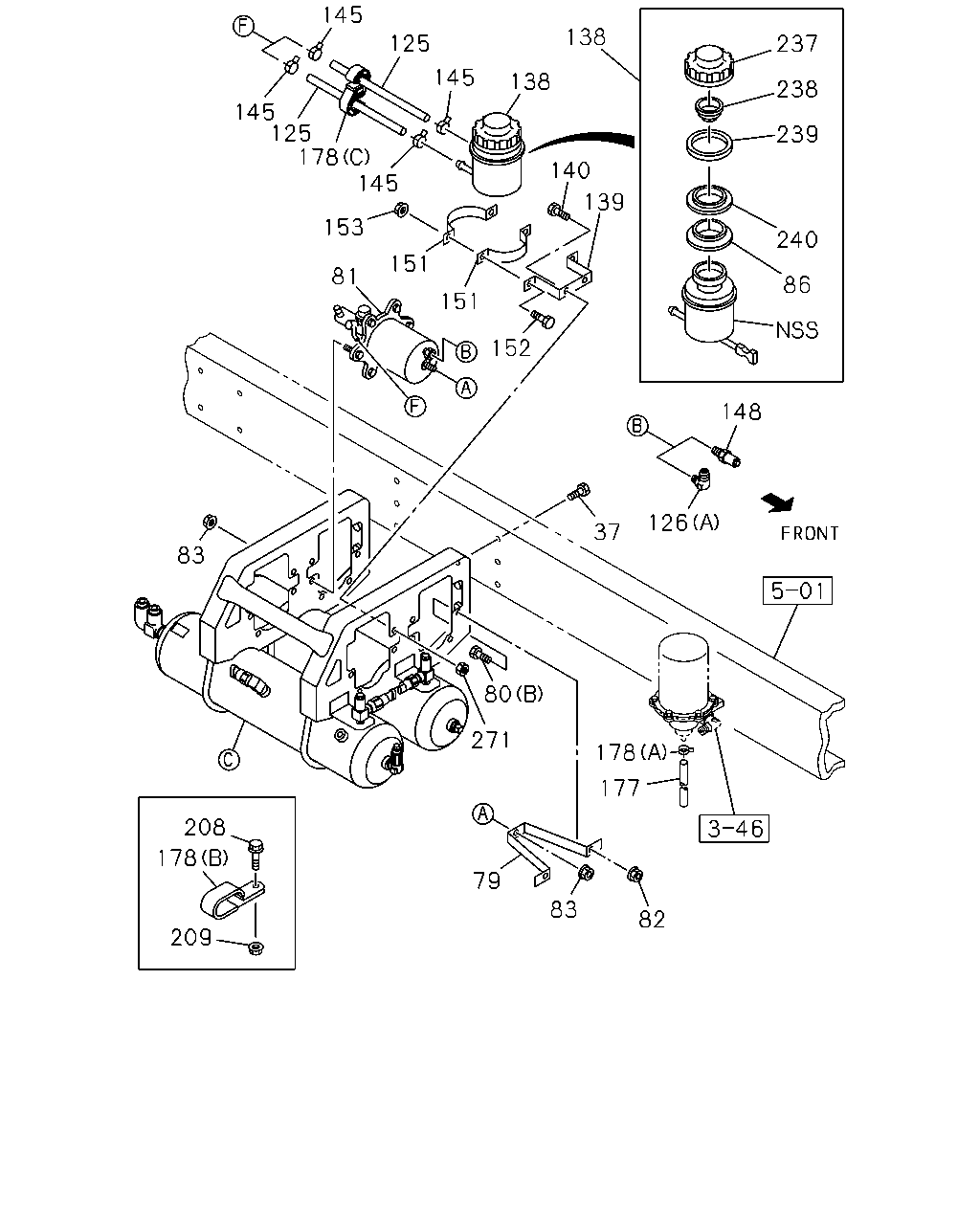

145 145 138 138 125 145 178 125 145 151 81 153 151 152 139 140 237 238 239 240 86 148 126 37 80 271 178 177 83 82 79 208 178 209 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE MAL	0-28651-240-0	08	1	1505-
37	BOLT; AIR TANK M12X40 FLANGE MAL	0-28651-240-0	06	1	1407-1504
37	BOLT; AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) M12X40 FLANGE MAL	0-28651-240-0	06	1	1505-
79	STAY; AIR MASTER TO BRKT	8-98120-254-0	02	1	1407-1504
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98120-254-0	02	1	1505-
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X30 FLANGE	0-28651-030-0	03	1	1505-
80	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X20 FLANGE MAL	0-28650-820-0	06	1	1410-1504
80	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE MAL	0-28650-820-0	06	1	1505-
80	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE MAL	0-28650-820-0	05	1	1407-1504
80	BOLT; BRKT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE MAL	0-28650-820-0	05	1	1505-
80	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	1407-1504
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X30 FLANGE	0-28651-030-0	04	1	1505-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-663-1	02	1	1407-1504
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47800-663-1	02	1	1505-
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE MAL	0-91180-210-0	04	1	1407-1504
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE MAL	0-91180-210-0	04	1	1505-
83	NUT; AIR MASTER M10 FLANGE MAL	0-91180-210-0	10	1	1407-1504
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE MAL	0-91180-210-0	10	1	1505-
86	SEAL; DUST	1-47529-019-0	01	1	1407-1504
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	1505-
125	HOSE; OIL TANK TO AIR MASTER L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1407-1504
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1505-
125	HOSE; OIL TANK TO AIR MASTER	8-98197-596-0	01	1	1407-1504
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98197-596-0	01	1	1505-
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I) PT1/4 & PT1/4 2WAY MAL	1-09660-693-0	04	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J) DIN8 & R1/4 ELBOW MAL	1-09660-956-0	01	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) DIN8 & R3/8 ELBOW MAL	1-09660-957-0	02	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	04	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	03	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (M) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (N) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	04	1	1505-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (G) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	01	1	1410-1504
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	01	1	1505-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1410-1504
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1505-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) (D) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1407-1504
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1505-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY MAL	1-09660-809-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT1/4 & PT3/8 2WAY MAL	1-09660-809-0	01	1	1505-
126	CONNECTOR; ELBOW (F) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1505-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	01	1	1505-
126	CONNECTOR; ELBOW (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1505-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1505-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1407-1504
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-185-1	01	1	1505-
139	BRACKET; OIL TANK	1-47537-081-2	01	1	1407-1504
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-081-2	01	1	1505-
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE MAL	0-28651-025-0	02	1	1407-1504
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE MAL	0-28651-025-0	02	1	1505-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	1407-1504
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	1505-
148	CONNECTOR; AIR MASTER DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	01	1	1407-1504
148	CONNECTOR; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	01	1	1505-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1407-1504
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-056-2	02	1	1505-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE MAL	0-28650-820-0	02	1	1407-1504
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
153	NUT; OIL TANK TO BAND M8	0-91110-508-0	02	1	1407-1504
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	02	1	1505-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000 MAL	0-03566-300-0	01	1	1407-
178	CLIP; HOSE 6HK1-TCN ENG(82L) (C) ID=12 & 12	1-09709-280-1	01	1	1410-1504
178	CLIP; HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1505-
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21 MAL	8-94242-034-0	01	1	1407-
178	CLIP; HOSE (B) DIN15X2	9-09917-171-0	01	1	1407-1504
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN15X2	9-09917-171-0	01	1	1505-
208	BOLT; CLIP M8X20 FLANGE MAL	0-28650-820-0	01	1	1407-1504
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE MAL	0-28650-820-0	01	1	1505-
209	NUT; CLIP M8 FLANGE MAL	0-91180-108-0	01	1	1407-1504
209	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE MAL	0-91180-108-0	01	1	1505-
237	CAP; OIL TANK	1-47525-030-0	01	1	1407-1504
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-030-0	01	1	1505-
238	PLATE; BAFFLE	1-47529-022-0	01	1	1407-1504
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	1505-
239	FILTER; DUST	1-47529-017-0	01	1	1407-1504
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	1505-
240	HOLDER; FILTER	1-47529-018-0	01	1	1407-1504
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	1505-
271	NUT; BRKT,HOSE M10 FLANGE MAL	0-91180-210-0	02	1	1407-1504
271	NUT; BRKT,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE MAL	0-91180-210-0	02	1	1505-

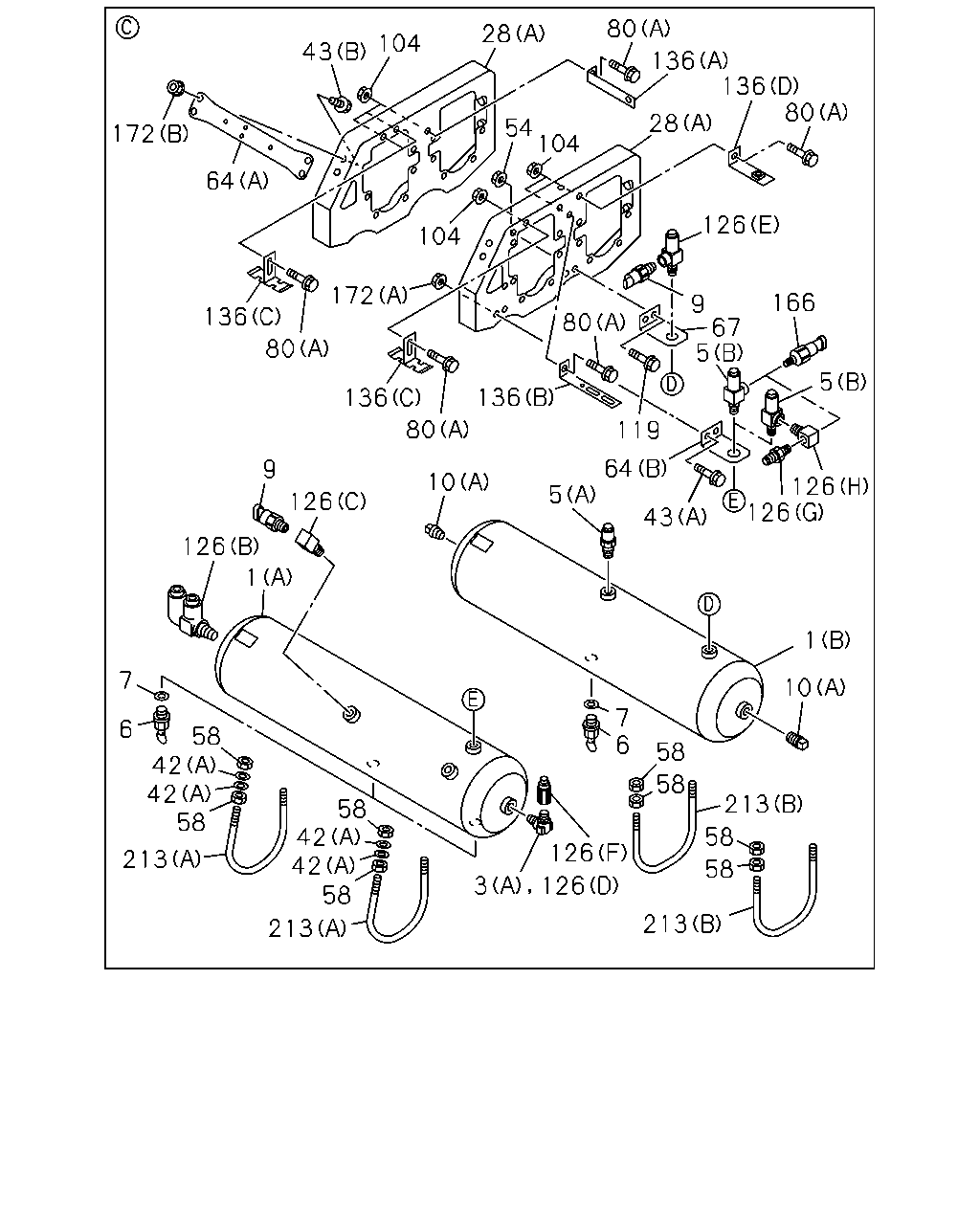

43 104 28 80 136 136 28 126 104 54 64 172 136 136 80 9 126 1 7 6 58 42 42 58 213 58 42 42 58 213 3 126 126 213 58 58 213 58 58 6 7 10 1 126 64 119 136 80 10 126 5 67 166 5 9 80 80 126 5 43 104 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-181-1	01	1	1505-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) MAL	8-98081-870-1	01	1	1505-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98184-783-0	01	1	1505-
1	TANK ASM; AIR (A)	1-48370-500-0	01	1	1407-1504
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-500-0	01	1	1505-
1	TANK ASM; AIR (B)	1-48370-501-0	01	1	1407-1504
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-501-0	01	1	1505-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1505-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1410-1504
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1505-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R3/8 ELBOW MAL	1-09660-957-0	02	1	1505-
5	UNION; AIR TANK (A) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	01	1	1407-1504
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	01	1	1505-
5	UNION; AIR TANK (B) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1407-1504
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1505-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	01	1	1505-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	1505-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1407-1504
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	03	1	1505-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	01	1	1505-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	1505-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1407-1504
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	03	1	1505-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STAMP 5.5 MAL	8-97609-249-0	04	1	1505-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5 MAL	8-97609-249-0	02	1	1407-1504
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5 MAL	8-97609-249-0	02	1	1505-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT3/4	9-09204-526-0	03	1	1505-
10	PLUG; AIR TANK (A) PT3/8 MAL	9-09204-517-0	02	1	1407-1504
10	PLUG; AIR TANK 6HK1-TCS ENG(80L) (A) PT3/8 MAL	9-09204-517-0	02	1	1505-
10	PLUG; AIR TANK (A) PT3/8 MAL	9-09204-517-0	02	1	1505-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-601-5	02	1	1505-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) MAL	8-98100-165-3	01	1	1505-
28	BRACKET; AIR TANK (A)	1-53318-338-6	02	1	1407-1504
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-338-6	02	1	1505-
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=10.5 MAL	0-91614-510-0	02	1	1505-
42	WASHER; PL (A) ID=8.4 OD=18	0-91610-608-0	04	1	1407-1504
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=8.4 OD=18	0-91610-608-0	04	1	1505-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE MAL	0-28650-825-0	06	1	1505-
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1407-1504
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE MAL	0-28651-025-0	04	1	1407-1504
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 FLANGE MAL	0-28651-025-0	04	1	1505-
54	NUT; STAY M8 FLANGE MAL	0-91180-108-0	02	1	1407-1504
54	NUT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	1407-1504
58	NUT; BAND,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	16	1	1505-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-607-0	01	1	1505-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48317-691-0	01	1	1505-
64	STAY; AIR TANK,MAIN (B)	1-48317-349-0	01	1	1407-1504
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48317-349-0	01	1	1505-
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	1407-1504
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	1505-
67	STAY; SUB TANK	1-48317-349-0	01	1	1407-1504
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	1505-
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X30 FLANGE	0-28651-030-0	03	1	1505-
80	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X20 FLANGE MAL	0-28650-820-0	06	1	1410-1504
80	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE MAL	0-28650-820-0	06	1	1505-
80	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE MAL	0-28650-820-0	05	1	1407-1504
80	BOLT; BRKT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE MAL	0-28650-820-0	05	1	1505-
80	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	1407-1504
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X30 FLANGE	0-28651-030-0	04	1	1505-
104	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	06	1	1410-1504
104	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE MAL	0-91180-108-0	06	1	1505-
104	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	05	1	1407-1504
104	NUT; BRKT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE MAL	0-91180-108-0	05	1	1505-
119	BOLT; STAY M8X20 FLANGE MAL	0-28650-820-0	02	1	1407-1504
119	BOLT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I) PT1/4 & PT1/4 2WAY MAL	1-09660-693-0	04	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J) DIN8 & R1/4 ELBOW MAL	1-09660-956-0	01	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) DIN8 & R3/8 ELBOW MAL	1-09660-957-0	02	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	04	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	03	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (M) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (N) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	04	1	1505-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (G) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	01	1	1410-1504
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	01	1	1505-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1410-1504
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1505-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) (D) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1407-1504
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1505-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY MAL	1-09660-809-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT1/4 & PT3/8 2WAY MAL	1-09660-809-0	01	1	1505-
126	CONNECTOR; ELBOW (F) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1505-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	01	1	1505-
126	CONNECTOR; ELBOW (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1505-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1505-
136	BRACKET; CLIP 6HK1-TCN ENG(82L) (D) L=90 B=25	1-47475-530-0	01	1	1410-1504
136	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=90 B=25	1-47475-530-0	01	1	1505-
136	BRACKET; CLIP 6HK1-TCN ENG(82L) (B) L=150 H=30	1-47477-629-2	01	1	1410-1504
136	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=150 H=30	1-47477-629-2	01	1	1505-
136	BRACKET; CLIP (A) L=112	1-47475-694-1	01	1	1407-1504
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=112	1-47475-694-1	01	1	1505-
136	BRACKET; CLIP 4HK1-TCS ENG(RJS) (B) L=225	1-47477-646-3	01	1	1407-1504
136	BRACKET; CLIP 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=225	1-47477-646-3	01	1	1505-
136	BRACKET; CLIP (C)	1-47479-693-0	03	1	1407-1504
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47479-693-0	03	1	1505-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5 MAL	8-97609-249-0	01	1	1407-1504
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5 MAL	8-97609-249-0	01	1	1505-
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE MAL	0-91180-108-0	02	1	1407-1504
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE MAL	0-91180-210-0	04	1	1407-1504
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10 FLANGE MAL	0-91180-210-0	04	1	1505-
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	1407-1504
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	1505-
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	1407-1504
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	1505-

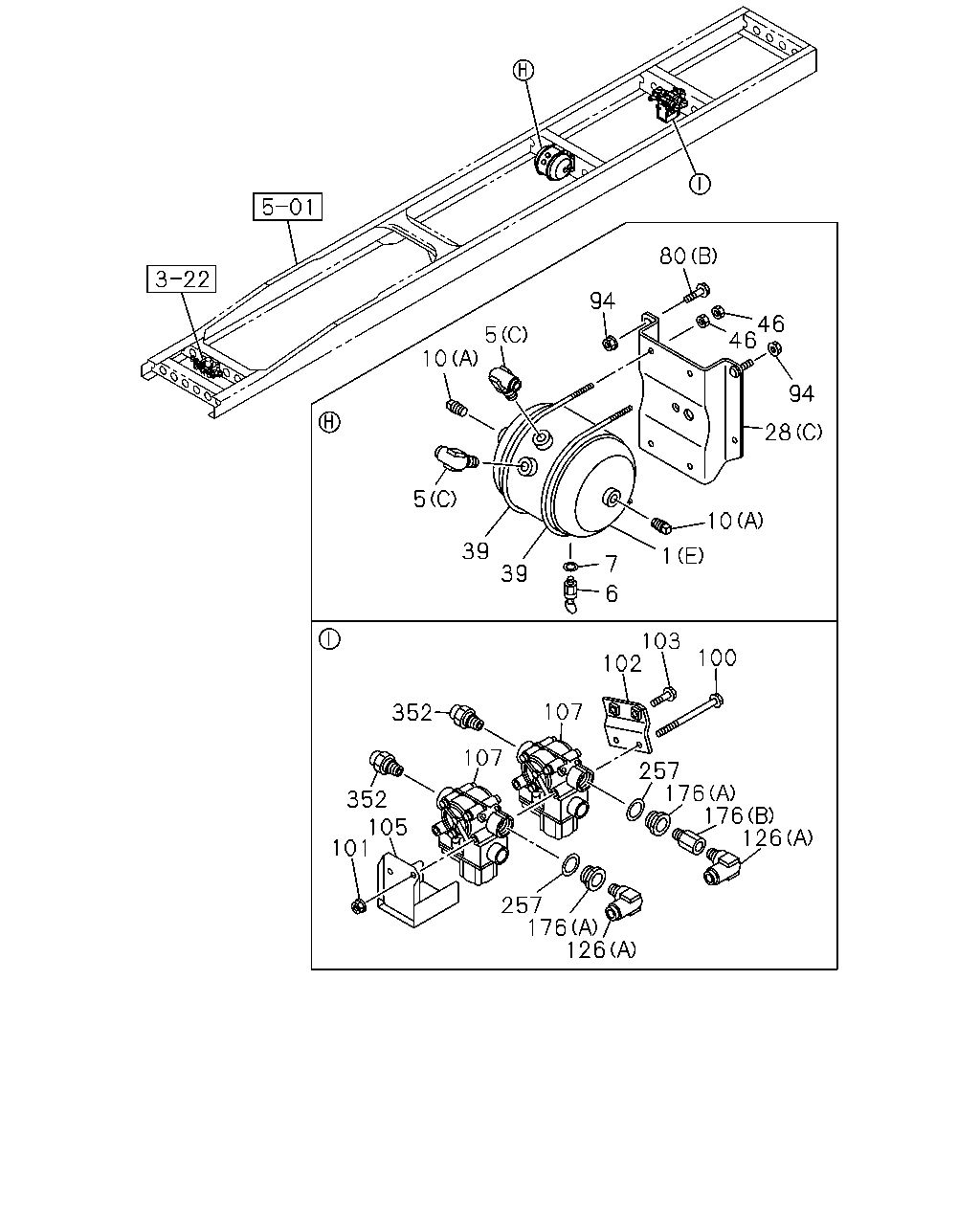

80 46 46 94 28 10 1 6 7 39 39 94 5 10 5 100 103 102 107 107 352 352 105 101 257 176 126 257 176 176 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-181-1	01	1	1505-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) MAL	8-98081-870-1	01	1	1505-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98184-783-0	01	1	1505-
1	TANK ASM; AIR (A)	1-48370-500-0	01	1	1407-1504
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-500-0	01	1	1505-
1	TANK ASM; AIR (B)	1-48370-501-0	01	1	1407-1504
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-501-0	01	1	1505-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R3/8 ELBOW MAL	1-09660-957-0	02	1	1505-
5	UNION; AIR TANK (A) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	01	1	1407-1504
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	01	1	1505-
5	UNION; AIR TANK (B) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1407-1504
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1505-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	01	1	1505-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	1505-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1407-1504
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	03	1	1505-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	01	1	1505-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	1505-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1407-1504
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	03	1	1505-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT3/4	9-09204-526-0	03	1	1505-
10	PLUG; AIR TANK (A) PT3/8 MAL	9-09204-517-0	02	1	1407-1504
10	PLUG; AIR TANK 6HK1-TCS ENG(80L) (A) PT3/8 MAL	9-09204-517-0	02	1	1505-
10	PLUG; AIR TANK (A) PT3/8 MAL	9-09204-517-0	02	1	1505-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-601-5	02	1	1505-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) MAL	8-98100-165-3	01	1	1505-
28	BRACKET; AIR TANK (A)	1-53318-338-6	02	1	1407-1504
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-338-6	02	1	1505-
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=210	1-48317-458-1	02	1	1505-
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	0-91110-508-0	08	1	1505-
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X30 FLANGE	0-28651-030-0	03	1	1505-
80	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X20 FLANGE MAL	0-28650-820-0	06	1	1410-1504
80	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE MAL	0-28650-820-0	06	1	1505-
80	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE MAL	0-28650-820-0	05	1	1407-1504
80	BOLT; BRKT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE MAL	0-28650-820-0	05	1	1505-
80	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	1407-1504
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X30 FLANGE	0-28651-030-0	04	1	1505-
94	NUT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE MAL	0-91180-210-0	04	1	1505-
100	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X140 FLANGE	0-28055-814-0	02	1	1505-
101	NUT; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
102	BRACKET; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98272-718-0	01	1	1505-
103	BOLT; BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
105	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98272-749-0	01	1	1505-
107	MODULATOR; RR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MAL	8-98215-454-0	02	1	1505-
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I) PT1/4 & PT1/4 2WAY MAL	1-09660-693-0	04	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J) DIN8 & R1/4 ELBOW MAL	1-09660-956-0	01	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) DIN8 & R3/8 ELBOW MAL	1-09660-957-0	02	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	04	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	03	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (M) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (N) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	04	1	1505-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (G) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	01	1	1410-1504
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	01	1	1505-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1410-1504
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1505-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) (D) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1407-1504
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1505-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY MAL	1-09660-809-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT1/4 & PT3/8 2WAY MAL	1-09660-809-0	01	1	1505-
126	CONNECTOR; ELBOW (F) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1505-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	01	1	1505-
126	CONNECTOR; ELBOW (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1505-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1505-
176	ADAPTER ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1505-
176	ADAPTER ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT3/8	1-09664-210-0	01	1	1505-
257	GASKET; PLUG ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=22.5	9-09571-422-0	02	1	1505-
352	CONNECTOR; STRAIGHT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M22 STRAIGHT MAL	1-09661-050-0	02	1	1505-

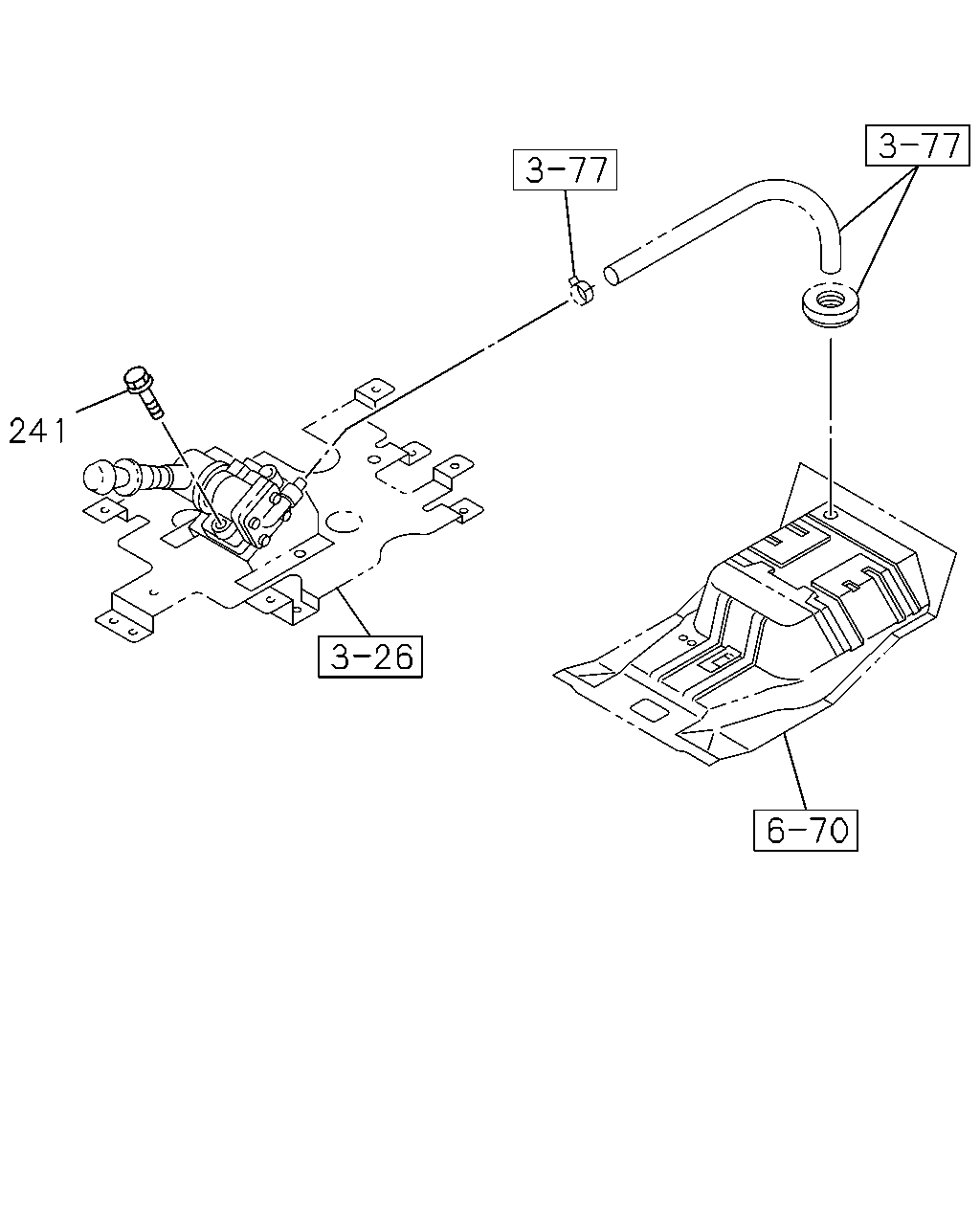

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8X70 FLANGE	0-28050-870-0	02	1	1505-

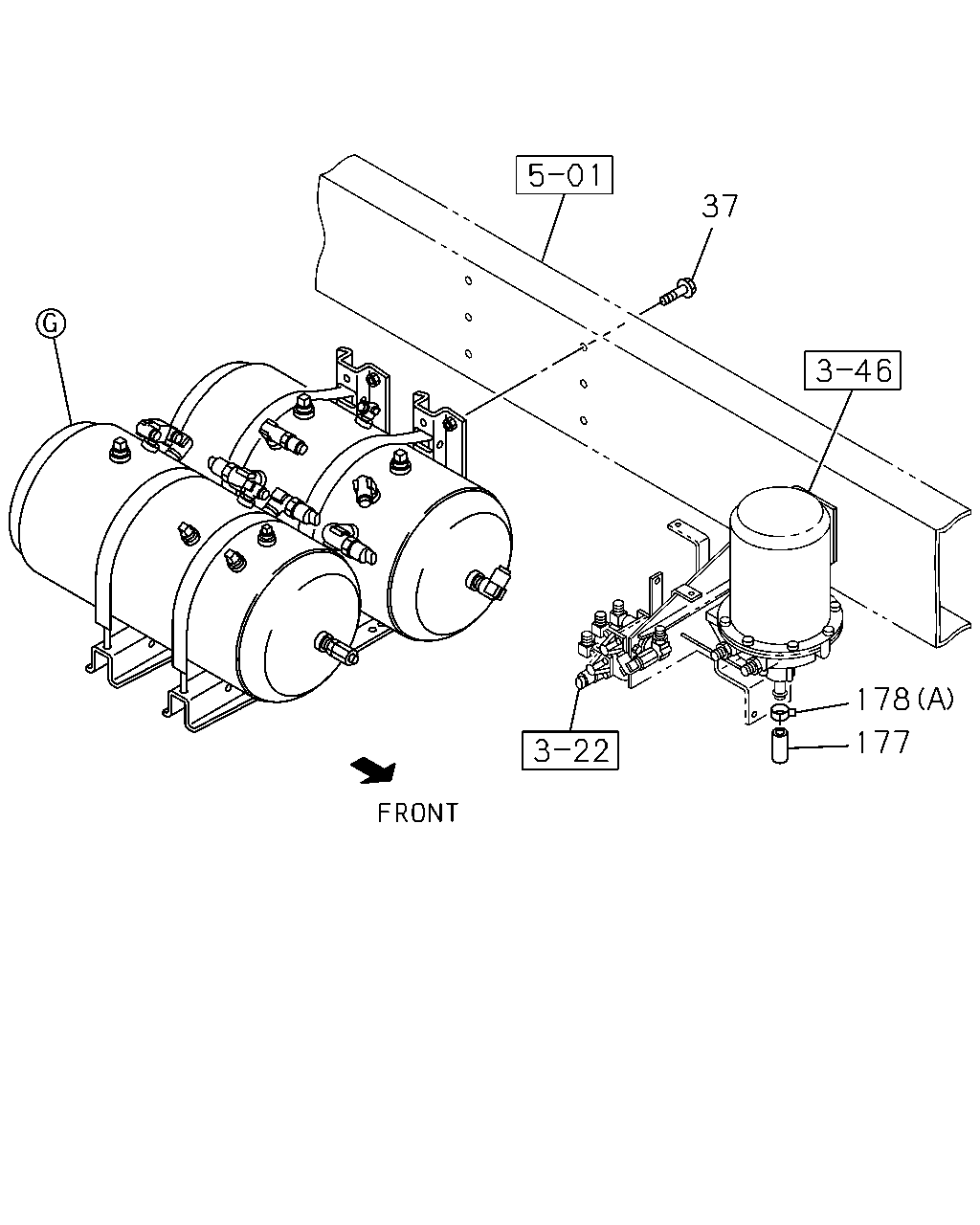

37 177 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE MAL	0-28651-240-0	08	1	1505-
37	BOLT; AIR TANK M12X40 FLANGE MAL	0-28651-240-0	06	1	1407-1504
37	BOLT; AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) M12X40 FLANGE MAL	0-28651-240-0	06	1	1505-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000 MAL	0-03566-300-0	01	1	1407-
178	CLIP; HOSE 6HK1-TCN ENG(82L) (C) ID=12 & 12	1-09709-280-1	01	1	1410-1504
178	CLIP; HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1505-
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21 MAL	8-94242-034-0	01	1	1407-
178	CLIP; HOSE (B) DIN15X2	9-09917-171-0	01	1	1407-1504
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN15X2	9-09917-171-0	01	1	1505-

126 126 126 126 126 9 38 45 45 7 6 126 126 126 1 126 33 126 10 126 185 42 28 185 28 41 43 64 64 42 41 43 43 126 126 126 10 38 126 126 126 45 45 10 7 6 1 3 126 10 126 9 126 126 9 38 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-181-1	01	1	1505-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) MAL	8-98081-870-1	01	1	1505-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98184-783-0	01	1	1505-
1	TANK ASM; AIR (A)	1-48370-500-0	01	1	1407-1504
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-500-0	01	1	1505-
1	TANK ASM; AIR (B)	1-48370-501-0	01	1	1407-1504
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-501-0	01	1	1505-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1505-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1410-1504
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1505-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	01	1	1505-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	1505-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1407-1504
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	03	1	1505-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	01	1	1505-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	1505-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1407-1504
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	03	1	1505-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STAMP 5.5 MAL	8-97609-249-0	04	1	1505-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5 MAL	8-97609-249-0	02	1	1407-1504
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5 MAL	8-97609-249-0	02	1	1505-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT3/4	9-09204-526-0	03	1	1505-
10	PLUG; AIR TANK (A) PT3/8 MAL	9-09204-517-0	02	1	1407-1504
10	PLUG; AIR TANK 6HK1-TCS ENG(80L) (A) PT3/8 MAL	9-09204-517-0	02	1	1505-
10	PLUG; AIR TANK (A) PT3/8 MAL	9-09204-517-0	02	1	1505-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-601-5	02	1	1505-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) MAL	8-98100-165-3	01	1	1505-
28	BRACKET; AIR TANK (A)	1-53318-338-6	02	1	1407-1504
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-338-6	02	1	1505-
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	1505-
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-109-2	02	1	1505-
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	0-82254-060-0	02	1	1505-
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=10.5 MAL	0-91614-510-0	02	1	1505-
42	WASHER; PL (A) ID=8.4 OD=18	0-91610-608-0	04	1	1407-1504
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=8.4 OD=18	0-91610-608-0	04	1	1505-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE MAL	0-28650-825-0	06	1	1505-
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1407-1504
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE MAL	0-28651-025-0	04	1	1407-1504
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 FLANGE MAL	0-28651-025-0	04	1	1505-
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	0-91110-508-0	12	1	1505-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48317-607-0	01	1	1505-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-48317-691-0	01	1	1505-
64	STAY; AIR TANK,MAIN (B)	1-48317-349-0	01	1	1407-1504
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48317-349-0	01	1	1505-
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	1407-1504
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	1505-
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I) PT1/4 & PT1/4 2WAY MAL	1-09660-693-0	04	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J) DIN8 & R1/4 ELBOW MAL	1-09660-956-0	01	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) DIN8 & R3/8 ELBOW MAL	1-09660-957-0	02	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	04	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (L) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	03	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (M) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1505-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (N) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	04	1	1505-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (G) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	01	1	1410-1504
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M12 & PT1/4 STRAIGHT MAL	1-09650-074-1	01	1	1505-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1410-1504
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1505-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) (D) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1407-1504
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1505-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY MAL	1-09660-809-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT1/4 & PT3/8 2WAY MAL	1-09660-809-0	01	1	1505-
126	CONNECTOR; ELBOW (F) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1505-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	01	1	1505-
126	CONNECTOR; ELBOW (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1505-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1407-1504
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1505-
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=32.6	8-98062-280-0	02	1	1505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
