Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#144149) — 211 parça

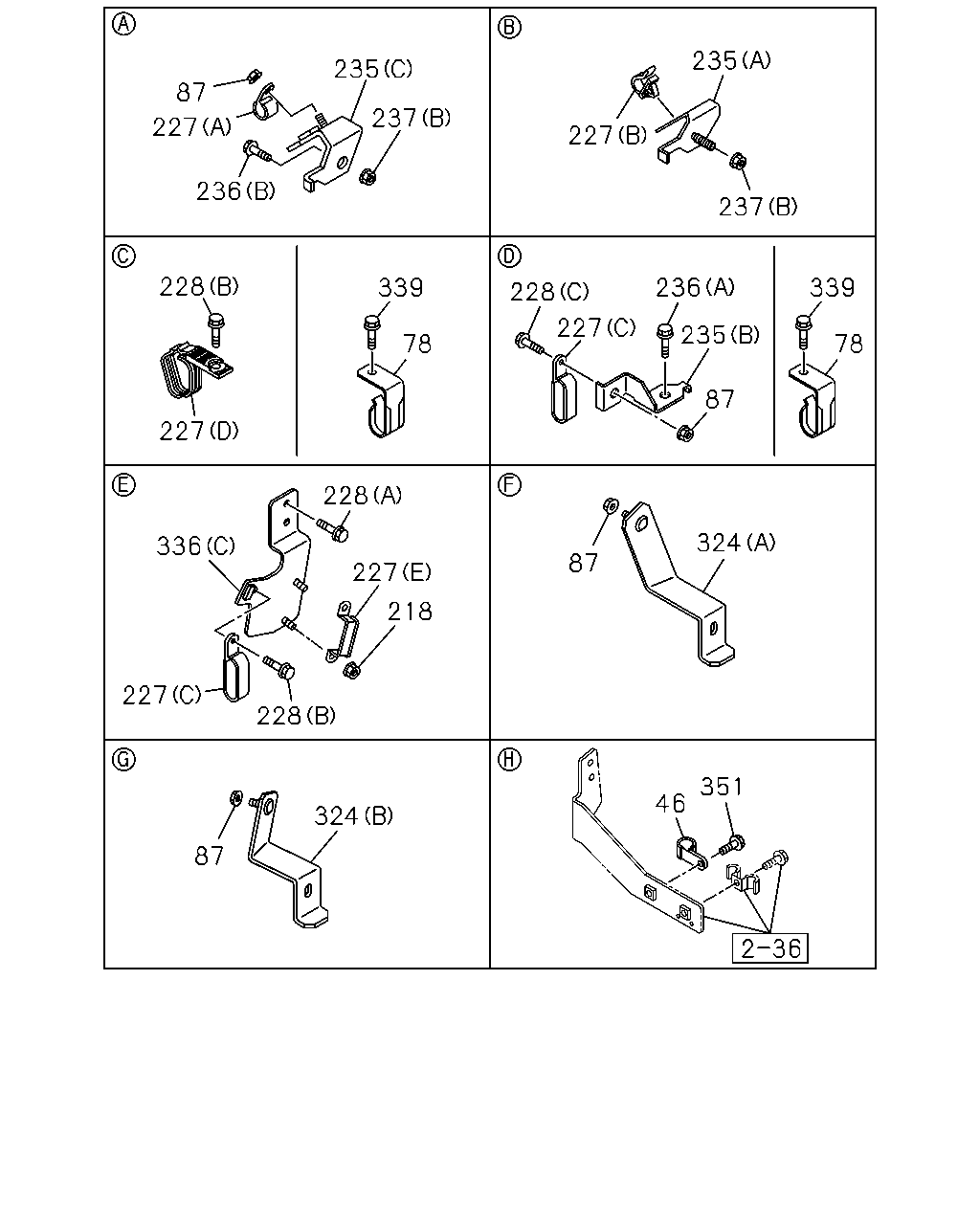

87 235 237 227 237 235 339 78 339 228 227 228 227 218 87 324 351 46 324 87 228 227 336 228 227 236 235 87 227 236 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	CLIP; FRT CABLE TO FLOOR ID=13 L=20	0-95235-235-0	01	1	1407-1504
46	CLIP; FRT CABLE TO FLOOR 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) ID=13 L=20	0-95235-235-0	01	1	1505-1507
46	CLIP; FRT CABLE TO FLOOR 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ID=13 L=20	0-95235-235-0	01	1	1508-
78	PIN; SPLIT,PARK BRK CABLE JOINT 4HK1-TCS ENG(RJS)	8-98299-530-0	02	1	1503-
87	NUT 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1507
87	NUT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8 FLANGE MAL	0-91180-108-0	02	1	1508-
87	NUT 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	04	1	1407-1502
87	NUT 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	03	1	1503-
218	NUT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1507
218	NUT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8 FLANGE MAL	0-91180-108-0	02	1	1508-
218	NUT; BRKT,PARKING BRK CABLE 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	04	1	1407-
227	CLIP; RAD 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) ID=13 L=20	0-95235-235-0	01	1	1410-1507
227	CLIP; RAD 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> (A) ID=13 L=20	0-95235-235-0	01	1	1508-
227	CLIP; RAD 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (F) ID=14.5 L=40	1-09701-014-0	01	1	1410-1507
227	CLIP; RAD 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> (F) ID=14.5 L=40	1-09701-014-0	01	1	1508-
227	CLIP; RAD 6HK1-TCN ENG(82L) (G) ID=25 H=60 L=35	1-09701-103-0	01	1	1410-1507
227	CLIP; RAD 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (G) ID=25 H=60 L=35	1-09701-103-0	01	1	1508-
227	CLIP; RAD 6HK1-TCN ENG(82L) (B) ID=9.5	5-09709-020-0	02	1	1410-1507
227	CLIP; RAD 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) ID=9.5	5-09709-020-0	02	1	1508-
227	CLIP; RAD 6HK1-TCN ENG(82L) (H) ID=14.5 L=40	8-98119-885-0	01	1	1410-1507
227	CLIP; RAD 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (H) ID=14.5 L=40	8-98119-885-0	01	1	1508-
227	CLIP; RAD 6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59> (A) ID=13 L=20	0-95235-235-0	02	1	1410-1507
227	CLIP; RAD 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. FRONT STABILIZER SHAFT<F59> (A) ID=13 L=20	0-95235-235-0	02	1	1508-
227	CLIP; RAD 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-535-0	01	1	1407-
227	CLIP; RAD 4HK1-TCS ENG(RJS) (B) ID=9.5	5-09709-020-0	01	1	1407-
227	CLIP; RAD 4HK1-TCS ENG(RJS) (C) ID=13 & 13 L=32	8-97389-264-0	02	1	1407-1502
227	CLIP; RAD 4HK1-TCS ENG(RJS) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	1503-
227	CLIP; RAD 4HK1-TCS ENG(RJS) (D) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1407-1502
227	CLIP; RAD 4HK1-TCS ENG(RJS) (E)	8-98080-966-0	01	1	1407-
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (C) M8X25 FLANGE MAL	0-28650-825-0	01	1	1410-1507
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> (C) M8X25 FLANGE MAL	0-28650-825-0	01	1	1508-
228	BOLT; CLIP RAD MTG (B) M8X16 FLANGE MAL	0-28050-816-0	01	1	1407-1409
228	BOLT; CLIP RAD MTG 4HK1-TCS ENG(RJS) (B) M8X16 FLANGE MAL	0-28050-816-0	01	1	1410-1507
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59> (B) M8X16 FLANGE MAL	0-28050-816-0	01	1	1410-1507
228	BOLT; CLIP RAD MTG 4HK1-TCS ENG(RJS) (B) M8X16 FLANGE MAL	0-28050-816-0	01	1	1508-
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. FRONT STABILIZER SHAFT<F59> (B) M8X16 FLANGE MAL	0-28050-816-0	01	1	1508-
228	BOLT; CLIP RAD MTG (C) M8X25 FLANGE MAL	0-28650-825-0	02	1	1407-1409
228	BOLT; CLIP RAD MTG (C) M8X25 FLANGE MAL	0-28650-825-0	02	1	1410-1502
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (C) M8X25 FLANGE MAL	0-28650-825-0	02	1	1410-1502
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) (C) M8X25 FLANGE MAL	0-28650-825-0	02	1	1503-1507
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (C) M8X25 FLANGE MAL	0-28650-825-0	02	1	1503-1507
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (C) M8X25 FLANGE MAL	0-28650-825-0	02	1	1508-
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> (C) M8X25 FLANGE MAL	0-28650-825-0	02	1	1508-
228	BOLT; CLIP RAD MTG (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1407-1409
228	BOLT; CLIP RAD MTG 4HK1-TCS ENG(RJS) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1410-1507
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59> (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1410-1507
228	BOLT; CLIP RAD MTG 4HK1-TCS ENG(RJS) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1508-
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. FRONT STABILIZER SHAFT<F59> (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1508-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG(82L) (D)	1-82699-199-0	01	1	1410-1507
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (D)	1-82699-199-0	01	1	1508-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG(82L) (E)	8-98100-152-0	01	1	1410-1507
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (E)	8-98100-152-0	01	1	1508-
235	BRACKET; CONT CABLE TO FRAME (C)	8-98077-903-2	01	1	1407-1504
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (C)	8-98077-903-2	01	1	1505-1507
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (C)	8-98077-903-2	01	1	1508-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS) (A)	8-98126-934-0	01	1	1407-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS) (B)	8-98250-897-0	01	1	1407-1502
236	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) (C) M8X30 FLANGE	0-28650-830-0	02	1	1410-1507
236	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (C) M8X30 FLANGE	0-28650-830-0	02	1	1508-
236	BOLT; BRKT TO FRAME (A) M8X25 FLANGE MAL	0-28650-825-0	01	1	1407-1502
236	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) (A) M8X25 FLANGE MAL	0-28650-825-0	01	1	1503-1507
236	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) M8X25 FLANGE MAL	0-28650-825-0	01	1	1508-
236	BOLT; BRKT TO FRAME (B) M10X30 FLANGE	0-28651-030-0	01	1	1407-1504
236	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507
236	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-
237	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) (A) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1507
237	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) M8 FLANGE MAL	0-91180-108-0	02	1	1508-
237	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) (B) M10 FLANGE MAL	0-91180-210-0	01	1	1410-1507
237	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) M10 FLANGE MAL	0-91180-210-0	01	1	1508-
237	NUT; BRKT TO FRAME 4HK1-TCS ENG(RJS) (B) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
324	BRACKET 6HK1-TCN ENG(82L) (C)	8-98067-482-1	01	1	1410-1507
324	BRACKET 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (C)	8-98067-482-1	01	1	1508-
324	BRACKET 4HK1-TCS ENG(RJS) (A)	8-98227-661-1	01	1	1407-
324	BRACKET 4HK1-TCS ENG(RJS) (B)	8-98227-663-1	01	1	1407-
336	BRACKET; RADIATOR 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B)	8-98105-405-0	01	1	1410-1507
336	BRACKET; RADIATOR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> (B)	8-98105-405-0	01	1	1508-
336	BRACKET; RADIATOR 6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98044-680-0	01	1	1410-1507
336	BRACKET; RADIATOR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98044-680-0	01	1	1508-
336	BRACKET; RADIATOR 4HK1-TCS ENG(RJS) (C)	8-98208-200-4	01	1	1407-
339	BOLT; GUIDE 4HK1-TCS ENG(RJS) M8X25 FLANGE MAL	0-28650-825-0	02	1	1503-
351	BOLT; CLIP M8X25 W/WASHER	0-51640-825-0	03	1	1407-1504
351	BOLT; CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) M8X25 W/WASHER	0-51640-825-0	03	1	1505-1507
351	BOLT; CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8X25 W/WASHER	0-51640-825-0	03	1	1508-

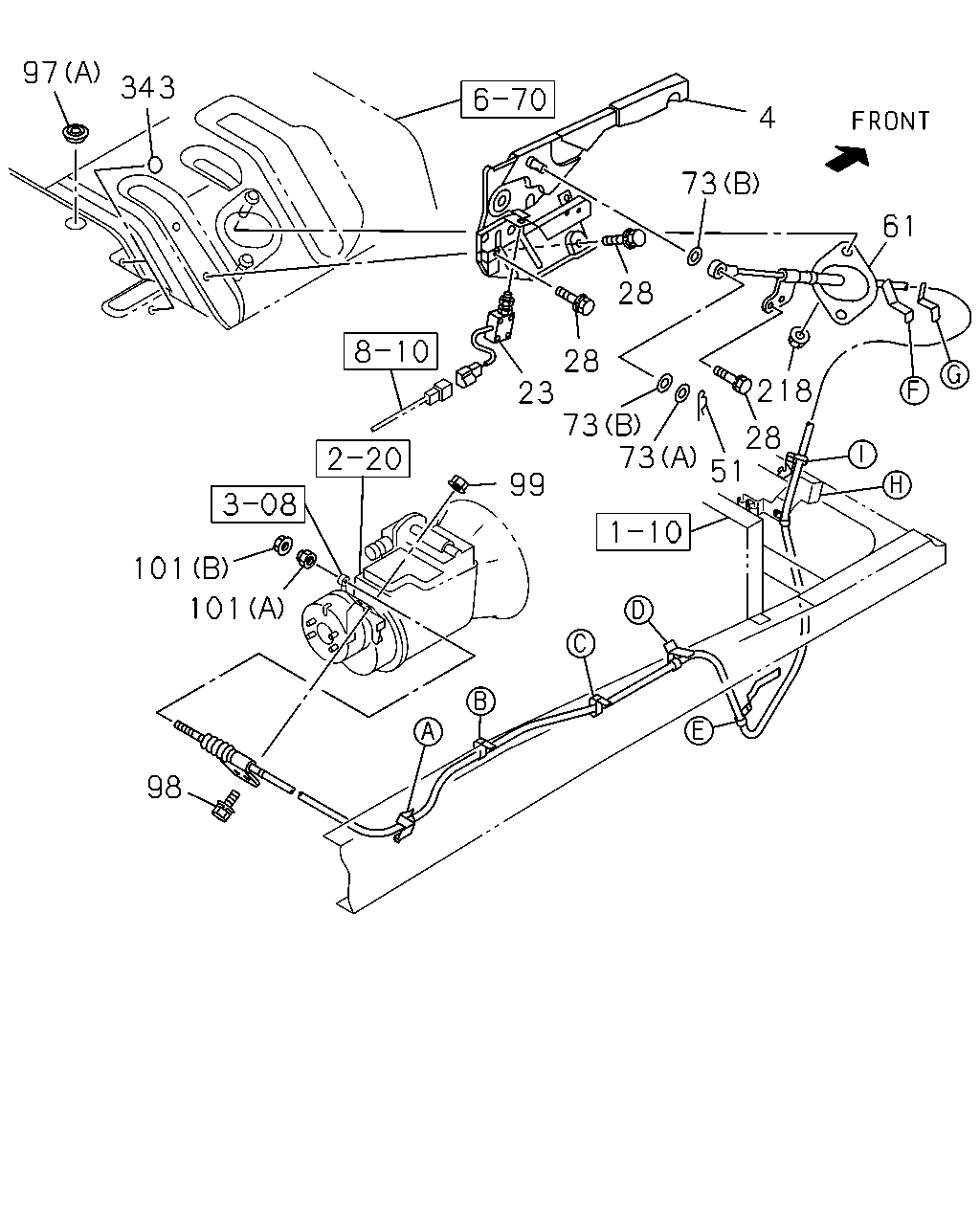

97 343 101 101 98 99 73 73 23 28 28 73 4 61 218 51 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	STEM; PARKING BRK	1-79996-549-0	01	1	1407-1504
4	STEM; PARKING BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-79996-549-0	01	1	1505-
23	SWITCH; PARKING BRK	1-82440-100-0	01	1	1407-1504
23	SWITCH; PARKING BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82440-100-0	01	1	1505-
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER MAL	8-98059-720-0	04	1	1407-1504
28	BOLT; HAND BRK LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X24.5 W/LK&PL WASHER MAL	8-98059-720-0	04	1	1505-
51	PIN; JOINT,RELAY LEVER	1-09987-243-1	01	1	1407-1504
51	PIN; JOINT,RELAY LEVER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L)	1-09987-243-1	01	1	1505-1507
51	PIN; JOINT,RELAY LEVER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	1-09987-243-1	01	1	1508-
61	CABLE; PARKING BRK 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> L=4695	8-98257-642-0	01	1	1410-1507
61	CABLE; PARKING BRK 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> L=4695	8-98257-642-0	01	1	1508-
61	CABLE; PARKING BRK 6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59> L=4615	8-98257-637-0	01	1	1410-1507
61	CABLE; PARKING BRK 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. FRONT STABILIZER SHAFT<F59> L=4615	8-98257-637-0	01	1	1508-
61	CABLE; PARKING BRK 4HK1-TCS ENG(RJS) L=4233	8-98257-636-0	01	1	1407-
73	WASHER; PL,CABLE (A) ID=17 OD=30	0-91610-516-0	01	1	1407-1504
73	WASHER; PL,CABLE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (A) ID=17 OD=30	0-91610-516-0	01	1	1505-1507
73	WASHER; PL,CABLE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) ID=17 OD=30	0-91610-516-0	01	1	1508-
73	WASHER; PL,CABLE (B) ID=19	8-94206-429-1	02	1	1407-1504
73	WASHER; PL,CABLE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (B) ID=19	8-94206-429-1	02	1	1505-1507
73	WASHER; PL,CABLE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) ID=19	8-94206-429-1	02	1	1508-
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98029-219-1	01	1	1505-
97	GROMMET; PARKING BRK CABLE (A) OD=35 MAL	8-94122-971-0	01	1	1407-1504
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) OD=35 MAL	8-94122-971-0	01	1	1505-
98	BOLT; RR COVER M10X30 FLANGE	0-28651-030-0	02	1	1407-1504
98	BOLT; RR COVER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	02	1	1505-1507
98	BOLT; RR COVER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M10X30 FLANGE	0-28651-030-0	02	1	1508-
99	NUT; CONT CABLE M10 FLANGE MAL	0-91180-210-0	02	1	1407-1504
99	NUT; CONT CABLE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) M10 FLANGE MAL	0-91180-210-0	02	1	1505-1507
99	NUT; CONT CABLE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M10 FLANGE MAL	0-91180-210-0	02	1	1508-
101	NUT; CABLE TO LEVER (B) M8 FLANGE MAL	0-91180-108-0	01	1	1407-1504
101	NUT; CABLE TO LEVER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (B) M8 FLANGE MAL	0-91180-108-0	01	1	1505-1507
101	NUT; CABLE TO LEVER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) M8 FLANGE MAL	0-91180-108-0	01	1	1508-
101	NUT; CABLE TO LEVER (A) M8	1-46259-007-0	01	1	1407-1504
101	NUT; CABLE TO LEVER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (A) M8	1-46259-007-0	01	1	1505-1507
101	NUT; CABLE TO LEVER 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) M8	1-46259-007-0	01	1	1508-
218	NUT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1507
218	NUT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8 FLANGE MAL	0-91180-108-0	02	1	1508-
218	NUT; BRKT,PARKING BRK CABLE 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	04	1	1407-
343	SEAL OD=25 BLACK MAL	1-76798-019-0	04	1	1407-1504
343	SEAL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK MAL	1-76798-019-0	04	1	1505-

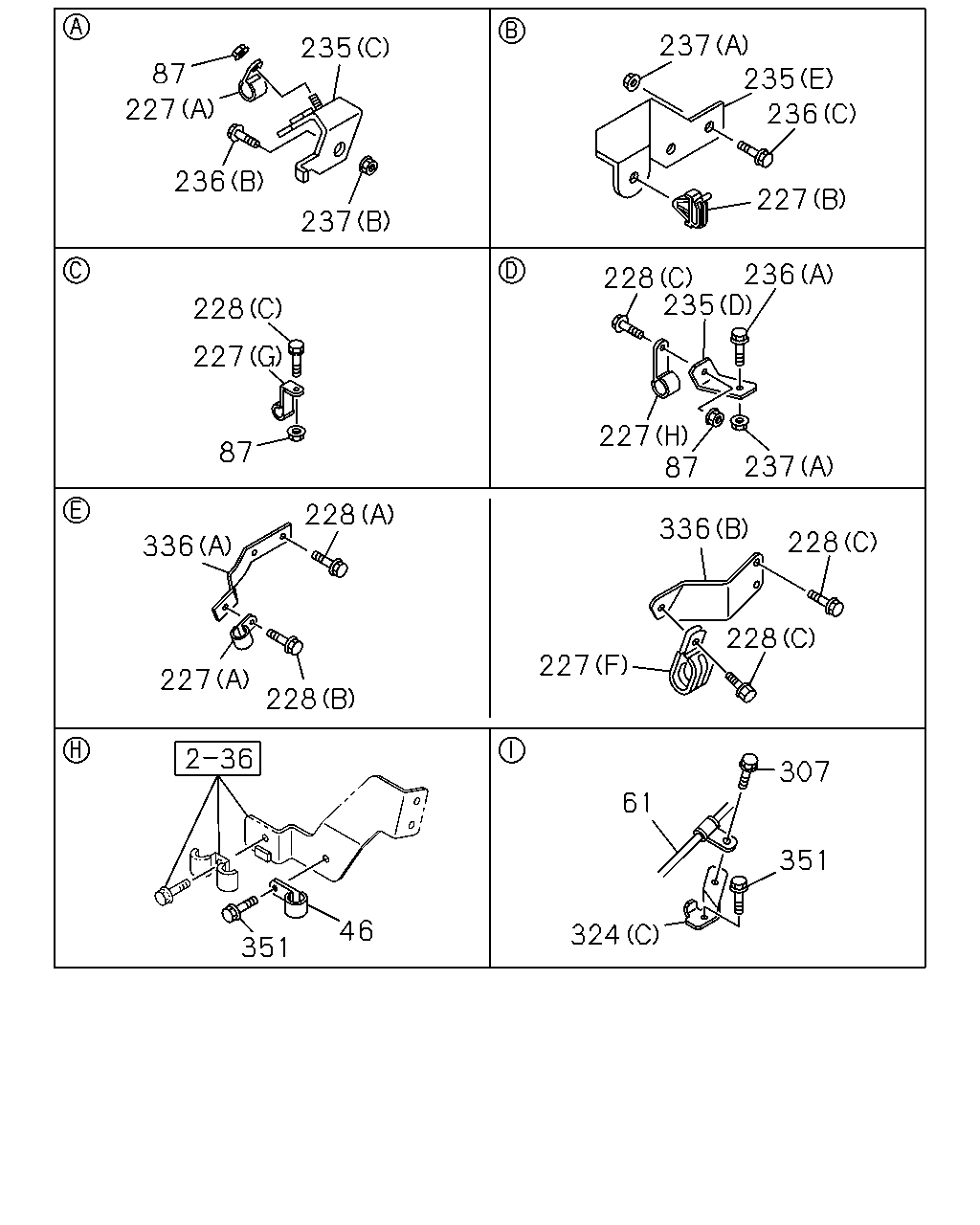

87 235 227 236 237 228 227 87 228 336 227 228 227 228 228 336 237 87 227 228 235 236 227 236 235 237 61 307 351 324 46 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	CLIP; FRT CABLE TO FLOOR ID=13 L=20	0-95235-235-0	01	1	1407-1504
46	CLIP; FRT CABLE TO FLOOR 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) ID=13 L=20	0-95235-235-0	01	1	1505-1507
46	CLIP; FRT CABLE TO FLOOR 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ID=13 L=20	0-95235-235-0	01	1	1508-
61	CABLE; PARKING BRK 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> L=4695	8-98257-642-0	01	1	1410-1507
61	CABLE; PARKING BRK 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> L=4695	8-98257-642-0	01	1	1508-
61	CABLE; PARKING BRK 6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59> L=4615	8-98257-637-0	01	1	1410-1507
61	CABLE; PARKING BRK 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. FRONT STABILIZER SHAFT<F59> L=4615	8-98257-637-0	01	1	1508-
61	CABLE; PARKING BRK 4HK1-TCS ENG(RJS) L=4233	8-98257-636-0	01	1	1407-
87	NUT 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1507
87	NUT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8 FLANGE MAL	0-91180-108-0	02	1	1508-
87	NUT 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	04	1	1407-1502
87	NUT 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	03	1	1503-
227	CLIP; RAD 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (A) ID=13 L=20	0-95235-235-0	01	1	1410-1507
227	CLIP; RAD 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> (A) ID=13 L=20	0-95235-235-0	01	1	1508-
227	CLIP; RAD 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (F) ID=14.5 L=40	1-09701-014-0	01	1	1410-1507
227	CLIP; RAD 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> (F) ID=14.5 L=40	1-09701-014-0	01	1	1508-
227	CLIP; RAD 6HK1-TCN ENG(82L) (G) ID=25 H=60 L=35	1-09701-103-0	01	1	1410-1507
227	CLIP; RAD 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (G) ID=25 H=60 L=35	1-09701-103-0	01	1	1508-
227	CLIP; RAD 6HK1-TCN ENG(82L) (B) ID=9.5	5-09709-020-0	02	1	1410-1507
227	CLIP; RAD 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) ID=9.5	5-09709-020-0	02	1	1508-
227	CLIP; RAD 6HK1-TCN ENG(82L) (H) ID=14.5 L=40	8-98119-885-0	01	1	1410-1507
227	CLIP; RAD 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (H) ID=14.5 L=40	8-98119-885-0	01	1	1508-
227	CLIP; RAD 6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59> (A) ID=13 L=20	0-95235-235-0	02	1	1410-1507
227	CLIP; RAD 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. FRONT STABILIZER SHAFT<F59> (A) ID=13 L=20	0-95235-235-0	02	1	1508-
227	CLIP; RAD 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-535-0	01	1	1407-
227	CLIP; RAD 4HK1-TCS ENG(RJS) (B) ID=9.5	5-09709-020-0	01	1	1407-
227	CLIP; RAD 4HK1-TCS ENG(RJS) (C) ID=13 & 13 L=32	8-97389-264-0	02	1	1407-1502
227	CLIP; RAD 4HK1-TCS ENG(RJS) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	1503-
227	CLIP; RAD 4HK1-TCS ENG(RJS) (D) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1407-1502
227	CLIP; RAD 4HK1-TCS ENG(RJS) (E)	8-98080-966-0	01	1	1407-
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (C) M8X25 FLANGE MAL	0-28650-825-0	01	1	1410-1507
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> (C) M8X25 FLANGE MAL	0-28650-825-0	01	1	1508-
228	BOLT; CLIP RAD MTG (B) M8X16 FLANGE MAL	0-28050-816-0	01	1	1407-1409
228	BOLT; CLIP RAD MTG 4HK1-TCS ENG(RJS) (B) M8X16 FLANGE MAL	0-28050-816-0	01	1	1410-1507
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59> (B) M8X16 FLANGE MAL	0-28050-816-0	01	1	1410-1507
228	BOLT; CLIP RAD MTG 4HK1-TCS ENG(RJS) (B) M8X16 FLANGE MAL	0-28050-816-0	01	1	1508-
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. FRONT STABILIZER SHAFT<F59> (B) M8X16 FLANGE MAL	0-28050-816-0	01	1	1508-
228	BOLT; CLIP RAD MTG (C) M8X25 FLANGE MAL	0-28650-825-0	02	1	1407-1409
228	BOLT; CLIP RAD MTG (C) M8X25 FLANGE MAL	0-28650-825-0	02	1	1410-1502
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (C) M8X25 FLANGE MAL	0-28650-825-0	02	1	1410-1502
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) (C) M8X25 FLANGE MAL	0-28650-825-0	02	1	1503-1507
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (C) M8X25 FLANGE MAL	0-28650-825-0	02	1	1503-1507
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (C) M8X25 FLANGE MAL	0-28650-825-0	02	1	1508-
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> (C) M8X25 FLANGE MAL	0-28650-825-0	02	1	1508-
228	BOLT; CLIP RAD MTG (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1407-1409
228	BOLT; CLIP RAD MTG 4HK1-TCS ENG(RJS) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1410-1507
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59> (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1410-1507
228	BOLT; CLIP RAD MTG 4HK1-TCS ENG(RJS) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1508-
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. FRONT STABILIZER SHAFT<F59> (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1508-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG(82L) (D)	1-82699-199-0	01	1	1410-1507
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (D)	1-82699-199-0	01	1	1508-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG(82L) (E)	8-98100-152-0	01	1	1410-1507
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (E)	8-98100-152-0	01	1	1508-
235	BRACKET; CONT CABLE TO FRAME (C)	8-98077-903-2	01	1	1407-1504
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (C)	8-98077-903-2	01	1	1505-1507
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (C)	8-98077-903-2	01	1	1508-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS) (A)	8-98126-934-0	01	1	1407-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS) (B)	8-98250-897-0	01	1	1407-1502
236	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) (C) M8X30 FLANGE	0-28650-830-0	02	1	1410-1507
236	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (C) M8X30 FLANGE	0-28650-830-0	02	1	1508-
236	BOLT; BRKT TO FRAME (A) M8X25 FLANGE MAL	0-28650-825-0	01	1	1407-1502
236	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) (A) M8X25 FLANGE MAL	0-28650-825-0	01	1	1503-1507
236	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) M8X25 FLANGE MAL	0-28650-825-0	01	1	1508-
236	BOLT; BRKT TO FRAME (B) M10X30 FLANGE	0-28651-030-0	01	1	1407-1504
236	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507
236	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-
237	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) (A) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1507
237	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) M8 FLANGE MAL	0-91180-108-0	02	1	1508-
237	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) (B) M10 FLANGE MAL	0-91180-210-0	01	1	1410-1507
237	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) M10 FLANGE MAL	0-91180-210-0	01	1	1508-
237	NUT; BRKT TO FRAME 4HK1-TCS ENG(RJS) (B) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
307	BOLT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG(82L) M8X25 W/WASHER	0-51640-825-0	01	1	1410-1507
307	BOLT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8X25 W/WASHER	0-51640-825-0	01	1	1508-
324	BRACKET 6HK1-TCN ENG(82L) (C)	8-98067-482-1	01	1	1410-1507
324	BRACKET 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (C)	8-98067-482-1	01	1	1508-
324	BRACKET 4HK1-TCS ENG(RJS) (A)	8-98227-661-1	01	1	1407-
324	BRACKET 4HK1-TCS ENG(RJS) (B)	8-98227-663-1	01	1	1407-
336	BRACKET; RADIATOR 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> (B)	8-98105-405-0	01	1	1410-1507
336	BRACKET; RADIATOR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> (B)	8-98105-405-0	01	1	1508-
336	BRACKET; RADIATOR 6HK1-TCN ENG(82L) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98044-680-0	01	1	1410-1507
336	BRACKET; RADIATOR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98044-680-0	01	1	1508-
336	BRACKET; RADIATOR 4HK1-TCS ENG(RJS) (C)	8-98208-200-4	01	1	1407-
351	BOLT; CLIP M8X25 W/WASHER	0-51640-825-0	03	1	1407-1504
351	BOLT; CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) M8X25 W/WASHER	0-51640-825-0	03	1	1505-1507
351	BOLT; CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8X25 W/WASHER	0-51640-825-0	03	1	1508-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98029-219-1	01	1	1505-
97	GROMMET; PARKING BRK CABLE (A) OD=35 MAL	8-94122-971-0	01	1	1407-1504
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) OD=35 MAL	8-94122-971-0	01	1	1505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
