3-10 — BRAKE PEDAL AND CONTROL (#144148) — 34 parça

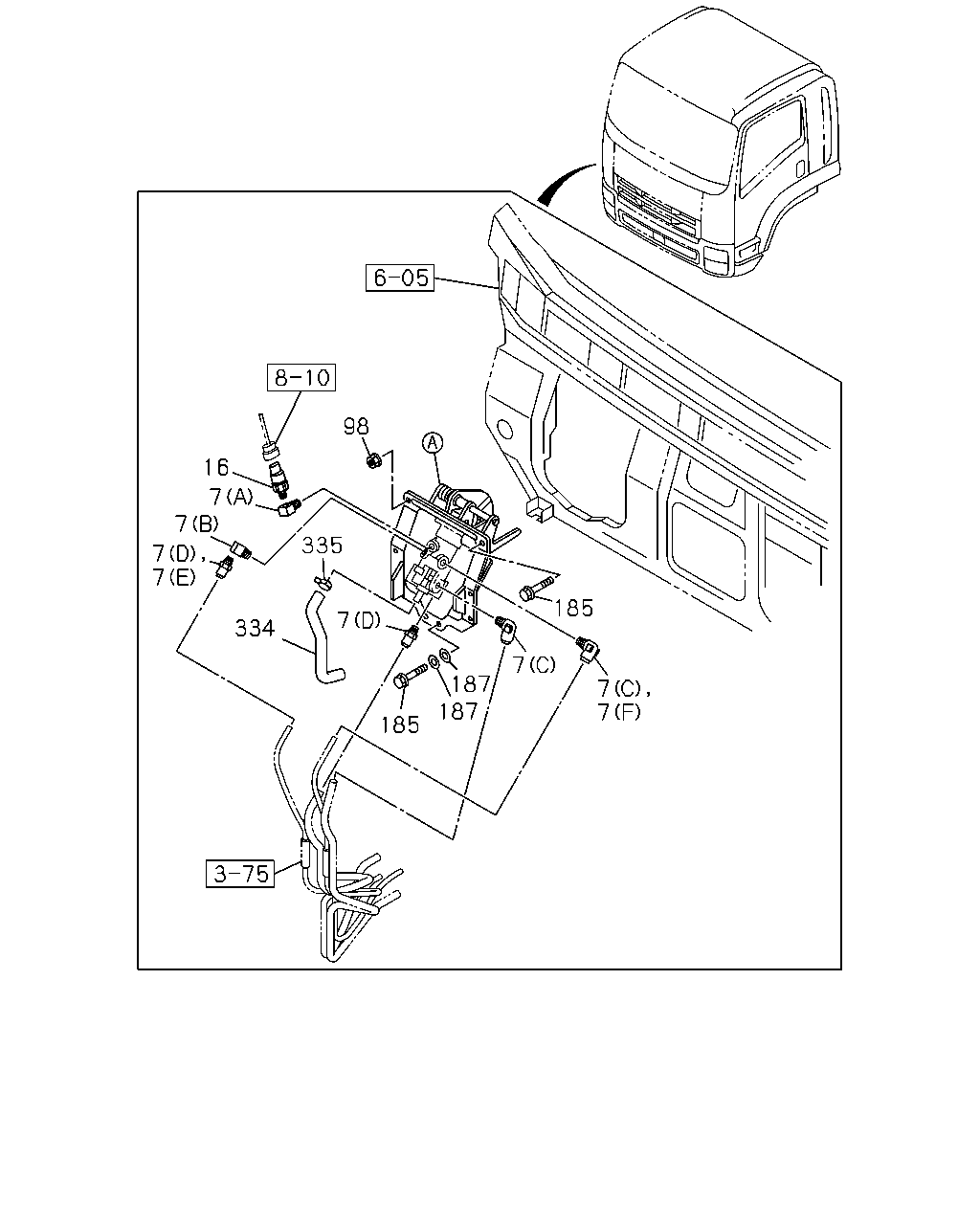

çizim 433249
16 7 7 7 7 98 335 7 334 185 187 187 7 7 7 185
BalonParca AdiParca NoAdetTipApplied Date
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN8 & R3/8 ELBOW MAL 		1-09660-957-0 01 1 1505-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW MAL 		1-09660-959-0 01 1 1505-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R3/8 STRAIGHT MAL 		1-09660-964-0 01 1 1505-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT MAL 		1-09660-965-0 01 1 1505-
7 CONNECTOR; BRK VALVE
(A) PT1/4 & PT1/4 2WAY MAL 		1-09660-693-0 01 1 1407-
7 CONNECTOR; BRK VALVE
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1407-
7 CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 ELBOW MAL 		1-09660-959-0 02 1 1407-1504
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & R3/8 ELBOW MAL 		1-09660-959-0 02 1 1505-
7 CONNECTOR; BRK VALVE
(D) DIN12 & R3/8 STRAIGHT MAL 		1-09660-965-0 02 1 1407-1504
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) DIN12 & R3/8 STRAIGHT MAL 		1-09660-965-0 02 1 1505-
16 SWITCH; STOP LAMP
STAMP 0.3 		8-98010-857-0 01 1 1407-
98 NUT; BRKT
M8 FLANGE 		0-91180-208-0 01 1 1407-
185 BOLT; BRKT
M8X25 FLANGE 		8-98057-109-0 07 1 1407-1506
185 BOLT; BRKT
M8X25 HEXALOBULAR 		8-98316-699-0 07 1 1507-
187 WASHER; PL,BRKT
ID=8.4 OD=26 		0-91614-808-0 04 1 1407-1506
187 WASHER; PL,BRKT
ID=8.4 OD=26 		8-98316-762-0 04 1 1507-
334 HOSE; AIR,BRK 8-97611-145-3 01 1 1407-
335 CLAMP; HOSE
ID=24 		8-98025-921-0 01 1 1407-

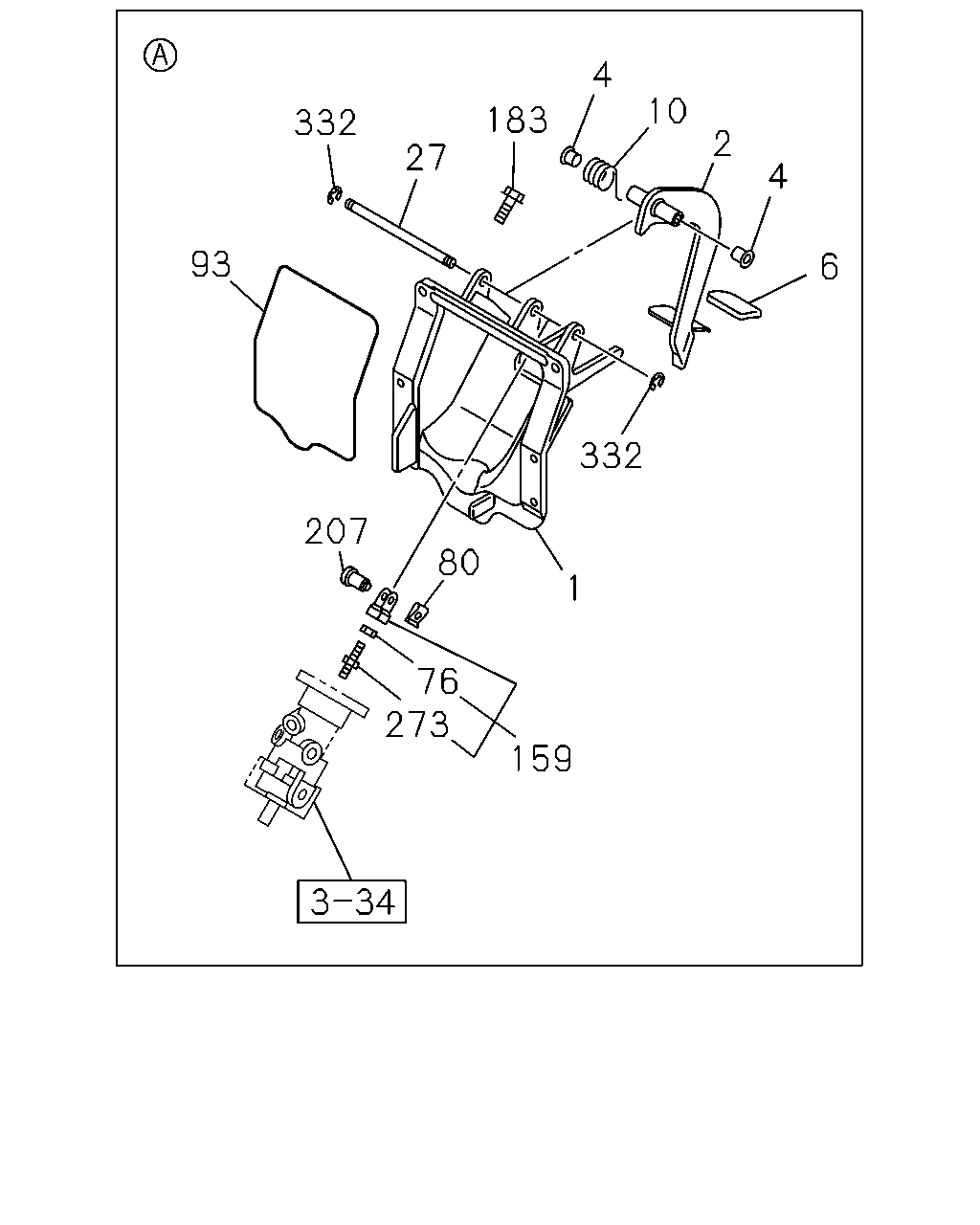

çizim 433392
332 27 183 4 93 207 80 76 273 159 332 6 4 2 10 1
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET ASM; PEDAL
A/T<X9D> 		8-98071-973-1 01 1 1508-
1 BRACKET ASM; PEDAL 8-98071-972-1 01 1 1407-1507
1 BRACKET ASM; PEDAL
MANUAL TRANSMISSION<X9C> 		8-98071-972-1 01 1 1508-
2 PEDAL; BRK 8-98057-226-0 01 1 1407-
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 1407-
6 COVER; BRK PEDAL 8-98056-865-0 01 1 1407-
10 SPRING; RETURN,BRK PEDAL 8-98057-232-1 01 1 1407-
27 SHAFT; BRK PEDAL 8-98057-231-0 01 1 1407-
76 NUT; PUSH ROD
M8 FLANGE MAL 		0-91180-108-0 01 1 1407-
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 1407-
93 SEAL; BRK PEDAL 1-48199-534-0 01 1 1407-
159 ROD ASM; PUSH,BRK 8-98057-234-0 01 1 1407-
183 BOLT; BRK VLV
M8X30 FLANGE 		0-28660-830-0 04 1 1407-
207 PIN; JOINT,BRK PEDAL LINK 8-98147-657-0 01 1 1407-
273 ROD; PULL 8-98057-233-0 01 1 1407-
332 RING; SNAP
ID=12 		0-91805-512-0 02 1 1407-
