Sayfa 3-05 - Isuzu EPC

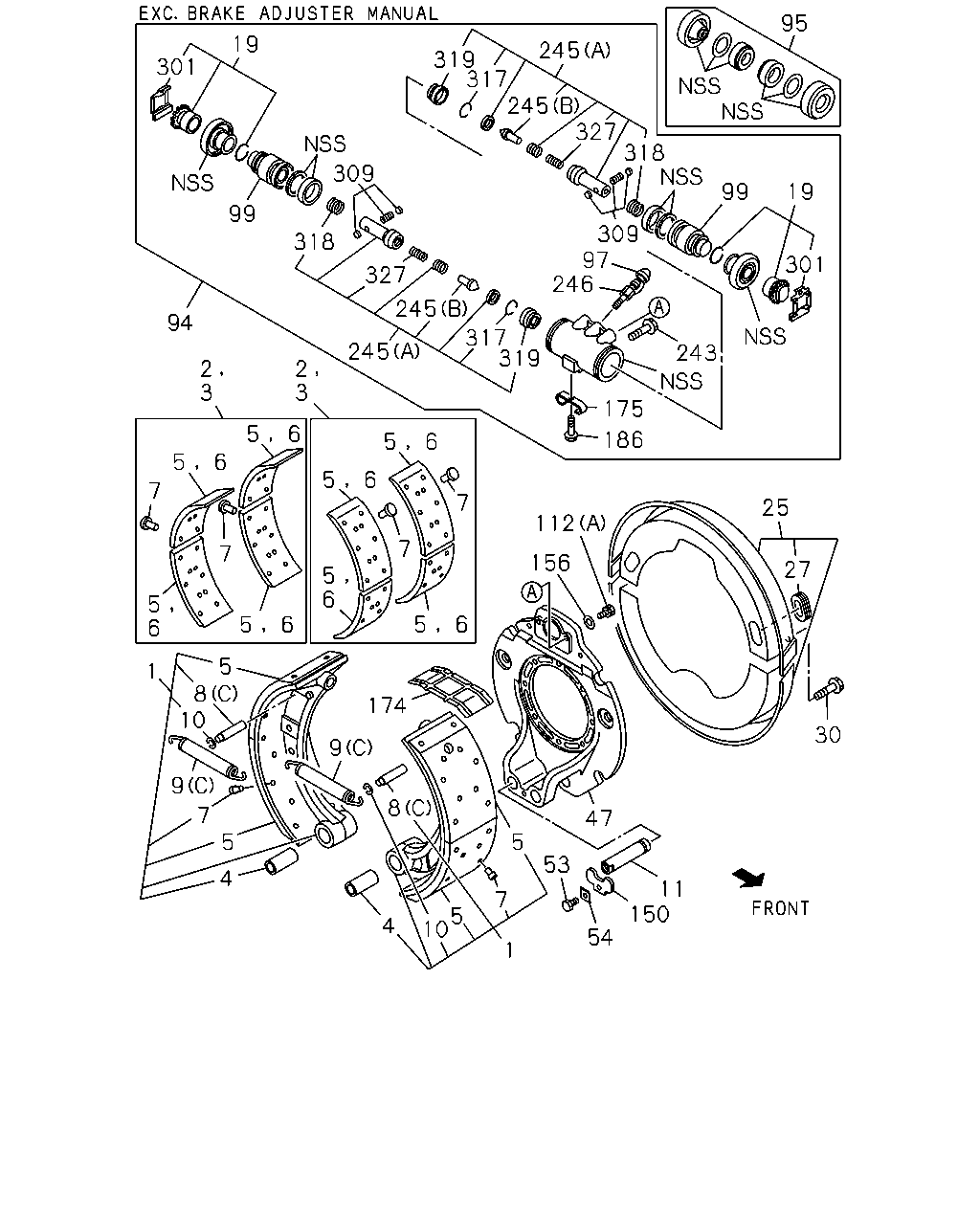

3-05 — REAR WHEEL BRAKE (#144146) — 467 parça

301 19 99 309 318 245 317 245 327 94 319 245 317 327 245 99 301 19 318 309 97 246 243 175 319 2 3 2 5 7 5 6 5 6 5 6 5 5 6 6 7 5 6 174 5 8 10 9 150 47 5 53 10 4 4 7 9 8 112 156 25 27 30 186 7 1 11 7 5 6 6 5 54 95 3 1 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-504-0	01	1	1505-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-506-0	01	1	1505-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-505-0	01	1	1505-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-507-0	01	1	1505-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-520-0	01	1	1410-1504
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-520-0	01	1	1505-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-522-0	01	1	1410-1504
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-522-0	01	1	1505-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-521-0	01	1	1410-1504
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-521-0	01	1	1505-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-523-0	01	1	1410-1504
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-523-0	01	1	1505-
1	SHOE; BRK,RR	1-47170-442-0	04	1	1407-1409
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR>	1-47170-442-0	04	1	1410-1504
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-442-0	04	1	1505-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-773-0	02	1	1505-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	1410-1504
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	1505-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	1410-1504
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	1505-
2	LINING SET; RR BRK,STANDARD T=16	1-88311-359-1	02	1	1407-1409
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	1410-1504
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	1505-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-774-0	02	1	1505-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	1410-1504
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	1505-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	1410-1504
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	1505-
3	LINING SET; RR BRK,OVER SIZE T=17	1-88311-360-1	02	1	1407-1409
3	LINING SET; RR BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	1410-1504
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	1505-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	1407-1504
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-012-0	04	1	1505-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-091-0	08	1	1505-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	1410-1504
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	1505-
5	LINING; RR BRK SHOE,STANDARD	1-47126-760-0	08	1	1407-1409
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	1410-1504
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	1505-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-092-0	08	1	1505-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	1410-1504
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	1505-
6	LINING; RR BRK SHOE,OVER SIZE T=17	1-47126-761-0	08	1	1407-1409
6	LINING; RR BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	1410-1504
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	1505-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=15.5	1-09732-053-0	AR	1	1505-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	1410-1504
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	1505-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	1410-1504
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	1505-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	1407-1409
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	1410-1504
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	1505-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-47119-175-0	04	1	1505-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47119-135-0	02	1	1410-1504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47119-135-0	02	1	1505-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47119-136-0	02	1	1410-1504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47119-136-0	02	1	1505-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-09744-051-0	04	1	1407-1409
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (A)	1-09744-051-0	04	1	1410-1504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-09744-051-0	04	1	1505-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-025-0	04	1	1407-1409
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-025-0	04	1	1410-1504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-025-0	04	1	1505-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09583-376-0	02	1	1505-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-361-0	04	1	1410-1504
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-361-0	04	1	1505-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-175-0	02	1	1407-1409
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-175-0	02	1	1410-1504
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-175-0	02	1	1505-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-210-0	02	1	1407-1409
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-210-0	02	1	1410-1504
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-210-0	02	1	1505-
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	04	1	1505-
10	RING; SNAP,SPR PIN EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	1410-1504
10	RING; SNAP,SPR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	1505-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	1505-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	1407-1504
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=121.5	1-47131-039-0	04	1	1505-
19	ADJUSTER; RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	1410-1504
19	ADJUSTER; RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	1505-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	1505-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	1505-
25	COVER SET; RR BRK DRUM	1-47151-461-1	02	1	1407-1504
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-461-1	02	1	1505-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1407-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1407-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1505-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1505-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1505-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	1410-1504
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	1505-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-151-0	02	1	1407-1409
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	1410-1504
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	1505-
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1505-
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1407-1504
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1505-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1407-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-068-0	02	1	1410-1504
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-068-0	02	1	1505-
94	CYLINDER; WHEEL,RR BRK	1-47601-125-0	02	1	1407-1409
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47601-125-0	02	1	1410-1504
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-125-0	02	1	1505-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-987-0	02	1	1410-1504
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-987-0	02	1	1505-
95	CUP SET; RR WHEEL CYL	1-87830-720-0	02	1	1407-1409
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-87830-720-0	02	1	1410-1504
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-720-0	02	1	1505-
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	1407-1504
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	1505-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-372-0	04	1	1410-1504
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-372-0	04	1	1505-
99	PISTON; RR WHEEL CYL	1-47624-391-0	04	1	1407-1409
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-391-0	04	1	1410-1504
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-391-0	04	1	1505-
112	BOLT; WHEEL CYL SETTING (A) M14X35	0-20851-435-0	04	1	1407-1504
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M14X35	0-20851-435-0	04	1	1505-
112	BOLT; WHEEL CYL SETTING (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	1407-1409
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	1410-1504
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	1505-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47133-010-0	02	1	1505-
150	PLATE; LK,ANCHOR PIN EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1410-1504
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1505-
156	WASHER; LK,WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-514-0	04	1	1410-1504
156	WASHER; LK,WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-514-0	04	1	1505-
174	COVER; CYL,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-081-0	02	1	1410-1504
174	COVER; CYL,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-081-0	02	1	1505-
175	HANGER; RR WHEEL BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-146-0	02	1	1410-1504
175	HANGER; RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-146-0	02	1	1505-
186	BOLT; HANGER EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	1410-1504
186	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	1505-
243	BOLT; WHEEL CYL COVER SETTING EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	06	1	1410-1504
243	BOLT; WHEEL CYL COVER SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	06	1	1505-
245	SHAFT EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47623-027-1	04	1	1410-1504
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47623-027-1	04	1	1505-
245	SHAFT EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-121-0	04	1	1410-1504
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-121-0	04	1	1505-
246	BLEEDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	1410-1504
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	1505-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1505-
301	CLIP; ANTI LOTATION EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1410-1504
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1505-
309	SPRING; ADJUSTER SHAFT EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	1410-1504
309	SPRING; ADJUSTER SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	1505-
317	RING; RETAINER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-119-0	04	1	1410-1504
317	RING; RETAINER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-119-0	04	1	1505-
318	SPRING; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-542-0	04	1	1410-1504
318	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-542-0	04	1	1505-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	1505-
319	RING; DRIVE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1410-1504
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1505-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1505-
327	SPRING; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1410-1504
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1505-

94 95 112 25 30 27 56 60 57 61 58 62 59 111 112 94 47 11 51 54 53 5 7 7 1 5 4 15 55 9 51 52 5 6 7 6 5 2 3 6 5 7 7 5 6 5 1 7 5 8 149 4 8 9 100 96 98 100 97 99 99 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-504-0	01	1	1505-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-506-0	01	1	1505-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-505-0	01	1	1505-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-507-0	01	1	1505-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-520-0	01	1	1410-1504
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-520-0	01	1	1505-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-522-0	01	1	1410-1504
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-522-0	01	1	1505-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-521-0	01	1	1410-1504
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-521-0	01	1	1505-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-523-0	01	1	1410-1504
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-523-0	01	1	1505-
1	SHOE; BRK,RR	1-47170-442-0	04	1	1407-1409
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR>	1-47170-442-0	04	1	1410-1504
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-442-0	04	1	1505-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-773-0	02	1	1505-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	1410-1504
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	1505-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	1410-1504
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	1505-
2	LINING SET; RR BRK,STANDARD T=16	1-88311-359-1	02	1	1407-1409
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	1410-1504
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	1505-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-774-0	02	1	1505-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	1410-1504
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	1505-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	1410-1504
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	1505-
3	LINING SET; RR BRK,OVER SIZE T=17	1-88311-360-1	02	1	1407-1409
3	LINING SET; RR BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	1410-1504
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	1505-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	1407-1504
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-012-0	04	1	1505-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-091-0	08	1	1505-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	1410-1504
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	1505-
5	LINING; RR BRK SHOE,STANDARD	1-47126-760-0	08	1	1407-1409
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	1410-1504
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	1505-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-092-0	08	1	1505-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	1410-1504
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	1505-
6	LINING; RR BRK SHOE,OVER SIZE T=17	1-47126-761-0	08	1	1407-1409
6	LINING; RR BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	1410-1504
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	1505-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=15.5	1-09732-053-0	AR	1	1505-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	1410-1504
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	1505-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	1410-1504
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	1505-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	1407-1409
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	1410-1504
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	1505-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-47119-175-0	04	1	1505-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47119-135-0	02	1	1410-1504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47119-135-0	02	1	1505-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47119-136-0	02	1	1410-1504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47119-136-0	02	1	1505-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-09744-051-0	04	1	1407-1409
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (A)	1-09744-051-0	04	1	1410-1504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-09744-051-0	04	1	1505-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-025-0	04	1	1407-1409
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-025-0	04	1	1410-1504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-025-0	04	1	1505-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09583-376-0	02	1	1505-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-361-0	04	1	1410-1504
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-361-0	04	1	1505-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-175-0	02	1	1407-1409
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-175-0	02	1	1410-1504
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-175-0	02	1	1505-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-210-0	02	1	1407-1409
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-210-0	02	1	1410-1504
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-210-0	02	1	1505-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	1505-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	1407-1504
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=121.5	1-47131-039-0	04	1	1505-
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK	1-47116-002-0	04	1	1407-1409
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	1410-1504
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	1505-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	1505-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	1505-
25	COVER SET; RR BRK DRUM	1-47151-461-1	02	1	1407-1504
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-461-1	02	1	1505-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1407-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1407-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1505-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1505-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1505-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	1410-1504
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	1505-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-151-0	02	1	1407-1409
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	1410-1504
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	1505-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK (A)	1-47165-058-1	02	1	1407-1409
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	1410-1504
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	1505-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK (B)	1-47165-059-1	02	1	1407-1409
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	1410-1504
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	1505-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	1407-1409
52	BOLT; ANCHOR BRKT BRAKE ADJUSTER MANUAL<BJR> M14X50	1-09040-066-0	02	1	1410-1504
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> M14X50	1-09040-066-0	02	1	1505-
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1505-
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1407-1504
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1505-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1407-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	1407-1409
55	PLATE; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1410-1504
55	PLATE; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1505-
56	WASHER; ADJ CAM,RR WHEEL BRK	1-47169-033-0	04	1	1407-1409
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	1410-1504
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	1505-
57	SPRING; ADJ CAM,RR WHEEL BRK	1-47169-046-0	04	1	1407-1409
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	1410-1504
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	1505-
58	BOOT; ADJ CAM,RR WHEEL BRK	1-47169-034-0	04	1	1407-1409
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	1410-1504
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	1505-
59	WASHER; LK,RR WHEEL CYL ID=14.2	0-91510-514-0	04	1	1407-1409
59	WASHER; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-514-0	04	1	1410-1504
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-514-0	04	1	1505-
60	COVER; ADJ CAM BOOT,RR WHEEL BRK	1-47169-031-0	04	1	1407-1409
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	1410-1504
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	1505-
61	INDICATOR; WEAR,RR BRK SHOE	1-47169-032-1	04	1	1407-1409
61	INDICATOR; WEAR,RR BRK SHOE BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	1410-1504
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	1505-
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK	1-47169-030-0	04	1	1407-1409
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	1410-1504
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	1505-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-068-0	02	1	1410-1504
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-068-0	02	1	1505-
94	CYLINDER; WHEEL,RR BRK	1-47601-125-0	02	1	1407-1409
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47601-125-0	02	1	1410-1504
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-125-0	02	1	1505-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-987-0	02	1	1410-1504
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-987-0	02	1	1505-
95	CUP SET; RR WHEEL CYL	1-87830-720-0	02	1	1407-1409
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-87830-720-0	02	1	1410-1504
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-720-0	02	1	1505-
96	SCREW; BLEEDER,RR BRK	1-47615-002-0	02	1	1407-1409
96	SCREW; BLEEDER,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	1410-1504
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	1505-
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	1407-1504
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	1505-
98	SPRING; RR WHEEL CYL	1-09580-019-0	02	1	1407-1409
98	SPRING; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-09580-019-0	02	1	1410-1504
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09580-019-0	02	1	1505-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-372-0	04	1	1410-1504
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-372-0	04	1	1505-
99	PISTON; RR WHEEL CYL	1-47624-391-0	04	1	1407-1409
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-391-0	04	1	1410-1504
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-391-0	04	1	1505-
100	ROD; PUSH,RR WHEEL CYL	1-47621-009-0	04	1	1407-1409
100	ROD; PUSH,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	1410-1504
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	1505-
111	COVER; WHEEL CYL	1-47159-081-0	02	1	1407-1409
111	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47159-081-0	02	1	1410-1504
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-081-0	02	1	1505-
112	BOLT; WHEEL CYL SETTING (A) M14X35	0-20851-435-0	04	1	1407-1504
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M14X35	0-20851-435-0	04	1	1505-
112	BOLT; WHEEL CYL SETTING (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	1407-1409
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	1410-1504
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	1505-
149	PIN; GUIDE RETURN	1-47119-024-0	04	1	1407-1409
149	PIN; GUIDE RETURN BRAKE ADJUSTER MANUAL<BJR>	1-47119-024-0	04	1	1410-1504
149	PIN; GUIDE RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47119-024-0	04	1	1505-

297 335 311 348 297 334 346 301 328 319 327 329 319 327 328 301 347 301 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47649-031-0	02	1	1505-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-034-1	02	1	1505-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1505-
301	CLIP; ANTI LOTATION EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1410-1504
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1505-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	1505-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	1505-
319	RING; DRIVE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1410-1504
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1505-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1505-
327	SPRING; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1410-1504
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1505-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	1505-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	1505-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-041-0	02	1	1505-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	1505-
346	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-403-0	02	1	1505-
347	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-404-0	02	1	1505-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	1505-

27 25 337 310 297 335 336 178 348 311 334 297 301 319 327 328 132 300 329 300 319 301 132 328 327 11 3 2 6 5 7 6 5 5 6 6 5 7 1 336 337 10 5 7 8 10 5 91 337 336 242 242 312 47 10 5 7 5 336 337 1 10 8 53 150 54 310 9 298 266 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-504-0	01	1	1505-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-506-0	01	1	1505-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-505-0	01	1	1505-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-507-0	01	1	1505-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-520-0	01	1	1410-1504
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-520-0	01	1	1505-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-522-0	01	1	1410-1504
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-522-0	01	1	1505-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-521-0	01	1	1410-1504
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-521-0	01	1	1505-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-523-0	01	1	1410-1504
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-523-0	01	1	1505-
1	SHOE; BRK,RR	1-47170-442-0	04	1	1407-1409
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR>	1-47170-442-0	04	1	1410-1504
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-442-0	04	1	1505-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-773-0	02	1	1505-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	1410-1504
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	1505-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	1410-1504
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	1505-
2	LINING SET; RR BRK,STANDARD T=16	1-88311-359-1	02	1	1407-1409
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	1410-1504
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	1505-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-774-0	02	1	1505-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	1410-1504
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	1505-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	1410-1504
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	1505-
3	LINING SET; RR BRK,OVER SIZE T=17	1-88311-360-1	02	1	1407-1409
3	LINING SET; RR BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	1410-1504
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	1505-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-091-0	08	1	1505-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	1410-1504
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	1505-
5	LINING; RR BRK SHOE,STANDARD	1-47126-760-0	08	1	1407-1409
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	1410-1504
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	1505-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-092-0	08	1	1505-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	1410-1504
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	1505-
6	LINING; RR BRK SHOE,OVER SIZE T=17	1-47126-761-0	08	1	1407-1409
6	LINING; RR BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	1410-1504
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	1505-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=15.5	1-09732-053-0	AR	1	1505-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	1410-1504
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	1505-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	1410-1504
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	1505-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	1407-1409
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	1410-1504
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	1505-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-47119-175-0	04	1	1505-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47119-135-0	02	1	1410-1504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47119-135-0	02	1	1505-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47119-136-0	02	1	1410-1504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47119-136-0	02	1	1505-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-09744-051-0	04	1	1407-1409
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (A)	1-09744-051-0	04	1	1410-1504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-09744-051-0	04	1	1505-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-025-0	04	1	1407-1409
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-025-0	04	1	1410-1504
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-025-0	04	1	1505-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09583-376-0	02	1	1505-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-361-0	04	1	1410-1504
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-361-0	04	1	1505-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-175-0	02	1	1407-1409
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-175-0	02	1	1410-1504
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-175-0	02	1	1505-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-210-0	02	1	1407-1409
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-210-0	02	1	1410-1504
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-210-0	02	1	1505-
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	04	1	1505-
10	RING; SNAP,SPR PIN EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	1410-1504
10	RING; SNAP,SPR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	1505-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	1505-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	1407-1504
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=121.5	1-47131-039-0	04	1	1505-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	1505-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	1505-
25	COVER SET; RR BRK DRUM	1-47151-461-1	02	1	1407-1504
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-461-1	02	1	1505-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1407-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1407-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1505-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1505-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1505-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	1410-1504
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	1505-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-151-0	02	1	1407-1409
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	1410-1504
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	1505-
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1505-
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1407-1504
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1505-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1407-
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X45	1-47139-174-0	08	1	1505-
132	SCREW; ADJ,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47623-035-2	04	1	1505-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47133-010-0	02	1	1505-
150	PLATE; LK,ANCHOR PIN EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1410-1504
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1505-
178	WEDGE; RR WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47640-012-0	02	1	1505-
242	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47159-186-0	04	1	1505-
266	ROLLER; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47643-007-0	04	1	1505-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47649-031-0	02	1	1505-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-034-1	02	1	1505-
298	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-231-0	02	1	1505-
300	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-247-1	04	1	1505-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1505-
301	CLIP; ANTI LOTATION EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1410-1504
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1505-
310	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47601-087-0	02	1	1505-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	1505-
312	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	1505-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	1505-
319	RING; DRIVE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1410-1504
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1505-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1505-
327	SPRING; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1410-1504
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1505-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	1505-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	1505-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-041-0	02	1	1505-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	1505-
336	PLATE; PIVOT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-152-0	04	1	1505-
337	BOLT; PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-153-0	04	1	1505-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	1505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
