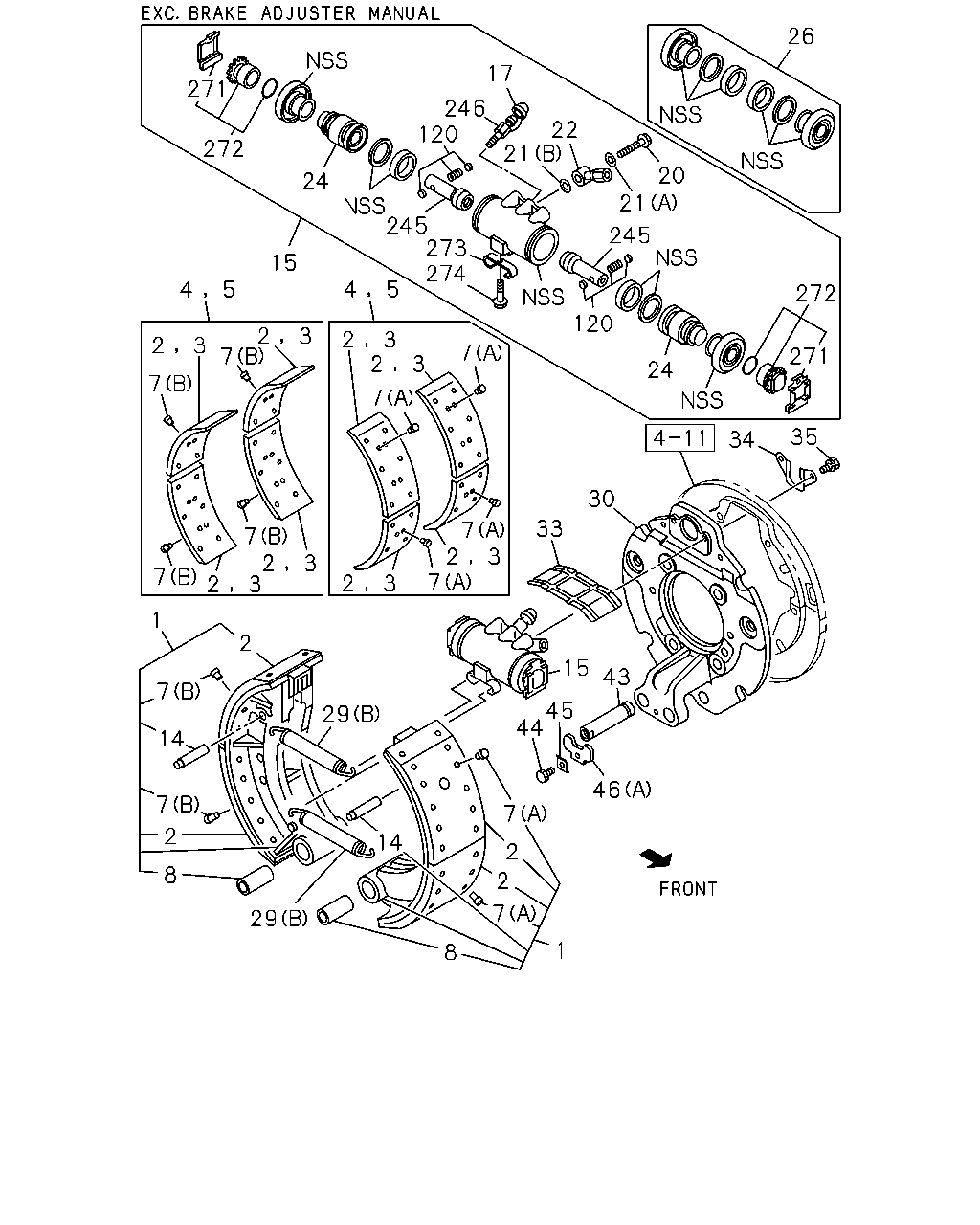

3-01 — FRONT WHEEL BRAKE (#144145) — 433 parça

26 17 246 120 24 272 271 245 15 5 4 2 3 2 3 2 3 4 5 273 120 24 245 21 20 272 271 35 34 30 7 3 2 7 7 7 7 7 2 3 2 3 2 3 2 3 7 7 33 15 43 45 44 7 2 2 7 1 8 14 29 8 2 7 14 7 1 2 22 21 274 46 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-316-0	01	1	1505-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-317-0	01	1	1505-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-318-0	01	1	1505-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-319-0	01	1	1505-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	1410-1504
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	1505-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1410-1504
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1505-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	1410-1504
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	1505-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	1410-1504
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	1505-
1	SHOE; BRK,FRT	1-47170-441-0	04	1	1407-1409
1	SHOE; BRK,FRT BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	1410-1504
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	1505-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-698-0	08	1	1505-
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1410-1504
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1505-
2	LINING; FRT BRK SHOE,STANDARD	1-47126-758-0	08	1	1407-1409
2	LINING; FRT BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1410-1504
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1505-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-699-0	08	1	1505-
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1410-1504
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1505-
3	LINING; FRT BRK SHOE,OVER SIZE	1-47126-759-0	08	1	1407-1409
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1410-1504
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1505-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-314-0	02	1	1505-
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	1410-1504
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	1505-
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	1410-1504
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	1505-
4	LINING SET; FRT BRK,STANDARD	1-88311-353-1	02	1	1407-1409
4	LINING SET; FRT BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	1410-1504
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	1505-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BEST VALUE PARTS	1-87610-128-0	01	1	1505-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-315-0	02	1	1505-
5	LINING SET; FRT BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	1410-1504
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	1505-
5	LINING SET; FRT BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	1410-1504
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	1505-
5	LINING SET; FRT BRK,OVER SIZE	1-88311-354-1	02	1	1407-1409
5	LINING SET; FRT BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	1410-1504
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	1505-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	80	1	1505-
7	RIVET; LINING,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	1410-1504
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	1505-
7	RIVET; LINING,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	1410-1504
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	1505-
7	RIVET; LINING,FRT BRK (B) L=18.5	1-09732-034-0	80	1	1407-1409
7	RIVET; LINING,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	1410-1504
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	1505-
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47112-020-0	04	1	1505-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	1407-1504
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	1505-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-177-1	04	1	1505-
14	PIN; SHOE RETURN SPR EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1410-1504
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1505-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	1407-1409
14	PIN; SHOE RETURN SPR BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1410-1504
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1505-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-041-1	01	1	1410-1504
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-041-1	01	1	1505-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-042-1	01	1	1410-1504
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-042-1	01	1	1505-
15	CYLINDER; WHEEL,FRT BRK	1-47601-122-0	01	1	1407-1409
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47601-122-0	01	1	1410-1504
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-122-0	01	1	1505-
15	CYLINDER; WHEEL,FRT BRK	1-47601-123-0	01	1	1407-1409
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47601-123-0	01	1	1410-1504
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-123-0	01	1	1505-
17	CAP; BLEEDER,FRT WHEEL CYL OD=12	1-47619-011-0	02	1	1407-1504
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	1505-
20	BOLT; JOINT M12X40.5 EYE BOLT	1-47634-006-0	02	1	1407-1504
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40.5 EYE BOLT	1-47634-006-0	02	1	1505-
21	GASKET; UNION BOLT (A) ID=15.2	1-09630-019-0	02	1	1407-1504
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15.2	1-09630-019-0	02	1	1505-
21	GASKET; UNION BOLT (B) ID=12.2	1-09630-020-0	02	1	1407-1504
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	1-09630-020-0	02	1	1505-
22	JOINT; PIPE	1-47631-057-1	02	1	1407-1504
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47631-057-1	02	1	1505-
24	PISTON; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-370-0	04	1	1410-1504
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-370-0	04	1	1505-
24	PISTON; FRT WHEEL CYL	1-47624-389-0	04	1	1407-1409
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-389-0	04	1	1410-1504
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-389-0	04	1	1505-
26	CUP SET; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-931-0	02	1	1410-1504
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-931-0	02	1	1505-
26	CUP SET; FRT WHEEL CYL	1-87830-676-0	02	1	1407-1409
26	CUP SET; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-87830-676-0	02	1	1410-1504
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-676-0	02	1	1505-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09583-365-1	02	1	1505-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-47649-041-0	02	1	1505-
29	SPRING; RETURN,FRT BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-359-0	04	1	1410-1504
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-359-0	04	1	1505-
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-269-1	02	1	1407-1409
29	SPRING; RETURN,FRT BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-269-1	02	1	1410-1504
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-269-1	02	1	1505-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98091-252-0	02	1	1505-
30	BRACKET; ANCHOR,FRT EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-519-0	02	1	1410-1504
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-519-0	02	1	1505-
30	BRACKET; ANCHOR,FRT	1-47137-435-0	02	1	1407-1409
30	BRACKET; ANCHOR,FRT BRAKE ADJUSTER MANUAL<BJR>	1-47137-435-0	02	1	1410-1504
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-435-0	02	1	1505-
33	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	1410-1504
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	1505-
33	COVER; WHEEL CYL	1-47159-080-0	02	1	1407-1409
33	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	1410-1504
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	1505-
34	PLATE; DIRECTION,FRT	1-47159-094-0	02	1	1407-1504
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-094-0	02	1	1505-
35	BOLT; FRT WHEEL CYL M12X35 W/LK WASHER	0-50551-235-0	04	1	1407-1504
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50551-235-0	04	1	1505-
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=115.5	1-47131-044-0	04	1	1505-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	1407-1504
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	1505-
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1505-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	1407-1504
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1505-
45	WASHER; LK	1-47133-011-0	02	1	1407-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-152-0	04	1	1505-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47133-010-0	02	1	1505-
46	PLATE; LOCK (A)	1-47133-005-0	02	1	1407-1504
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47133-005-0	02	1	1505-
120	SPRING; LK,ADJ,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	1410-1504
120	SPRING; LK,ADJ,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	1505-
245	SHAFT; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47623-027-1	04	1	1410-1504
245	SHAFT; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47623-027-1	04	1	1505-
246	BLEEDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	1410-1504
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	1505-
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1505-
271	CLIP; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1410-1504
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1505-
272	ADJUSTER; MANUAL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	1410-1504
272	ADJUSTER; MANUAL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	1505-
273	HANGER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-145-0	02	1	1410-1504
273	HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-145-0	02	1	1505-
274	BOLT; HANGER EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	1410-1504
274	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	1505-

2 3 2 3 7 2 3 2 3 7 14 1 15 28 4 5 29 34 35 33 36 43 44 15 45 36 46 37 38 39 40 41 42 30 26 14 8 2 1 7 2 17 27 24 21 21 22 20 23 24 27 16 2 2 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-316-0	01	1	1505-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-317-0	01	1	1505-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-318-0	01	1	1505-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-319-0	01	1	1505-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	1410-1504
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	1505-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1410-1504
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1505-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	1410-1504
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	1505-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	1410-1504
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	1505-
1	SHOE; BRK,FRT	1-47170-441-0	04	1	1407-1409
1	SHOE; BRK,FRT BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	1410-1504
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	1505-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-698-0	08	1	1505-
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1410-1504
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1505-
2	LINING; FRT BRK SHOE,STANDARD	1-47126-758-0	08	1	1407-1409
2	LINING; FRT BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1410-1504
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1505-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-699-0	08	1	1505-
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1410-1504
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1505-
3	LINING; FRT BRK SHOE,OVER SIZE	1-47126-759-0	08	1	1407-1409
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1410-1504
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1505-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-314-0	02	1	1505-
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	1410-1504
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	1505-
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	1410-1504
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	1505-
4	LINING SET; FRT BRK,STANDARD	1-88311-353-1	02	1	1407-1409
4	LINING SET; FRT BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	1410-1504
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	1505-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BEST VALUE PARTS	1-87610-128-0	01	1	1505-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-315-0	02	1	1505-
5	LINING SET; FRT BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	1410-1504
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	1505-
5	LINING SET; FRT BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	1410-1504
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	1505-
5	LINING SET; FRT BRK,OVER SIZE	1-88311-354-1	02	1	1407-1409
5	LINING SET; FRT BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	1410-1504
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	1505-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	80	1	1505-
7	RIVET; LINING,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	1410-1504
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	1505-
7	RIVET; LINING,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	1410-1504
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	1505-
7	RIVET; LINING,FRT BRK (B) L=18.5	1-09732-034-0	80	1	1407-1409
7	RIVET; LINING,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	1410-1504
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	1505-
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47112-020-0	04	1	1505-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	1407-1504
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	1505-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-177-1	04	1	1505-
14	PIN; SHOE RETURN SPR EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1410-1504
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1505-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	1407-1409
14	PIN; SHOE RETURN SPR BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1410-1504
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1505-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-041-1	01	1	1410-1504
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-041-1	01	1	1505-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-042-1	01	1	1410-1504
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-042-1	01	1	1505-
15	CYLINDER; WHEEL,FRT BRK	1-47601-122-0	01	1	1407-1409
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47601-122-0	01	1	1410-1504
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-122-0	01	1	1505-
15	CYLINDER; WHEEL,FRT BRK	1-47601-123-0	01	1	1407-1409
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47601-123-0	01	1	1410-1504
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-123-0	01	1	1505-
16	SCREW; BLEEDER,FRT BRK L=66.5	1-47615-005-0	02	1	1407-1409
16	SCREW; BLEEDER,FRT BRK BRAKE ADJUSTER MANUAL<BJR> L=66.5	1-47615-005-0	02	1	1410-1504
16	SCREW; BLEEDER,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=66.5	1-47615-005-0	02	1	1505-
17	CAP; BLEEDER,FRT WHEEL CYL OD=12	1-47619-011-0	02	1	1407-1504
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	1505-
20	BOLT; JOINT M12X40.5 EYE BOLT	1-47634-006-0	02	1	1407-1504
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40.5 EYE BOLT	1-47634-006-0	02	1	1505-
21	GASKET; UNION BOLT (A) ID=15.2	1-09630-019-0	02	1	1407-1504
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15.2	1-09630-019-0	02	1	1505-
21	GASKET; UNION BOLT (B) ID=12.2	1-09630-020-0	02	1	1407-1504
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	1-09630-020-0	02	1	1505-
22	JOINT; PIPE	1-47631-057-1	02	1	1407-1504
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47631-057-1	02	1	1505-
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1505-
23	SPRING; COIL	9-09940-435-0	02	1	1407-1409
23	SPRING; COIL BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	1410-1504
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	1505-
24	PISTON; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-370-0	04	1	1410-1504
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-370-0	04	1	1505-
24	PISTON; FRT WHEEL CYL	1-47624-389-0	04	1	1407-1409
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-389-0	04	1	1410-1504
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-389-0	04	1	1505-
26	CUP SET; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-931-0	02	1	1410-1504
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-931-0	02	1	1505-
26	CUP SET; FRT WHEEL CYL	1-87830-676-0	02	1	1407-1409
26	CUP SET; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-87830-676-0	02	1	1410-1504
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-676-0	02	1	1505-
27	ROD; PUSH	1-47621-009-0	04	1	1407-1409
27	ROD; PUSH BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	1410-1504
27	ROD; PUSH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	1505-
28	PIN; SHOE ADJ CAM GUIDE	1-47116-002-0	04	1	1407-1409
28	PIN; SHOE ADJ CAM GUIDE BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	1410-1504
28	PIN; SHOE ADJ CAM GUIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	1505-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09583-365-1	02	1	1505-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-47649-041-0	02	1	1505-
29	SPRING; RETURN,FRT BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-359-0	04	1	1410-1504
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-359-0	04	1	1505-
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-269-1	02	1	1407-1409
29	SPRING; RETURN,FRT BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-269-1	02	1	1410-1504
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-269-1	02	1	1505-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98091-252-0	02	1	1505-
30	BRACKET; ANCHOR,FRT EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-519-0	02	1	1410-1504
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-519-0	02	1	1505-
30	BRACKET; ANCHOR,FRT	1-47137-435-0	02	1	1407-1409
30	BRACKET; ANCHOR,FRT BRAKE ADJUSTER MANUAL<BJR>	1-47137-435-0	02	1	1410-1504
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-435-0	02	1	1505-
33	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	1410-1504
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	1505-
33	COVER; WHEEL CYL	1-47159-080-0	02	1	1407-1409
33	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	1410-1504
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	1505-
34	PLATE; DIRECTION,FRT	1-47159-094-0	02	1	1407-1504
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-094-0	02	1	1505-
35	BOLT; FRT WHEEL CYL M12X35 W/LK WASHER	0-50551-235-0	04	1	1407-1504
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50551-235-0	04	1	1505-
36	CAM ASM; ADJ (A)	1-47165-058-1	02	1	1407-1409
36	CAM ASM; ADJ BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	1410-1504
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	1505-
36	CAM ASM; ADJ (B)	1-47165-059-1	02	1	1407-1409
36	CAM ASM; ADJ BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	1410-1504
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	1505-
37	WASHER; ADJ CAM	1-47169-033-0	04	1	1407-1409
37	WASHER; ADJ CAM BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	1410-1504
37	WASHER; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	1505-
38	SPRING; ADJ CAM	1-47169-046-0	04	1	1407-1409
38	SPRING; ADJ CAM BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	1410-1504
38	SPRING; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	1505-
39	BOOT; ADJ CAM	1-47169-034-0	04	1	1407-1409
39	BOOT; ADJ CAM BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	1410-1504
39	BOOT; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	1505-
40	COVER; BOOT,ADJ CAM	1-47169-031-0	04	1	1407-1409
40	COVER; BOOT,ADJ CAM BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	1410-1504
40	COVER; BOOT,ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	1505-
41	INDICATOR	1-47169-032-1	04	1	1407-1409
41	INDICATOR BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	1410-1504
41	INDICATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	1505-
42	PIN; SPINDLE	1-47169-030-0	04	1	1407-1409
42	PIN; SPINDLE BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	1410-1504
42	PIN; SPINDLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	1505-
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=115.5	1-47131-044-0	04	1	1505-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	1407-1504
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	1505-
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1505-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	1407-1504
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1505-
45	WASHER; LK	1-47133-011-0	02	1	1407-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-152-0	04	1	1505-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47133-010-0	02	1	1505-
46	PLATE; LOCK (A)	1-47133-005-0	02	1	1407-1504
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47133-005-0	02	1	1505-

304 278 294 306 23 121 279 271 264 29 275 282 23 271 279 305 271 271 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1505-
23	SPRING; COIL	9-09940-435-0	02	1	1407-1409
23	SPRING; COIL BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	1410-1504
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	1505-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09583-365-1	02	1	1505-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-47649-041-0	02	1	1505-
29	SPRING; RETURN,FRT BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-359-0	04	1	1410-1504
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-359-0	04	1	1505-
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-269-1	02	1	1407-1409
29	SPRING; RETURN,FRT BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-269-1	02	1	1410-1504
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-269-1	02	1	1505-
121	SCREW; LK SPR FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	1505-
264	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-034-1	02	1	1505-
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1505-
271	CLIP; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1410-1504
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1505-
275	RING; RETAINER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-031-0	02	1	1505-
278	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	1505-
279	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	1505-
282	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	1505-
294	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	1505-
304	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-403-0	02	1	1505-
305	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-404-0	02	1	1505-
306	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	1505-

271 279 25 23 280 282 281 121 278 294 306 264 29 275 291 276 277 282 25 23 271 279 281 4 5 7 2 3 2 3 2 3 2 3 7 1 287 46 46 78 14 287 7 2 8 2 78 29 14 287 8 292 30 43 46 45 44 287 2 2 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-316-0	01	1	1505-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-317-0	01	1	1505-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-318-0	01	1	1505-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-319-0	01	1	1505-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	1410-1504
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	1505-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1410-1504
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1505-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	1410-1504
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	1505-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	1410-1504
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	1505-
1	SHOE; BRK,FRT	1-47170-441-0	04	1	1407-1409
1	SHOE; BRK,FRT BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	1410-1504
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	1505-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-698-0	08	1	1505-
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1410-1504
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1505-
2	LINING; FRT BRK SHOE,STANDARD	1-47126-758-0	08	1	1407-1409
2	LINING; FRT BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1410-1504
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1505-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-699-0	08	1	1505-
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1410-1504
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1505-
3	LINING; FRT BRK SHOE,OVER SIZE	1-47126-759-0	08	1	1407-1409
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1410-1504
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1505-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-314-0	02	1	1505-
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	1410-1504
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	1505-
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	1410-1504
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	1505-
4	LINING SET; FRT BRK,STANDARD	1-88311-353-1	02	1	1407-1409
4	LINING SET; FRT BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	1410-1504
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	1505-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BEST VALUE PARTS	1-87610-128-0	01	1	1505-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88311-315-0	02	1	1505-
5	LINING SET; FRT BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	1410-1504
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	1505-
5	LINING SET; FRT BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	1410-1504
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	1505-
5	LINING SET; FRT BRK,OVER SIZE	1-88311-354-1	02	1	1407-1409
5	LINING SET; FRT BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	1410-1504
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	1505-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	80	1	1505-
7	RIVET; LINING,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	1410-1504
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	1505-
7	RIVET; LINING,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	1410-1504
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	1505-
7	RIVET; LINING,FRT BRK (B) L=18.5	1-09732-034-0	80	1	1407-1409
7	RIVET; LINING,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	1410-1504
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	1505-
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47112-020-0	04	1	1505-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	1407-1504
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	1505-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-177-1	04	1	1505-
14	PIN; SHOE RETURN SPR EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1410-1504
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1505-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	1407-1409
14	PIN; SHOE RETURN SPR BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1410-1504
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1505-
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1505-
23	SPRING; COIL	9-09940-435-0	02	1	1407-1409
23	SPRING; COIL BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	1410-1504
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	1505-
25	SCREW; ADJ,FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47623-035-2	04	1	1505-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09583-365-1	02	1	1505-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-47649-041-0	02	1	1505-
29	SPRING; RETURN,FRT BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-359-0	04	1	1410-1504
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-359-0	04	1	1505-
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-269-1	02	1	1407-1409
29	SPRING; RETURN,FRT BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-269-1	02	1	1410-1504
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-269-1	02	1	1505-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98091-252-0	02	1	1505-
30	BRACKET; ANCHOR,FRT EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-519-0	02	1	1410-1504
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-519-0	02	1	1505-
30	BRACKET; ANCHOR,FRT	1-47137-435-0	02	1	1407-1409
30	BRACKET; ANCHOR,FRT BRAKE ADJUSTER MANUAL<BJR>	1-47137-435-0	02	1	1410-1504
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-435-0	02	1	1505-
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=115.5	1-47131-044-0	04	1	1505-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	1407-1504
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	1505-
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1505-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	1407-1504
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1505-
45	WASHER; LK	1-47133-011-0	02	1	1407-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-152-0	04	1	1505-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47133-010-0	02	1	1505-
46	PLATE; LOCK (A)	1-47133-005-0	02	1	1407-1504
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47133-005-0	02	1	1505-
78	BOLT; LK,PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-153-0	04	1	1505-
121	SCREW; LK SPR FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	1505-
264	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-034-1	02	1	1505-
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1505-
271	CLIP; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1410-1504
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1505-
275	RING; RETAINER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-031-0	02	1	1505-
276	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X42.5	1-47139-163-0	08	1	1505-
277	RING; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-231-0	02	1	1505-
278	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	1505-
279	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	1505-
280	WEDGE; FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47640-012-0	02	1	1505-
281	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-247-1	04	1	1505-
282	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	1505-
287	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	08	1	1505-
291	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47601-087-0	02	1	1505-
292	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	1505-
294	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	1505-
306	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	1505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
