2-53 — TRANSMISSION OIL COOLER SYSTEM (#144142) — 37 parça

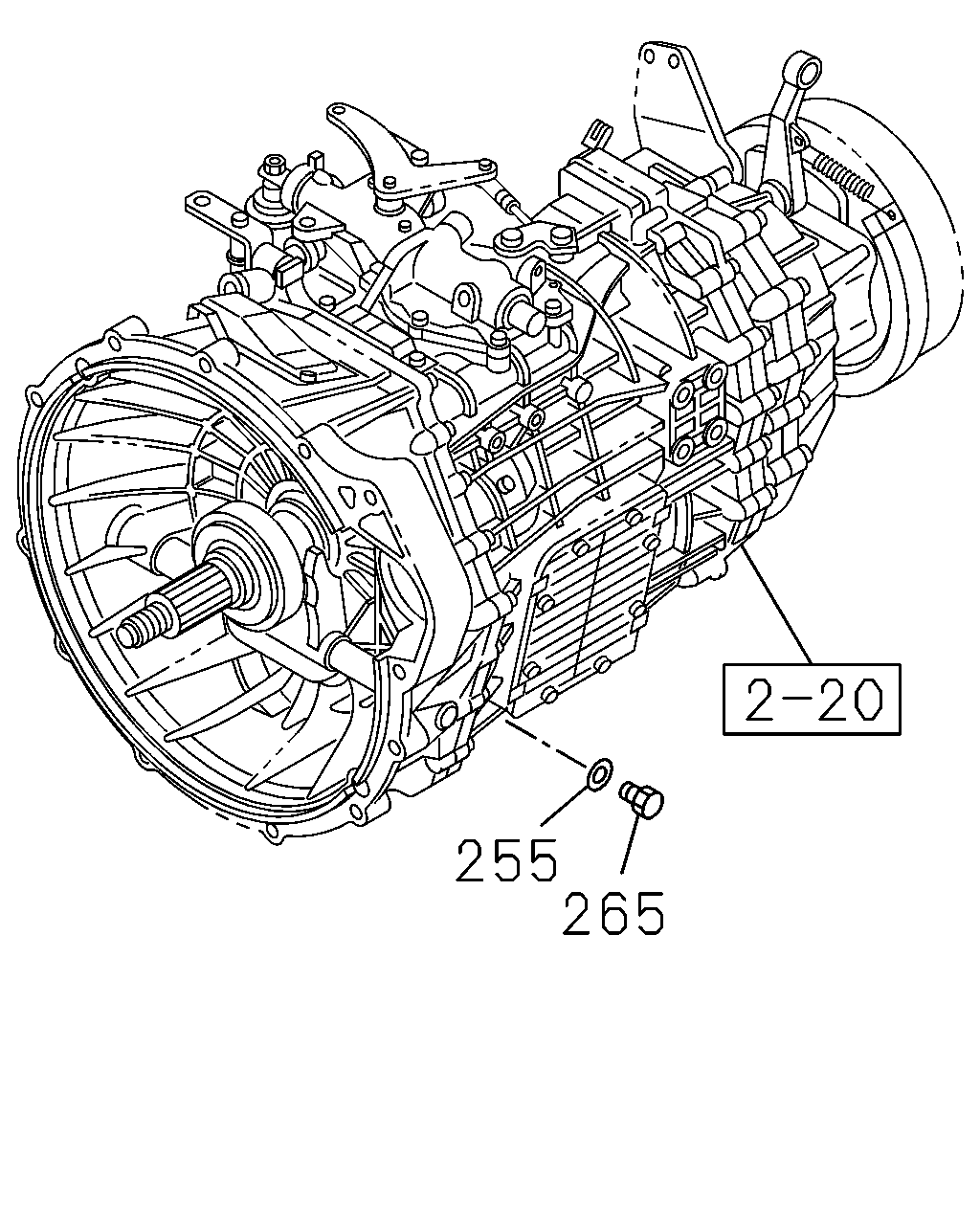

255 265

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	255	GASKET; SENSOR MZW6P M/T(RSZ) ID=12.2	9-09571-412-0	01	1	1407-
	265	PLUG; HOLE MZW6P M/T(RSZ) M12X9	0-92002-412-0	01	1	1407-

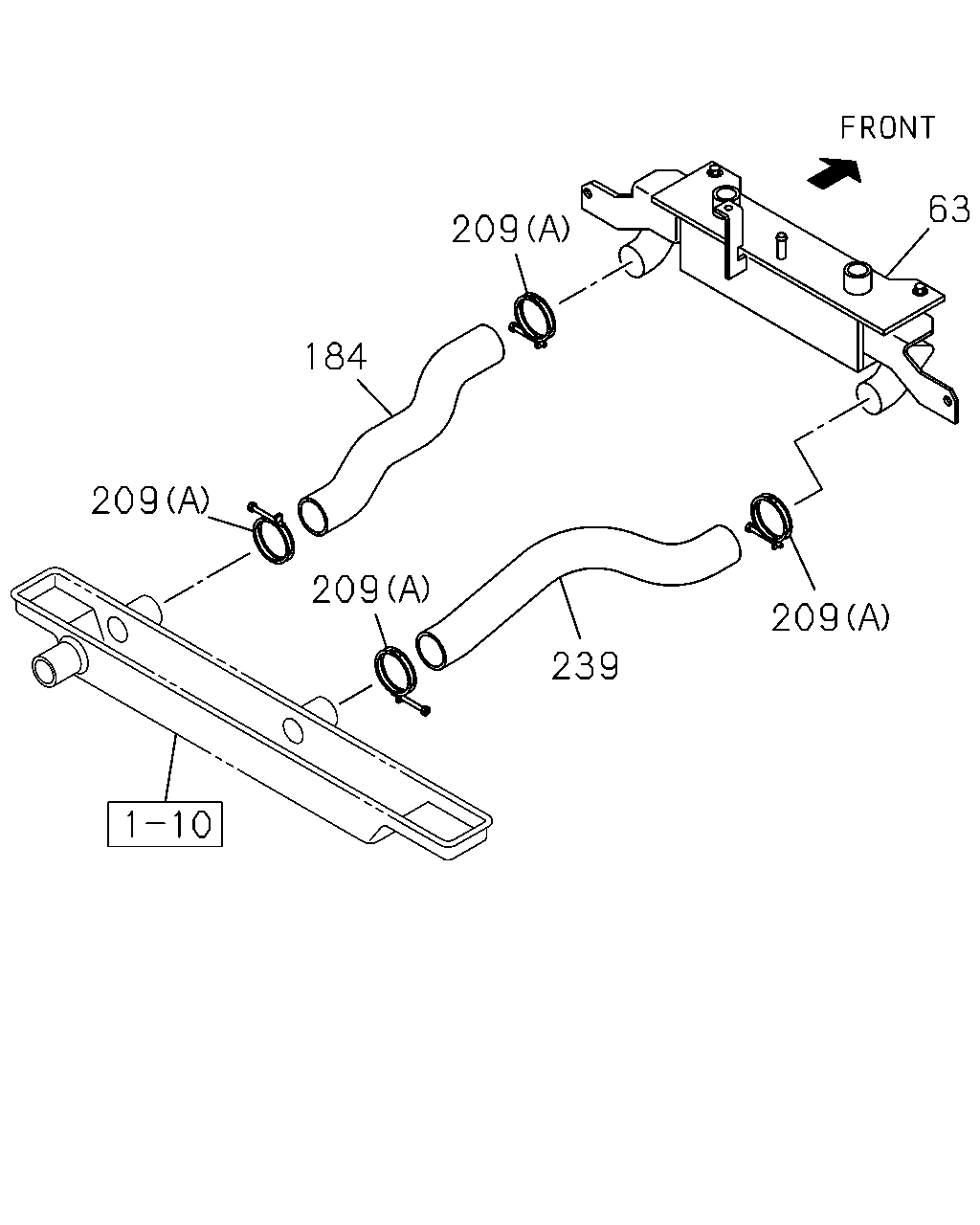

63 209 184 209 209 239 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
63	COOLER; OIL A/T<X9D>	8-98318-012-0	01	1	1508-
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D>	8-98295-928-0	01	1	1508-
209	CLIP; HOSE EXC. MANUAL TRANSMISSION<X9C> (A) ID=63	1-09704-067-0	04	1	1505-
209	CLIP; HOSE A/T<X9D> (B) ID=26 L=26	1-09701-236-0	02	1	1508-
239	HOSE; FLEX,COOLER TO PIPE EXC. MANUAL TRANSMISSION<X9C>	8-98295-929-0	01	1	1505-

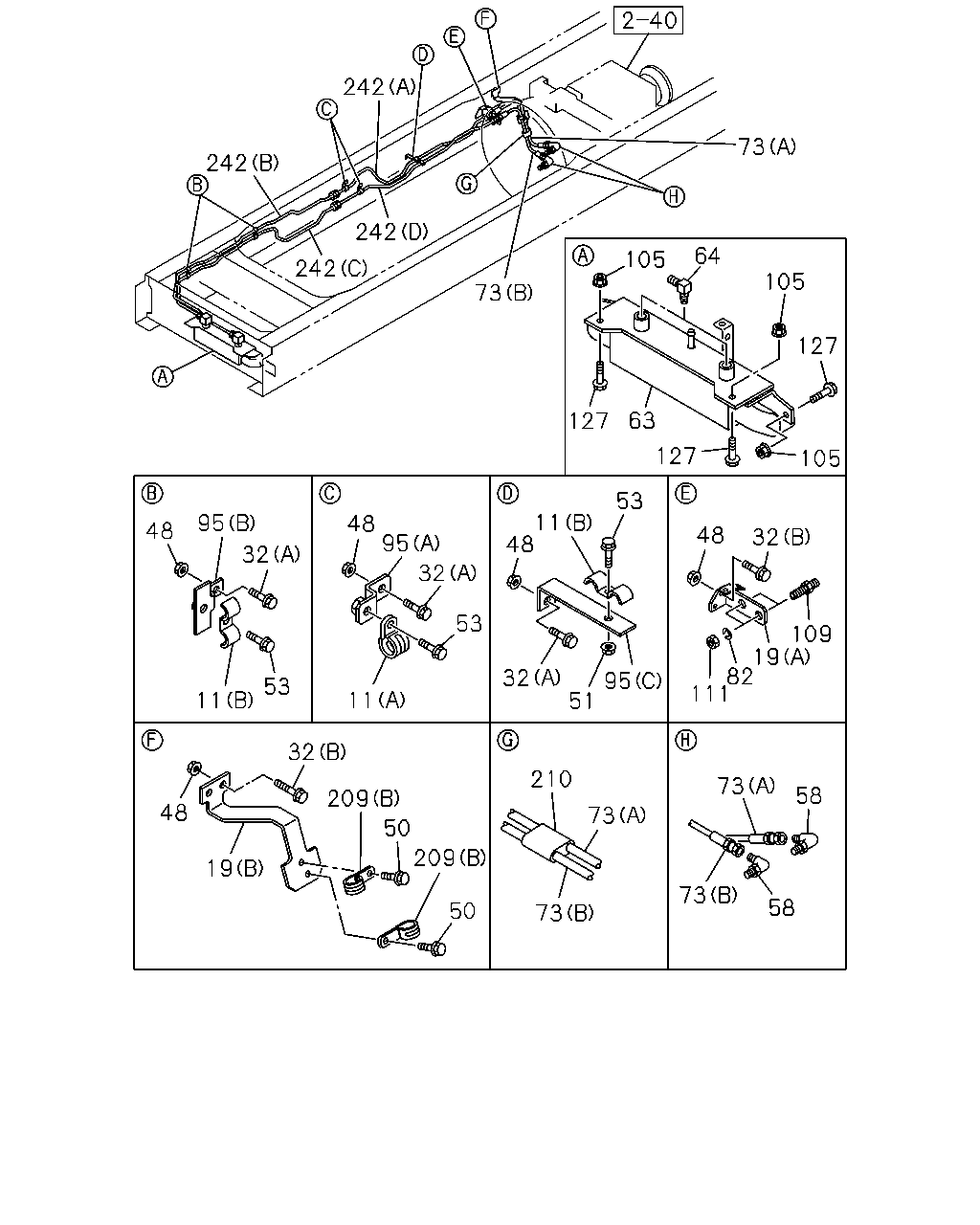

73 242 242 242 242 73 127 105 64 105 127 63 127 105 53 32 95 48 11 53 32 95 48 11 95 53 11 48 32 51 32 48 111 82 109 50 209 50 209 32 48 19 73 210 73 58 73 73 58 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	CLIP; PIPE A/T<X9D> (A) ID=19 L=20	0-95235-836-0	02	1	1508-
11	CLIP; PIPE A/T<X9D> (B) ID=19 & 19	1-09701-324-0	03	1	1508-
19	BRACKET; FLEX HOSE A/T<X9D> (A)	8-98190-007-0	01	1	1508-
19	BRACKET; FLEX HOSE A/T<X9D> (B)	8-98190-151-0	01	1	1508-
32	BOLT; BRKT A/T<X9D> (A) M8X30 FLANGE	0-28650-830-0	05	1	1508-
32	BOLT; BRKT A/T<X9D> (B) M8X35 FLANGE	0-28650-835-0	04	1	1508-
48	NUT; BRKT A/T<X9D> M8 FLANGE MAL	0-91180-108-0	09	1	1508-
50	BOLT; CLIP A/T<X9D> M8X20 FLANGE MAL	0-28650-820-0	02	1	1508-
51	NUT; CLIP TO BRKT A/T<X9D> M8 FLANGE MAL	0-91180-108-0	01	1	1508-
53	BOLT; CLIP,FLEX HOSE,A/T A/T<X9D> M8X20 FLANGE MAL	0-28650-820-0	05	1	1508-
58	CONNECTOR; ATF ALLISON MD3060P A/T(Y4G)	8-98144-617-0	02	1	1508-
63	COOLER; OIL A/T<X9D>	8-98318-012-0	01	1	1508-
64	CONNECTOR; OIL COOLER A/T<X9D>	9-09903-722-0	02	1	1508-
73	HOSE; FLEX,TRANS ALLISON MD3060P A/T(Y4G) (A)	8-98144-618-0	01	1	1508-
73	HOSE; FLEX,TRANS ALLISON MD3060P A/T(Y4G) (B)	8-98144-619-0	01	1	1508-
82	WASHER; LK,UNION A/T<X9D> ID=30.5	9-09150-530-0	02	1	1508-
95	BRACKET; CLIP A/T<X9D> (A)	1-47479-255-0	02	1	1508-
95	BRACKET; CLIP A/T<X9D> (B)	8-98089-351-0	02	1	1508-
95	BRACKET; CLIP A/T<X9D> (C)	8-98269-434-0	01	1	1508-
105	NUT; OIL COOLER EXC. MANUAL TRANSMISSION<X9C> M8 FLANGE MAL	0-91180-108-0	04	1	1505-
109	UNION A/T<X9D> M30 & M30 STRAIGHT MAL	1-09664-191-0	02	1	1508-
111	NUT; UNION A/T<X9D> M30	9-09840-252-1	02	1	1508-
127	BOLT; COOLER EXC. MANUAL TRANSMISSION<X9C> M8X30 FLANGE	0-28650-830-0	04	1	1505-
209	CLIP; HOSE EXC. MANUAL TRANSMISSION<X9C> (A) ID=63	1-09704-067-0	04	1	1505-
209	CLIP; HOSE A/T<X9D> (B) ID=26 L=26	1-09701-236-0	02	1	1508-
210	BAND; FLEX HOSE A/T<X9D> L=175	1-09707-178-0	01	1	1508-
242	PIPE; COOLER A/T<X9D> (B)	8-98097-574-0	01	1	1508-
242	PIPE; COOLER A/T<X9D> (A)	8-98190-140-0	01	1	1508-
242	PIPE; COOLER A/T<X9D> (D)	8-98190-142-0	01	1	1508-
242	PIPE; COOLER A/T<X9D> (C)	8-98282-851-0	01	1	1508-
