2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#144140) — 96 parça

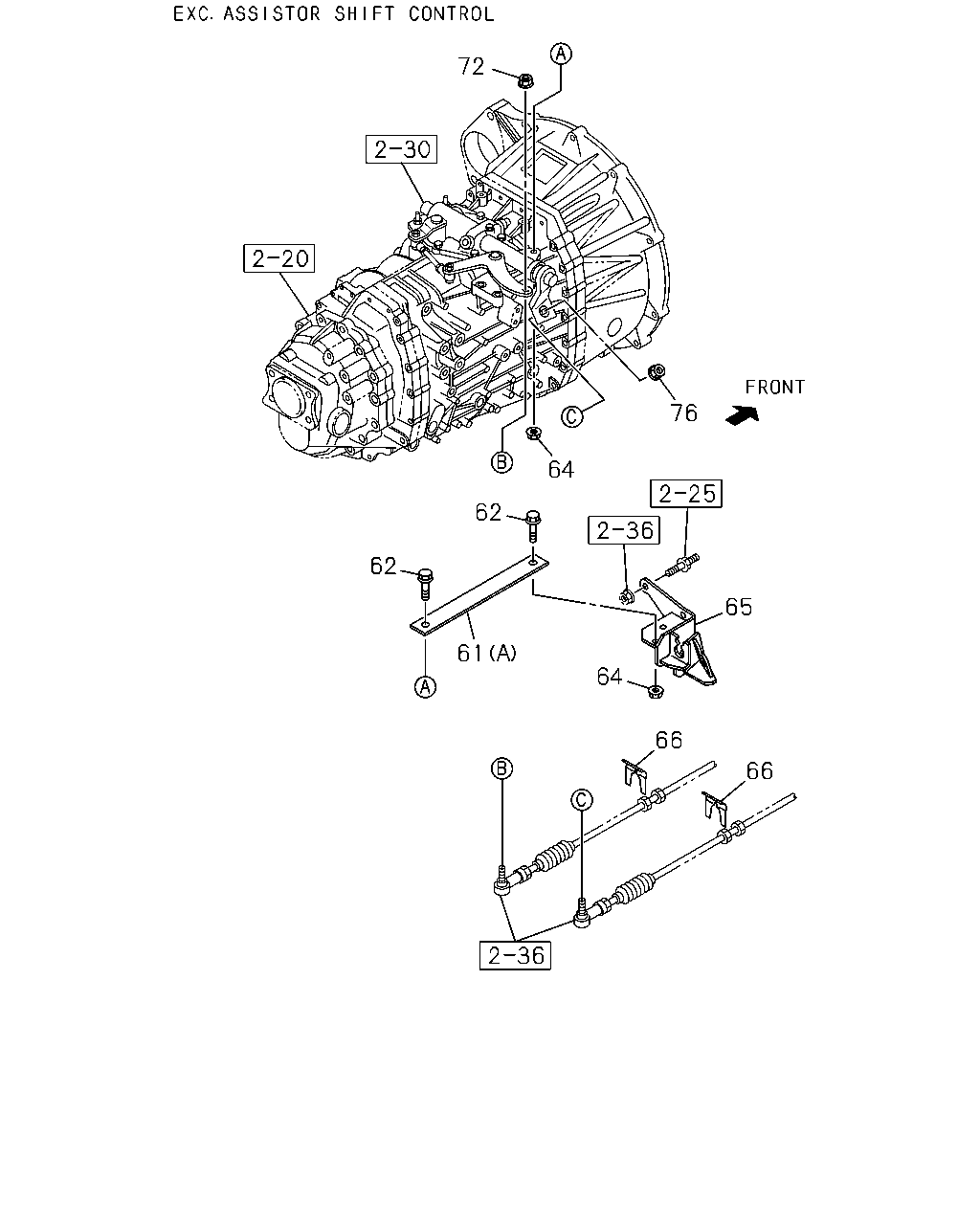

72 64 76 62 62 61 64 65 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B)	1-33657-267-0	01	1	1410-
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A)	8-98251-404-0	01	1	1407-
62	BOLT; STAY MZW6P M/T(RSZ) M10X30 FLANGE	0-28651-030-0	02	1	1407-
64	NUT; STAY MZW6P M/T(RSZ) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98049-613-1	01	1	1505-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98060-386-0	01	1	1505-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-160-0	01	1	1410-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1410-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-158-1	01	1	1407-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98050-563-1	01	1	1407-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1407-1507
66	CLIP; SELECT BRKT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=22.2	1-09701-209-1	02	1	1508-
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	1407-1507
72	NUT; TRANS CONT,SELECT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8 FLANGE	1-09440-049-0	01	1	1508-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-056-0	01	1	1505-
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	1407-1504
76	NUT; BALL JOINT,SELECT WIRE MZW6P M/T(RSZ) M8 FLANGE	1-09440-049-0	01	1	1505-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1505-

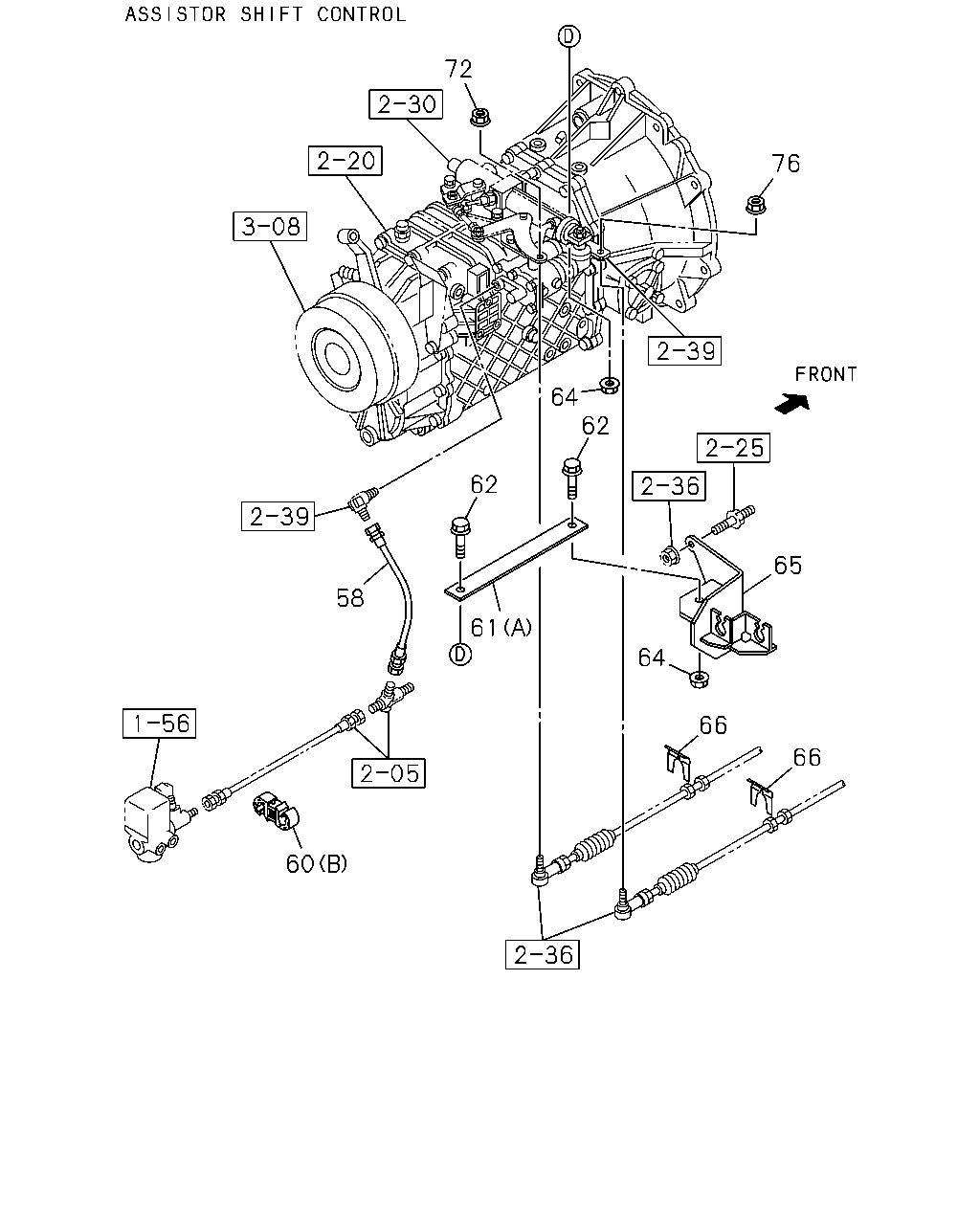

72 76 64 62 62 58 61 60 66 66 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640	1-09363-626-1	01	1	1410-
58	HOSE; FLEX,POWER ASSISTOR 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=290	1-09363-875-0	01	1	1407-
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	1410-
60	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	1407-
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B)	1-33657-267-0	01	1	1410-
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A)	8-98251-404-0	01	1	1407-
62	BOLT; STAY MZW6P M/T(RSZ) M10X30 FLANGE	0-28651-030-0	02	1	1407-
64	NUT; STAY MZW6P M/T(RSZ) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98049-613-1	01	1	1505-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98060-386-0	01	1	1505-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-160-0	01	1	1410-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1410-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-158-1	01	1	1407-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98050-563-1	01	1	1407-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1407-1507
66	CLIP; SELECT BRKT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=22.2	1-09701-209-1	02	1	1508-
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	1407-1507
72	NUT; TRANS CONT,SELECT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8 FLANGE	1-09440-049-0	01	1	1508-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-056-0	01	1	1505-
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	1407-1504
76	NUT; BALL JOINT,SELECT WIRE MZW6P M/T(RSZ) M8 FLANGE	1-09440-049-0	01	1	1505-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1505-

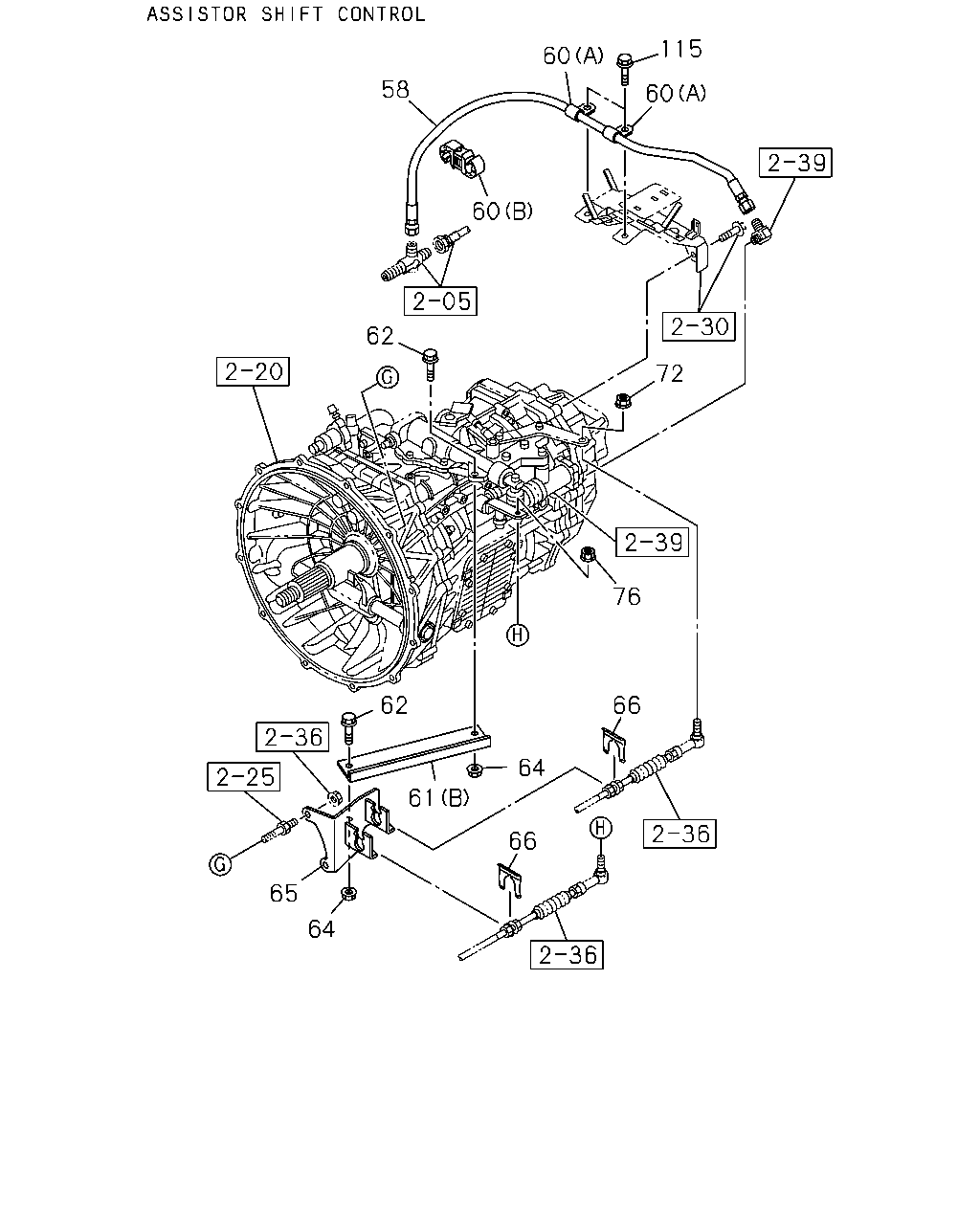

58 60 60 115 62 72 62 76 66 64 61 65 64 66 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640	1-09363-626-1	01	1	1410-
58	HOSE; FLEX,POWER ASSISTOR 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=290	1-09363-875-0	01	1	1407-
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	1410-
60	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	1407-
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B)	1-33657-267-0	01	1	1410-
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A)	8-98251-404-0	01	1	1407-
62	BOLT; STAY MZW6P M/T(RSZ) M10X30 FLANGE	0-28651-030-0	02	1	1407-
64	NUT; STAY MZW6P M/T(RSZ) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98049-613-1	01	1	1505-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98060-386-0	01	1	1505-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-160-0	01	1	1410-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1410-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-158-1	01	1	1407-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98050-563-1	01	1	1407-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1407-1507
66	CLIP; SELECT BRKT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=22.2	1-09701-209-1	02	1	1508-
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	1407-1507
72	NUT; TRANS CONT,SELECT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8 FLANGE	1-09440-049-0	01	1	1508-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-056-0	01	1	1505-
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	1407-1504
76	NUT; BALL JOINT,SELECT WIRE MZW6P M/T(RSZ) M8 FLANGE	1-09440-049-0	01	1	1505-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1505-
115	BOLT; CLIP 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE MAL	0-28050-816-0	02	1	1410-

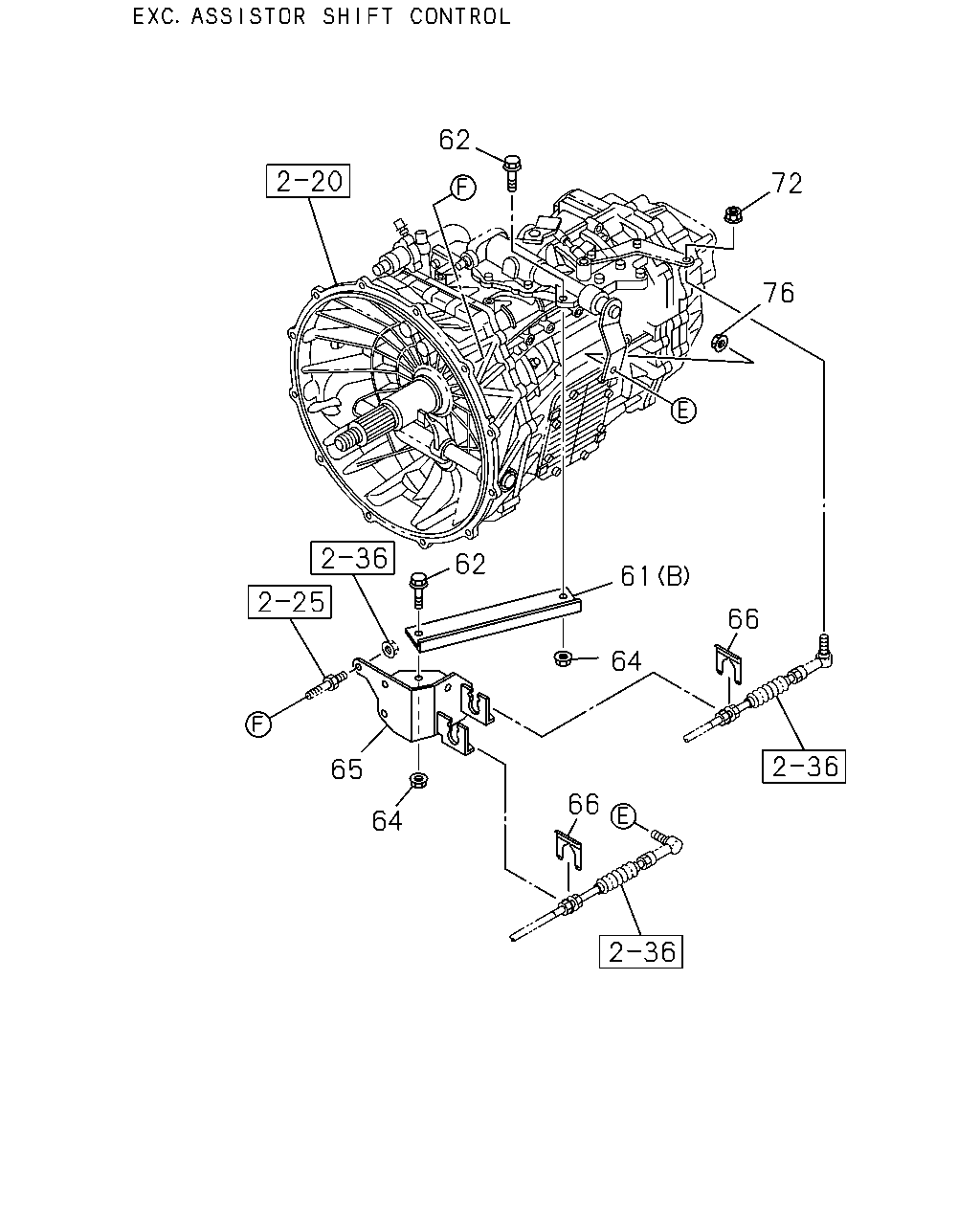

62 72 76 61 62 65 64 66 64 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B)	1-33657-267-0	01	1	1410-
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A)	8-98251-404-0	01	1	1407-
62	BOLT; STAY MZW6P M/T(RSZ) M10X30 FLANGE	0-28651-030-0	02	1	1407-
64	NUT; STAY MZW6P M/T(RSZ) M10 FLANGE MAL	0-91180-210-0	02	1	1407-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98049-613-1	01	1	1505-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98060-386-0	01	1	1505-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-160-0	01	1	1410-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1410-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-158-1	01	1	1407-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98050-563-1	01	1	1407-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1407-1507
66	CLIP; SELECT BRKT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=22.2	1-09701-209-1	02	1	1508-
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	1407-1507
72	NUT; TRANS CONT,SELECT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8 FLANGE	1-09440-049-0	01	1	1508-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-056-0	01	1	1505-
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	1407-1504
76	NUT; BALL JOINT,SELECT WIRE MZW6P M/T(RSZ) M8 FLANGE	1-09440-049-0	01	1	1505-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1505-

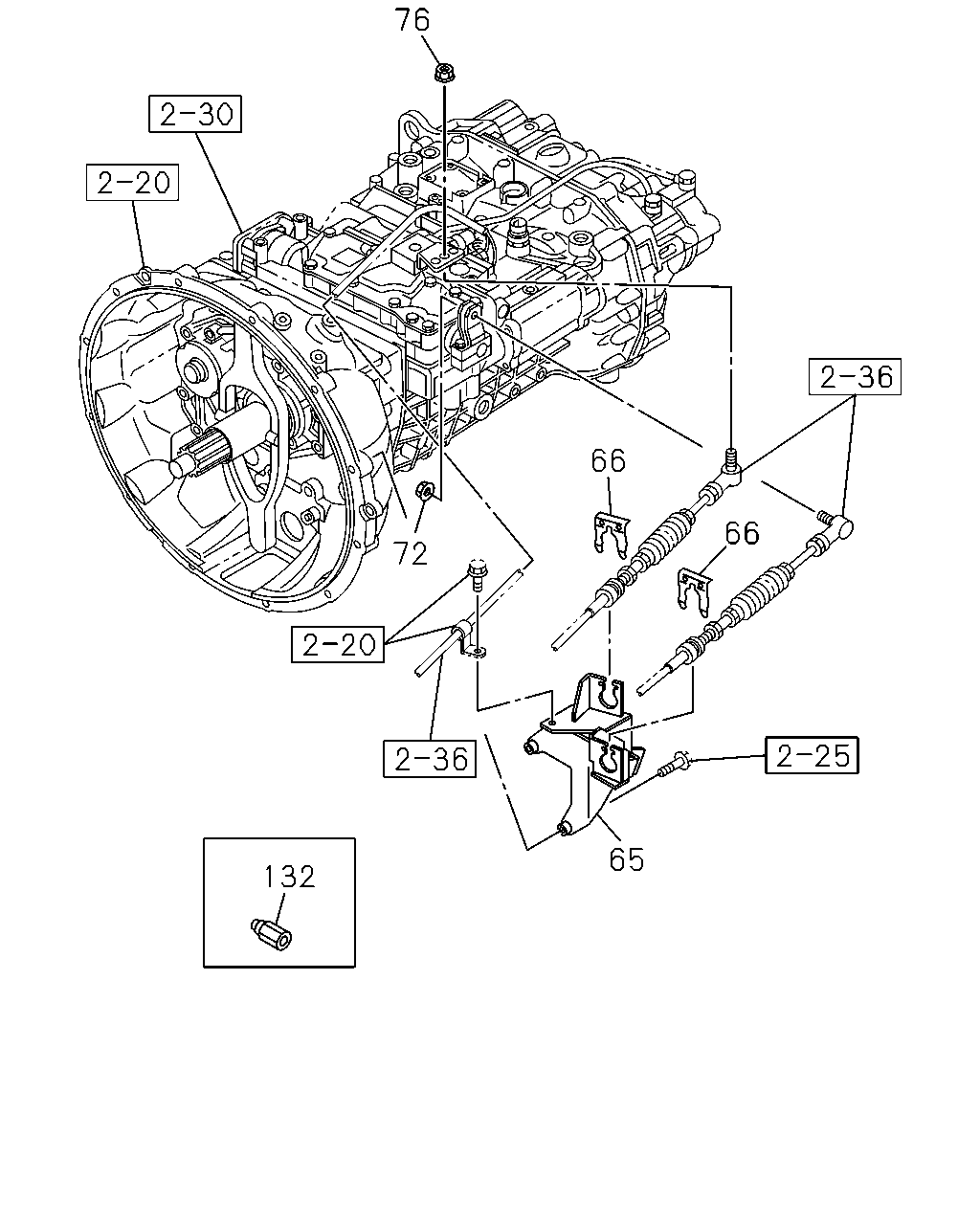

76 66 66 72 65 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98049-613-1	01	1	1505-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98060-386-0	01	1	1505-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-160-0	01	1	1410-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	1410-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-158-1	01	1	1407-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98050-563-1	01	1	1407-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	1407-1507
66	CLIP; SELECT BRKT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=22.2	1-09701-209-1	02	1	1508-
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	1407-1507
72	NUT; TRANS CONT,SELECT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8 FLANGE	1-09440-049-0	01	1	1508-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-056-0	01	1	1505-
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	1407-1504
76	NUT; BALL JOINT,SELECT WIRE MZW6P M/T(RSZ) M8 FLANGE	1-09440-049-0	01	1	1505-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1505-
132	CONNECTOR; FLEX HOSE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> DIN8 & M12 STRAIGHT MAL	1-09660-873-0	01	1	1505-
