◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#144139) — 216 parça

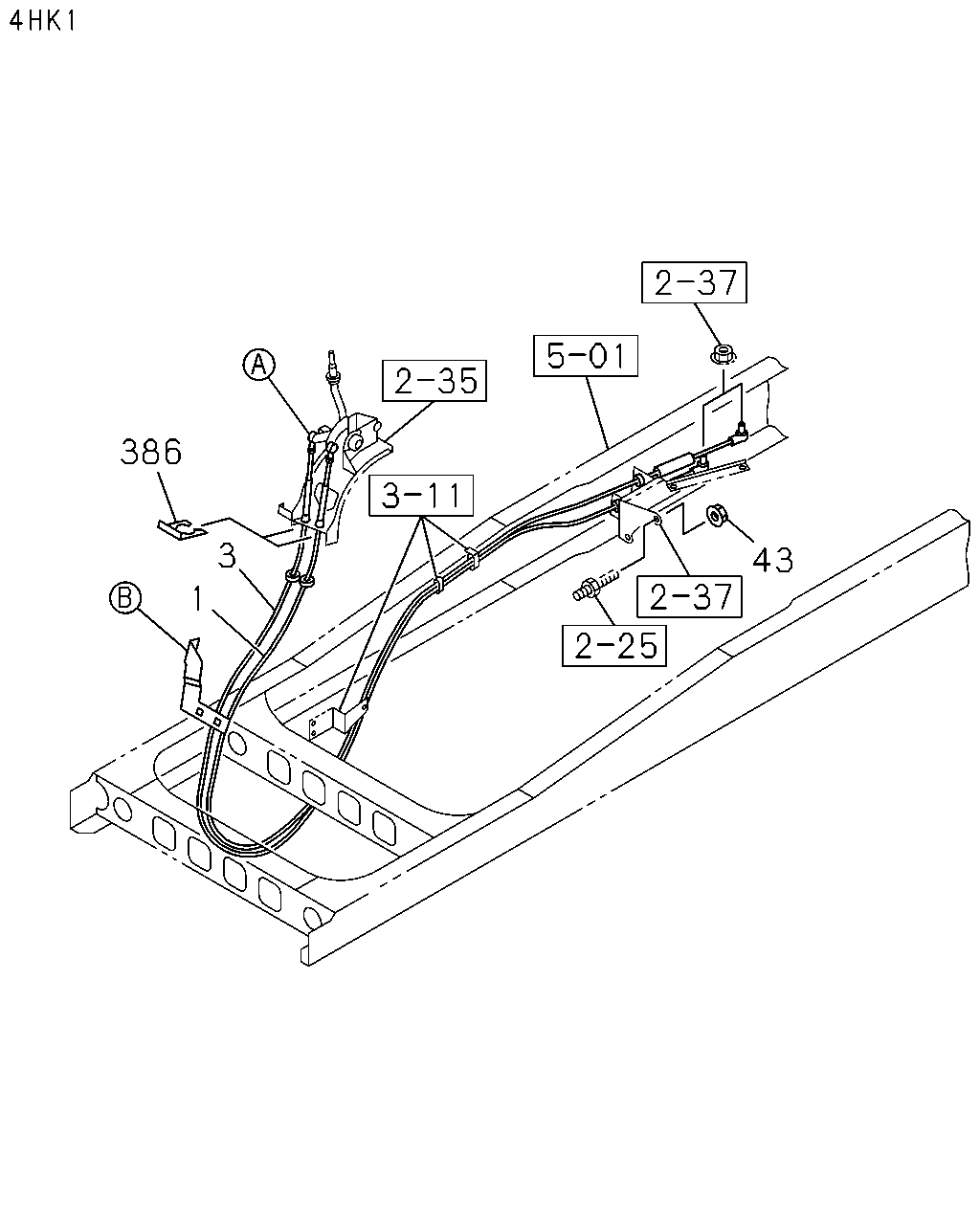

çizim 432322
386 3 1 43
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3595 		8-98099-964-2 01 1 1505-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3600 		8-98017-474-5 01 1 1505-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98010-434-4 01 1 1410-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3510 		8-98017-469-4 01 1 1410-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98231-949-0 01 1 1407-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3050 		8-98231-948-1 01 1 1407-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3675 		8-98099-966-1 01 1 1505-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3560 		8-98017-495-3 01 1 1505-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1410-
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=3105 		8-98231-954-0 01 1 1407-
43 NUT; BRKT
MZW6P M/T(RSZ) M10 FLANGE MAL 		0-91180-210-0 02 1 1407-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1407-1507
386 CLIP; CONT CABLE & TUBE
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 		1-09700-966-1 02 1 1508-
çizim 432521
3 221 225 199 474 487 474 6 3 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3595 		8-98099-964-2 01 1 1505-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3600 		8-98017-474-5 01 1 1505-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98010-434-4 01 1 1410-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3510 		8-98017-469-4 01 1 1410-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98231-949-0 01 1 1407-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3050 		8-98231-948-1 01 1 1407-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3675 		8-98099-966-1 01 1 1505-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3560 		8-98017-495-3 01 1 1505-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1410-
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=3105 		8-98231-954-0 01 1 1407-
6 CLIP; CABLE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1410-1504
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505-
6 CLIP; CABLE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505-
6 CLIP; CABLE
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1407-1507
6 CLIP; CABLE
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1508-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1407-1507
199 WASHER; PL,SELECT
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=8.4 OD=16 		0-91614-508-0 01 1 1508-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1407-1507
221 NUT; SHIFT WIRE TO LEVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-062-1 01 1 1508-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1407-1507
225 PIN; SELECT CABLE
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) L=27.7 		8-94111-137-0 01 1 1508-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1407-1507
474 BOLT; BRKT
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8X25 W/WASHER 		0-51640-825-0 03 1 1508-
487 BRACKET; CONT CABLE
ZF9S1110 M/T(Y5E) (C) 		8-98100-413-0 01 1 1505-
487 BRACKET; CONT CABLE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) 		8-98183-009-0 01 1 1410-
487 BRACKET; CONT CABLE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A) 		8-98184-319-0 01 1 1407-

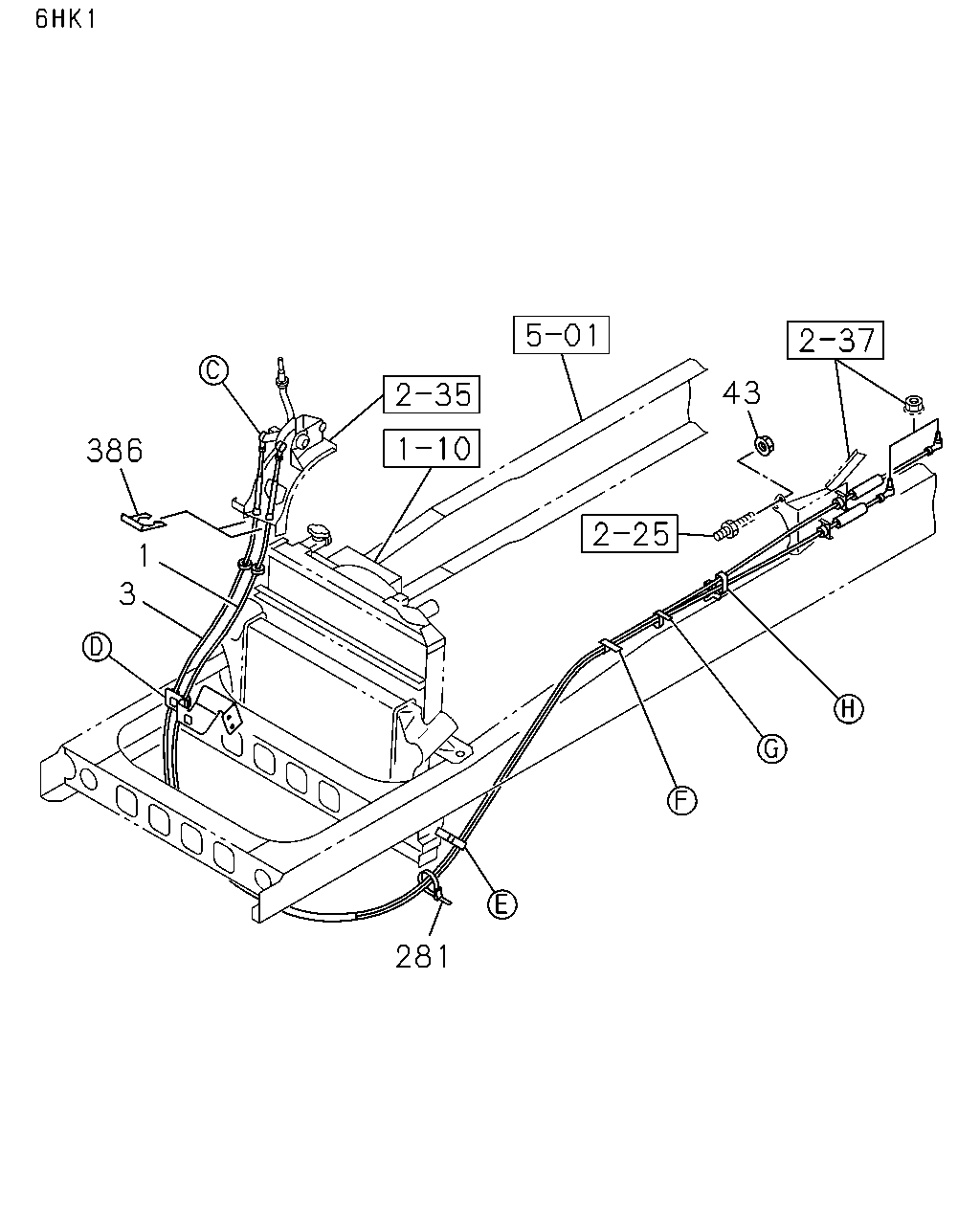

çizim 458063
386 1 3 281 43
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3595 		8-98099-964-2 01 1 1505-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3600 		8-98017-474-5 01 1 1505-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98010-434-4 01 1 1410-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3510 		8-98017-469-4 01 1 1410-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98231-949-0 01 1 1407-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3050 		8-98231-948-1 01 1 1407-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3675 		8-98099-966-1 01 1 1505-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3560 		8-98017-495-3 01 1 1505-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1410-
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=3105 		8-98231-954-0 01 1 1407-
43 NUT; BRKT
MZW6P M/T(RSZ) M10 FLANGE MAL 		0-91180-210-0 02 1 1407-
281 CLIP; BAND
MZW6P M/T(RSZ) L=300 		1-09707-001-1 01 1 1410-1504
281 CLIP; BAND
ZF9S1110 M/T(Y5E) L=300 		1-09707-001-1 01 1 1505-
281 CLIP; BAND
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=300 		1-09707-001-1 01 1 1505-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1407-1507
386 CLIP; CONT CABLE & TUBE
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 		1-09700-966-1 02 1 1508-

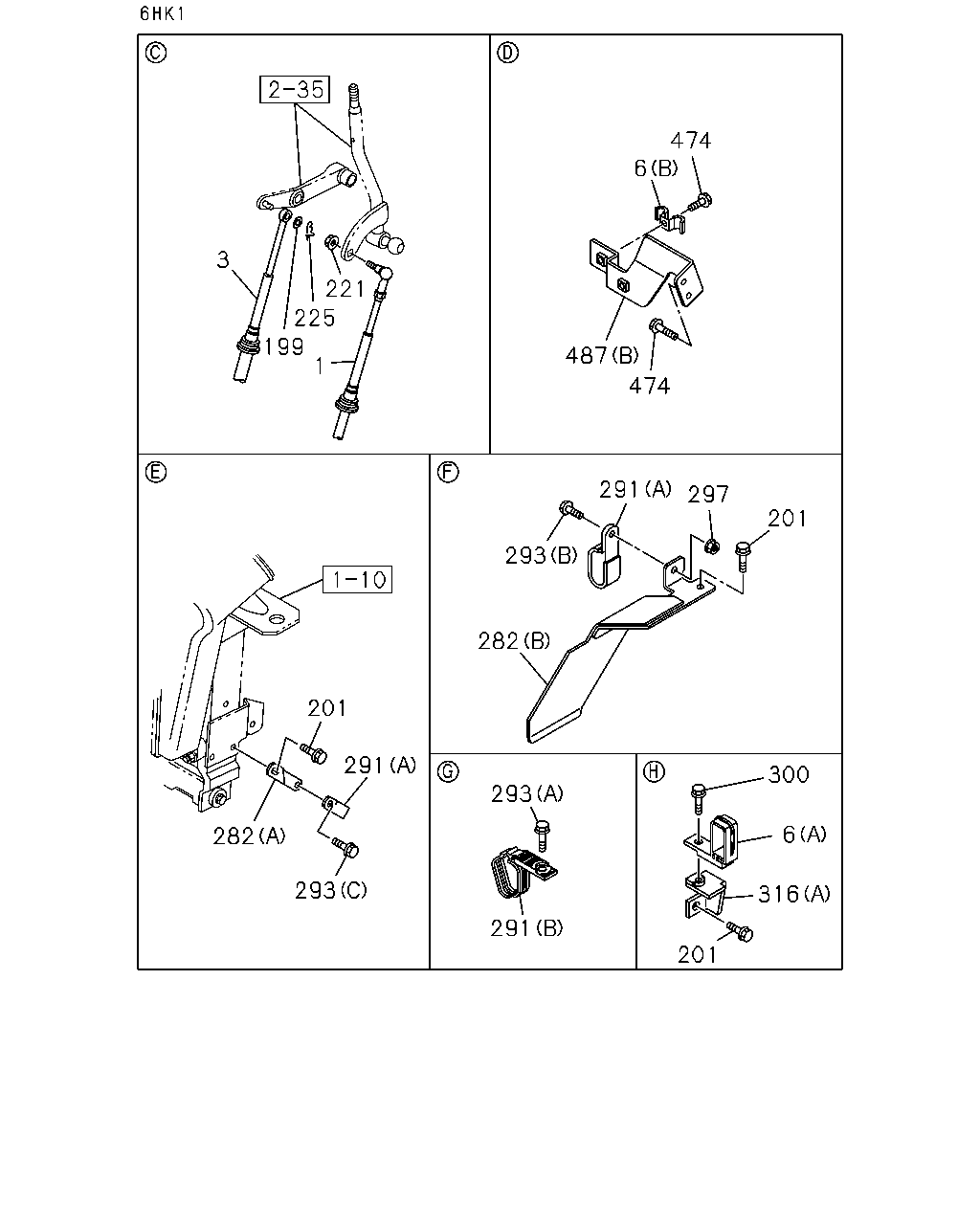

çizim 459680
3 221 225 199 474 6 487 291 201 297 293 282 293 291 300 6 316 201 201 291 282 293 1 474
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3595 		8-98099-964-2 01 1 1505-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3600 		8-98017-474-5 01 1 1505-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98010-434-4 01 1 1410-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3510 		8-98017-469-4 01 1 1410-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98231-949-0 01 1 1407-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3050 		8-98231-948-1 01 1 1407-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3675 		8-98099-966-1 01 1 1505-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3560 		8-98017-495-3 01 1 1505-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1410-
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=3105 		8-98231-954-0 01 1 1407-
6 CLIP; CABLE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1410-1504
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505-
6 CLIP; CABLE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505-
6 CLIP; CABLE
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1407-1507
6 CLIP; CABLE
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1508-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1407-1507
199 WASHER; PL,SELECT
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=8.4 OD=16 		0-91614-508-0 01 1 1508-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 1505-
201 BOLT; BRKT
MZW6P M/T(RSZ) M8X20 FLANGE MAL 		0-28050-820-0 01 1 1410-1504
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X20 FLANGE MAL 		0-28050-820-0 01 1 1505-
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8X20 FLANGE MAL 		0-28050-820-0 01 1 1505-
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE MAL 		0-28050-816-0 01 1 1410-1504
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1410-1504
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE MAL 		0-28050-816-0 01 1 1505-
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1505-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1505-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1505-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1407-1507
221 NUT; SHIFT WIRE TO LEVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-062-1 01 1 1508-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1407-1507
225 PIN; SELECT CABLE
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) L=27.7 		8-94111-137-0 01 1 1508-
282 BRACKET; TRANS SIDE
ZF9S1110 M/T(Y5E) (C) 		8-98098-265-2 01 1 1505-
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) 		8-98010-418-0 01 1 1410-
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) 		8-98171-762-0 01 1 1410-1504
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) 		8-98171-762-0 01 1 1505-
282 BRACKET; TRANS SIDE
ZF9S1110 M/T(Y5E) (B) 		8-98171-762-0 01 1 1505-
291 CLIP; SHIFT TO SELECT,FRAME
MZW6P M/T(RSZ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1410-1504
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 M/T(Y5E) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1505-
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1505-
291 CLIP; SHIFT TO SELECT,FRAME
MZW6P M/T(RSZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1410-1504
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505-
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505-
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (C) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1410-1504
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (C) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1505-
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1505-
293 BOLT; CLIP,SHIFT TO SELECT
MZW6P M/T(RSZ) (A) M8X20 FLANGE MAL 		0-28050-820-0 01 1 1410-1504
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 M/T(Y5E) (A) M8X20 FLANGE MAL 		0-28050-820-0 01 1 1505-
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) M8X20 FLANGE MAL 		0-28050-820-0 01 1 1505-
293 BOLT; CLIP,SHIFT TO SELECT
MZW6P M/T(RSZ) (B) M8X20 FLANGE MAL 		0-28650-820-0 01 1 1410-1504
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 M/T(Y5E) (B) M8X20 FLANGE MAL 		0-28650-820-0 01 1 1505-
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) M8X20 FLANGE MAL 		0-28650-820-0 01 1 1505-
297 NUT; CLIP
MZW6P M/T(RSZ) M8 FLANGE MAL 		0-91180-108-0 01 1 1410-1504
297 NUT; CLIP
ZF9S1110 M/T(Y5E) M8 FLANGE MAL 		0-91180-108-0 01 1 1505-
297 NUT; CLIP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8 FLANGE MAL 		0-91180-108-0 01 1 1505-
300 BOLT; CLIP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE MAL 		0-28650-820-0 01 1 1410-1504
300 BOLT; CLIP
ZF9S1110 M/T(Y5E) M8X20 FLANGE MAL 		0-28650-820-0 01 1 1505-
300 BOLT; CLIP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE MAL 		0-28650-820-0 01 1 1505-
316 BRACKET; CLIP
ZF9S1110 M/T(Y5E) (B) 		8-98086-439-0 01 1 1505-
316 BRACKET; CLIP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98073-017-1 01 1 1410-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1407-1507
474 BOLT; BRKT
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8X25 W/WASHER 		0-51640-825-0 03 1 1508-
487 BRACKET; CONT CABLE
ZF9S1110 M/T(Y5E) (C) 		8-98100-413-0 01 1 1505-
487 BRACKET; CONT CABLE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) 		8-98183-009-0 01 1 1410-
487 BRACKET; CONT CABLE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A) 		8-98184-319-0 01 1 1407-

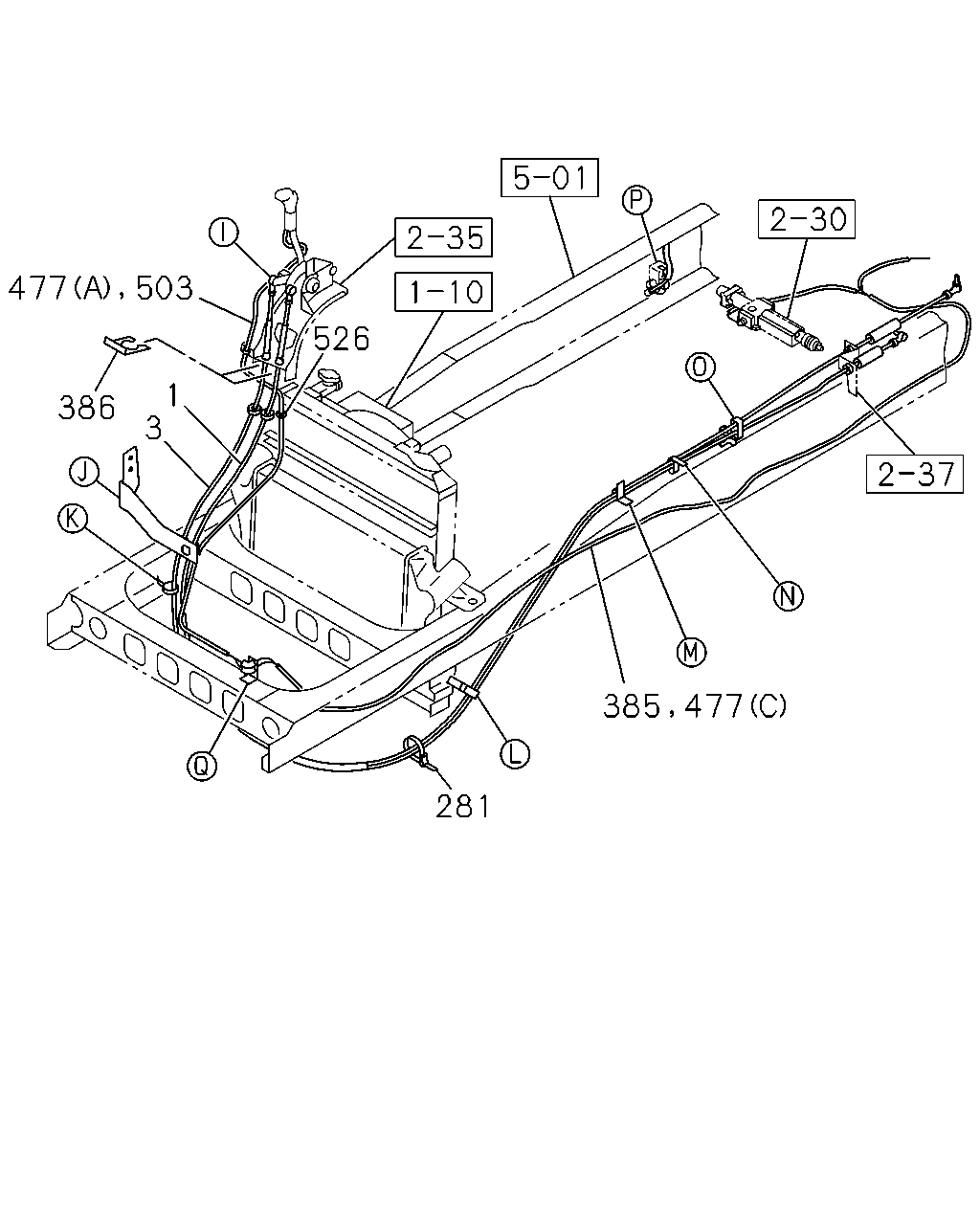

çizim 475570
477 503 386 526 281 385 477 1 3
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3595 		8-98099-964-2 01 1 1505-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3600 		8-98017-474-5 01 1 1505-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98010-434-4 01 1 1410-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3510 		8-98017-469-4 01 1 1410-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98231-949-0 01 1 1407-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3050 		8-98231-948-1 01 1 1407-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3675 		8-98099-966-1 01 1 1505-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3560 		8-98017-495-3 01 1 1505-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1410-
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=3105 		8-98231-954-0 01 1 1407-
281 CLIP; BAND
MZW6P M/T(RSZ) L=300 		1-09707-001-1 01 1 1410-1504
281 CLIP; BAND
ZF9S1110 M/T(Y5E) L=300 		1-09707-001-1 01 1 1505-
281 CLIP; BAND
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=300 		1-09707-001-1 01 1 1505-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1505-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1407-1507
386 CLIP; CONT CABLE & TUBE
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 		1-09700-966-1 02 1 1508-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1505-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1505-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1505-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1505-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1505-
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 1505-

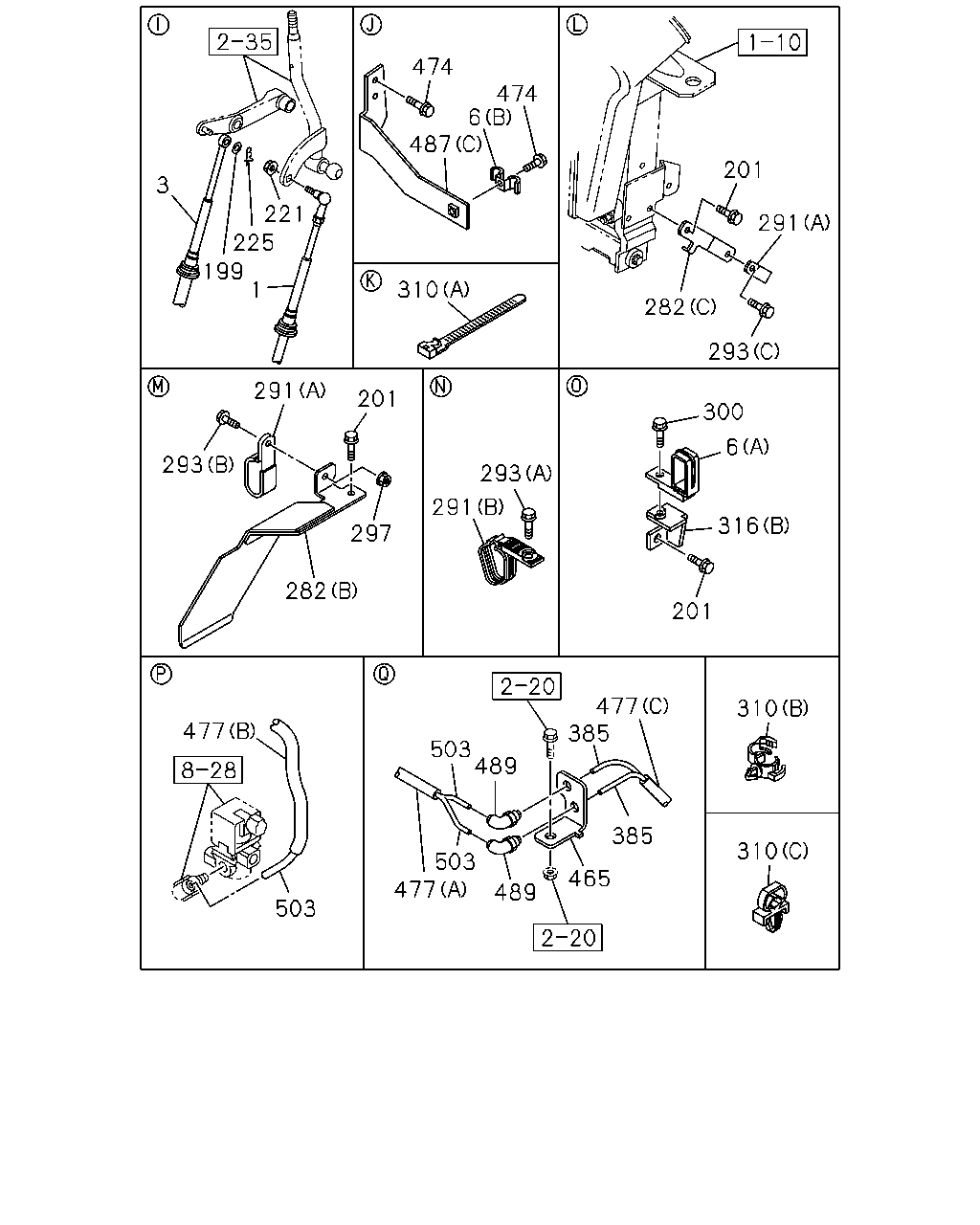

çizim 476644
3 199 1 225 221 474 474 6 487 201 291 282 293 310 291 201 293 297 282 291 293 300 6 316 201 477 503 477 503 489 503 385 477 385 489 465 310 310
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3595 		8-98099-964-2 01 1 1505-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3600 		8-98017-474-5 01 1 1505-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98010-434-4 01 1 1410-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3510 		8-98017-469-4 01 1 1410-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98231-949-0 01 1 1407-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3050 		8-98231-948-1 01 1 1407-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3675 		8-98099-966-1 01 1 1505-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3560 		8-98017-495-3 01 1 1505-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1410-
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=3105 		8-98231-954-0 01 1 1407-
6 CLIP; CABLE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1410-1504
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505-
6 CLIP; CABLE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505-
6 CLIP; CABLE
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1407-1507
6 CLIP; CABLE
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1508-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1407-1507
199 WASHER; PL,SELECT
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=8.4 OD=16 		0-91614-508-0 01 1 1508-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 1505-
201 BOLT; BRKT
MZW6P M/T(RSZ) M8X20 FLANGE MAL 		0-28050-820-0 01 1 1410-1504
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X20 FLANGE MAL 		0-28050-820-0 01 1 1505-
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8X20 FLANGE MAL 		0-28050-820-0 01 1 1505-
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE MAL 		0-28050-816-0 01 1 1410-1504
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1410-1504
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE MAL 		0-28050-816-0 01 1 1505-
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1505-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1505-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1505-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1407-1507
221 NUT; SHIFT WIRE TO LEVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-062-1 01 1 1508-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1407-1507
225 PIN; SELECT CABLE
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) L=27.7 		8-94111-137-0 01 1 1508-
282 BRACKET; TRANS SIDE
ZF9S1110 M/T(Y5E) (C) 		8-98098-265-2 01 1 1505-
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) 		8-98010-418-0 01 1 1410-
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) 		8-98171-762-0 01 1 1410-1504
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) 		8-98171-762-0 01 1 1505-
282 BRACKET; TRANS SIDE
ZF9S1110 M/T(Y5E) (B) 		8-98171-762-0 01 1 1505-
291 CLIP; SHIFT TO SELECT,FRAME
MZW6P M/T(RSZ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1410-1504
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 M/T(Y5E) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1505-
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1505-
291 CLIP; SHIFT TO SELECT,FRAME
MZW6P M/T(RSZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1410-1504
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505-
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505-
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (C) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1410-1504
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (C) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1505-
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1505-
293 BOLT; CLIP,SHIFT TO SELECT
MZW6P M/T(RSZ) (A) M8X20 FLANGE MAL 		0-28050-820-0 01 1 1410-1504
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 M/T(Y5E) (A) M8X20 FLANGE MAL 		0-28050-820-0 01 1 1505-
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) M8X20 FLANGE MAL 		0-28050-820-0 01 1 1505-
293 BOLT; CLIP,SHIFT TO SELECT
MZW6P M/T(RSZ) (B) M8X20 FLANGE MAL 		0-28650-820-0 01 1 1410-1504
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 M/T(Y5E) (B) M8X20 FLANGE MAL 		0-28650-820-0 01 1 1505-
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) M8X20 FLANGE MAL 		0-28650-820-0 01 1 1505-
297 NUT; CLIP
MZW6P M/T(RSZ) M8 FLANGE MAL 		0-91180-108-0 01 1 1410-1504
297 NUT; CLIP
ZF9S1110 M/T(Y5E) M8 FLANGE MAL 		0-91180-108-0 01 1 1505-
297 NUT; CLIP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8 FLANGE MAL 		0-91180-108-0 01 1 1505-
300 BOLT; CLIP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE MAL 		0-28650-820-0 01 1 1410-1504
300 BOLT; CLIP
ZF9S1110 M/T(Y5E) M8X20 FLANGE MAL 		0-28650-820-0 01 1 1505-
300 BOLT; CLIP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE MAL 		0-28650-820-0 01 1 1505-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) L=100 		5-09707-036-1 01 1 1505-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) ID=12 		8-94218-436-0 01 1 1505-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) ID=6 & 10-13 MAL 		8-97069-515-0 01 1 1505-
316 BRACKET; CLIP
ZF9S1110 M/T(Y5E) (B) 		8-98086-439-0 01 1 1505-
316 BRACKET; CLIP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98073-017-1 01 1 1410-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1505-
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98141-474-0 01 1 1505-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1407-1507
474 BOLT; BRKT
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8X25 W/WASHER 		0-51640-825-0 03 1 1508-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1505-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1505-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1505-
487 BRACKET; CONT CABLE
ZF9S1110 M/T(Y5E) (C) 		8-98100-413-0 01 1 1505-
487 BRACKET; CONT CABLE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) 		8-98183-009-0 01 1 1410-
487 BRACKET; CONT CABLE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A) 		8-98184-319-0 01 1 1407-
489 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-747-0 02 1 1505-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1505-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1505-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
