◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#144138) — 105 parça

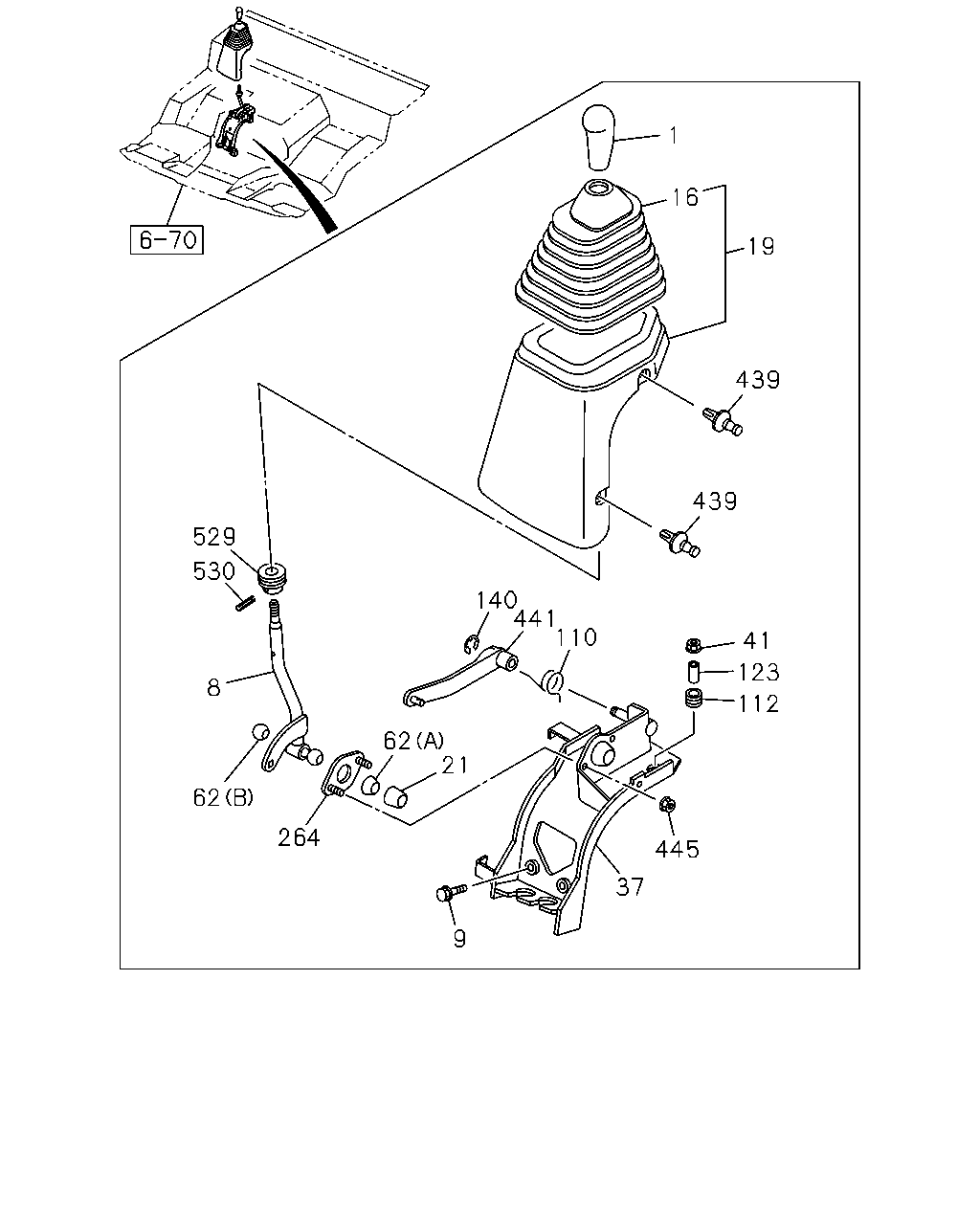

çizim 431413
1 16 19 439 439 41 123 112 445 37 110 441 140 62 21 264 9 62 8 530 529
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-33611-038-0 01 1 1505-
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33611-099-1 01 1 1505-
1 KNOB; CHANGE LEVER
MZW6P M/T(RSZ) 		1-33611-070-1 01 1 1407-
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-308-0 01 1 1505-
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 1505-
8 LEVER; CHANGE 8-98071-282-0 01 1 1407-1504
8 LEVER; CHANGE
MZW6P M/T(RSZ) 		8-98071-282-0 01 1 1505-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1407-1507
9 BOLT; CHANGE LEVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1508-
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1407-1507
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-79998-751-4 01 1 1508-
19 COVER; CHANGE LEVER
GRAY 		8-97407-954-0 01 1 1407-1507
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97407-954-0 01 1 1508-
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1407-1507
21 SEAT; CHANGE LEVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 		1-33619-429-0 01 1 1508-
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-307-0 01 1 1505-
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-444-0 01 1 1505-
37 BRACKET; CHANGE LEVER SUPPORT 8-98071-302-0 01 1 1407-1504
37 BRACKET; CHANGE LEVER SUPPORT
MZW6P M/T(RSZ) 		8-98071-302-0 01 1 1505-
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER MAL 		8-97329-625-0 02 1 1407-1507
41 NUT; CHANGE LEVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8 W/DISHED WASHER MAL 		8-97329-625-0 02 1 1508-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1407-1507
62 SEAT; BALL,CHANGE LEVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (A) 		1-33619-427-0 01 1 1508-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1407-1507
62 SEAT; BALL,CHANGE LEVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (B) 		8-97049-147-0 01 1 1508-
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 1505-
110 SPRING; RETURN,CHANGE LEVER 1-33619-586-0 01 1 1407-1504
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 1505-
110 SPRING; RETURN,CHANGE LEVER
MZW6P M/T(RSZ) 		1-33619-586-0 01 1 1505-
112 RUBBER; CUSHION 1-33619-442-0 04 1 1407-1507
112 RUBBER; CUSHION
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 		1-33619-442-0 04 1 1508-
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1407-1507
123 COLLAR; DIST,CHANGE LEVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 		1-33619-443-0 04 1 1508-
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1407-1507
140 RING; SNAP
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=10 		0-91805-510-0 01 1 1508-
264 PLATE; COVER 1-33619-430-0 01 1 1407-1507
264 PLATE; COVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 		1-33619-430-0 01 1 1508-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1407-
441 LEVER; SELECT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 1505-
441 LEVER; SELECT 8-98071-283-0 01 1 1407-1504
441 LEVER; SELECT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-283-0 01 1 1505-
441 LEVER; SELECT
MZW6P M/T(RSZ) 		8-98071-283-0 01 1 1505-
445 NUT; PLATE
M6 FLANGE MAL 		0-91180-106-0 02 1 1407-1507
445 NUT; PLATE
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M6 FLANGE MAL 		0-91180-106-0 02 1 1508-
529 RING; BOOT 1-33619-504-0 01 1 1407-1504
529 RING; BOOT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-504-0 01 1 1505-
529 RING; BOOT
MZW6P M/T(RSZ) 		1-33619-504-0 01 1 1505-
530 PIN; SPRING 1-33619-505-0 01 1 1407-1504
530 PIN; SPRING
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-505-0 01 1 1505-
530 PIN; SPRING
MZW6P M/T(RSZ) 		1-33619-505-0 01 1 1505-

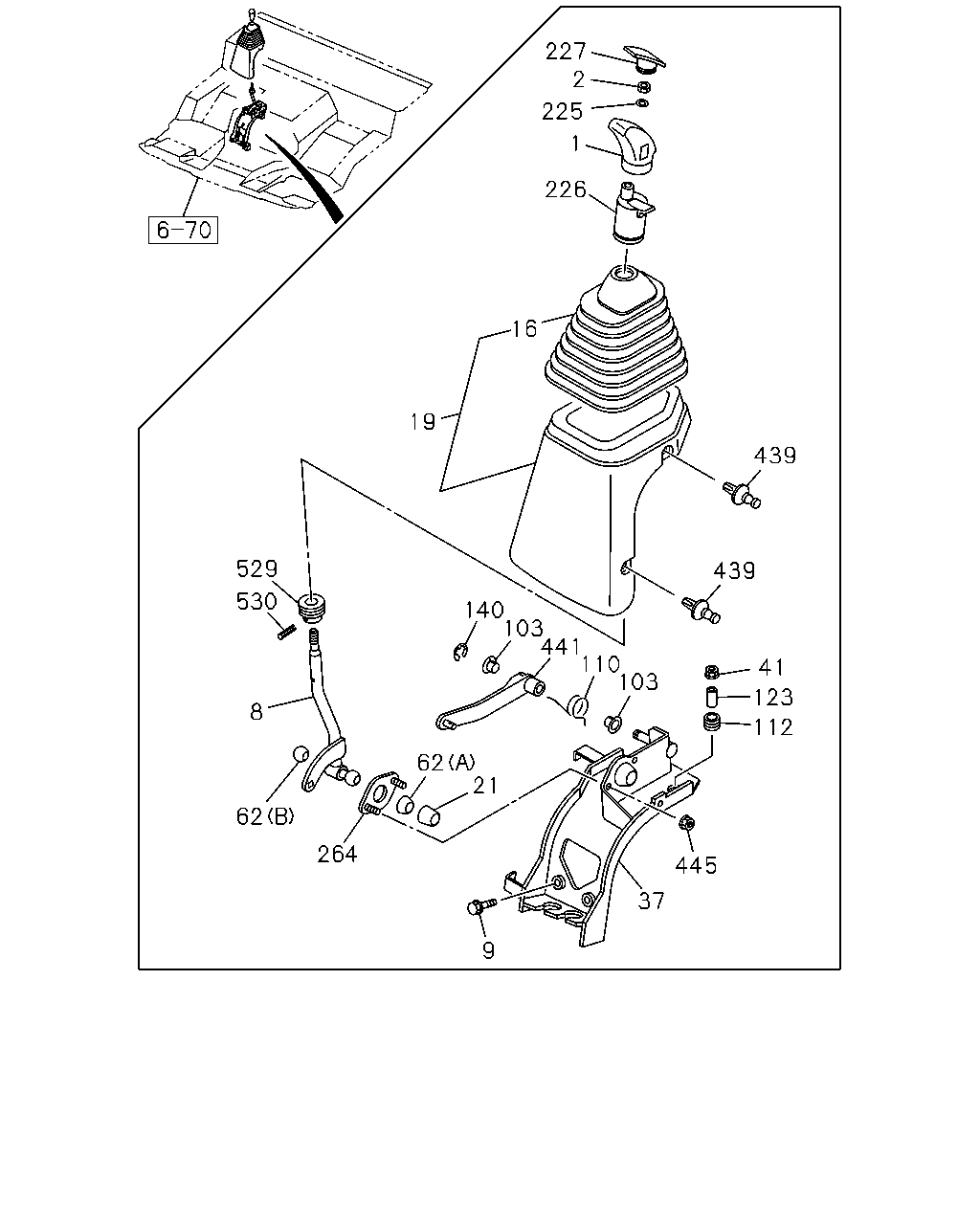

çizim 475555
439 439 41 123 112 445 37 9 21 62 264 62 8 530 529 19 16 226 1 225 2 227 140 103 441 110 103
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-33611-038-0 01 1 1505-
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33611-099-1 01 1 1505-
1 KNOB; CHANGE LEVER
MZW6P M/T(RSZ) 		1-33611-070-1 01 1 1407-
2 NUT; KNOB
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE MAL 		0-91180-210-0 01 1 1505-
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-308-0 01 1 1505-
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 1505-
8 LEVER; CHANGE 8-98071-282-0 01 1 1407-1504
8 LEVER; CHANGE
MZW6P M/T(RSZ) 		8-98071-282-0 01 1 1505-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1407-1507
9 BOLT; CHANGE LEVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1508-
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1407-1507
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-79998-751-4 01 1 1508-
19 COVER; CHANGE LEVER
GRAY 		8-97407-954-0 01 1 1407-1507
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97407-954-0 01 1 1508-
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1407-1507
21 SEAT; CHANGE LEVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 		1-33619-429-0 01 1 1508-
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-307-0 01 1 1505-
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-444-0 01 1 1505-
37 BRACKET; CHANGE LEVER SUPPORT 8-98071-302-0 01 1 1407-1504
37 BRACKET; CHANGE LEVER SUPPORT
MZW6P M/T(RSZ) 		8-98071-302-0 01 1 1505-
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER MAL 		8-97329-625-0 02 1 1407-1507
41 NUT; CHANGE LEVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8 W/DISHED WASHER MAL 		8-97329-625-0 02 1 1508-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1407-1507
62 SEAT; BALL,CHANGE LEVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (A) 		1-33619-427-0 01 1 1508-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1407-1507
62 SEAT; BALL,CHANGE LEVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (B) 		8-97049-147-0 01 1 1508-
103 BUSHING; RELAY LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> ID=14 OD=16 		8-94252-671-0 02 1 1505-
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 1505-
110 SPRING; RETURN,CHANGE LEVER 1-33619-586-0 01 1 1407-1504
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 1505-
110 SPRING; RETURN,CHANGE LEVER
MZW6P M/T(RSZ) 		1-33619-586-0 01 1 1505-
112 RUBBER; CUSHION 1-33619-442-0 04 1 1407-1507
112 RUBBER; CUSHION
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 		1-33619-442-0 04 1 1508-
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1407-1507
123 COLLAR; DIST,CHANGE LEVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 		1-33619-443-0 04 1 1508-
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1407-1507
140 RING; SNAP
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=10 		0-91805-510-0 01 1 1508-
225 WASHER; PL,KNOB
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1505-
226 VALVE; SELECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-33710-008-0 01 1 1505-
227 COVER; KNOB
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98013-168-0 01 1 1505-
264 PLATE; COVER 1-33619-430-0 01 1 1407-1507
264 PLATE; COVER
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) 		1-33619-430-0 01 1 1508-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1407-
441 LEVER; SELECT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 1505-
441 LEVER; SELECT 8-98071-283-0 01 1 1407-1504
441 LEVER; SELECT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-283-0 01 1 1505-
441 LEVER; SELECT
MZW6P M/T(RSZ) 		8-98071-283-0 01 1 1505-
445 NUT; PLATE
M6 FLANGE MAL 		0-91180-106-0 02 1 1407-1507
445 NUT; PLATE
MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M6 FLANGE MAL 		0-91180-106-0 02 1 1508-
529 RING; BOOT 1-33619-504-0 01 1 1407-1504
529 RING; BOOT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-504-0 01 1 1505-
529 RING; BOOT
MZW6P M/T(RSZ) 		1-33619-504-0 01 1 1505-
530 PIN; SPRING 1-33619-505-0 01 1 1407-1504
530 PIN; SPRING
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-505-0 01 1 1505-
530 PIN; SPRING
MZW6P M/T(RSZ) 		1-33619-505-0 01 1 1505-
