Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#144130) — 178 parça

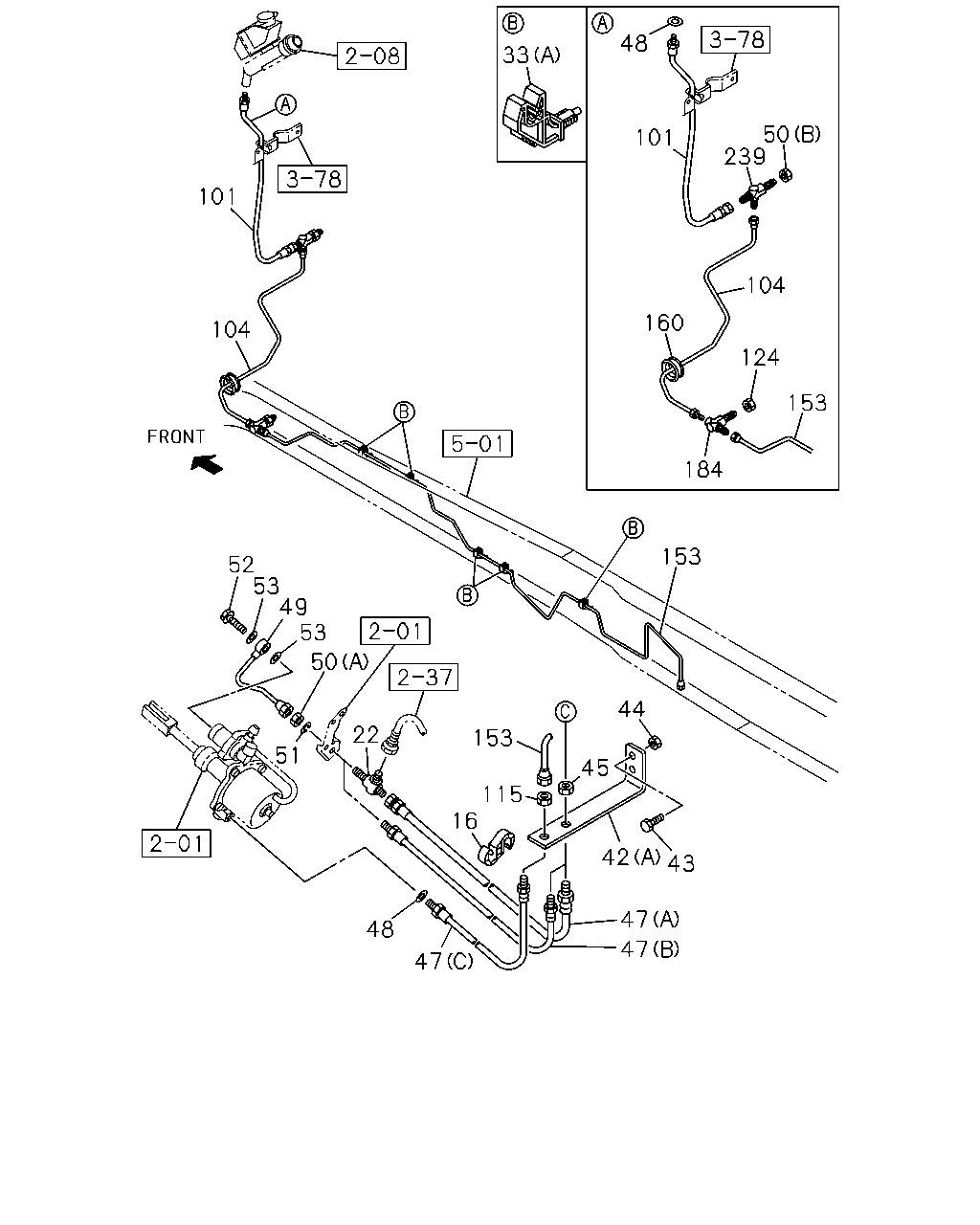

33 48 101 239 50 104 124 153 184 160 101 104 153 47 47 42 43 44 45 153 115 16 22 50 53 49 53 52 51 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1407-1507
16	CLIP; FLEX HOSE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=10 & 12	1-09709-278-1	01	1	1508-
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1407-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8 H=20 L=20	1-09700-604-0	03	1	1505-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8.3 & 10	8-94176-792-0	01	1	1505-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	03	1	1407-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) (B)	8-98099-521-1	01	1	1505-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) (A)	8-98180-225-0	01	1	1407-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1407-1507
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	02	1	1508-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE MAL	0-91180-108-0	02	1	1407-1507
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8 FLANGE MAL	0-91180-108-0	02	1	1508-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1407-1507
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	01	1	1508-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (D) L=500	1-09363-720-0	01	1	1505-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (E) L=500	1-09364-329-0	01	1	1505-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (C) L=400	1-09364-262-0	01	1	1410-1504
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=400	1-09364-262-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=400	1-09364-262-0	01	1	1508-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=370	1-09363-621-0	01	1	1410-1504
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (A) L=370	1-09363-621-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=370	1-09363-621-0	01	1	1508-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=430	1-09363-726-0	01	1	1410-1504
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=430	1-09363-726-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=430	1-09363-726-0	01	1	1508-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (C) L=460	1-09364-264-0	01	1	1407-1504
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=460	1-09364-264-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=460	1-09364-264-0	01	1	1508-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=430	1-09363-623-0	01	1	1407-1504
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (A) L=430	1-09363-623-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=430	1-09363-623-0	01	1	1508-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=520	1-09363-657-0	01	1	1407-1504
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=520	1-09363-657-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=520	1-09363-657-0	01	1	1508-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1407-1507
48	GASKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=10.2 OD=16.0	9-09571-410-0	02	1	1508-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	1505-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1407-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1407-1507
50	NUT; UNION MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (B) M12	0-91111-512-0	01	1	1508-
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1407-1507
50	NUT; UNION MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (A) M12	9-09840-280-0	01	1	1508-
51	WASHER; LK ID=12.2 MAL	0-91510-812-0	01	1	1407-1507
51	WASHER; LK MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=12.2 MAL	0-91510-812-0	01	1	1508-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1407-
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	1508-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1407-
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1508-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440	8-98072-346-0	01	1	1407-1507
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) L=440	8-98072-346-0	01	1	1508-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1505-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=554	8-98114-452-0	01	1	1407-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	1505-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1407-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1407-1507
124	NUT; PIPE UNION MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M12	0-91111-512-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1505-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=2868	8-98250-243-0	01	1	1410-1504
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2868	8-98250-243-0	01	1	1505-1507
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2868	8-98250-243-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1407-1504
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1505-1507
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1508-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1407-1507
160	GROMMET; OIL PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=28 OD=35 T=17	9-09956-256-2	01	1	1508-
184	UNION; FLEX HOSE MZW6P M/T(RSZ)	8-98150-865-0	01	1	1407-
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E)	8-98107-850-0	01	1	1505-
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY MAL	1-09654-059-2	01	1	1407-

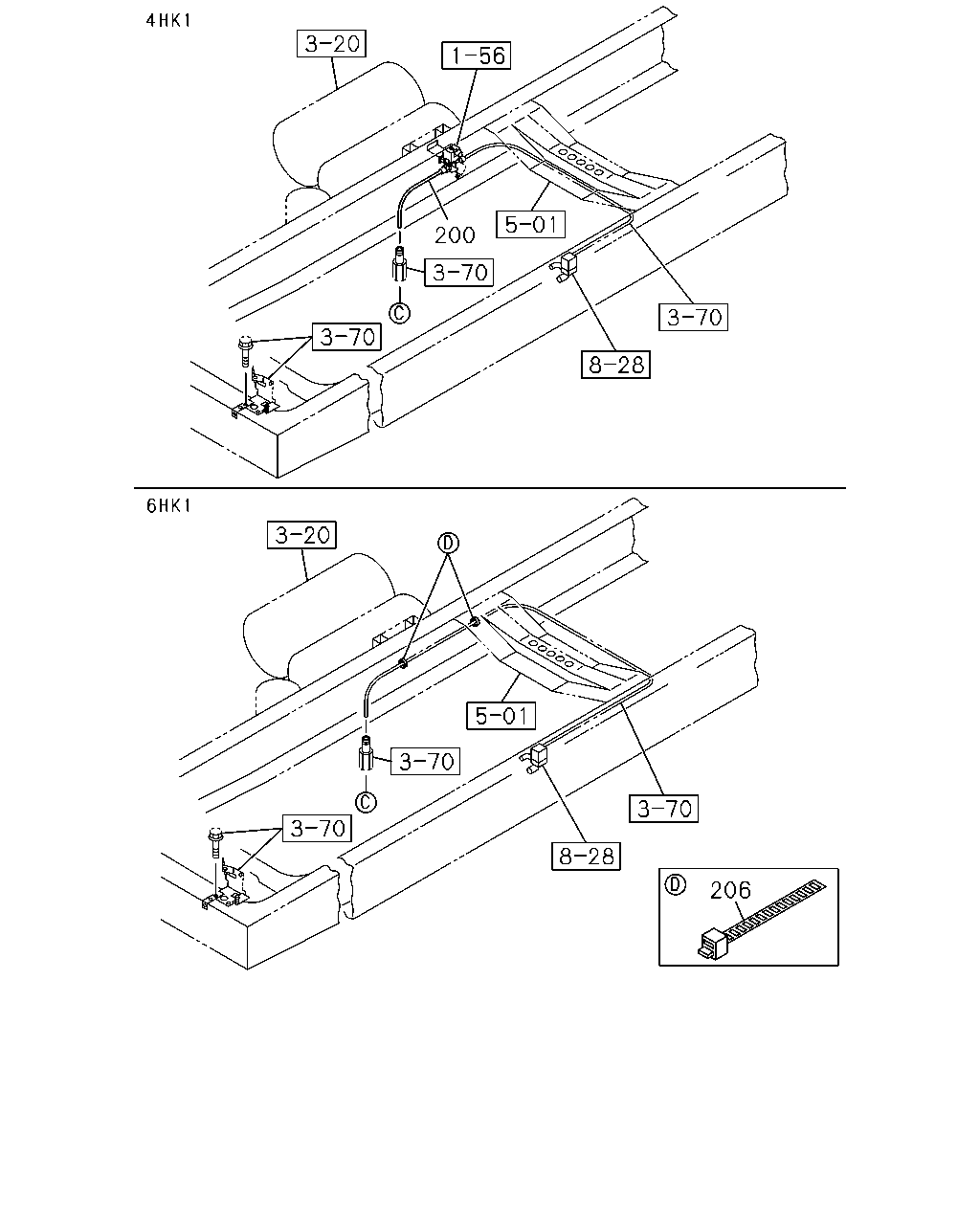

200 206

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	200	TUBE; NYLON 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1407-
	206	CLIP; TUBE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=350	1-09707-183-0	02	1	1410-

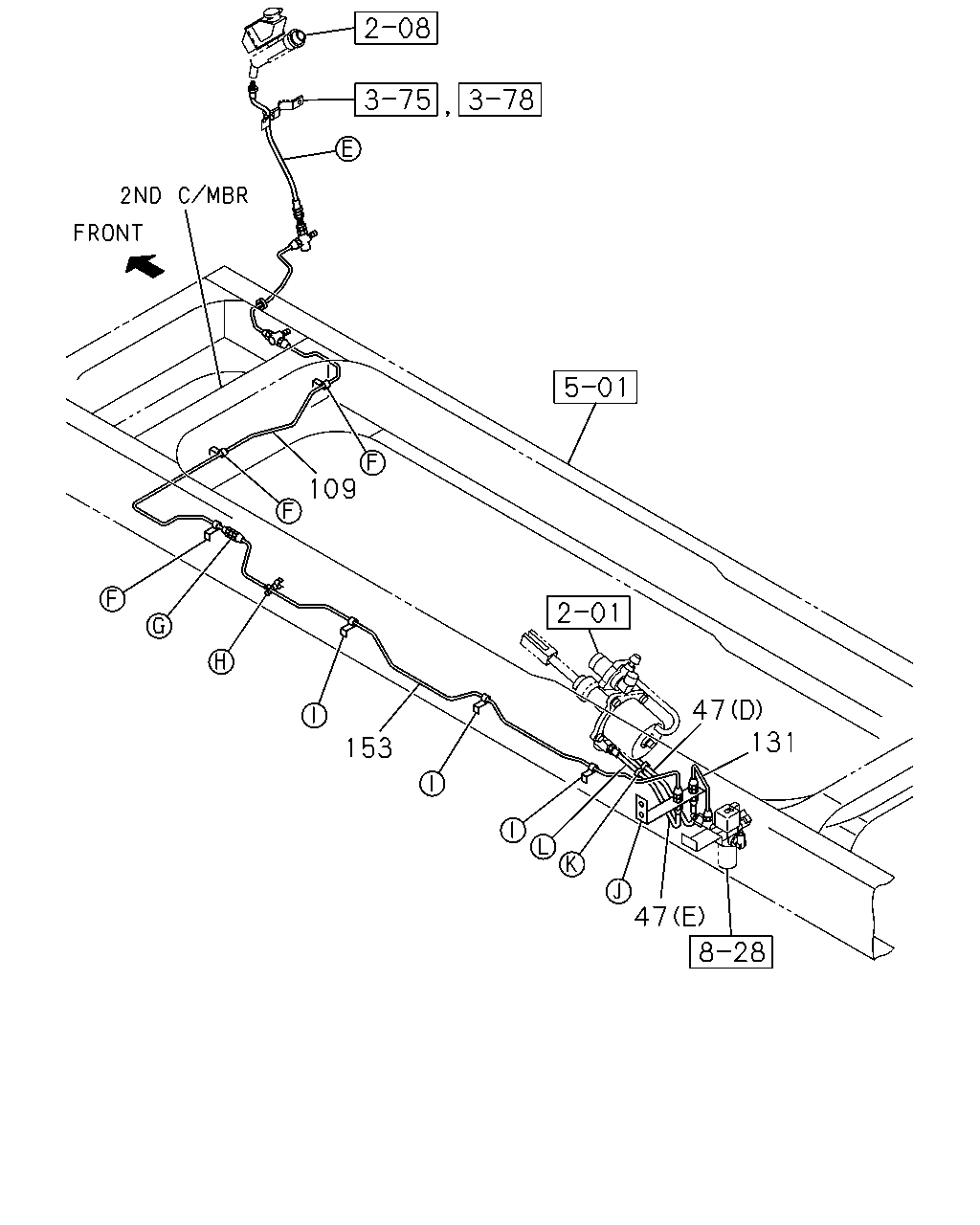

109 47 131 47 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (D) L=500	1-09363-720-0	01	1	1505-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (E) L=500	1-09364-329-0	01	1	1505-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (C) L=400	1-09364-262-0	01	1	1410-1504
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=400	1-09364-262-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=400	1-09364-262-0	01	1	1508-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=370	1-09363-621-0	01	1	1410-1504
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (A) L=370	1-09363-621-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=370	1-09363-621-0	01	1	1508-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=430	1-09363-726-0	01	1	1410-1504
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=430	1-09363-726-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=430	1-09363-726-0	01	1	1508-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (C) L=460	1-09364-264-0	01	1	1407-1504
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=460	1-09364-264-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=460	1-09364-264-0	01	1	1508-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=430	1-09363-623-0	01	1	1407-1504
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (A) L=430	1-09363-623-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=430	1-09363-623-0	01	1	1508-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=520	1-09363-657-0	01	1	1407-1504
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=520	1-09363-657-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=520	1-09363-657-0	01	1	1508-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	1505-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) AIR SUSP DRIVER SEAT<A56> L=244	8-98092-621-0	01	1	1505-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> L=262	8-98108-925-0	01	1	1505-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1505-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=2868	8-98250-243-0	01	1	1410-1504
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2868	8-98250-243-0	01	1	1505-1507
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2868	8-98250-243-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1407-1504
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1505-1507
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1508-

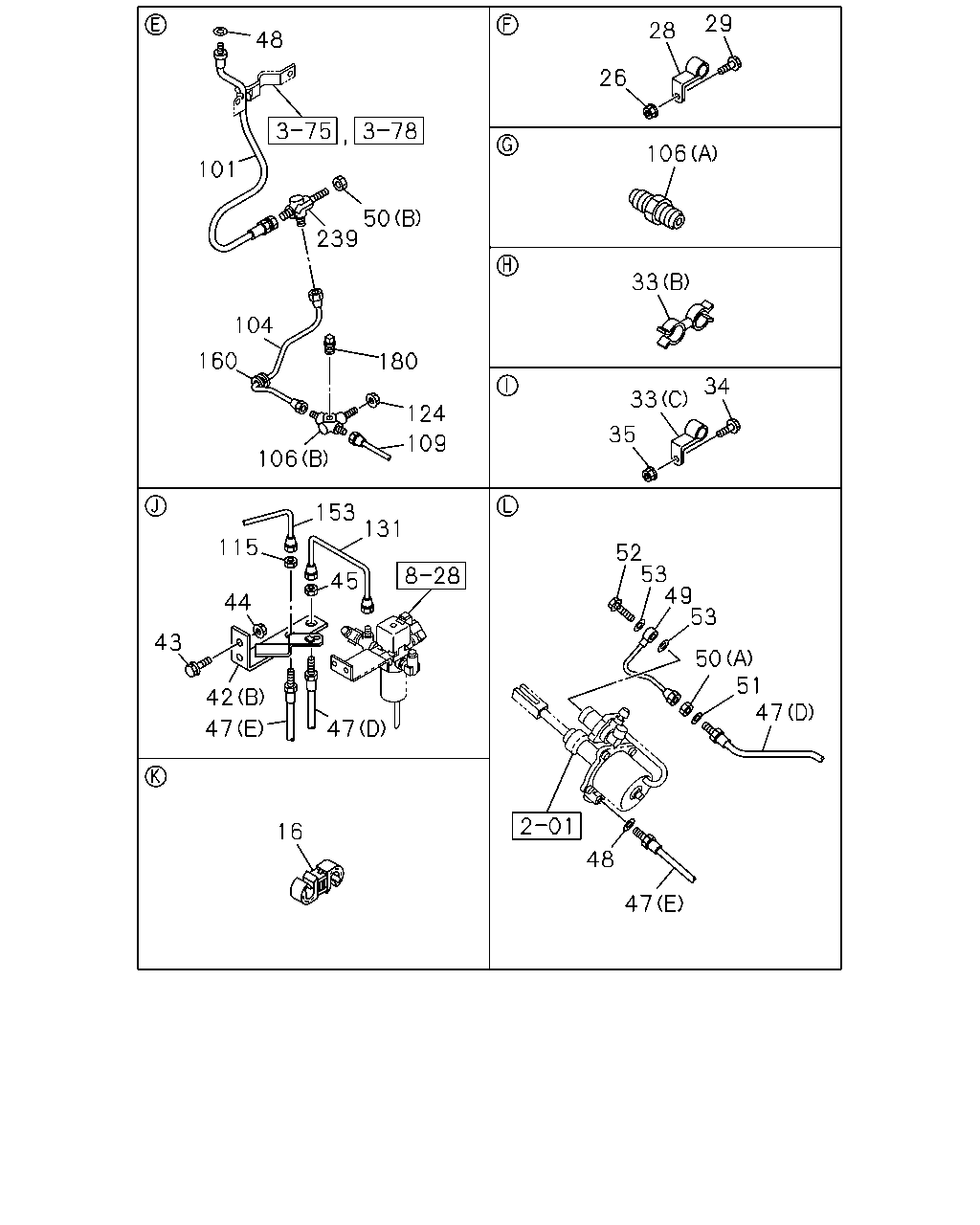

48 101 50 239 104 160 106 109 124 180 35 33 34 33 106 26 28 29 47 47 42 43 44 115 153 131 45 47 48 52 53 49 53 50 51 47 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1407-1507
16	CLIP; FLEX HOSE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=10 & 12	1-09709-278-1	01	1	1508-
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8 FLANGE MAL	0-91180-108-0	03	1	1505-
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) ID=8 H=20 L=20	1-09700-604-0	03	1	1505-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X25 FLANGE MAL	0-28650-825-0	02	1	1505-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	1505-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8 H=20 L=20	1-09700-604-0	03	1	1505-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8.3 & 10	8-94176-792-0	01	1	1505-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	03	1	1407-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1505-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE MAL	0-91180-108-0	03	1	1505-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) (B)	8-98099-521-1	01	1	1505-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) (A)	8-98180-225-0	01	1	1407-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1407-1507
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	02	1	1508-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE MAL	0-91180-108-0	02	1	1407-1507
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M8 FLANGE MAL	0-91180-108-0	02	1	1508-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1407-1507
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	01	1	1508-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (D) L=500	1-09363-720-0	01	1	1505-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (E) L=500	1-09364-329-0	01	1	1505-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (C) L=400	1-09364-262-0	01	1	1410-1504
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=400	1-09364-262-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=400	1-09364-262-0	01	1	1508-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=370	1-09363-621-0	01	1	1410-1504
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (A) L=370	1-09363-621-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=370	1-09363-621-0	01	1	1508-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=430	1-09363-726-0	01	1	1410-1504
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=430	1-09363-726-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=430	1-09363-726-0	01	1	1508-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (C) L=460	1-09364-264-0	01	1	1407-1504
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=460	1-09364-264-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=460	1-09364-264-0	01	1	1508-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=430	1-09363-623-0	01	1	1407-1504
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (A) L=430	1-09363-623-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=430	1-09363-623-0	01	1	1508-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=520	1-09363-657-0	01	1	1407-1504
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=520	1-09363-657-0	01	1	1505-1507
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=520	1-09363-657-0	01	1	1508-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1407-1507
48	GASKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=10.2 OD=16.0	9-09571-410-0	02	1	1508-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	1505-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1407-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1407-1507
50	NUT; UNION MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (B) M12	0-91111-512-0	01	1	1508-
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1407-1507
50	NUT; UNION MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) (A) M12	9-09840-280-0	01	1	1508-
51	WASHER; LK ID=12.2 MAL	0-91510-812-0	01	1	1407-1507
51	WASHER; LK MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=12.2 MAL	0-91510-812-0	01	1	1508-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1407-
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	1508-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1407-
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1508-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440	8-98072-346-0	01	1	1407-1507
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) L=440	8-98072-346-0	01	1	1508-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1505-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=554	8-98114-452-0	01	1	1407-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	1505-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1505-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	1505-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	1505-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1407-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1407-1507
124	NUT; PIPE UNION MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M12	0-91111-512-0	01	1	1508-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) AIR SUSP DRIVER SEAT<A56> L=244	8-98092-621-0	01	1	1505-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> L=262	8-98108-925-0	01	1	1505-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1505-
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=2868	8-98250-243-0	01	1	1410-1504
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2868	8-98250-243-0	01	1	1505-1507
153	PIPE ASM; CLU,UNION TO FLEX 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2868	8-98250-243-0	01	1	1508-
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1407-1504
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1505-1507
153	PIPE ASM; CLU,UNION TO FLEX 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2594 SERVICED BY L=2650	1-47428-743-0	01	1	1508-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1407-1507
160	GROMMET; OIL PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=28 OD=35 T=17	9-09956-256-2	01	1	1508-
180	PLUG; PIPE ZF9S1110 M/T(Y5E) PT1/4 MAL	9-99204-513-0	01	1	1505-
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E)	8-98107-850-0	01	1	1505-
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY MAL	1-09654-059-2	01	1	1407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
